Summary of Contents for Jaco Ultralite Power Blade Hot-Swap 300 Series

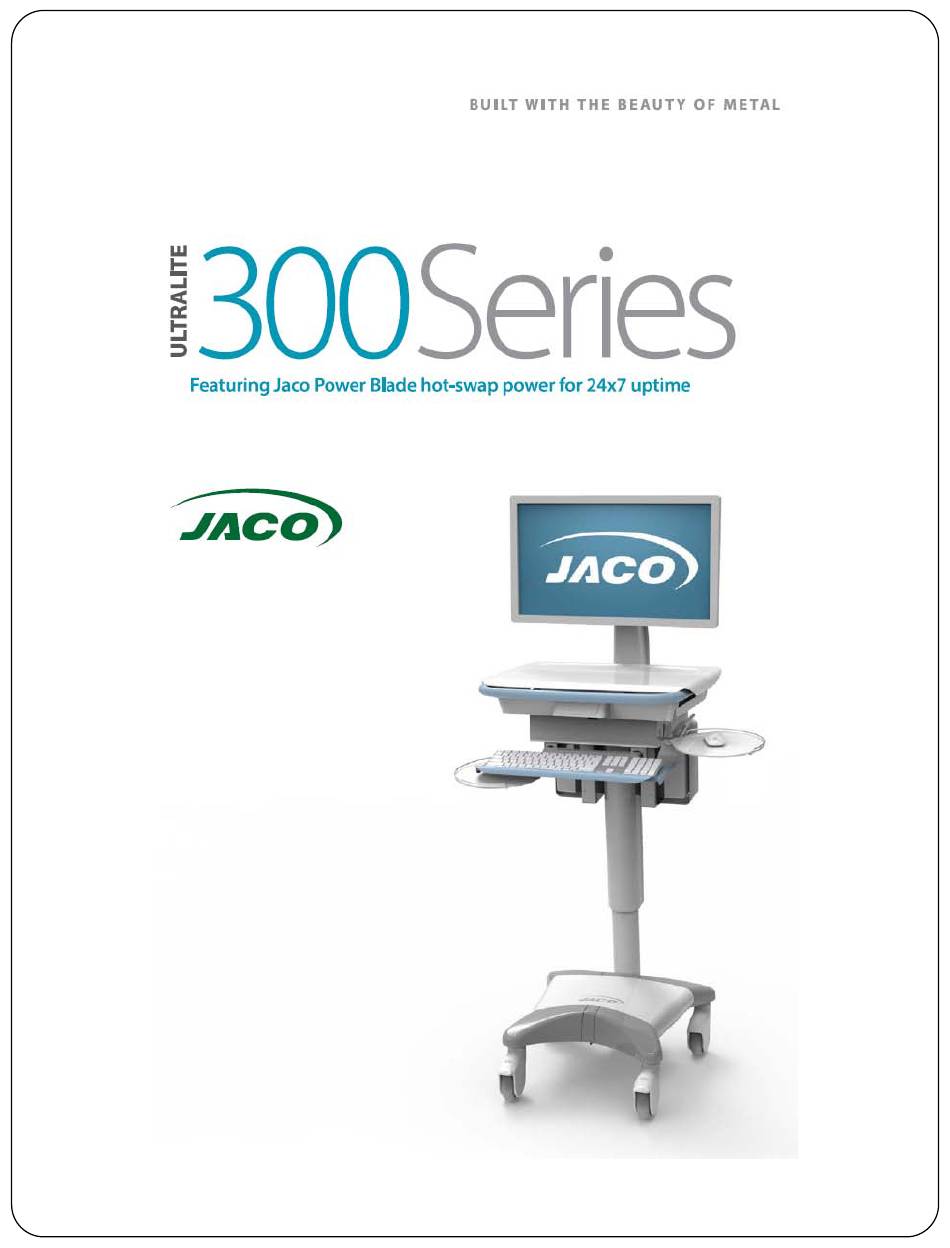

- Page 1 25-0163 Rev 02...
-
Page 2: Table Of Contents
: ................9 NSTALLING TAND AND ONITOR : ..................10 NSTALLING CANNER OUNTS : ............10 NSTALLING EYBOARD AND OUSE ONTO THE JACO P ™ W : ............10 PTIONAL ATENTED HEEL TEERING : ....................... 11 EYBOARD IGHT : ................. 11 PTIONAL... -
Page 3: 300 Series
This manual is also available on request. 51-3829, Power Blade Battery Pack The Power Blade Battery Pack is designed to work with JACO 300 Series Mobile Cart Controller and Power Blade Charger. Operating range 10-14.4 VDC, 16Ah, 204Wh Capacity 12.8V, 16Ah, 204Wh... -
Page 4: Symbol Information
Symbol Information The following symbols are used within this Users Guide and / or on the JACO product. Symbol Meaning This symbol indicates that Caution should be taken. This symbol indicates ATTENTION, consult the accompanying documents Product Labeling Hot-Swap Cart The Mobile Cart is shipped with a P/N &... -
Page 5: General Specification
General Specification Mobile Cart Work Surface Height: 30" to 46" Keyboard Height: 25.5" to 41.5" 310 Laptop Cart - 20" x 18.5" Work Surface: (Laptop opening 16.5" x 2.75") 320 PC Cart - 20" x 16" Internal Laptop 310 Laptop Cart - 16" x 12" x 2.25" or PC Storage: 320 PC Cart - 16"... -
Page 6: Power Monitoring & C
Power Monitoring & Control, Wi-Fi Connection The JACO 300 Series Power Blade status, parameters and configuration files are fully accessible via the Cart's built-in HTML web server. Web pages are viewed via standard internet browsers on a PC, tablet or Smartphone and the Cart is built to standalone so no software needs to be installed on the Cart's computer eliminating "software clash"... -
Page 7: Safety Recommendations And Proper Operation , Care & M
If your JACO Mobile Cart has a Drawer System option, limit weight per drawer to 2 lbs WARNING: max, close drawers when moving and do not transport at more than a 5 degree slope. -
Page 8: Aintenance
77 deg (25 C). The Power Blade Charger should be reviewed weekly for proper care and cleaning. The bays should be used only for the charging of the JACO Power Blade Battery Packs, any other use may cause damage and will void the warranty. -
Page 9: Basic Mobile Cart Integration
Unpacking & Assembly: Your JACO Mobile Cart may be delivered stacked with one container on top of another. Please use caution when removing the top Cart for unpacking. This is a two person lift and the top Cart must be placed on the ground before unpacking. -
Page 10: Installing Stand And Installing Scannerm
Installing Stand and LCD Monitor: To attach the monitor stand to the Cart you will need a 3/8 nut driver to tighten the 4 nuts. Place the monitor stand so that the 4 threaded studs drop into the 4 holes on the mounting plate that is attached to the rear handle of the Cart. -
Page 11: Installing Keyboard And Optional Jaco Patented
Use an 11/32 nut driver to tighten. Installing Keyboard and Mouse onto the Cart: When ordering your JACO Cart you have the option of including an integrated mouse and keyboard. If you are adding your own mouse and keyboard, they can be integrated as follows. It is most important that the wires are routed out of the way of the sliding keyboard tray. -
Page 12: Keyboard Light
Keyboard Light: The front touch pad numbers are used if an optional locking Drawer system is included but it also offers a Keyboard Light Press the light bulb icon button located on the far right and the keyboard light will turn on. Press again and the light will go off. - Page 13 Power Blade Battery Pack & Cart Controller To insert the Power Blade Battery Pack into the Cart Controller, simply hold by the integrated handle and insert into the Cart Controller using the top and bottom guides for alignment. As you push the Power Blade Battery Pack into position, you will hear a "click"...
-
Page 14: Power Blade Battery Pack
Estimated run-time per Power Blade Battery Pack: The JACO 300 Series Hot-Swap Power Blade Battery Packs are designed to be a safe and reliable solution for health care applications. As with any battery system, the amount of time that the battery will power the equipment is dependent on the device (PC, Laptop, LCD Monitor…) power demand. -
Page 15: Power Blade Charger
IEC 62133 - Safety Requirement for Cells Containing Alkaline Electrolytes UL 2054 - UL Certification for Primary and Secondary Batteries ’ AVE A QUESTION RE HERE TO HELP 1-800-649-2278 ALL US AT OR VISIT JACOINC SUPPORT JACO I . 140 C MA, USA ONSTITUTION RANKLIN... -
Page 16: Cart
Remove the batteries from the Cart Carrier, replace with 2 fully charged batteries. If there is power, the previous batteries need to be charged. If there is still no power to the computer & LCD, contact JACO for replacement authorization or additional troubleshooting direction.
