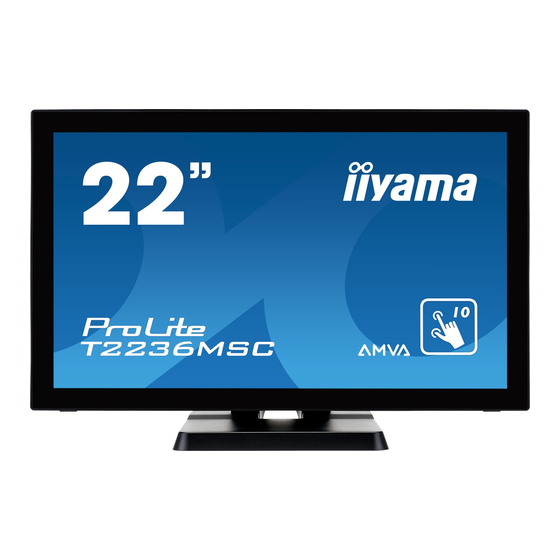

Summary of Contents for Iiyama ProLite T2236MSC
- Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for...
- Page 3 IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PLT2236, PLT2336 We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of different countries from there.
-
Page 4: Table Of Contents
ADJUSTMENT MENU CONTENTS ..........13 SCREEN ADJUSTMENTS ............19 POWER MANAGEMENT FEATURE ..........22 TROUBLE SHOOTING ..............23 RECYCLING INFORMATION .............24 APPENDIX ..................25 SPECIFICATIONS : ProLite T2336MSC ........25 SPECIFICATIONS : ProLite T2236MSC ........26 DIMENSIONS : ProLite T2336MSC ..........27 DIMENSIONS : ProLite T2236MSC ..........27 COMPLIANT TIMING ..............27... -
Page 5: For Your Safety
DO NOT PUT ANY OBJECT INTO THE MONITOR Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fire, electric shock or damage. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located. Please also ensure that you do not place any heavy objects on the monitor, and that all cables are routed such that children may not pull the cables and possibly cause injury.
-
Page 7: Special Notes On Lcd Monitors
If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. For safety reasons, turn off the power switch and unplug the monitor before you CAUTION clean it. -
Page 8: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office. Power Cable* ... -
Page 9: Installation
INSTALLATION WARNING Before installation, make sure the wall, ceiling or desktop arm is strong enough to hold the necessary weight of the monitor and the mount. < WALL MOUNTING > WARNING When you use with the wall mounting, in consideration of thickness of the mounting stage, tighten the M4 Screws (4pcs) with washer which “L” length is 7mm to fasten the monitor. -
Page 10: Fitting And Removal Of Base
FITTING AND REMOVAL OF BASE CAUTION Put the monitor on a stable surface. The monitor may cause injury or damage if it falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. Unplug the monitor before removal or installation to avoid an electric shock or a damage. -
Page 11: Controls And Connectors
CONTROLS AND CONNECTORS <Front> Scroll up / Audio Adjust / Blue Light Reducer Button ( UP) Scroll Down / ECO Button ( DOWN) Auto Button (AUTO) Menu Button (MENU) Power Switch ( ) Power Indicator <Right Side> NOTE Blue: Normal operation Orange: Power Management Speakers 5V, 900mA USB Downstream Connector ( 5V, 900mA USB Downstream Connector ( ) 5V, 900mA USB Downstream Connector ( USB Upstream Connector ( Audio Connector (... -
Page 12: Connecting Your Monitor
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. -
Page 13: Computer Setting
Change to the desired signal timing listed on page 27: COMPLIANT TIMING. Windows 7/8/8,1/10 Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows 7/8/8,1/10 by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied. - Page 14 Touch Input Settings in Dual Screen Mode Connect the primary monitor to the computer first. Set Control Panel > Hardware and Sound > Tablet PC Settings > Display > Setup. The following message will appear on the screen. Please follow the instructions. After setting , connect a second monitor and perform the setup as in NOTE The monitors are recognized as dual-display, and touch operation cannot be performed on two monitors at the same time.
-
Page 15: Adjusting The Viewing Angle
ADJUSTING THE VIEWING ANGLE For optimal viewing it is recommended to look at the full face of the monitor. Hold the panel so that the monitor does not topple when you change the monitor’s angle. You are able to adjust the monitor’s angle up to 90 degrees upward, 5 degrees downward. -
Page 16: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 27. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 19 for SCREEN ADJUSTMENTS. -
Page 17: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Luminance Luminance Contrast Brightness i-Style Color Standard Adv. Contrast Adjustment Item Problem / Option Button to Press Too dull Contrast Too intense Too dark Brightness * Too bright Normal Mode1 Brightness of back-light is reduced. Direct Mode2 Brightness of back-light is reduced more than Mode1. - Page 18 Image Setup Image Setup Clock Phase H.Position V.Position Aspect Full Adjustment Item Problem / Option Button to Press Too narrow Clock* Too wide Phase* To correct flickering text or lines Too left H. Position* Too right Too low V. Position* Too high Full Expansion display Aspect Aspect Expansion display of Aspect...
- Page 19 Color Temp.* Color Temp. Gamma Mode1 Color Temp. Warm User-R User-G User-B Adjustment Item Problem / Option Button to Press Mode1 Normal Gamma Mode2 High contrast Mode3 Dark User-R Too weak User User-G Too strong User-B Color Temp. Warm Greenish white Normal Yellowish white Cool...
- Page 20 OSD Setup OSD Setup H.Position V.Position Timeout Language English Adjustment Item Problem / Option Button to Press OSD is too left H.Position OSD is too right OSD is too low V.Position OSD is too high You can set the OSD display duration time Timeout between 5 and 60 seconds.
- Page 21 Extra Extra Reset Signal Select Auto HDMI audio LINE IN Over Drive Information Input : D-SUB Resolution : 1920(H) 1080(V) H.Frequency : 68KHz V.Frequency : 60Hz Adjustment Item Problem / Option Button to Press Factory-preset data is restored. Reset Return to Menu. Auto Select the signal input automatically.
- Page 22 Direct You can skip the Menu items and directly display an option setting screen or an adjustment scale by using the following button operations. Volume: Press the Button when the Menu is not displayed. Adjustment Item Problem / Option Button to Press Too soft Volume...
-
Page 23: Screen Adjustments
If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama. com). Adjust the image by following the procedure below to get the desired picture. - Page 24 Press the Auto Button. (AUTO ADJUST) Adjust the image manually by following procedure below when the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust. Adjust the V-POSITION so that the top and bottom of the picture frame will fit to the display area.
- Page 25 Adjust the FINE to correct horizontal wavy noise, flicker or blur in the zebra pattern. In case the strong flicker or blurs remain on a part of the screen, repeat steps and NOTE because the H-SIZE may not be adjusted correctly. Adjust the H-POSITION after the FINE adjustment if the horizontal position moves during the adjustment. Adjust the Brightness and Color to get the desired picture after you complete the H-SIZE and FINE adjustments.
-
Page 26: Power Management Feature
POWER MANAGEMENT FEATURE When your computer is not in use, the power management feature will automatically reduce the power consumption of your monitor. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below. The power management function, including any timer settings is configured by the operating system. Check your operating system manual for information on how this can be configured. -
Page 27: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 28: Recycling Information
The touch position The calibration function set up correctly. does not deviate. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com for monitor recycling. 24 TROUBLE SHOOTING / RECYCLING INFORMATION... -
Page 29: Appendix
APPENDIX Design and specifications are subject to change without prior notice. SPECIFICATIONS : ProLite T2336MSC Technology Projected capacitive Touch Light transmission Screen Communication system Size Category 23" Panel technology Size Diagonal: 23" (58.4cm) Pixel pitch 0.2652mm H × 0.2652mm V Brightness 250cd/m (Typical: without Touch panel), 213cd/m (Typical: with Touch panel) Panel Contrast ratio 1000 : 1 (Typical) Viewable angle Horizontal : 178 degrees, Vertical: 178 degrees (Typical) Response time 5ms (Gray to Gray) Display Colors... -
Page 30: Specifications : Prolite T2236Msc
SPECIFICATIONS : ProLite T2236MSC Technology Projected capacitive Touch Light transmission Screen Communication system Size Category 22" Panel technology AMVA Size Diagonal: 21.5" (54.7cm) Pixel pitch 0.248mm H × 0.248mm V Brightness 250cd/m (Typical: without Touch panel), 213cd/m (Typical: with Touch panel) Panel Contrast ratio 3000 : 1 (Typical: with Touch panel) Viewable angle Horizontal : 178 degrees, Vertical: 178 degrees (Typical) Response time... -
Page 31: Dimensions : Prolite T2336Msc
DIMENSIONS : ProLite T2336MSC 561.0mm/22.1” 57.0mm/2.2” 556.0mm/21.9” 240.0mm/9.5” DIMENSIONS : ProLite T2236MSC 522.5mm/20.6” 57.0mm/2.5” 517.5mm/20.4” 240.0mm/9.5” COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 31.469kHz 59.940Hz 25.175MHz 640 × 480 37.500kHz 75.000Hz 31.500MHz 35.156kHz 56.250Hz 36.000MHz 800 × 600 37.879kHz...
