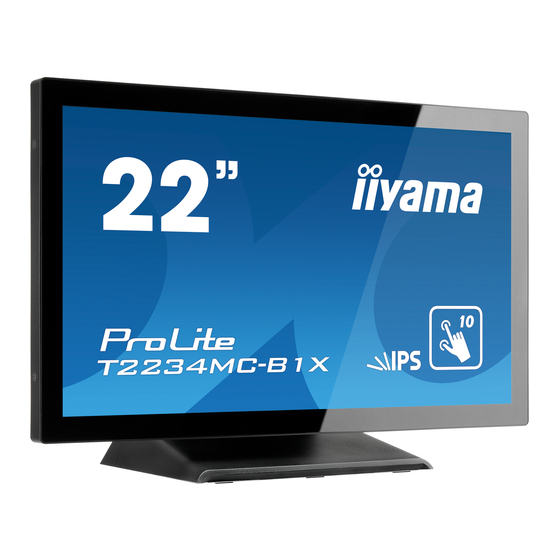

Iiyama ProLite T2234MC User Manual
Hide thumbs
Also See for ProLite T2234MC:
- User manual (26 pages) ,
- Specification (1 page) ,
- User manual (33 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Iiyama ProLite T2234MC
Summary of Contents for Iiyama ProLite T2234MC
-
Page 1: User Manual
USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for... -
Page 3: Ce Marking Declaration Of Conformity
IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of different countries from there. -
Page 4: Table Of Contents
ADJUSTMENT MENU CONTENTS ..........12 SCREEN ADJUSTMENTS ............16 POWER MANAGEMENT FEATURE ..........19 TROUBLE SHOOTING ..............20 RECYCLING INFORMATION .............21 APPENDIX ..................22 SPECIFICATIONS : ProLite T2234MC-B1 ........22 SPECIFICATIONS : ProLite T2234MC-B1X / ProLite T2234MC-B2X ..23 SPECIFICATIONS : ProLite T2234MC-B1AGB ......24 DIMENSIONS ................25 COMPLIANT TIMING ..............25... -
Page 5: For Your Safety
CORRECT USE OF THE AC ADAPTER Use only the AC Adapter provided by iiyama. Any deviation from this by using another type of adapter may result in damage to the accessory and the monitor by fi re or electric shock. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 7: Special Notes On Lcd Monitors
If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. To protect the Touch screen surface, do not scratch or rub the screen with a hard NOTE object. -
Page 8: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce. -
Page 9: Wall Mounting
WALL MOUNTING When you use with the wall mounting, in consideration of thickness of the mounting WARNING stage, tighten the M4 Screw with washer which “L” length is 8mm to fasten the monitor. Using the screw longer than this may cause electric shock or damage because it may contact with the electrical parts inside the monitor. -
Page 10: Controls And Connectors
CONTROLS AND CONNECTORS Remote Control OSD Key* <Front> <Back> Menu Button (MENU)* Scroll Up / Brightness Button ( Scroll Down / Contrast Button ( Select / Auto Button (SELECT)* Power Switch ( VGA(D-sub) mini 15pin Connector DVI-D 24pin Connector Remote Control OSD Key Connector USB Connector Connector for AC Adapter Power Indicator... -
Page 11: Connecting Your Monitor
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. - Page 12 [Fitting and Removal of Cable Cover] Put a piece of soft cloth on the table beforehand Step1 Step2 to prevent the monitor from being scratched. Step 2 Lay the monitor flat on a table with front face down. < Removal > Move the stand into position as shown in Step1.
-
Page 13: Computer Setting
Change to the desired signal timing listed on page 25: COMPLIANT TIMING. Windows XP/Vista/7/8/8.1/10 Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows XP/Vista/7/8/8.1/10 by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied. -
Page 14: Adjusting The Viewing Angle
ADJUSTING THE VIEWING ANGLE For optimal viewing it is recommended to look at the full face of the monitor. Hold the panel so that the monitor does not topple when you change the monitor’s angle. You are able to adjust the monitor’s angle up to 90 degrees upward, 5 degrees downward. -
Page 15: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 25. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 16 for SCREEN ADJUSTMENTS. -
Page 16: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS C O N T R A S T BRIGHT NESS 1 2 8 0 x 1 0 2 4 F H : 63 K H z F V: 59 .9 H z Adjustment Item Problem / Option Button to Press Too dull CONTRAST... - Page 17 A U TO A D J U S T Only Analog Input H-POSITION V-POSITION H-SIZE FINE Adjustment Item Problem / Option Button to Press Direct AUTO ADJUST * Adjust H/V-POSITION, H-SIZE and FINE automatically. Too left H-POSITION Too right Too low V-POSITION Too high Too narrow...
- Page 18 OSD H-POSITION OSD V-POSITION O SD TIME O U T R E SE T IN PU T SE LE C T Adjustment Item Problem / Option Button to Press OSD is too left OSD H-POSITION OSD is too right OSD is too low OSD V-POSITION OSD is too high You can set the OSD display duration time...
- Page 19 ENGLISH ESPAÑOL FRANÇAIS DEUTSCH ITALIANO Adjustment Item Problem / Option Button to Press ENGLISH English ESPAÑOL Spanish Japanese FRANÇAIS French OSD LANGUAGE DEUTSCH German Traditional Chinese Simplifi ed Chinese ITALIANO Italian 9300 6500 5500 GREEN 7500 BLUE USER Adjustment Item Problem / Option Button to Press 9300...
-
Page 20: Screen Adjustments
If the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama.com). Adjust the image by following the procedure below to get the desired picture. - Page 21 Press the SELECT Button. (AUTO ADJUST) Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust. Adjust the V-POSITION so that the top and bottom of the picture frame will fit to the display area.
- Page 22 Adjust the FINE to correct horizontal wavy noise, fl icker or blur in the zebra pattern. In case the strong fl icker or blurs remain on a part of the screen, repeat steps NOTE because the H-SIZE may not be adjusted correctly. If the fl icker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from again.
-
Page 23: Power Management Feature
POWER 2W or 3W* 100% CONSUMPTION * ProLite T2234MC-B1X / ProLite T2234MC-B2X / ProLite T2234MC-B1AGB ：2W ProLite T2234MC-B1：3W Even when using the power management mode, the monitor consumes electricity. Turn NOTE off the Power Switch whenever the monitor is not in use, during the night and weekends, to avoid unnecessary power consumption. -
Page 24: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem Check ... -
Page 25: Recycling Information
RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. Recycling information 21... -
Page 26: Appendix
APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS : ProLite T2234MC-B1 Touch Technology Projected capacitive 2pt touch Screen Light transmission 90% Communication USB serial transfer system Size Category 22" LCD Panel Driving system a-Si TFT Active Matrix Size Diagonal: 21.5"... -
Page 27: Specifications : Prolite T2234Mc-B1X / Prolite T2234Mc-B2X
SPECIFICATIONS : ProLite T2234MC-B1X / ProLite T2234MC-B2X Touch Projected capacitive 10pt touch Technology Screen Light transmission 90% Communication USB serial transfer system Size Category 22" LCD Panel Driving system a-Si TFT Active Matrix Size Diagonal: 21.5" (55cm) Pixel pitch 0.247mm H × 0.247mm V... -
Page 28: Specifications : Prolite T2234Mc-B1Agb
SPECIFICATIONS : ProLite T2234MC-B1AGB Touch Projected capacitive 10pt touch Technology Screen Light transmission 90% Communication USB serial transfer system Size Category 22" LCD Panel Driving system a-Si TFT Active Matrix Size Diagonal: 21.5" (55cm) Pixel pitch 0.247mm H × 0.247mm V... -
Page 29: Dimensions
DIMENSIONS 517.5mm/20.4” 46.0mm/1.8” 476.5mm/18.8” 249.5mm/9.8” COMPLIANT TIMING Dot Clock Horizontal Vertical Video Mode Frequency Frequency 31,469kHz 59,940Hz 25,175MHz 37,500kHz 75,000Hz 31,500MHz 640 × 480 31,500MHz 37,861kHz 72,809Hz 35,156kHz 56,250Hz 36,000MHz 37,879kHz 60,317Hz 40,000MHz SVGA 800 × 600 46,875kHz 75,000Hz 49,500MHz 48,077kHz 72,188Hz 50,000MHz...
