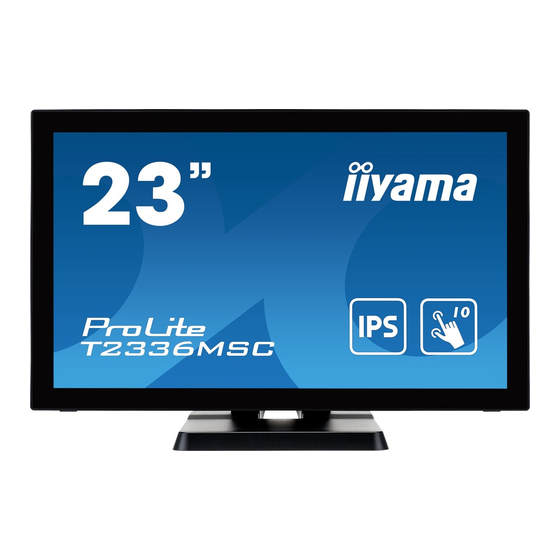

- Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for...
- Page 3 IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of different countries from there.
-
Page 4: Table Of Contents
ADJUSTMENT MENU CONTENTS ..........12 SCREEN ADJUSTMENTS ............18 POWER MANAGEMENT FEATURE ..........21 TROUBLE SHOOTING ..............22 RECYCLING INFORMATION .............23 APPENDIX ..................24 SPECIFICATIONS : ProLite T2336MSC ........24 SPECIFICATIONS : ProLite T2236MSC ........25 DIMENSIONS : ProLite T2336MSC ..........26 DIMENSIONS : ProLite T2236MSC ..........26 COMPLIANT TIMING ..............26... -
Page 5: For Your Safety
Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fi re, electric shock or damage. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 7: Special Notes On Lcd Monitors
If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. For safety reasons, turn off the power switch and unplug the monitor before you CAUTION clean it. -
Page 8: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce. -
Page 9: Wall Mounting
WALL MOUNTING When you use with the wall mounting, in consideration of thickness of the mounting WARNING stage, tighten the M4 Screw with washer which “L” length is 7mm to fasten the monitor. Using the screw longer than this may cause electric shock or damage because it may contact with the electrical parts inside the monitor. -
Page 10: Fitting And Removal Of Base
FITTING AND REMOVAL OF BASE Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. ... -
Page 11: Controls And Connectors
CONTROLS AND CONNECTORS <Front> Scroll up / Audio Adjust / Blue Light Reducer Button ( Scroll Down / ECO Button ( DOWN) Auto Button (AUTO) Menu Button (MENU) Power Switch ( Power Indicator <Right Side/> NOTE Blue: Normal operation Orange: Power Management Speakers USB Downstream Connector ( USB Downstream Connector (... -
Page 12: Connecting Your Monitor
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. -
Page 13: Computer Setting
Change to the desired signal timing listed on page 26: COMPLIANT TIMING. Windows 7/8 Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows 7/8 by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied. -
Page 14: Adjusting The Viewing Angle
ADJUSTING THE VIEWING ANGLE For optimal viewing it is recommended to look at the full face of the monitor. Hold the panel so that the monitor does not topple when you change the monitor’s angle. You are able to adjust the monitor’s angle up to 90 degrees upward, 5 degrees downward. -
Page 15: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 26. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 18 for SCREEN ADJUSTMENTS. -
Page 16: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Luminance Luminance Contrast Brightness i-Style Color Standard Adv. Contrast Adjustment Item Problem / Option Button to Press Too dull Contrast Too intense Too dark Brightness * Too bright Normal Mode1 Brightness of back-light is reduced. Direct Mode2 Brightness of back-light is reduced more than Mode1. - Page 17 Image Setup Image Setup Clock Phase H.Position V.Position Aspect Full Adjustment Item Problem / Option Button to Press Too narrow Clock* Too wide Phase* To correct fl ickering text or lines Too left H. Position* Too right Too low V. Position* Too high Full Expansion display...
- Page 18 Color Temp.* Color Temp. Gamma Mode1 Color Temp. Warm User-R User-G User-B Adjustment Item Problem / Option Button to Press Mode1 Normal Mode2 Gamma High contrast Mode3 Dark User-R Too weak User User-G Too strong User-B Color Temp. Warm Greenish white Normal Yellowish white Cool...
- Page 19 OSD Setup OSD Setup H.Position V.Position Timeout Language English Adjustment Item Problem / Option Button to Press OSD is too left H.Position OSD is too right OSD is too low V.Position OSD is too high You can set the OSD display duration time Timeout between 5 and 60 seconds.
- Page 20 Extra Extra Reset Signal Select Auto HDMI audio LINE IN Over Drive Information Input : D-SUB Resolution : 1920(H) 1080(V) H.Frequency : 68KHz V.Frequency : 60Hz Adjustment Item Problem / Option Button to Press Factory-preset data is restored. Reset Return to Menu. Select the signal input automatically.
- Page 21 Direct You can skip the Menu items and display an adjustment scale directly by using the following button operations. Volume: Press the Button when the Menu is not displayed. Adjustment Item Problem / Option Button to Press Too soft Volume Too loud ...
-
Page 22: Screen Adjustments
If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama. com). - Page 23 Press the Auto Button. (AUTO ADJUST) Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust. Adjust the V-POSITION so that the top and bottom of the picture frame will fit to the display area.
- Page 24 Adjust the FINE to correct horizontal wavy noise, fl icker or blur in the zebra pattern. In case the strong fl icker or blurs remain on a part of the screen, repeat steps NOTE because the H-SIZE may not be adjusted correctly. If the fl icker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from again.
-
Page 25: Power Management Feature
POWER MANAGEMENT FEATURE When your computer is not in use, the power management feature will automatically reduce the power consumption of your monitor. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below. The power management function, including any timer settings is confi... -
Page 26: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem Check ... -
Page 27: Recycling Information
RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. Recycling information 23... -
Page 28: Appendix
APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS : ProLite T2336MSC Touch Technology Projected capacitive Screen Light transmission 85% Communication USB serial transfer system Size Category 23" LCD Panel Panel technology IPS Size Diagonal: 23" (58.4cm) Pixel pitch 0.2652mm H ×... -
Page 29: Specifications : Prolite T2236Msc
SPECIFICATIONS : ProLite T2236MSC Touch Technology Projected capacitive Screen Light transmission 85% Communication USB serial transfer system Size Category 22" LCD Panel Panel technology AMVA Size Diagonal: 21.5" (55cm) Pixel pitch 0.248mm H × 0.248mm V Brightness 213cd/m (Typical: with Touch panel) Contrast ratio 3000 : 1 (Typical: with Touch panel) Viewable angle... -
Page 30: Dimensions : Prolite T2336Msc
DIMENSIONS : ProLite T2336MSC 561.0mm/22.1” 57.0mm/2.2” 556.0mm/21.9” 240.0mm/9.5” DIMENSIONS : ProLite T2236MSC 522.5mm/20.6” 57.0mm/2.5” 517.5mm/20.4” 240.0mm/9.5” COMPLIANT TIMING Horizontal Vertical Dot Clock Video Mode Frequency Frequency 31,469kHz 59,940Hz 25,175MHz 640 × 480 31,500MHz 37,500kHz 75,000Hz 35,156kHz 56,250Hz 36,000MHz SVGA 800 × 600...
