Summary of Contents for Iiyama ProLite T2234MSC

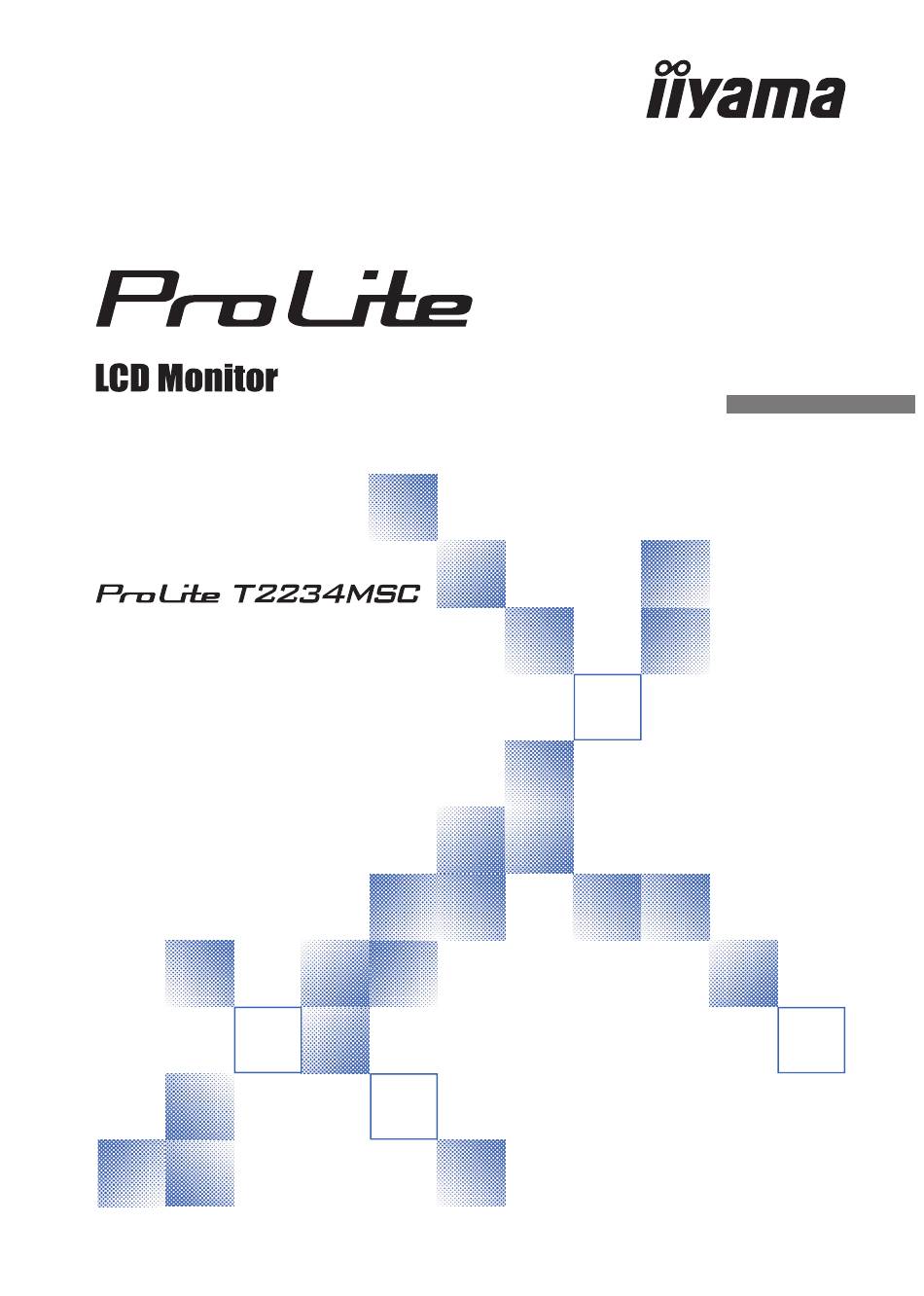

- Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for...
- Page 3 IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PLC2234 We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of diff...
-
Page 4: Table Of Contents
COMPUTER SETTING ..............10 ADJUSTING THE VIEWING ANGLE ...........12 OPERATING THE MONITOR .............13 ADJUSTMENT MENU CONTENTS ..........15 SCREEN ADJUSTMENTS ............19 POWER MANAGEMENT FEATURE ..........22 TROUBLE SHOOTING ..............23 RECYCLING INFORMATION .............24 APPENDIX ..................25 SPECIFICATIONS : ProLite T2234MSC-B6X ......25 DIMENSIONS ................26 COMPLIANT TIMING ..............27... -
Page 5: For Your Safety
CORRECT USE OF THE AC ADAPTER Use only the AC Adapter provided by iiyama. Any deviation from this by using another type of adapter may result in damage to the accessory and the monitor by fi re or electric shock. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 7: Special Notes On Lcd Monitors
If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. To protect the Touch screen surface, do not scratch or rub the screen with a hard NOTE object. -
Page 8: Before You Operate The Monitor
BEFORE YOU OPERATE THE MONITOR FEATURES Supports Resolutions up to 1920 × 1080 High Contrast 1000:1 (Typical) / Brightness 350cd/m (Typical) Digital Character Smoothing Automatic Set-up Stereo Speakers 2 × 3W Stereo Speakers Power Management (VESA DPMS Compliant) ... -
Page 9: Checking The Contents Of The Package
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce. -
Page 10: Installation
INSTALLATION WARNING Before installation, make sure the wall, ceiling or desktop arm is strong enough to hold the necessary weight of the display and the mount. < WALL MOUNTING > When you use with the wall mounting, in consideration of thickness of the mounting WARNING stage, tighten the M4 Screws (4pcs) with washer which “L”... -
Page 11: Controls And Connectors
CONTROLS AND CONNECTORS Remote Control Touch V01* <Front> <Back> Menu (MENU) * Scroll Up / Brightness ( Scroll Down / Mute ( Select (SELECT) * Power Switch ( USB Connector (USB) Remote Control Touch V01 Connector (RJ11) Audio Connector (AUDIO) VGA Connector (VGA) HDMI Connector (HDMI) DisplayPort Connector (DP) -
Page 12: Connecting Your Monitor
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. - Page 13 [Fitting and Removal of Cable Cover] Put a piece of soft cloth on the table beforehand to prevent the monitor from being scratched. Step1 Step2 Step 2 Lay the monitor flat on a table with front face down. < Removal > Move the stand into position as shown in Step1.
-
Page 14: Computer Setting
Change to the desired signal timing listed on page 27: COMPLIANT TIMING. Windows XP/Vista/7/8/8.1/10 Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows XP/Vista/7/8/8.1/10 by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied. - Page 15 Touch Input Settings in Dual Screen Mode Connect the primary monitor to the computer fi rst. Set Control Panel > Hardware and Sound > Tablet PC Settings > Display > Setup. The following message will appear on the screen. Please follow the instructions. After setting , connect a second monitor and perform the setup as in NOTE...
-
Page 16: Adjusting The Viewing Angle
ADJUSTING THE VIEWING ANGLE For optimal viewing it is recommended to look at the full face of the monitor. Hold the panel so that the monitor does not topple when you change the monitor’s angle. You are able to adjust the monitor’s angle up to 90° upward, 5°... -
Page 17: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 27. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 19 for SCREEN ADJUSTMENTS. - Page 18 Direct LOCK MODE: Simultaneously press the MENU button and the button when an image is displayed through VGA, HDMI or DisplayPort. * The OSD menu is not displayed when the OSD is locked. Press the MENU button and the button simultaneously again.
-
Page 19: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Picture Picture Advanced Option Contrast Brightness H-Position V-Position Phase Clock Auto Adjust Adjustment Item Problem / Option Button to Press Too dull Contrast Too intense Too dark Brightness* Direct Too bright Too left H-Position* Too right Too low V-Position* Too high To correct fl... - Page 20 Advanced Picture Advanced Option Color Temp User Green Blue Sharpness Adjustment Item Problem / Option Button to Press 5500 Greenish white 6500 Reddish white Yellowish white 7500 Color Temp 9300 Bluish white Too weak Green User Too strong Blue You can change the picture quality from 0 to 100 (soft to sharp).
- Page 21 Picture Advanced Option OSD Timeout OSD Position User OSD H-Position OSD V-Position Adjustment Item Problem / Option Button to Press You can set the OSD display duration time OSD Timeout between 5 and 60 seconds. You can set the OSD position. OSD Position User (Upper left / Lower left / Upper right / Lower right / Center)
- Page 22 Option Picture Advanced Option Reset Language English Source Select DisplayMode Volume Mute Factory Adjustment Item Problem / Option Button to Press Return to Menu. Reset Factory-preset data is restored. English English Español Spanish Japanese Français French Language Traditional Chinese Deutsch German 繁中...
-
Page 23: Screen Adjustments
If the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama.com). Adjust the image by following the procedure below to get the desired picture. - Page 24 Perform the auto adjustment. (Auto Adjust) Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust. Adjust the V-Position so that the top and bottom of the picture frame will fi t to the display area.
- Page 25 Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern. In case the strong fl icker or blurs remain on a part of the screen, repeat steps NOTE because the Clock may not be adjusted correctly. ...
-
Page 26: Power Management Feature
POWER MANAGEMENT FEATURE When your computer is not in use, the power management feature will automatically reduce the power consumption of your monitor. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below. The power management function, including any timer settings is confi... -
Page 27: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 28: Recycling Information
The touch The calibration function set up correctly. position does not deviate. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com for monitor recycling. 24 TROUBLE SHOOTING / RECYCLING INFORMATION... -
Page 29: Appendix
APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS : ProLite T2234MSC-B6X Technology Projected capacitive 10pt touch Light transmission Hardness Touch Screen Thickness 2.5mm Communication system Surface fi nish Anti fi ngerprint coating Size Category 22"... -
Page 30: Dimensions
DIMENSIONS 249.5mm/9.8” 6xM4 SCREW HOLE 517.5mm/20.4” 46.0mm/1.8” (VESA MOUNT) 476.5mm/18.8” 100.0mm/3.9” 100.0mm/3.9” 26 APPENDIX... -
Page 31: Compliant Timing
COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 31.469kHz 59.940Hz 25.175MHz 640 × 480 37.500kHz 75.000Hz 31.500MHz 37.861kHz 72.809Hz 31.500MHz 35.156kHz 56.250Hz 36.000MHz 37.879kHz 60.317Hz 40.000MHz 800 × 600 46.875kHz 75.000Hz 49.500MHz 48.077kHz 72.188Hz 50.000MHz 48.363kHz 60.004Hz 65.000MHz 1024 ×...
