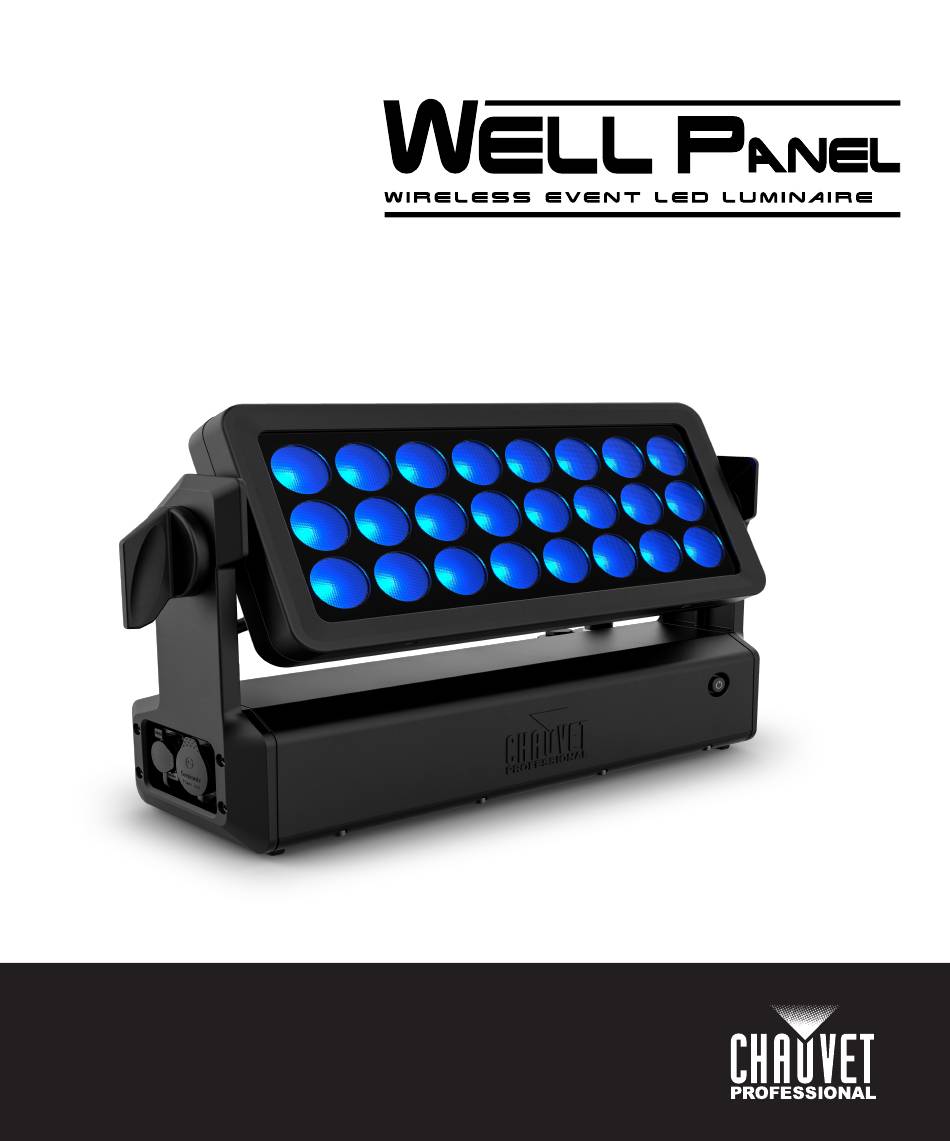

- Page 1 USER MANUAL Model ID: WELLPANEL...
- Page 2 Edition Notes The WELL Panel User Manual includes a description, safety precautions, installation, programming, operation and maintenance instructions for the WELL Panel as of the release date of this edition. Trademarks CHAUVET, the Chauvet logo and WELL Panel are registered trademarks or trademarks of Chauvet & Sons, LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries.
-
Page 3: Table Of Contents
Table of Contents TABLE OF CONTENTS 1. Before You Begin ............... What Is Included ................... Claims ......................Manual Conventions ..................Symbols ......................FCC Compliance................... RF Exposure Warning for North America and Australia........ Safety Notes....................Personal Safety......................Mounting and Rigging ....................Power and Wiring...................... - Page 4 Table of Contents Configuration (Standalone) ................Auto Programs ....................... 16 Static Mode ........................16 Red Shift ........................16 Dimmer Profiles......................16 White Balance ........................ 16 LED Frequency ......................16 Line Voltage Power Loss Mode ..................17 Run Time........................17 Back Light ........................17 System Information ......................
-
Page 5: Before You Begin
Before You Begin 1. Before You Begin What Is Included • WELL Panel • Omega bracket with mounting hardware • Seetronic Powerkon IP65 power cord • Quick Reference Guide • Color-blending filter lens Claims Carefully unpack the product immediately and check the container to make sure all the parts are in the package and are in good condition. -
Page 6: Safety Notes
Before You Begin Safety Notes Read all the following safety notes before working with this product. These notes contain important information about the installation, usage, and maintenance of this product. This product contains no user-serviceable parts. Any reference to servicing in this User Manual will only apply to properly trained, certified technicians. -
Page 7: Introduction

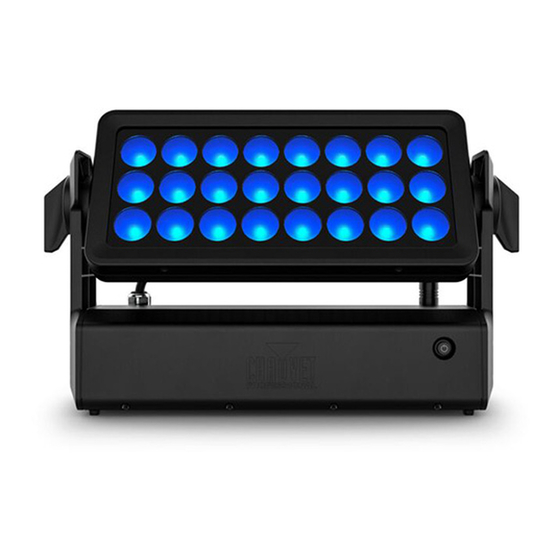

Introduction 2. Introduction Description The WELL Panel is a completely wireless, IP65-rated, battery-powered RGBW LED fixture that can be controlled via W-DMX, DMX, IR remote (not included), or manually from the control panel. The WELL Panel comes with color-blending filter lens for an even diffused light and Omega brackets for easy mounting. -
Page 8: Product Overview
Introduction Product Overview Menu buttons Display Power button Tilt adjustment knobs DMX in Power in Power out DMX out Product Dimensions 436 mm 17.17 in 159 mm 338 mm 6.26 in 13.3 in 260 mm 10.24 in 88 mm 3.46 in 135 mm 5.31 in Page 4 of 22... -
Page 9: Setup
Setup 3. Setup AC Power Each WELL Panel has an auto-ranging battery charger inside the charging case that works with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the power requirements for the WELL Panel, refer to the label affixed to the product. -
Page 10: Dmx Linking
Setup DMX Linking You can link the WELL Panel to a DMX controller using a wireless DMX connection. If using other DMX- compatible products with this product, you can control each individually with a single DMX controller. DMX Personalities The WELL Panel uses a wireless DMX data connection for the 4Ch, 8Ch, 12Ch, 13Ch, and 21Ch DMX personalities. -
Page 11: Master/Slave Connectivity
The WELL Panel comes with a bracket to which you can attach a mounting clamp directly. Mounting clamps are sold separately. Make sure the clamps are capable of supporting the weight of this product. Use at least one mounting point per product. For the CHAUVET Professional line of mounting clamps, go to http://www.trusst.com/products. -
Page 12: Operation
Operation 4. Operation Control Panel Operation Button Function <MENU> Exits from the current menu or function <ENTER> Enables the currently displayed menu or sets the currently selected value in to the current function <UP> Navigates upward through the menu list or increases the numeric value when in a function <DOWN>... - Page 13 Operation Main Level Programming Levels Description Green Blue White Green and blue Red and blue Red and green Dimmer Fixed Color Red, green, and blue 000–255 Red and white Green and white Blue and white Red, green, and white Red, blue, and white Green, blue, and white Static RGBW...
- Page 14 Operation Main Level Programming Levels Description 600Hz 1200Hz 2000Hz Sets the PWM frequency Frequency 4000Hz 6000Hz 25KHz Receive On/Off Enables/disables wireless DMX Wireless Setting Receive Reset Resets wireless receiver If line power is lost, the fixture will continue to Stay In State function as programmed under battery power (default) Line Voltage...
-
Page 15: Configuration (Dmx)
Operation Configuration (DMX) Use control configurations to operate the product with a DMX controller. For information on how to configure wireless DMX, see Wireless Operation. Control Personalities This setting allows you to choose a particular control personality. 1. Go to the DMX Channel main level. 2. -
Page 16: Dmx Values
Operation DMX Values Zones for DMX Control 21Ch Channel Function Value Percent/Setting Dimmer 000 255 0–100% Fine dimmer 000 255 0–100% Red 1 000 255 0–100% Green 1 000 255 0–100% Blue 1 000 255 0–100% White 1 000 ... -
Page 17: 13Ch
Operation Channel Function Value Percent/Setting 000 005 No function 006 025 2800K 026 050 3200K 051 075 3500K 076 100 4000K Color temperature 101 125 4500K 126 150 5000K 151 175 5600K 176 ... - Page 18 Operation Channel Function Value Percent/Setting 000 010 No function 011 030 R: 100% G: 0–100% B: 0% 031 050 R: 100–0% G: 100% B: 0% 051 070 R: 0% G: 100% B: 0–100% 071 090 R: 0% G: 100–0% B: 100%...
-
Page 19: 12Ch
Operation Channel Function Value Percent/Setting 000 010 No function Red shift 011 127 128 255 12Ch Channel Function Value Percent/Setting Red 1 000 255 0–100% Green 1 000 255 0–100% Blue 1 000 255 0–100% White 1 000 ... -
Page 20: Configuration (Standalone)
Operation Configuration (Standalone) Use standalone configuration to operate the product without a DMX controller. Auto Programs Auto programs allow for dynamic blinder effects without a DMX controller. 1. Go to the Auto Show main level. 2. Select the desired auto (Auto 1–5). 3. -
Page 21: Line Voltage Power Loss Mode
Operation Line Voltage Power Loss Mode This option sets the action that the fixture will during a line power loss. 1. Go to the Line Voltage Power Loss Mode main level. 2. Select among Stay in State (the fixture will continue to function as programmed under battery power), All at Full (all LEDs will go to full power after 5 seconds of line power loss, and returns to normal operation when line power is restored), and Dim Out (all LEDs will dim in a 10 second fade to black and returns to normal operation when line power is restored). -
Page 22: Infrared Remote Control
Operation Infrared Remote Control Infrared (IR) mode allows the product to be controlled with an infrared remote controller. The IR remote can remotely set the product to various modes; adjust the color, speed, and sensitivity; and set the strobe. The WELL Panel is compatible with the IR remote (sold separately) from Chauvet. It may be necessary to turn the product off and on again when switching from W-DMX to IRC and vise-versa. -
Page 23: Technical Information
Technical Information 5. Technical Information Product Maintenance To maintain optimum performance and minimize wear, clean this product frequently. Usage and environment are contributing factors in determining the cleaning frequency. Clean this product at least twice a month. Dust build-up reduces light output performance and can cause overheating. -
Page 24: Technical Specifications
113 °F (45 °C) Convection I/O Connector Channel Range Wireless 4, 8, 12, 13, or 21 channels Ordering Product Name Item Name Item Code UPC Number WELL Panel WELLPANEL 781462220471 Page 20 of 22 WELL Panel User Manual Rev. 1... -
Page 25: Returns
Returns Returns Send the product prepaid, in the original box, and with the original packing and accessories. Chauvet will not issue call tags. Call Chauvet and request a Return Merchandise Authorization (RMA) number before shipping the product. Be prepared to provide the model number, serial number, and a brief description of the cause(s) for the return. -
