• Before servicing or cleaning unit, switch power off at service panel and
lock the service disconnecting means to prevent power from being
switched on accidentally. When the service disconnecting means cannot
be locked, securely fasten a prominent warning device such as a tag, to
the service panel.
Follow the following general safety instructions:
• Rotating parts can cause severe injury. Keep arms, legs, hair and loose
clothing away from rotating parts.
• Refer to the maintenance section for more information about the main-
tenance of the fan. No maintenance may decrease the safety of the fan.
• If the safety devices, such as guards, are damaged, do not use the fan.
• When a fan is damaged, do not operate the fan. Repair the damaged
fan, before putting the fan in operation again.
• In the event of a malfunction, an accident, a breakdown or excessive vi-
bration or noise, switch off the fan immediately.
There can be safety labels on the fan. It is not permitted to remove the safety
labels. Put new safety labels on the fan if:
• You cannot read the text or symbols clearly.
• A safety label is damaged.
Contact your supplier to order new safety labels.
Users
These instructions address different target groups of users who have the
qualifications and skills needed for their job. Each target group has different
tasks and responsibilities. All target groups must know and follow these
instructions. These instructions only give all necessary information about the
fan itself. All target groups must know and follow the national, regional and in-
house applicable regulations.
The target groups are:
• Installers.
• Operators.
• Maintenance personnel.
Installers
The installer must know the risks of the tasks. Installers are permitted to
• install the fan.
Installers are allowed to assemble the fan.
Operators
No special education is necessary to operate the fan. Operators must know
the risks of the tasks. Operators are permitted to
• operate the fan.
• monitor the correct operation of the fan.
Maintenance personnel
Maintenance personnel must know the risks of the tasks. Maintenance
personnel can perform the tasks of an operator. Maintenance personnel is
permitted to
• assemble the fan.
• maintain the fan.
INS00003-B Original instructions
• troubleshoot the fan.
• repair the fan.
Personal Protective Equipment
CAUTION
Wear safety gloves and safety glasses during maintenance of
the fan.
3

Information

3.1

Overview

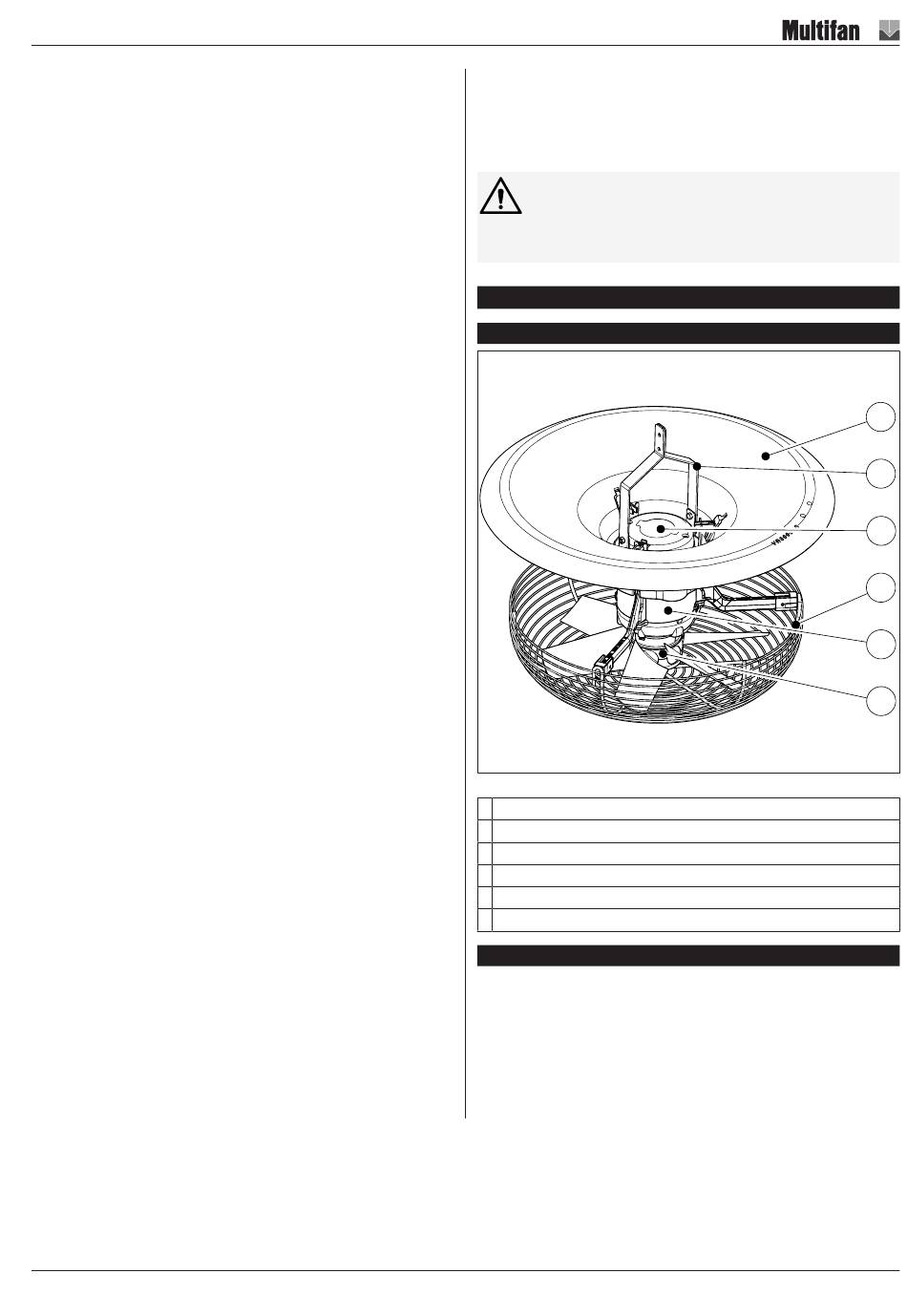

Illustration 1: V-FloFan overview
1 Air deflector
2 Bracket
3 Fan rating plate and terminal housing cover
4 Guard
5 Fan motor
6 Impeller
3.2

Identification of the product

A rating plate is permanently attached to the V-FloFan. Do not remove the
rating plate.
The rating plate displays electrical, mechanical and identification information.
Each fan has a unique 14-digit numerical serial number which is listed on the
rating plate. The serial number must be provided in any future
correspondence regarding this fan, as the serial number is the unique
information used for identifying the fan in question.
1
2
3
4
5
6
