Summary of Contents for Multifan 130

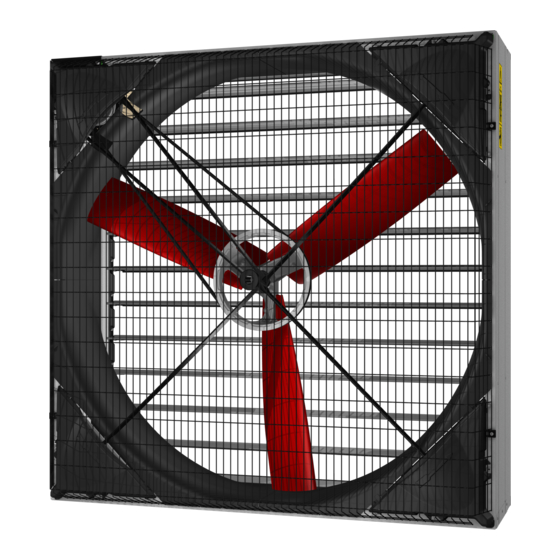

- Page 1 Galvanized Box Fan 130 ENGLISH Installation Instructions - Operating Instructions IMPORTANT - READ CAREFULLY BEFORE USE Document ID: INS00025-A...
-
Page 2: Table Of Contents
Glossary .................... 15 Warning for electricity Introduction Warning for hot surfaces Thank you for choosing this Galvanized Box Fan 130. IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE USE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE Warning for sharp elements LIRE ET CONSERVER CES INSTRUCTIONS... -
Page 3: Safety Instructions
Galvanized Box Fan 130 Safety instructions WARNING WARNING Install a wire guard if you install the fan below a height of 2,7m. Make sure that it is installed in a stable position. To reduce the risk of fire, electric shock, or injury to persons, observe the following: •... -
Page 4: Assembly
Galvanized Box Fan 130 Assembly Options This Galvanized Box Fan 130 can be delivered with one of more of the This product is supplied either assembled or unassembled depending on how following options. The assembly instructions of the options are supplied it was ordered. -
Page 5: Identification Of The Product
Illustration 9: Shutter with wire guard on the air outlet Identification of the product A rating plate is permanently attached to the Galvanized Box Fan 130 and it must not be removed. The rating plate displays electrical, mechanical and identification information. - Page 6 Galvanized Box Fan 130 Explanation type plates Article number VV Drip proof µ At optimum Serial number IP class Static pressure (0 Pa) 6 | ENGLISH Original instructions INS00025-A...
-
Page 7: Intended Use
Intended use Ventilation system failure This Galvanized Box Fan 130 is intended to be used as an exhaust fan for the This fan is manufactured to the highest quality standards. Neverthe- mechanical ventilation of livestock houses (pigs, poultry, dairy) and less, failure of a fan can always occur. -
Page 8: Mechanical
Galvanized Box Fan 130 ► Before commencing installation 1. Check the fan after you have received it and make sure it has not been damaged during transport. 2. Briefly rotate the impeller and/or motor shaft by hand to make sure they rotate freely. -
Page 9: Electrical
Galvanized Box Fan 130 Illustration 13: Motor position ð Do not embed the shutter in the wall. Illustration 16: Optionally available guard Default, the fan is delivered with a guard on the intake side. The shutter acts as a guard for the exhaust side, but does not provide the required safety distances to prevent hazard zones being reached by upper and lower limbs (ISO 13857:2008). - Page 10 Galvanized Box Fan 130 Illustration 18: 1~ Illustration 21: 3~STAR / DELTA with optional thermal detectors (thermostats) N / L2 Illustration 19: 1~ (North America) For 3~ fans, depending on the motor model used in your fan either a terminal block or a luster terminal is present.
-
Page 11: Thermal Protection
Galvanized Box Fan 130 6.2.1 Thermal protection WARNING 1~ fan motor thermal protection Do not increase the frequency beyond the nominal value as lis- Thermal protectors are built-in standard in 1~ fan motors. Thermal protectors ted on the rating plate are of the thermostat type TB: thermostat opening on increase of temperature. -
Page 12: Operation
Galvanized Box Fan 130 Run the fan and check for quiet (no unusual noises), low vibration opera- 4. Examine the condition of the guards (if fitted) and remove any dirt that tion. Check that the current draw is within the full load limits as listed on has accumulated. -
Page 13: Troubleshooting And Repairs
Galvanized Box Fan 130 1. Loosen the bolts (1) 2. Tighten the bolts (2) until the required V-belt tension has been reached 3. Fasten the bolts (1) again Capacitor (1~ fan motor) Capacitor capacitance decreases slowly over time. Average lifespan is ±... -
Page 14: End Of Life
Galvanized Box Fan 130 Fault Possible cause Possible remedy Supply voltage too high or too low Check power supply Incorrect supply frequency Check power supply Bearings damaged or worn Replace bearings Only for 3~ motors: phase voltage imbalance Check power supply... -
Page 15: Glossary
Name / description: Galvanized Box Fan 130 Article numbers starting with: V4D13, V4E13 are in conformity with the relevant Union harmonisation legislation and fulfil all... - Page 16 is a brand of Vostermans Ventilation B.V. 00/0000 Venlo - The Netherlands Bloomington, IL- USA Tmn Klang Jaya - Malaysia Shanghai - China Tel. +31 (0)77 389 32 32 Tel. +1 309 827-9798 Tel. +60 (0)3 3324 3638 Tel. +86 21 5290 2889/2899 ventilation@vostermans.com ventilation@vostermansusa.com ventilation@vostermansasia.com...
