Operating Uponor Thermostats T-36 and T-38 and Timer I-36

6.1

Screen layout

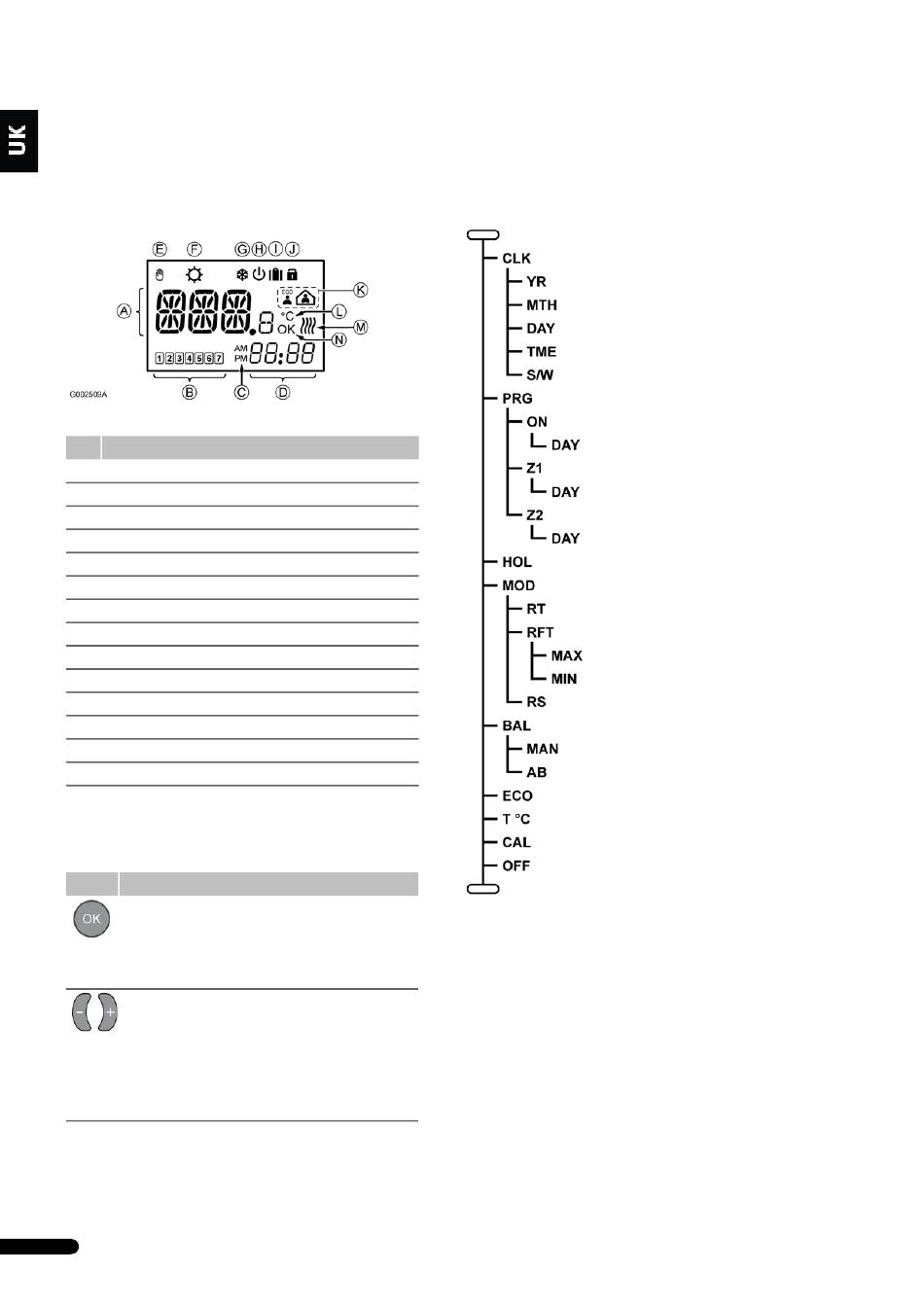

The figure below shows all possible symbols and characters that
can be displayed on the screen:
Pos. Description
A Temperature, menu, or message
B (T-38 and I-36 only) Weekday indicators
C (T-38 and I-36 only) AM/PM indicators
D (T-38 and I-36 only) Digital clock or software version
E Manual override
F Heating mode
G Cooling mode
H Standby mode
I Holiday mode
J Lock mode
K Comfort, economy, or holiday mode
L Temperature unit
M Heating/Cooling demand
N OK indicator
6.2

Operating buttons

The following three buttons are used to operate the Uponor
Digital Thermostats and Timer:
Button Description
The OK button is used to:
•
Enter and exit the settings menu (press and hold)
•
Confirm a setting
•
Enter and exit comfort or economy mode
The minus and plus sign buttons are used to:
•
Set the temperature setpoint
•
Toggle between comfort and economy modes
•
Modify settings in the settings menus
•
Enter and exit the lock mode (press and hold
both)
8
6.3

Screen menus

The screen menu below is used in Uponor Thermostats T-36 and
T-38 and Timer I-36
A Run mode
B Clock
B Year
B Month
B Day
B Time
B Summer-winter
B Programming
D On/off
D Day group
C Zone 1
C Day group
C Zone 2
B Day group
C Holiday
F Regulation
F Room temperature
F Room + floor
F Max.floor limit
F Min. floor limit
F Remote sensor
F Balancing
F Manual
F Auto
E Economy mode
D Comf./Eco. temp.
F Calibration
A Standby
A Run mode
Notes
A = I-36, T-36, and T-38 D = T-38 only
B = I-36 and T-38 only E = T-36 only
C = I-36 only F = T-36 and T-38 only
