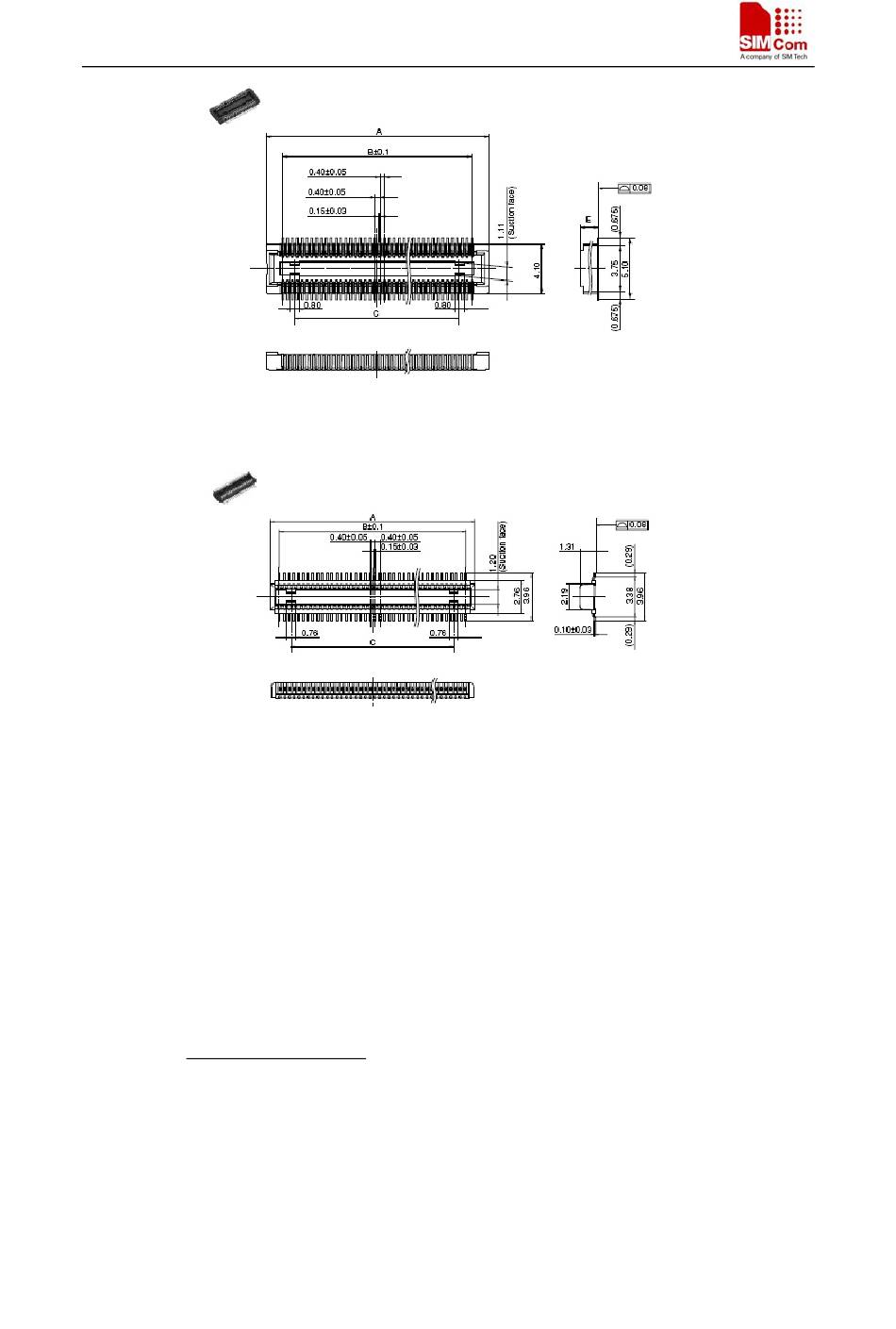

Figure 42: NAIS AXK770247G board-to-board connector pin side
Figure 43: NAIS AXK870145WG board-to-board connector pin side
：
NOTE
The connector NAIS AXK870145WG is used in SIM5218E side and NAIS
AXK770247G is used in pin side (host board side).
6.4 RF connector and adapter cable
The RF connector in module side is Murata Company RF Connectors MM9329-2700, it makes a
pair with Murata Company RF cable MXTK88TK2000. It has high performance with wide
frequency range, surface mountable and reflow solderable. Following are parameters. Certainly
user can visit http://www.murata.com/ for more information.
