SIM340 Hardware Design
7.4 RF adapter cabling
The RF connector in module side is Murata Company Microwave Coaxial Connectors
MM9329-2700RA1, it makes a pair with Murata Company RF connector MXTK. It has high
performance with wide frequency range, surface mountable and reflow solderable. Following is
parameter. Certainly you can visit
http://www.murata.com/
for more information.

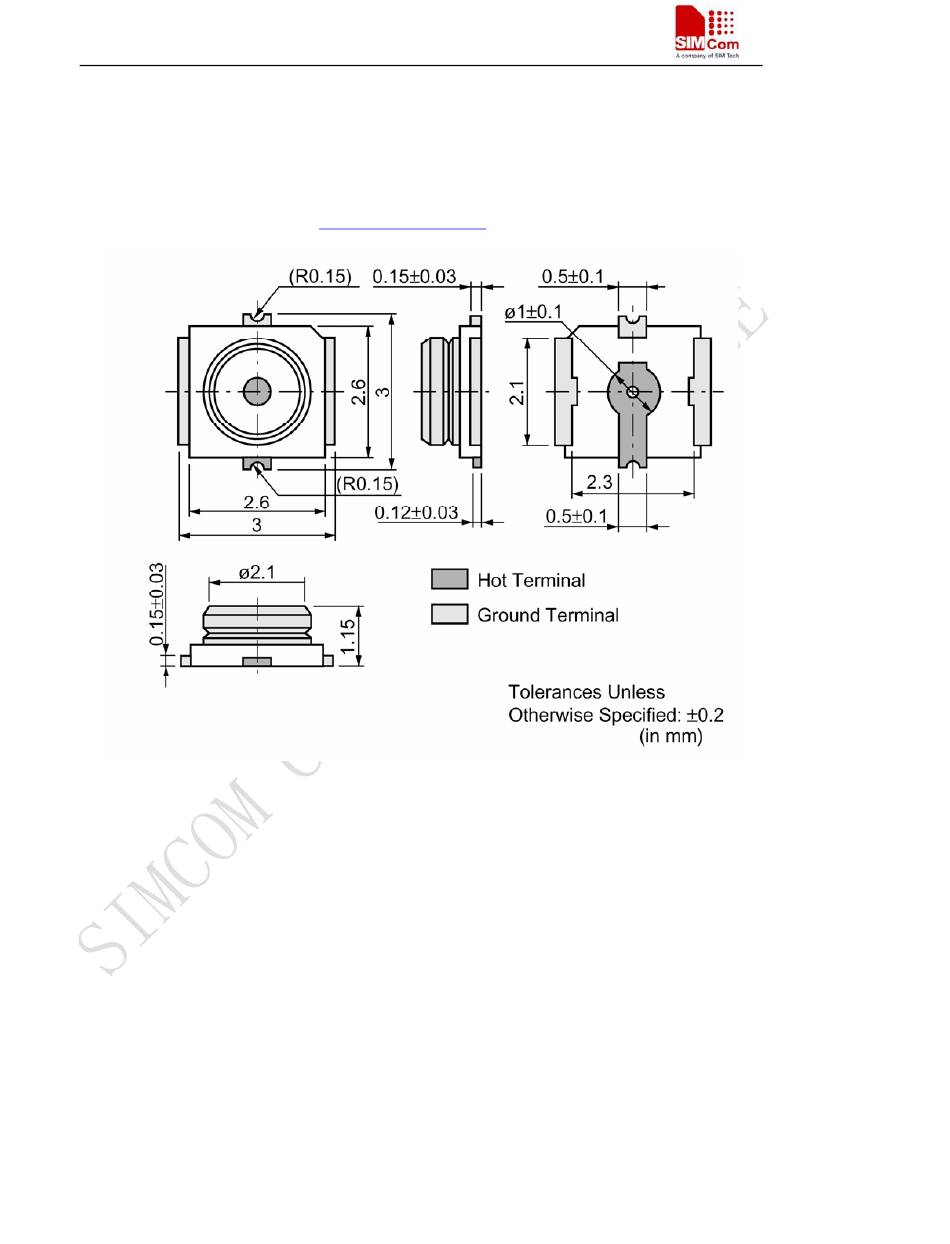

Figure 40: MM9329-2700B
65
SIM340_HD_V3.09
18.03.2009
