24 Replacing the Chassis Interface (CI) Board in the Cisco 7500 Series Chassis

Pull the top of the upper panel out about two inches, then grasp the sides and carefully pull

it outward, away from the chassis. Repeat this for the bottom panel. Proceed to the section

"Removing and Replacing the Backplane Maintenance Cover" on page 25.

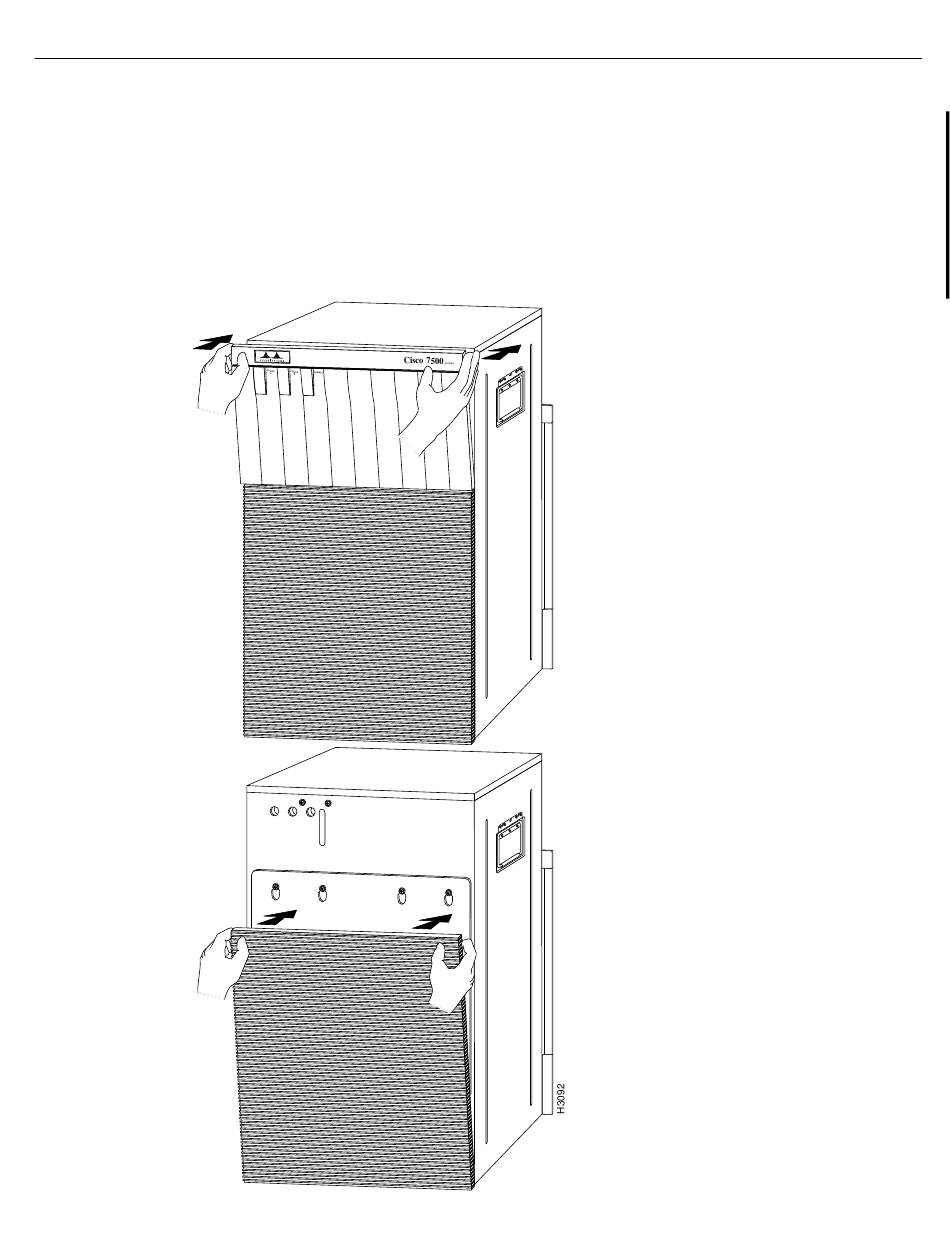

To replace the cover panels, align the pins on the bottom panel with the holes in the chassis

and push the panel against the chassis. (See Figure 15.) Repeat this for the top panel.

Replacing the Chassis Cover Panels
