Cisco 7500 Series Replacing Manual page 16

Chassis interface board

Hide thumbs Also See for 7500 Series:

Table of Contents

Replacing the CI in the Cisco 7507

To remove the front panels, perform the following steps:

Step 1

Step 2

Figure 9

16 Replacing the Chassis Interface (CI) Board in the Cisco 7500 Series Chassis

Grasp the bottom edge of the bottom chassis panel.

Pull the bottom of the panel out about one inch, then place your ﬁngers behind the sides of

the panel and pull it off the chassis. (See Figure 9.)

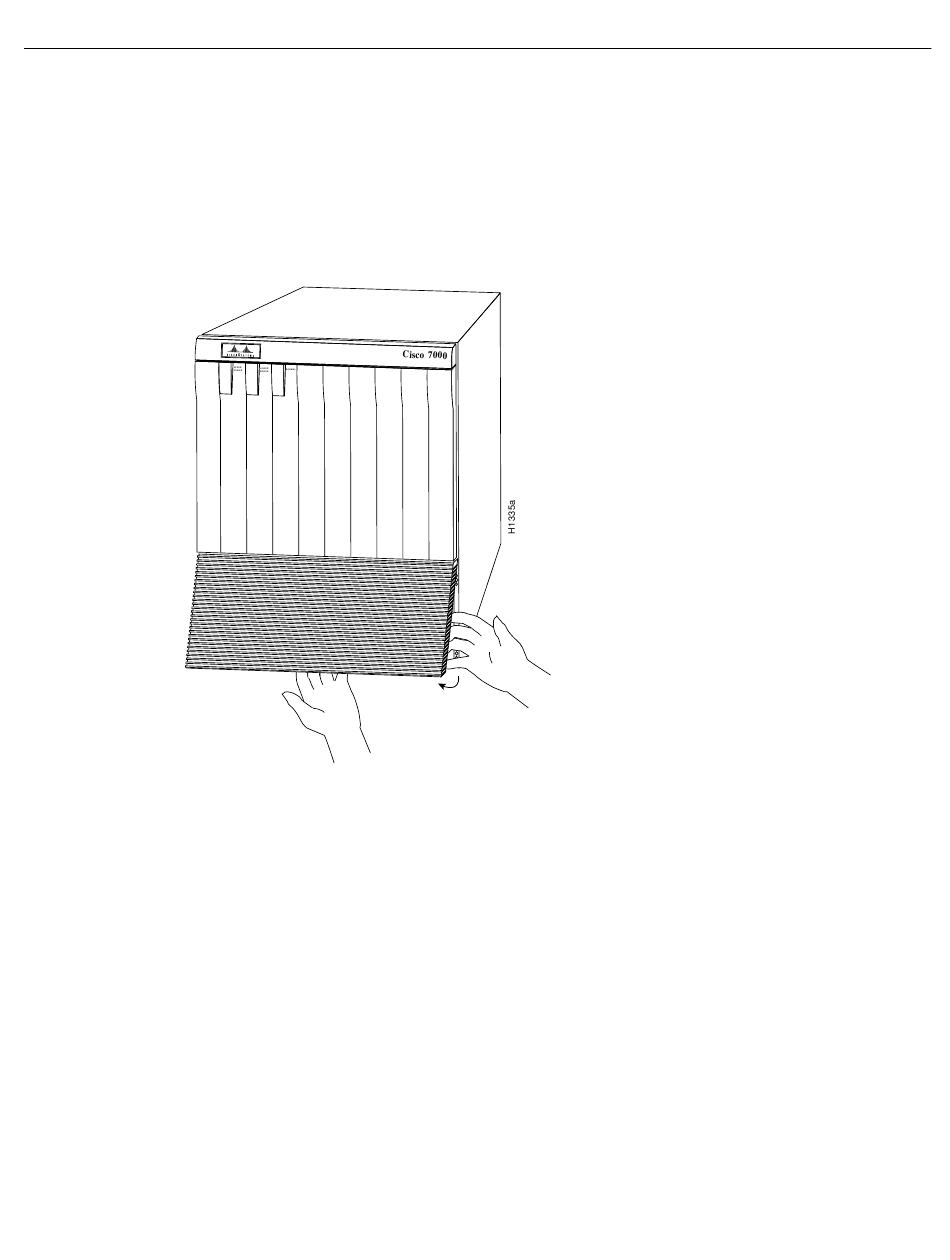

Removing the Bottom Front Panel
