5G Sub-6 GHz Pluggable Interface Module
This chapter contains the following sections:
•
•
•
•
•
5G Sub-6 GHz Support on IoT Routing
The 5G Sub-6 GHz Pluggable Interface Modules offer 5G capability to the IoT Industrial Router family. The
product IDs for the pluggable modules are P-5GS6-GL and P-5GS6-R16SA. The P-5GS6-GL uses the FN980
Telit modem, and P-5GS6-R16SA uses the EM9293 modem.
Note
Features and Limitations
The following features and limitations apply across all IoT routing platforms unless specifically mentioned:
• IoT routing platforms support a maximum of two pluggable modules, with a combination of 5G and 4G
• The pluggable module can be started or stopped through the CLI under exec mode. Also, it can be
• The capability to disable FDD Band 30 for vehicular applications is available.
The following are product specific:
• On the IR1101 with P-5GS6-GL module:
5G Sub-6 GHz Support on IoT Routing, on page 1
5G Pluggable Interface Module Overview, on page 2
LED Behaviors, on page 3
RF Band and Port Mapping for the P-5GS6-GL and P-5GS6-R16SA Antenna, on page 4
Attaching an Antenna, on page 6
• IOS XE release 17.7.1 is the first software release to provide support for the P-5GS6-GL.
• IOS XE release 17.13.1 is the first software release to provide support for the P-5GS6-R16SA.
PIMs.
configured to power off the module to reduce power consumption as needed.
• When plugged into the base, the module is accessible via Cellular 0/1/0, 0/1/1.
• The module is not supported on the expansion module.
5G Sub-6 GHz Pluggable Interface Module
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Cisco P-5GS6-GL
Summary of Contents for Cisco P-5GS6-GL
- Page 1 Telit modem, and P-5GS6-R16SA uses the EM9293 modem. Note • IOS XE release 17.7.1 is the first software release to provide support for the P-5GS6-GL. • IOS XE release 17.13.1 is the first software release to provide support for the P-5GS6-R16SA.

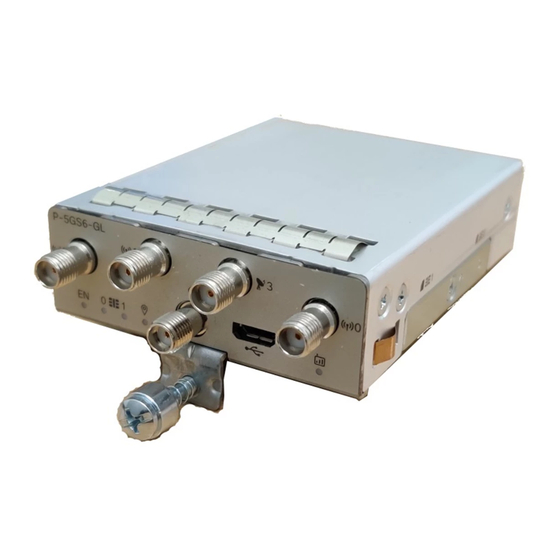

- Page 2 • The cellular modems are accessible via Cellular 0/4/0, 0/4/1, 0/5/0, 0/5/1. 5G Pluggable Interface Module Overview The following figure shows the face plate of P-5GS6-GL and P-5GS6-R16SA pluggable modules: Figure 1: 5G Pluggable Interface Module - P-5GS6-GL, P-5GS6-R16SA The printed PID Modules P-5GS6-GL, P-5GS6-R16SA share the same face plate.
-
Page 3: Led Behaviors
5G Sub-6 GHz Pluggable Interface Module LED Behaviors GPS LED M3.5 thumb-screw Service LED LED Behaviors The following table lists the LED indicators and their behavior. The LEDs provide a visual indication of the status and the currently selected services. LED Indicators: Color Function... - Page 4 5G Sub-6 GHz Pluggable Interface Module RF Band and Port Mapping for the P-5GS6-GL and P-5GS6-R16SA Antenna Color Function • Green: GPS configured • Green Flash: GPS acquiring (flashing done by SW) Service Green, Yellow, Blue Service Indication LED • Yellow: 3G •...
- Page 5 5G Sub-6 GHz Pluggable Interface Module RF Band and Port Mapping for the P-5GS6-GL and P-5GS6-R16SA Antenna Antenna Technology Port ANT 2 — — WCDMA 4G LTE B1, B2, B3, B4, B7, B41, B66 B1, B2, B3, B4, B7, B25, B30, B32, B34, B38,...
-
Page 6: Attaching An Antenna
Sub-6G n48, n66, n70, n75, n76, n77, n78, n79 Port Mappings for 5G-ANTM-0-4-B on the P-5GS6-GL and P-5GS6-R16SA PIMs The following table lists the port mappings using the 5G-ANTM-O-4-B antenna as an example, mapping to the ports on the P-5GS6-GL and P-5GS6-R16SA pluggable module. - Page 7 5G Sub-6 GHz Pluggable Interface Module Attaching an Antenna Figure 2: Attaching 5G NR Antenna (5G-ANTM-O4-B) to P-5GS6-GL, P-5GS6-R16SA PIM 1. Attach each SMA cable to the ports as indicated in the table mappings. 2. Ensure that you tighten and secure each SMA cable into the SMA connector on the PIM.
- Page 8 5G Sub-6 GHz Pluggable Interface Module Attaching an Antenna 5G Sub-6 GHz Pluggable Interface Module...
