Setup Procedure

(1) Before connecting to microphones and instruments, be sure
that all devices are turned off. Also be sure that all of the chan-
nel controls and all of the controls in the Master Control sec-
tion are turned to their minimum settings.
(2) For each connection, connect one end of the cable to the rele-
vant microphone or instrument and connect the other end to the
appropriate LINE or MIC jack on the mixer.

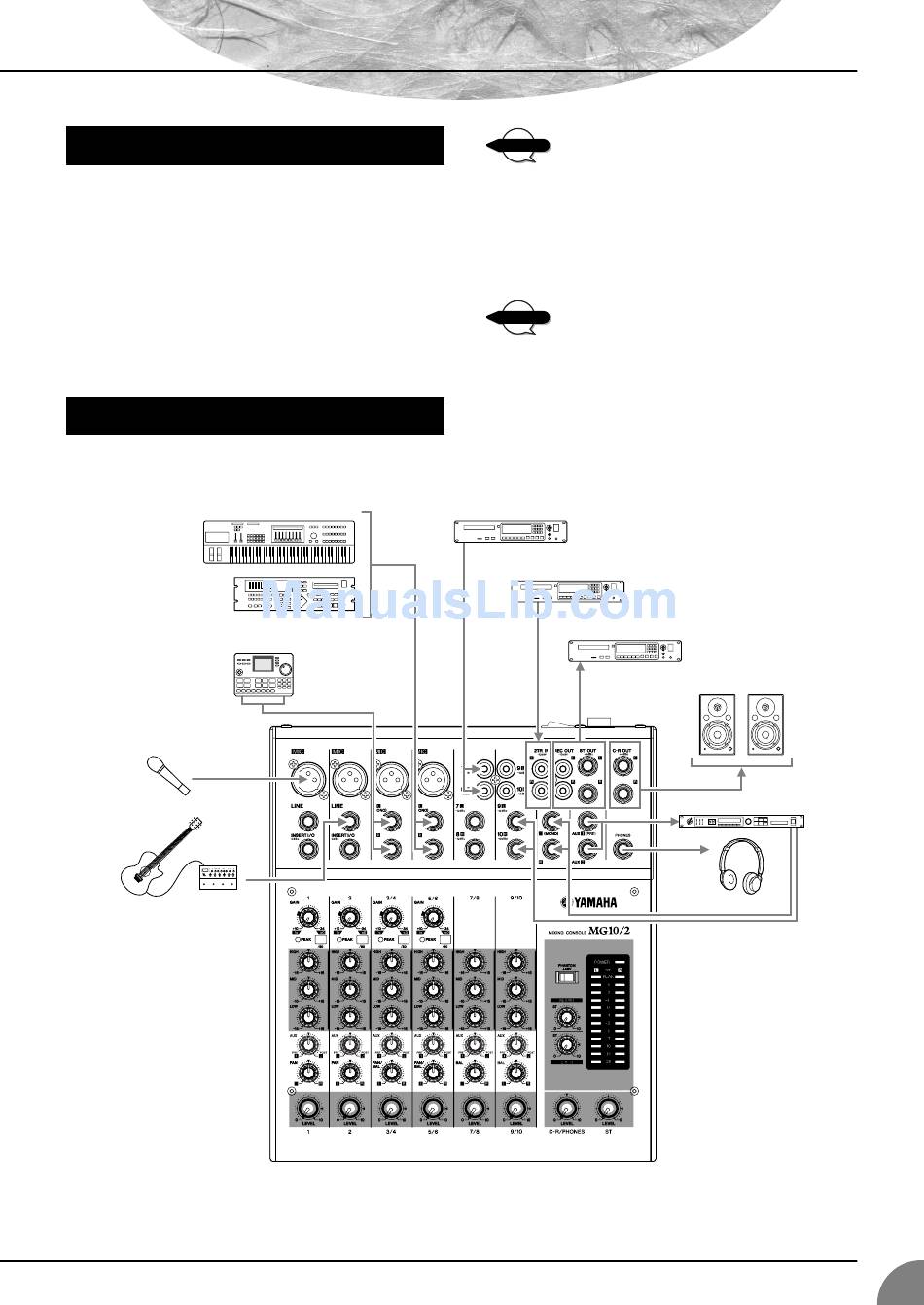

Setup Examples

Rhythm Machine
Microphone
Guitar

Setting Up

Synthesizer
MTR
Where an input channel provides both a MIC INPUT
NOTE
jack and a LINE INPUT jack, you may use either
one of these jacks but you may not use both at the
same time. Please connect to only one of these
jacks on each channel.
(3) To avoid causing damage to speakers, power up the devices in
the following order: Peripheral devices → mixer → power
amps (or powered speakers).
When shutting the system down, turn off the power
NOTE
in the opposite order: Power amps (powered speak-
→
ers) mixer
Sound Source (CD, MD,
DAT, cassette, video, etc.)
Sound Source (CD, MD,
DAT, cassette, video, etc.)
Master Recorder
(MD, CD-R, DAT, etc.)
→
peripheral devices.
Powered Monitor
Speakers
Effector
Headphones
