Yamaha DM7, DM7 COMPACT Manual

Information

About functions/data bundled with the product

• This product uses Dante IP Core and Dante API for ARM.Refer to the Audinate website (English) for details on the open-source licenses for the particular software.https://www.audinate.com/software-licensing
• The open source license used with this product can be checked on the screen of the unit. For more details, refer to the DM7 series Reference Manual.
• XLR-type connectors are wired as follows (IEC60268 standard): pin 1: ground, pin 2: hot (+), and pin 3: cold (−).

About this manual

• The illustrations and screens as shown in this manual are for instructional purposes only.
• Steinberg Media Technologies GmbH and Yamaha Corporation make no representations or warranties with regard to the use of the software and documentation and cannot be held responsible for the results of the use of this manual and the software.
• The company names and product names in this manual are the trademarks or registered trademarks of their respective companies.
• Steinberg and Nuendo are registered trademarks of Steinberg Media Technologies GmbH.
• Windows is a registered trademark of Microsoft Corporation in the United States and other countries.
• Apple, Mac, and iPad are trademarks of Apple Inc. registered in the United States and other countries.
• IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.
• The typefaces included herein are solely developed by DynaComware Taiwan Inc.
• Software may be revised and updated without prior notice.

Introduction

To take full advantage of the product's functionality, please read this manual before you begin using the product. Afterwards, please keep the manual in a safe place.

Intended User
This product is designed for individuals who are capable of operating a mixing console for use with a PA system in concert halls, at musical events, or in recording studios.

Intended Usage
This product is designed for mixing operations in concert halls, at musical events, broadcasting, or audio productions.

Accessories

• Power cord × 2 (Multiple AC power cords which have different kinds of plug shapes may be included depending on the region.)
• Dust cover × 1 (If this product is connected to a separately-sold DM7 CONTROL (CTL-DM7), open both zippers on the dust cover and extend it to cover both units.)
• Cable hook × 1
• Nuendo Live and VST Rack Elements Download Information leaflet
• Owner's Manual (this book)

About the Models
Differences between the DM7 and DM7 COMPACT are summarized in the table below.

NOTE
Unless otherwise noted, illustrations in this manual are of the DM7.

Utility Software
The DM7 and DM7 COMPACT can be used with a variety of utility software.
For information regarding how to download or install the software, as well as its various setting details, refer to the following Yamaha Pro Audio website or to the Installation Guide attached to the downloaded software program. https://www.yamahaproaudio.com/

DM7 Editor
This application software enables you to set up and operate the unit from a connected computer. You can also back up the unit settings, or set up the unit at a remote site where access to the unit is limited.

DM7 StageMix
This application software enables you to control the unit remotely from an iPad.

MonitorMix
This application software enables you to remotely control the monitor mix balance of any DM7-series unit from a smart device connected via Wi-Fi.

Console File Converter
This application software enables you to convert settings file formats between the Yamaha RIVAGE PM series, CL series, QL series and DM7 series.

ProVisionaire series
This application software enables you to create a control panel that suits the setup environment or operational procedure, and to remotely control and monitor devices.

Firmware Updates
You can update the unit firmware to improve the operation, add functions, and correct possible malfunctions.
Information on updating the firmware can be found on the following website. https://www.yamahaproaudio.com/
For information on updating and setting up the unit, please refer to the firmware update guide available on the website.

Notational Conventions
In this manual, switch-type controllers on the panel are called "keys." Names of controls located on the panel are enclosed in square brackets [ ] (e.g., [HOME]) to distinguish them from virtual buttons and knobs displayed on screen.

Controls and Functions

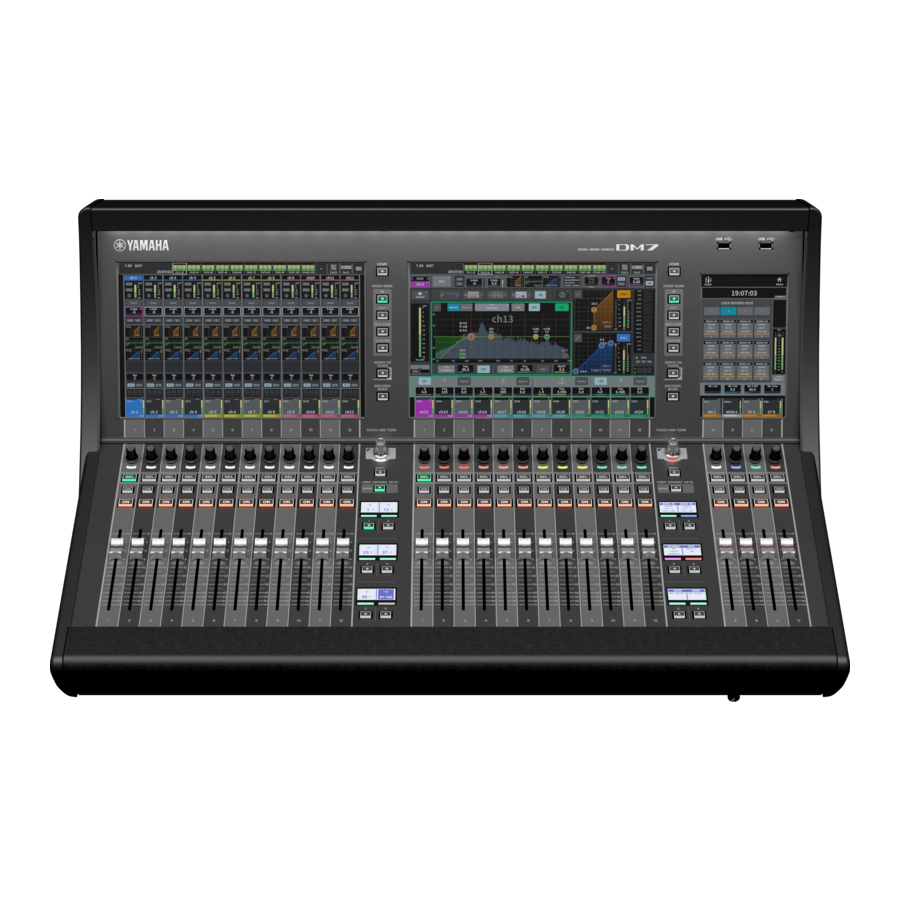

Top Panel

1. Touch screens
   These are capacitive multi-touch screens. The touch screens will not respond correctly if you are wearing gloves.
   NOTICE Never use a sharp or pointed object such as your fingernail to operate the touch screens. Doing so may scratch the screens and render the touch screens inoperable.
   ("Viewing Touch Screens" "Basic Touch Screen Operations")
   NOTE
   Before use, be sure to remove the transparent film that was applied to the touch screens to protect them during transport.
2. [HOME]
   Recall and toggle between the OVERVIEW and SELECTED CHANNEL VIEW screens.
3. [FADER BANK]
   Assign the function to the faders on the panel.
4. [SENDS ON FADER]
   Switch SENDS ON FADER mode on or off. When this mode is turned on, you can use the channel strips to adjust the send level of signals sent to the MIX/MATRIX bus.
5. [ENCODER MODE]
   Use these keys to display the screen on the corresponding Bay screen to switch between functions for the encoders located below the touch screen. These encoders feature the following two functions:
   Screen Encoder function
   Up to 12 parameters can be assigned to the encoders via the touch screens.
   Channel Encoder function
   Parameters for 12 channels on the channel strips can be assigned to the encoders.
6. Channel Strip sections
   Enable you to adjust the main parameters for the currently-selected channels.
7. [TOUCH AND TURN]
   Control the parameter of the knob selected via the touch screens.
8. [SHIFT]
   Combine with another key to perform a certain function. For more information, refer to the DM7 series Reference Manual.
9. [USER DEFINED KEYS]
   Enable you to control the assigned function. Use the [BANK] to switch banks.
10. Main section
    This section enables you to adjust main parameters for the assigned channels. By default, STEREO A and STEREO B are assigned to channel C and D respectively.
    NOTE
    The shaded areas in the following illustration are called Bay L (DM7 only) and Bay C respectively.

11. LED lighting bar
    Illuminates the operation panel in a dark place. For more information, refer to the DM7 series Reference Manual.
12. USB connectors
    These are USB Type-A connectors.
    Use these connectors to connect a USB storage device such as a USB flash drive.
    • Supported USB flash drive format
      The FAT16/FAT32 formats are supported.
    • Preventing accidental erasure
      Some USB flash drives feature write protection that prevents data from being erased inadvertently. If your USB flash drive contains important data, we suggest that you use write protection to prevent accidental erasure.
      On the other hand, you will need to make sure that your USB flash drive's write-protect setting is turned off before you save data onto the flash drive.
      For the latest information on what USB flash drives can be used with the system, visit the Yamaha Pro Audio website at: https://www.yamahaproaudio.com/

NOTICE
Do not remove the USB flash drive from the USB connector or turn off the power to the unit while the unit is accessing data, e.g., saving, loading or deleting data. Doing so may damage your flash drive, or may damage the data in the unit or on your media device.

Rear Panel

1. [OMNI OUT]
   These are balanced XLR 3-pin chassis output connectors that transmit analog audio signals.
2. [INPUT]
   These are balanced XLR 3-hole chassis input connectors for analog audio signals from line level devices or microphones.
3. Cooling vent
   This product is equipped with a cooling fan. This vent lets warm air escape from the unit. Make sure that you do not block the vent with any object. The air is taken in through the ventilation ports at the rear and under the front.

   Do not block the ventilation ports (heat dissipating slits) on this product. This product has ventilation ports at the front and rear to prevent the internal temperature from becoming too high. If the ventilation ports are blocked, heat will get trapped inside the product, which may cause malfunction or fire.
4. AC IN connectors [A]/[B]
   Use these sockets to connect the supplied power cords.
   First connect the AC power cords to this unit, and then insert the power cord plugs into AC outlets.
   Insert the power cord plugs all the way into the power connectors until they lock in place securely. The supplied AC power cords feature a V-lock mechanism via a latch, which prevents the power cords from disconnecting accidentally.

   Be sure to turn off the power to the unit before connecting or disconnecting the power cords.
   To disconnect each power cord, remove it while pressing the latch on the plug.


5. [ I ]/[ ] (Power switches)
   Toggle between power on ( I ) and off ( ). If you plan not to use the unit for a long period of time, remove the power cords from the AC outlets.
   NOTICE
   Turning the unit on and off in rapid succession can cause it to malfunction. After turning the unit off, wait at least six seconds before turning it on again.

NOTE

• This product will operate normally when one or both power supplies [A] and [B] are both on.
• If both power supplies are on and one of the power supplies fails during operation, the unit automatically switches to the other power supply.

6. [AES/EBU]
   The DM7 is equipped with a sampling rate converter at both the [IN] and [OUT] chassis connectors. Please note that the DM7 COMPACT, which features only the [OUT] chassis connectors, is not equipped with a sampling rate converter. [IN] (DM7 only) These are balanced XLR 3-hole chassis input connectors that accept digital audio signals in the AES/EBU format. [OUT] These are balanced XLR 3-pin chassis output connectors for digital audio signals in the AES/EBU format.
7. [TC IN]
   This balanced XLR 3-hole chassis input connector accepts time code signals from the connected external device.
8. [WORD CLOCK OUT/IN]
   These are BNC sockets used to transmit and receive word clock signals to and from an external device. The [WORD CLOCK IN] is internally terminated by a 75 ohm resistor.
9. [GPI]
   This is a D-sub 15-hole chassis connector that allows communication (5-in/5-out) with a GPI-equipped external device.
10. [PY]
    This card slot enables you to install a separately-sold PY card to expand the number of I/O ports. ("Installing Optional Cards").
11. Dante [PRIMARY]/[SECONDARY]
    These connectors are used to connect to other Dante audio network devices, such as an Rio3224-D2 I/O device. Use RJ-45 plugs that are compatible with Neutrik etherCON CAT5e connectors. These connectors support up to 144-in/144-out, and 96 kHz/24 or 32-bit, or 48 kHz/24 or 32-bit audio.
    NOTE

• Use STP (Shielded Twisted Pair) cable to prevent electromagnetic interference. Make sure that the metal parts of the plugs are electrically connected to the STP cable shield by conductive tape or comparable means.
• Please do not use the EEE function (*) of network switches in a Dante network. Although power management should be negotiated automatically in switches that support EEE, some switches do not perform the negotiation properly. This may cause EEE to be enabled in Dante networks when it is not appropriate, resulting in poor synchronization performance and occasional dropouts. Therefore we strongly recommend that:
  • If you use managed switches, ensure that they allow EEE to be disabled. Make sure that EEE is disabled on all ports used for real-time Dante traffic.
  • If you use unmanaged switches, make sure to not use network switches that support the EEE function, since EEE operation cannot be disabled in these switches.
    * EEE (Energy Efficient Ethernet) is a technology that reduces switch power consumption during periods of low network traffic. It is also known as Green Ethernet and IEEE802.3az.

Front Panel

1. [PHONES LEVEL]
   Adjusts the level of the signal output from the PHONES output socket.
2. [PHONES]
   This is a headphone socket for monitoring the MONITOR or CUE signal.

Touch Screens

Viewing Touch Screens
Bay screens
These are touch screens for Bay C, and for Bay L (DM7 only). On these screens, you can display various interface screens using the menu bar to set parameters.

Utility screen
This is a touch screen for the Main section. On this screen, you can view the status of the unit, and recall other screens for monitoring or other operational purposes.

Basic Touch Screen Operations
Switching between screens
Tap in the upper-right corner of the Bay screen to display the menu bar. Tap a desired button on the menu bar to switch to the corresponding screen.
In the Utility screen, tap the desired button on the HOME screen to switch to the corresponding screen. Tap the HOME button to return to the HOME screen.
NOTE
The selected area marked by a pink frame on screen includes a parameter that can be controlled via the [TOUCH AND TURN].

Controlling the parameters using the [TOUCH AND TURN]
Tap the desired parameter to select it (), and then use the [TOUCH AND TURN] to adjust the parameter (). A pink frame appears around the selected parameter.

Scrolling
On screens that feature a scroll bar, slide your finger up and down or left and right to scroll the screen. Swiping the screen allows you to scroll quickly.
You can also manipulate the screen as follows: For more information, refer to the DM7 series Reference Manual.

• Pinching or spreading two fingers in and out
  You can use this technique to adjust Q for EQ.
• Sliding three fingers up and down
  You can use this technique to adjust the amount of cut/boost of EQ gain for multiple bands simultaneously.
• Sliding four fingers up and down / Pinching or spreading three fingers in and out
  You can use this technique to magnify or reduce the amount of EQ gain adjustment across multiple bands.

Installing Optional Cards

Installing a PY Card
Before you install a PY card, you must check the Yamaha Pro Audio global website to see whether the DM7 series supports your card. https://www.yamahaproaudio.com/

1. Make sure that the power to this product is turned off.

   Installing or removing a card while the power is on may lead to component failure or electric shock.
2. Remove the screws that fasten the [PY] slot cover and remove the cover.
   The removed screws will be used again to install the PY card. Keep the cover in a safe place for future use.

3. Align both edges of the PY card with the guide rails inside the slot, and then insert the PY card into the slot.
   Push the PY card all the way into the slot so that the connector at the end of the PY card is correctly inserted into the connector inside the slot.
   NOTICE
   When inserting the PY card, align both sides of the PY card with the guide rails in the slot of the host device.

4. Affix the PY card using the screws that were removed in step 2.
   Do not use the card unless it is affixed by the screws securely. Be aware that component failure or malfunction may occur if the PY card is not fastened.

Removing the PY Card

1. Make sure that the power to this product is turned off.

   Installing or removing a card while the power is on may lead to component failure or electric shock.
2. Completely loosen and remove the screws that hold the PY card in place.
3. Pull the card toward you while holding the peg-shaped handles (see the figure below) on the PY card.

4. Replace the stored slot cover and affix it with the screws.
   Do not use the unit while the slot cover is removed. Component failure or malfunction may occur.

Setting the Internal Clock

This section explains how to set the date and time of the clock, and how to select a time zone, and a date and time display format.
The date and time you specify here will affect the time stamp used for scenes or when you save or load files.

1. Tap the Setup button on the menu bar on the right side on the Bay screen.
   If the menu bar is not displayed, tap in the upper-right corner of the screen to display the menu bar.

2. Tap the Date/Time button.
   The DATE/TIME screen appears.

3. In the DATE/TIME screen, select a time zone, and a date and time display format.
   You can choose from the following display formats. Flick numbers to set the date and time.

   • Date
     MM/DD/YYYY (Month/Day/Year)
     DD/MM/YYYY (Day/Month/Year)
     YYYY/MM/DD (Year/Month/Day)
   • Time
     24-Hour (Hours are indicated in the range of 0–23.)
     12-Hour (Hours are indicated in the range of AM0–AM11 and PM0–PM11.)
4. When you finish making settings, tap the Set button. To revert to the previous date and time settings, tap the Reset button.


Restoring the Factory Settings (Initialization)

If an error occurs in the unit's internal memory, or if you forget the password and cannot operate the unit, you can use the following procedure to initialize the internal memory.
NOTICE
When you initialize the internal memory, all content that had been saved in memory will be erased. Use caution when performing the following steps.

1. Press and hold down the [SEL] for channel D in the Main section while turning on the power to the unit.
2. Once the MAINTENANCE screen opens in the Utility screen, tap the Initialize All Memory button.
   The system reverts to factory settings.

Installing the Cable Hook

A cable hook is provided to prevent accidental disconnection of the USB cable. The hook can be installed by the following procedure.

1. Hook one end of the included cable hook onto one side of the security slot located above the [USB TO HOST] connector on the rear panel.

2. Insert the other end of the hook into the other side of the security slot.
3. Pass the USB cable through the hook and connect it to the USB connector.


Installing the Rack Mount Kit (DM7 COMPACT)

You can attach the separately-sold RK1 Rack Mount Kit to the DM7 COMPACT and mount the unit in a rack or in an installed system.

1. Make sure that the power is turned off.

   When attaching the RK1 Rack Mount Kit, you must turn off the power switches on the unit and use the screws that are included in the RK1 package. Otherwise, component failure or electric shock may occur.
2. Remove screws (A) on the side pads to detach the pads.
   NOTE
   Keep the side pad screws together with the pads you removed.

3. Use the screws included in the RK1 package to install the hardware.
   Tighten the screws at three locations as indicated by the arrows in the illustration below.

4. Attach the hardware to the other side in the same way.

Precautions for rack mounting
Operation of this device is guaranteed within a temperature range of 0 to 40°C. If you mount this unit along with other equipment in an EIA standard rack, the heat from each device will raise the temperature inside the rack, which may prevent the unit from achieving full performance. When rack mounting the unit, always observe the following requirements to avoid heat buildup:

• Be sure to leave at least 14U space (excluding the space for cable connections) around the unit.
• When mounting the unit in a rack with devices such as power amplifiers that tend to generate a significant amount of heat, leave a sufficient space between this unit and other equipment. Also, ensure sufficient ventilation by installing a ventilation panel in these spaces, or simply leave the open spaces uncovered.
• To ensure sufficient airflow, leave the rear of the rack open and position it at least 10 cm from walls, ceilings or other surfaces. If the rear of the rack cannot be left open, install a commercially-available fan kit or similar forced system to secure sufficient airflow. If you have installed a fan kit, there may be cases in which closing the rear of the rack will produce a greater cooling effect. For more information, refer to the instruction manuals for the rack and fan kit.

General Specifications

*1. Measured 30 cm horizontally away and vertically up from the unit (front pad).
The contents of this manual apply to the latest specifications as of the publishing date. To obtain the latest manual, access the Yamaha website then download the manual file.

Dimensions

DM7

DM7 COMPACT

Source Code Distribution

For three years after the final factory shipment, you may request from Yamaha the source code for any portions of the product which are licensed under the GNU General Public License / GNU Lesser General Public License / RealNetworks Public Source License by writing to the following address:
10-1 Nakazawa-cho, Naka-ku, Hamamatsu, 430-8650, JAPAN Marketing & Sales Department, Professional Audio Division, Audio Products Business Unit, Yamaha Corporation
The source code will be provided at no charge; however, we may require you to reimburse Yamaha for the cost of delivering the source code to you. The source code can be downloaded by visiting the following URL: https://www.yamahaproaudio.com/

• Note that we shall bear no responsibility whatsoever for any damage arising from changes (additions/deletions) made to the software for this product by a third party other than Yamaha (or party authorized by Yamaha).
• Note that re-use of source code released to the public domain by Yamaha is not guaranteed. Yamaha shall not bear any responsibility whatsoever for the source code.

ADDRESS LIST

NORTH AMERICA
CANADA
Yamaha Canada Music Ltd.
135 Milner Avenue, Toronto, Ontario, M1S 3R1, Canada
Tel: +1-416-298-1311 U.S.A.

Yamaha Corporation of America
6600 Orangethorpe Avenue, Buena Park, CA 90620, U.S.A.
Tel: +1-714-522-9011

CENTRAL & SOUTH AMERICA
MEXICO
Yamaha de México, S.A. de C.V.
Av. Insurgentes Sur 1647 Piso 9, Col. San José Insurgentes, Delegación Benito Juárez, CDMX,
C.P. 03900, México Tel: +52-55-5804-0600

BRAZIL
Yamaha Musical do Brasil Ltda.
Praça Professor José Lannes, 40-Cjs 21 e 22,
Brooklin Paulista Novo CEP 04571-100 – São
Paulo – SP, Brazil Tel: +55-11-3704-1377

ARGENTINA
Yamaha Music Latin America, S.A.,
Sucursal Argentina
Olga Cossettini 1553, Piso 4 Norte,
Madero Este-C1107CEK,
Buenos Aires, Argentina
Tel: +54-11-4119-7000

PANAMA AND OTHER LATIN AMERICAN/CARIBBEAN REGIONS
Yamaha Music Latin America, S.A.
Edif. Torre Banco General, Piso 7, Urbanización
Marbella, Calle 47 y Aquilino de la Guardia,
Ciudad de Panamá, República de Panamá Tel: +507-269-5311

EUROPE
THE UNITED KINGDOM/IRELAND
Yamaha Music Europe GmbH (UK)
Sherbourne Drive, Tilbrook, Milton Keynes, MK7 8BL, U.K. Tel: +44-1908-366700

GERMANY
Yamaha Music Europe GmbH
Siemensstrasse 22-34, 25462 Rellingen, Germany
Tel: +49-4101-303-0

SWITZERLAND/LIECHTENSTEIN
Yamaha Music Europe GmbH, Branch
Switzerland in Thalwil
Seestrasse 18a, 8800 Thalwil, Switzerland
Tel: +41-44-3878080

AUSTRIA/BULGARIA/ CZECH REPUBLIC/HUNGARY/ ROMANIA/SLOVAKIA/SLOVENIA
Yamaha Music Europe GmbH
Branch Austria
Schleiergasse 20, 1100 Wien, Austria
Tel: +43-1-60203900

POLAND
Yamaha Music Europe
Sp.z o.o. Oddział w Polsce ul. Młynarska 48, 01-171 Warszawa, Poland Tel: +48-22-880-08-88

MALTA
Olimpus Music Ltd.
Valletta Road, Mosta MST9010, Malta
Tel: +356-2133-2093

NETHERLANDS/BELGIUM/LUXEMBOURG
Yamaha Music Europe Branch Benelux
Wattbaan 1 3439ML Nieuwegein, The Netherlands
Tel: +31-347-358040

FRANCE
Yamaha Music Europe
7 rue Ambroise Croizat, Zone d'activités de Pariest,
77183 Croissy-Beaubourg, France Tel: +33-1-6461-4000

ITALY
Yamaha Music Europe GmbH, Branch Italy
Via Tinelli N.67/69 20855 Gerno di Lesmo (MB),
Italy
Tel: +39-039-9065-1

SPAIN/PORTUGAL
Yamaha Music Europe GmbH Ibérica, Sucursal en España
Ctra. de la Coruña km. 17,200, 28231
Las Rozas de Madrid, Spain
Tel: +34-91-639-88-88

GREECE
Philippos Nakas S.A. The Music House
19th klm. Leof. Lavriou 190 02 Peania – Attiki,
Greece Tel: +30-210-6686168

SWEDEN/FINLAND/ICELAND
Yamaha Music Europe GmbH Germany Filial
Scandinavia
JA Wettergrensgata 1, 400 43 Göteborg, Sweden
Tel: +46-31-89-34-00

DENMARK
Yamaha Music Denmark,
Fillial of Yamaha Music Europe GmbH, Tyskland
Generatorvej 8C, ST. TH. , 2860 Søborg, Denmark
Tel: +45-44-92-49-00

NORWAY
Yamaha Music Europe GmbH Germany Norwegian Branch c/o Box 30053, 400 43 Göteborg, Sweden Tel: +47-6716-7800

CYPRUS
Yamaha Music Europe GmbH
Siemensstrasse 22-34, 25462 Rellingen, Germany
Tel: +49-4101-303-0

RUSSIA
Yamaha Music (Russia) LLC.
Room 37, entrance 7, bld. 7, Kievskaya street,
Moscow, 121059, Russia
Tel: +7-495-626-5005

OTHER EUROPEAN REGIONS
Yamaha Music Europe GmbH
Siemensstrasse 22-34, 25462 Rellingen, Germany
Tel: +49-4101-3030

AFRICA
Yamaha Music Gulf FZE
JAFZA-16, Office 512, P.O.Box 17328,
Jebel Ali FZE, Dubai, UAE Tel: +971-4-801-1500

MIDDLE EAST
TURKEY
Ertekin Electronik tlc. ve san. as Kagithane Ofis ParkBaglar Cad.
No: 14 D/6 Kagithane 34406
ISTANBUL / TÜRKIYE Tel: +90-212-312-24-24

OTHER REGIONS
Yamaha Music Gulf FZE
JAFZA-16, Office 512, P.O.Box 17328,
Jebel Ali FZE, Dubai, UAE
Tel: +971-4-801-1500

ASIA
MAINLAND CHINA
Yamaha Music & Electronics (China) Co.,Ltd.
2F, Yunhedasha, 1818 Xinzha-lu, Jingan-qu,
Shanghai, China Tel: +86-400-051-7700

INDIA
Yamaha Music India Private Limited
P-401, JMD Megapolis, Sector-48, Sohna Road,
Gurugram-122018, Haryana, India
Tel: +91-124-485-3300

INDONESIA
PT Yamaha Musik Indonesia Distributor
Yamaha Music Center Bldg. Jalan Jend. Gatot
Subroto Kav. 4, Jakarta 12930, Indonesia
Tel: +62-21-520-2577

KOREA
Yamaha Music Korea Ltd.
11F, Prudential Tower, 298, Gangnam-daero,
Gangnam-gu, Seoul, 06253, Korea
Tel: +82-2-3467-3300

MALAYSIA
Yamaha Music (Malaysia) Sdn. Bhd.
No.8, Jalan Perbandaran, Kelana Jaya, 47301
Petaling Jaya, Selangor, Malaysia
Tel: +60-3-78030900

SINGAPORE
Yamaha Music (Asia) Private Limited
Block 202 Hougang Street 21, #02-00,
Singapore 530202, Singapore
Tel: +65-6740-9200

TAIWAN
Yamaha Music & Electronics Taiwan Co.,Ltd.
2F., No.1, Yuandong Rd., Banqiao Dist.,
New Taipei City 22063, Taiwan
Tel: +886-2-7741-8888

THAILAND
Siam Music Yamaha Co., Ltd.
3, 4, 15, 16th Fl., Siam Motors Building,
891/1 Rama 1 Road, Wangmai,
Pathumwan, Bangkok 10330, Thailand
Tel: +66-2215-2622

VIETNAM
Yamaha Music Vietnam Company Limited
15th Floor, Nam A Bank Tower, 201-203 Cach
Mang Thang Tam St., Ward 4, Dist.3,
Ho Chi Minh City, Vietnam
Tel: +84-8-3818-1122
OTHER ASIAN REGIONS http://asia.yamaha.com/

OCEANIA
AUSTRALIA
Yamaha Music Australia Pty. Ltd.
Level 1, 80 Market Street, South Melbourne,
VIC 3205, Australia
Tel: +61-3-9693-5111

REGIONS AND TRUST TERRITORIES
IN PACIFIC OCEAN http://asia.yamaha.com/

Head Office/Manufacturer: Yamaha Corporation 10-1, Nakazawa-cho, Naka-ku, Hamamatsu, 430-8650, Japan PA59
Importer (European Union): Yamaha Music Europe GmbH Siemensstrasse 22-34, 25462 Rellingen, Germany
Importer (United Kingdom): Yamaha Music Europe GmbH (UK) Sherbourne Drive, Tilbrook, Milton Keynes, MK7 8BL, United Kingdom

Yamaha Pro Audio global website https://www.yamahaproaudio.com/

PRECAUTIONS

PLEASE READ CAREFULLY BEFORE PROCEEDING
Please keep this manual in a safe place for future reference.

Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical shock, short-circuiting, damages, fire or other hazards. These precautions include, but are not limited to, the following:

If you notice any abnormality

• If any of the following problems occur, immediately turn off the power switch and disconnect the electric plug from the outlet.
  • The power cord or plug becomes frayed or damaged.
  • Unusual smells or smoke are emitted.
  • Some object, or water has been dropped into the product.
  • There is a sudden loss of sound during use of the product.
  • Cracks or other visible damage appear on the product.
    Then have the product inspected or repaired by qualified Yamaha service personnel.

Power supply

• Do not place the power cord near heat sources such as heaters or radiators, and do not excessively bend or otherwise damage the cord, place heavy objects on it, or place it in a position where anyone could walk on, trip over, or roll anything over it.
• Only use the voltage specified as correct for the product. The required voltage is printed on the name plate of the product.
• Use the supplied power cord/plug only.
  If you intend to use the product in an area other than in the one you purchased, the included power cord may not be compatible. Please check with your Yamaha dealer.
• Do not use the supplied cord/plug for other products.
• Check the electric plug periodically and remove any dirt or dust which may have accumulated on it.
• Make sure to fully insert the electric plug to prevent electric shocks or fire.
• This product receives power from multi sources. When setting up the product, make sure that the AC outlet you are using is easily accessible. If some trouble or malfunction occurs, immediately turn off the power switch and disconnect all plugs from the outlet. Even when the power switch is turned off, as long as the power cord is not unplugged from the wall AC outlet, the product will not be disconnected from the power source.

• Remove the electric plug from the outlet when the product is not to be used for extended periods of time.
• Do not touch the product or the electric plug during an electrical storm.

Connections

• Be sure to connect to an appropriate outlet with a protective grounding connection. Improper grounding can result in electrical shock, fire, or damage.
• Always read the manuals of the devices to be connected and follow the directions they contain. Failure to do so may result in fire, overheating, explosion, or malfunction.

Do not open

• • This product contains no user-serviceble parts. Do not attempt to disassemble the internal parts or modify them in any way.

Water warning

• Do not expose the product to rain, use it near water or in damp or wet conditions, or place on it any containers (such as vases, bottles or glasses) containing liquids which might spill into any openings.
• Never insert or remove an electric plug with wet hands.

Fire warning

• Do not place any burning items or open flames near the product, since they may cause a fire.

Hearing loss

• Before turning the power of all devices on or off, make sure that all volume levels are set to the minimum. Failing to do so may result in hearing loss, electric shock, or device damage.
• When turning on the AC power in your audio system, always turn on the power amplifier LAST, to avoid hearing loss and speaker damage. When turning the power off, the power amplifier should be turned off FIRST for the same reason.
• Do not use headphones for a long period of time at a high or uncomfortable volume level, since this can cause permanent hearing loss. If you experience any hearing loss or ringing in the ears, consult a physician.

Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others. These precautions include, but are not limited to, the following:

Power supply

• When removing the electric plug from the product or an outlet, always hold the plug itself and not the cord. Pulling by the cord can damage it.

Location and connection

• Do not place the product in an unstable position or a location with excessive vibration, where it might accidentally fall over and cause injury.
• Keep this product out of reach of children. This product is not suitable for use in locations where children are likely to be present.
• Do not block the vents. This product has ventilation holes at the front/rear to prevent the internal temperature from becoming too high. In particular, do not place the product on its side or upside down. Inadequate ventilation can result in overheating, possibly causing damage to the product(s), or even fire.
• [DM7 COMPACT] If the product is mounted in an EIA standard rack, carefully read the section "Precautions for rack mounting". Inadequate ventilation can result in overheating, possibly causing damage to the product(s), malfunction, or even fire.
• Do not place the product in a location where it may come into contact with corrosive gases or salt air. Doing so may result in malfunction.
• Before moving the product, remove all connected cables.
• [DM7] When transporting or moving the product, always use two or more people. Attempting to lift the product by yourself may result in injuries, such as back injuries, or cause the product to be dropped and broken, which could lead to other injuries.

Maintenance

• Remove the power plug from the AC outlet when cleaning the product.

Handling caution

• Do not rest your weight on the product or place heavy objects on it.

Internal battery for clock display

• Do not replace the internal battery by yourself. Doing so may cause an explosion and/or damage to the product(s).
  When the internal battery needs to be replaced, "Low Battery" or "No Battery" will appear on the display. In this case, contact your Yamaha dealer and have qualified Yamaha service personnel replace the internal battery.

NOTICE
To avoid the possibility of malfunction/damage to the product, damage to data, or damage to other property, follow the notices below.

Handling and maintenance

• Do not connect this product to public Wi-Fi and/or Internet directly. Only connect this product to the Internet through a router with strong password-protections. Consult your router manufacturer for information on security best practices.
• Do not use the product in the vicinity of a TV, radio, or other electric products. Otherwise, the product, TV, or radio may generate noise.
• Do not expose the product to excessive dust or vibration, or extreme cold or heat, in order to prevent the possibility of panel disfiguration, unstable operation, or damage to the internal components.
• Do not install in locations where temperature changes are severe. Otherwise, condensation may form on the inside or the surface of the product, causing it to break.
• If there is reason to believe that condensation might have occurred, leave the product for several hours without turning on the power until the condensation has completely dried out, in order to prevent possible damage.
• Do not place vinyl, plastic or rubber objects on the product, since this might cause alteration or discoloration of the panel.
• Clean the product with a dry and soft cloth. Do not wipe product surfaces with sodium hypochlorite, alcohol, benzene, paint thinners, cleaning fluids, or a chemical-impregnated wiping cloth, which could cause discoloration or change surface characteristics.
• Do not apply oil, grease, or contact cleaner to the faders. Doing so might cause problems with electrical contact or fader motion.
