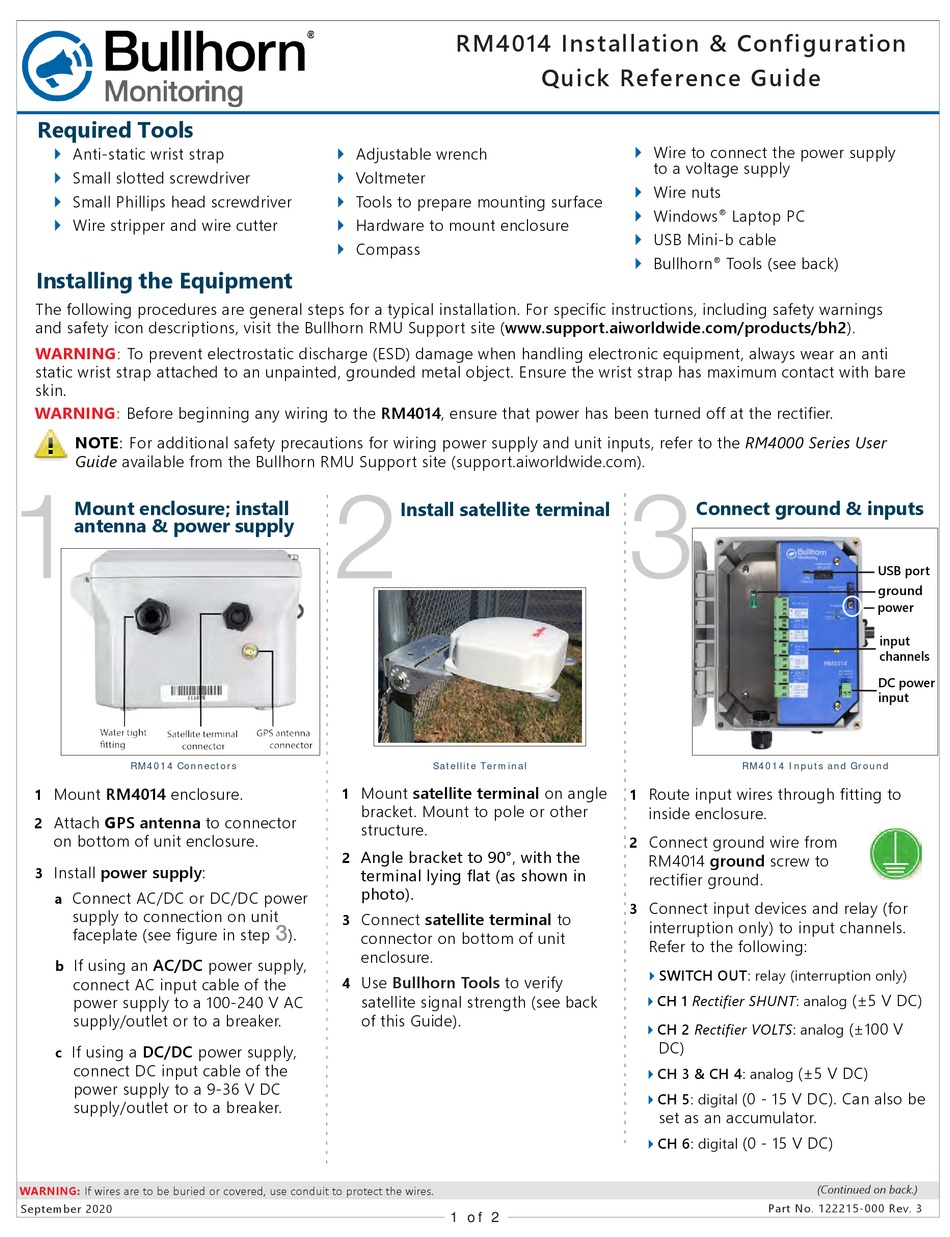

Bullhorn RM4000 Series Quick Reference Manual

Installation and Configuration

Required Tools

Anti-static wrist strap

Small slotted screwdriver

Small Phillips head screwdriver

Wire stripper and wire cutter


Installing the Equipment

The following procedures are general steps for a typical installation. For specific instructions, including safety warnings
and safety icon descriptions, visit the Bullhorn RMU Support site (www.support.aiworldwide.com/products/bh2).
WARNING To prevent electrostatic discharge (ESD) damage when handling electronic equipment, always wear an anti
:
static wrist strap attached to an unpainted, grounded metal object. Ensure the wrist strap has maximum contact with bare
skin.
WARNING Before beginning any wiring to the RM4014, ensure that power has been turned off at the rectifier.
:
NOTE For additional safety precautions for wiring power supply and unit inputs, refer to the RM4000 Series User
:
Guide available from the Bullhorn RMU Support site (support.aiworldwide.com).
1
Mount enclosure; install
antenna & power supply
RM4014 Connectors
Mount RM4014 enclosure.
1
Attach GPS antenna to connector
2
on bottom of unit enclosure.
Install power supply:
3
Connect AC/DC or DC/DC power
a
supply to connection on unit
faceplate (see figure in step
If using an AC/DC power supply,
b
connect AC input cable of the
power supply to a 100-240 V AC
supply/outlet or to a breaker.
If using a DC/DC power supply,
c
connect DC input cable of the
power supply to a 9-36 V DC
supply/outlet or to a breaker.
WARNING: If wires are to be buried or covered, use conduit to protect the wires.
September 2020
RM4014
Adjustable wrench

Voltmeter

Tools to prepare mounting surface

Hardware to mount enclosure

Compass

2
Install satellite terminal
Satellite Terminal
Mount satellite terminal on angle
1
bracket. Mount to pole or other
structure.
Angle bracket to 90°, with the
2
terminal lying flat (as shown in
photo).
Connect satellite terminal to
3
3
).
connector on bottom of unit
enclosure.
Use Bullhorn Tools
4
satellite signal strength (see back
of this Guide).
RM4014 Installation & Configuration
Quick Reference Guide





3
1
to verify
1 of 2
Quick Reference Guide
Wire to connect the power supply
to a voltage supply
Wire nuts
Windows Laptop PC
®
USB Mini-b cable
Bullhorn Tools (see back)
®
Connect ground & inputs
RM4014 Inputs and Ground
Route input wires through fitting to
inside enclosure.
Connect ground wire from
2
RM4014 ground screw to
rectifier ground.
Connect input devices and relay (for
3
interruption only) to input channels.
Refer to the following:
SWITCH OUT: relay (interruption only)
CH 1 Rectifier SHUNT: analog
CH 2 Rectifier VOLTS: analog
DC)
(±5 V DC)
CH 3 & CH 4: analog
(0 - 15 V DC). Can also be
CH 5: digital
set as an accumulator.
(0 - 15 V DC)
CH 6: digital
Part No. 122215-000 Rev. 3
USB port
ground
power
input
channels
DC power
input
(±5 V DC)
(±100 V
(Continued on back.)
