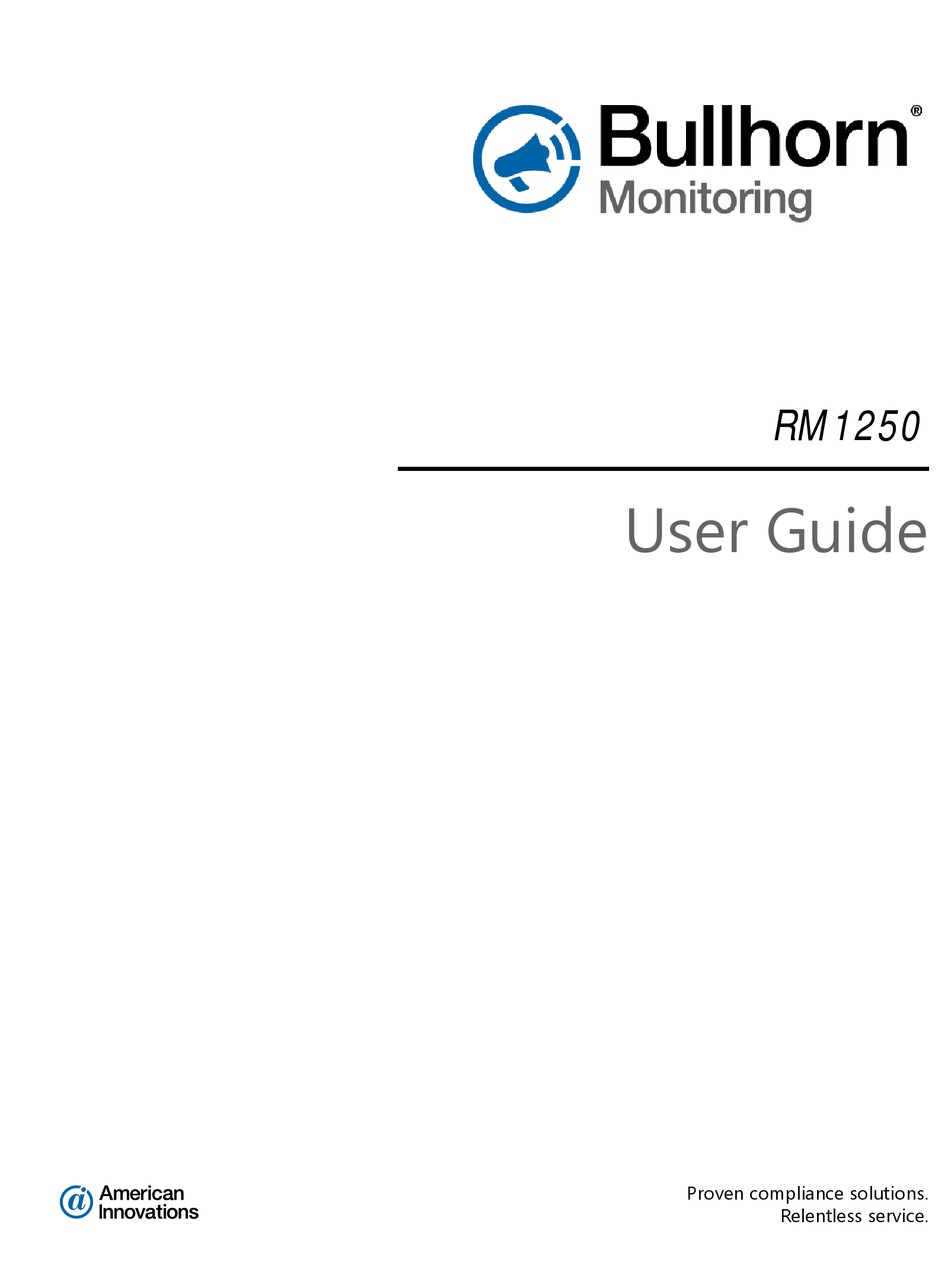

- Page 1 Bullhorn RM1250 User Guide RM1250 User Guide Proven compliance solutions. Proven compliance solutions. Relentless service.
- Page 2 Reproduction in any manner whatsoever without the written permission of American Innovations is strictly forbidden. The American Innovations logo and icon, including Bullhorn, are marks of American Innovations, Ltd. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.
-
Page 3: Table Of Contents
Configure with Bullhorn Tools Software ........ - Page 4 RM1250 with Existing Index ........
-
Page 5: Chapter 1 Getting Started
Getting Started This guide explains how to install Bullhorn RM1250 units, as well as how to configure the units for service using Bullhorn Tools configuration software or mobile application (Bullhorn Tools Mobile). The RM1250 remote monitoring unit accurately, regularly, and reliably calculates gas or liquid volume by measuring the digital pulse output from a positive displacement (PD), gas, or lease automatic custody transfer meter (LACT). -
Page 6: Esd Precautions
RM1250 User Guide Table 1-1. Safety and Equipment Symbols Symbol Description Caution: Failure to observe this warning may result in personal injury, death, or equipment damage. A potential risk exists if the installation instructions are not followed. Warning: Risk of electrical shock. Failure to observe this warning may result in personal injury, death, or equipment damage. -
Page 7: Bullhorn System Overview
Apple App Store. The RM1250 is a fully-integrated unit that can be mounted alone or on top of a meter. All components, including the antenna, are internal to make it easier to transport, install, and maintain. The RM1250 supports the following inputs: •... -
Page 8: Installation Requirements
Figure 1-1. RM1250 Inputs and Batteries Installation Requirements Before you install an RM1250 unit, use the following information as a checklist to ensure a successful installation: Power Disconnect and Branch Circuit Protection: A customer-supplied, power disconnect device is required for the unit installation. The power disconnect device (such as a switch, main circuit breaker, or other type of power disconnect) should provide an easy and accessible means for removing the main input supply power source from the unit. -
Page 9: Required Tools And Equipment
Cables should be rated at a minimum of 600 V and 105 Input Channel Voltage Levels: All input channels are marked with acceptable input voltage ranges. Ensure that devices connected to the RM1250 units fall within the voltages ranges listed next to the channel input connections. -
Page 10: Configuration And Support Software
Bullhorn Tools and support software can be downloaded from Bullhorn Web. Bullhorn Tools Bullhorn Tools is a software program you use to set and read the adjustable parameters of the unit after the unit has been installed. Bullhorn Tools also allows you to set alarms and transmission schedules or transmit a test packet to confirm communications with Bullhorn Web. -
Page 11: Microsoft .Net Framework
Framework, visit the Microsoft website (http://www.microsoft.com). Bullhorn Information Line The Bullhorn Information Line is an automated attendant telephone system. It is typically used when installing units in the field. The system identifies when the last data transmission (or test packet) was received on your website account for a unit. -
Page 12: Technical Services
RM1250 User Guide Technical Services If you need assistance with the installation or configuration, contact American Innovations Technical Services in any of the following ways. Telephone: Local: 512-249-3400 Toll-free: 800-229-3404 Email: bhtechservices@aiworldwide.com Address: American Innovations, Ltd. ATTN. Technical Services 12211 Technology Blvd.... -
Page 13: Installation
Installation The RM1250 is typically installed on a flat base and connected to an index or other pulse device. Alternate mounting options and accessories are available for purchase. Contact the American Innovations Sales team at sales@aiworldwide.com (also refer to Appendix B, Other Installation Options). - Page 14 The input connections and battery placement for the RM1250: Figure 2-2. RM1250 Inputs The RM1250 includes the following inputs: • Accumulator 1 • Digital Input 1 • Accumulator 2 • Digital Input 2 The battery is the only field-serviceable item in the RM1250.
-
Page 15: Preparing For Installation
Ensure that the latest version of Bullhorn Tools and other support software are installed on the computer or device that you plan to use to configure the unit. Bullhorn Tools can be downloaded from the Bullhorn Web Help (Downloads) page, andBullhorn Tools Mobile can be downloaded from the Apple App Store. -
Page 16: Equipment Notes
The RM1250 are intended for transmissions at a frequency of no greater than once per hour. Installation Requirements The RM1250 is designed for easy installation and configuration. The unit is housed in a dome enclosure and fits onto a customized base. The dimensions of the unit dome enclosure are shown in Figure 2-3. -
Page 17: Installing The Rm1250
If an anti-static wrist strap is unavailable, discharge static electricity from yourself and your clothing by touching a nearby metal surface before accessing the unit or handling electronic components. The following section explains how to install the RM1250 with the flat base. For alternative installation options, please contact Technical Services (bhtechservices@aiworldwide.com). - Page 18 RM1250 User Guide Figure 2-5. RM1250 4-pin Connector Install the batteries into the bracket inside the RM1250. Secure with strap. Figure 2-6. Battery Bracket and Battery Placement Connect the two battery connectors to the battery connections on the RM1250 board.
- Page 19 Once the batteries are connected to the unit, a Startup packet is sent to your Bullhorn Web account. Place the RM1250 unit onto the base. Align the cut-out below the Bullhorn label on the dome to the screw (next to blue dot) on the base.
-
Page 20: Maintenance
Continue with Chapter 1, Configuration to configure the RM1250 for service. Maintenance If performing maintenance on the RM1250, first disconnect the equipment from hazardous voltages before gaining access to the enclosure. -
Page 21: Chapter 3 Configuration
Configuration The RM1250 units can be configured for service using Bullhorn Tools - either on your laptop with the software version or on a smartphone or tablet running iOS 8.1 or later. The software version can be downloaded from the Bullhorn Web Help page (https://www.bullhornsys.com/wiki/), while Bullhorn Tools Mobile can be downloaded... -
Page 22: Activate Bluetooth
Bluetooth-enabled device. If you are using Bullhorn Tools on a laptop and connecting to the unit with a USB mini-b cable instead of the Bluetooth connection, you do not need to activate the unit. The unit will be ready to configure with Bullhorn Tools once the cable has been connected to both the unit and the laptop. - Page 23 RM1250 User Guide Ensure that Bullhorn Tool is loaded on your computer. The latest version of the software can be downloaded from Bullhorn Web Help (Downloads). If using a Bluetooth connection, connect the AI USB Bluetooth dongle (included in the configuration kit) to your computer’s USB port.
- Page 24 Use Bullhorn Tools to complete the following configuration tasks on the unit: • View Unit Information — the main Bullhorn Tools Unit Overview window displays current unit information. You can also enable or disable Scaling by clicking the Scaling slider on the Readings line.
-
Page 25: View Unit Information
Upgrade Firmware — if available, firmware upgrades can be done through Bullhorn Tools. When finished, click File > Disconnect to disconnect from the unit or File > Exit to close Bullhorn Tools. If you are using a Bluetooth connection, the unit will disconnect automatically after a few minutes. However, you can also de-activate the unit by swiping a magnet across the access point until the light turns off. -
Page 26: Set Reporting Schedule And Battery Information
RM1250 User Guide Click File > Load Template. In the Apply Template window, select a saved template from the Select template list. Figure 3-6. Apply Template Verify unit information, then click Apply. Set Reporting Schedule and Battery Information The reporting schedule determines when and how often Reading measurements transmit to your website account. -
Page 27: Send Test Message
Send Test Message Complete the following steps to send a test message to the Bullhorn Web account: After the batteries have been connected, the unit sends a Startup packet to the Bullhorn Web account. Refer to Installing the RM1250. Click Action > Send Test Message. -
Page 28: Enable Or Disable Readings
RM1250 User Guide Figure 3-8. Unit Detail on Bullhorn Web Enable or Disable Readings Complete the following steps to enable or disable the unit Readings (channels). Click Readings. Double-click Readings or click the expand arrow next to Readings to show the enabled readings. -
Page 29: Configure Readings
RM1250 User Guide To disable a reading, select Disabled. Click Save to save settings or Cancel to clear all fields. Configure Readings Complete the following steps to configure the enabled Readings: Click the name of the Reading under Readings. Only enabled Readings display in the list. -
Page 30: Work With Templates
Input Persistence field. To set an alarm that will send an alarm to your Bullhorn Web account whenever there is a change to the Input State, enable one or both of the alarms (Open or Closed). -
Page 31: Upgrade Firmware
Select a destination for the file, and then click Save. To delete a template, select the template and click Delete. Upgrade Firmware Available upgrades to the RM1250 firmware can be applied to the unit. Complete the following steps to upgrade firmware: Contact the Technical Services team for more information on the latest firmware available. -
Page 32: De-Activate Bluetooth
RM1250 User Guide Figure 3-13. Firmware Version De-activate Bluetooth The unit will disconnect automatically after 10 minutes. It is not necessary to swipe the activation point again unless you wish to de-activate the Bluetooth connection immediately. -
Page 33: Technical Specifications
Technical Specifications This appendix includes technical specifications for the RM1250, including accessories. • Environmental conditions: – Indoor or outdoor use – Maximum altitude: 3,000 m ˚ ˚ – Temperature range: -30 C to +60 – Units can be used in 100% humidity (rain) •... - Page 34 RM1250 User Guide Lithium, 3.6 V, 13.0 Ah capacity American Innovations USB dongle (part number 626595-000) • Optional: – flat base adapter (part number 826552-A-KFO00AA) – index, 10 cuft (part number 826552-A-KFP00AA) – index base adapter (part number 826552-A-KFQ00AA)
-
Page 35: Other Installation Options
Other Installation Options The RM1250 installation can be customized for a particular use or situation. Other installation options for the RM1250 include the following: • RM1250 and index (10 cuft) - refer to RM1250 with Index on page xlii for installation instructions. -
Page 36: Rm1250 With Index
MPORTANT safety warnings. RM1250 with Index The RM1250 can be ordered with an index. The assembly can be easily installed or mounted to a meter or other structure. The dimensions of the complete assembly are shown below. Other Installation Options... - Page 37 RM1250 User Guide Figure B-3. RM1250 with Flat Base and Index Dimensions Complete the following steps to connect the RM1250 to the flat base and index assembly: Connect the 4-pin connector from the index adapter to the RM1250. Connect the two RM1250 battery connectors to the corresponding connections (marked Battery), as shown.
-
Page 38: Rm1250 With Existing Index
The RM1250 label should be facing forward and line up with the blue dot on the base. Tighten base screws to secure unit. RM1250 with Existing Index The RM1250 and index adapter base can be mounted onto an existing index. Refer to Figure B-5 during installation. Other Installation Options... - Page 39 Index Figure B-5. RM1250, Index Adapter Base, and Index with Installation Parts Complete the following steps to connect the RM1250 and index adapter base to an existing index: Remove cover and hardware from existing index. Set aside board assembly. Place gasket on top of index.
- Page 40 Attach drive cover bracket with included hardware. Connect 2-conductor cable to index assembly board. Connect the 2-conductor cable to the RM1250’s 4-pin connection. Figure B-7. 4-Pin Connection on RM1250 Connect the two RM1250 battery connectors to the corresponding connections (marked Battery), as shown. Other Installation Options...
- Page 41 RM1250 User Guide Figure B-8. RM1250 and Index Place RM1250 onto the /index assembly. Ensure that the connection wire is fully enclosed in the unit assembly. The RM1250 label should be facing forward and line up with the blue dot on the base.
-
Page 42: Regulatory Notices
• Consult the dealer or an experienced radio/TV technician for help. Export Control Classification Number The Export Control Classification Number (ECCN) assigned to the Bullhorn Tools software by the U.S. Bureau of Industry and Security (BIS) is as follows: •... -
Page 43: Glossary
Glossary The following information is an alphabetical list of technical terms and Bullhorn Tools fields identified in this guide. Table D-1. Glossary of Technical Terms Term Definition Accumulator Value Input field in Bullhorn Tools where the user can assign a value to the Accumulator. - Page 44 A value for a measurement that, when exceeded, will cause an alert to be sent. Universal Serial Bus. Communication protocol used by a computer for communications with an externally connected device. Units Per Pulse Input field in Bullhorn Tools that indicates the quantity represented by one input pulse. Glossary...
