RG-EG2100-P V2 Hardware Installation and Reference Guide

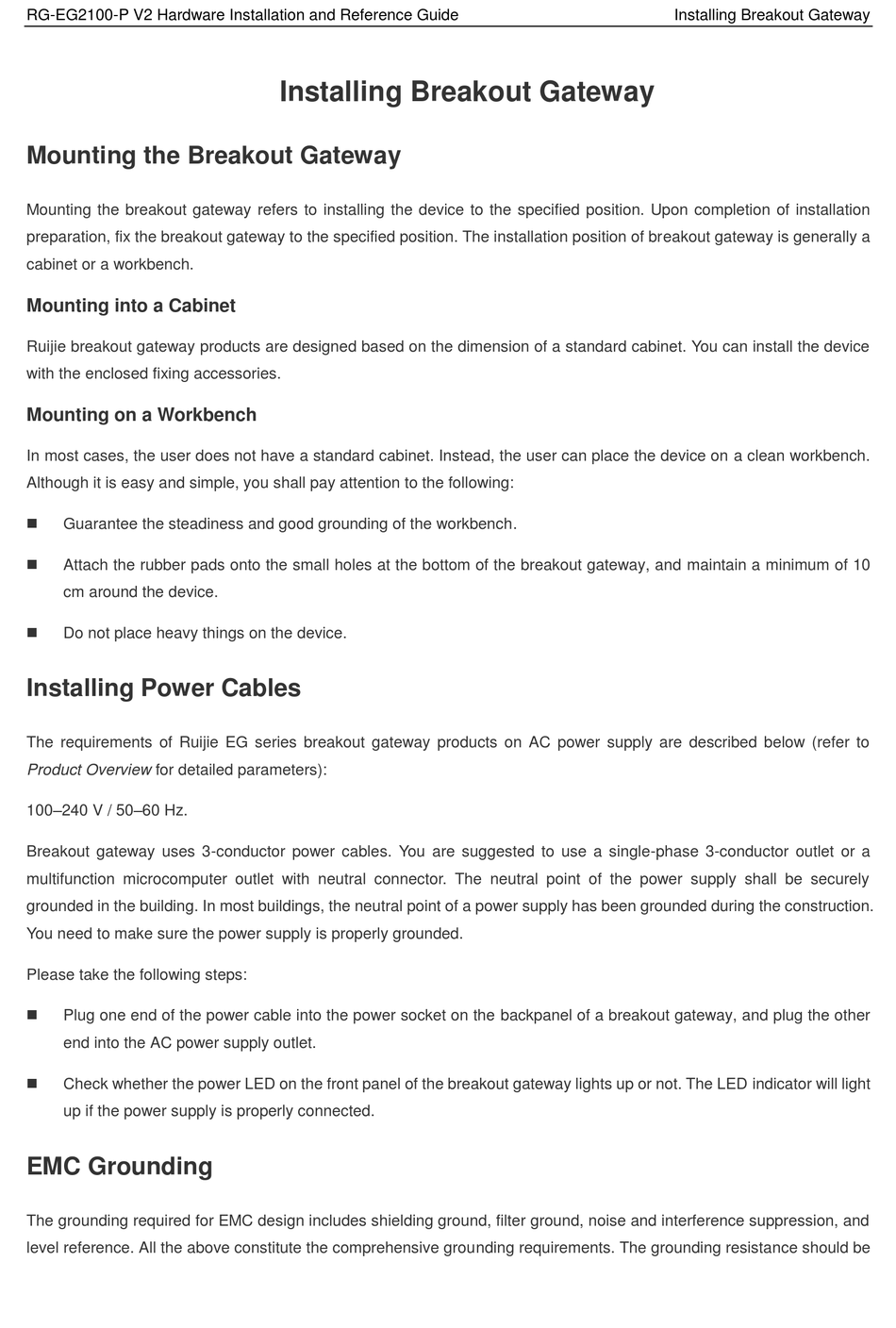

Mounting the Breakout Gateway
Mounting the breakout gateway refers to installing the device to the specified position. Upon completion of installation
preparation, fix the breakout gateway to the specified position. The installation position of breakout gateway is generally a
cabinet or a workbench.
Mounting into a Cabinet
Ruijie breakout gateway products are designed based on the dimension of a standard cabinet. You can install the device
with the enclosed fixing accessories.
Mounting on a Workbench
In most cases, the user does not have a standard cabinet. Instead, the user can place the device on a clean workbench.
Although it is easy and simple, you shall pay attention to the following:

Guarantee the steadiness and good grounding of the workbench.

Attach the rubber pads onto the small holes at the bottom of the breakout gateway, and maintain a minimum of 10
cm around the device.

Do not place heavy things on the device.

Installing Power Cables

The requirements of Ruijie EG series breakout gateway products on AC power supply are described below (refer to
Product Overview for detailed parameters):
100–240 V / 50–60 Hz.
Breakout gateway uses 3-conductor power cables. You are suggested to use a single-phase 3-conductor outlet or a
multifunction microcomputer outlet with neutral connector. The neutral point of the power supply shall be securely
grounded in the building. In most buildings, the neutral point of a power supply has been grounded during the construction.
You need to make sure the power supply is properly grounded.
Please take the following steps:

Plug one end of the power cable into the power socket on the backpanel of a breakout gateway, and plug the other
end into the AC power supply outlet.

Check whether the power LED on the front panel of the breakout gateway lights up or not. The LED indicator will light
up if the power supply is properly connected.
EMC Grounding
The grounding required for EMC design includes shielding ground, filter ground, noise and interference suppression, and
level reference. All the above constitute the comprehensive grounding requirements. The grounding resistance should be
