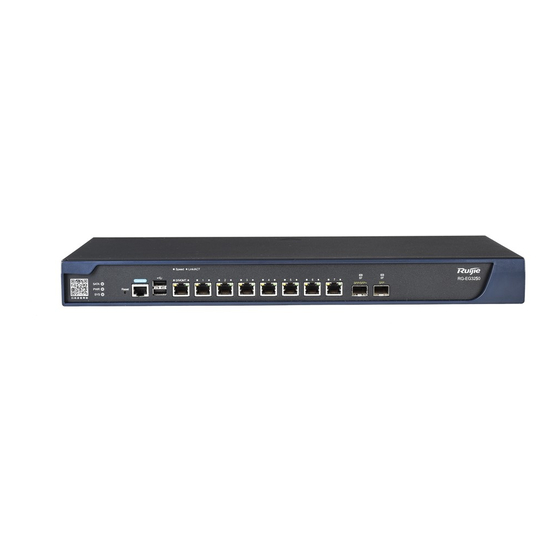

- Page 1 RG-EasyGate Series Hardware Installation Guide V1.60 RG-EasyGate Series Products Hardware Installation and Reference Guide V1.60...
- Page 2 This document is provided “as is”. The contents of this document are subject to change without any notice. Please obtain the latest information through the Ruijie Networks website. Ruijie Networks endeavors to ensure content accuracy and will not shoulder any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.
-
Page 3: Obtaining Technical Assistance
RG-EasyGate Series Hardware Installation Guide V1.60 Preface Thank you for using our products. This manual will guide you through the installation of the device. This manual describes the functional and physical features and provides the device installation steps, hardware troubleshooting, module technical specifications, and specifications and usage guidelines for cables and connectors. -
Page 4: Product Overview
Ruijie Networks with independent intellectual property right. The breakout gateway products of Ruijie are completely developed as per international standards and are similar to the mainstream breakout gateway products in the international market. By reading this manual, network administrator being familiar with mainstream breakout gateway configuration commands can easily use this product without training. - Page 5 The 10GE fiber port does not support the direct connection between two EG3250 devices via the SFP module or fiber cables. LED Indicators of Ruijie EG3250 Breakout Gateway Table 1-2 LED Indicators of Ruijie EG3250 Breakout Gateway LED Indicator Working status Solid green indicates that the power module is working properly.
- Page 6 Features of Ruijie EG Series Breakout Gateway Full Support to Extensive Protocols Ruijie EG series breakout gateway is applicable to different network environment as it provides full support to extensive protocols: Providing RJ45 port and supporting Ethernet protocol and ARP protocol;...
- Page 7 The independently developed Chinese URL database: The independently developed URL system will constantly collect URL information, and the URL database of Ruijie Networks is divided into 41 categories, with 6 million entries covering almost all websites in Mainland China.
- Page 8 RG-EasyGate Series Hardware Installation Guide V1.60 Downloading new versions of software via TFTP protocol. Online upgrade of BOOTROM. Supporting automatic upgrade and upgrade via Web. High Reliability in Software and Hardware. Supporting bridge mode, routing mode, bypass mode and other deployment modes, meeting the need for deployment in various contexts.
-
Page 9: Preparations Before Installation
Requirements on Installation Environment Ruijie EG series breakout gateway products are for indoor use only. To ensure normal operation and prolong their service life, the installation site must meet the following requirements: Temperature/humidity requirements ... -
Page 10: Temperature/Humidity Requirements
It will not only compromise the service life of device but also cause communication failure. When the indoor relative humidity is low, such electrostatic adsorption will incur more easily. Table 2-2 The Equipment Room Dust Content and Particle Size Requirements of Ruijie EG Series Breakout Gateways Maximum Diameter (μm) Maximum Density (Particles/m3) 1.4 x 10... -
Page 11: Anti-Static Requirements
RG-EasyGate Series Hardware Installation Guide V1.60 Average (mg/m3) Maximum (mg/m3) Sulfur dioxide Sulfured hydrogen 0.006 0.03 Nitrogen dioxide 0.04 0.15 Ammonia 0.05 0.15 Chlorine 0.01 Anti-Static Requirements The breakout gateway has already given consideration to electrostatic prevention during circuit design, but excessively strong static electricity will still damage the circuit board. -
Page 12: Installation Tools And Devices
RG-EasyGate Series Hardware Installation Guide V1.60 Make sure the cabinet and workbench is equipped with a good ventilation and cooling system. Make sure the cabinet and workbench is steady enough and capable of withstanding the weight of the breakout gateway and its accessories. - Page 13 The installation position of breakout gateway is generally a cabinet or a workbench. Mounting into a Cabinet Ruijie breakout gateway products are designed based on the dimension of a standard cabinet. You can install the device with the enclosed fixing accessories. Mounting on a Workbench In most cases, the user does not have a standard cabinet.
-
Page 14: Connecting Console
Connecting Console Ruijie EG series breakout gateway provides an EIA/TIA-232 asynchronous serial console port, through which the user can complete the local configuration of the breakout gateway. The attributes of a console are shown in Table 3-1. In case of WEB based configuration, the console port will be of no use. - Page 15 RG-EasyGate Series Hardware Installation Guide V1.60 If the device is installed in a cabinet, check whether the angle bar for device installation is steady. If the device is installed on the workbench, check whether sufficient room is reversed around the device to ensure heat elimination and whether the workbench is steady.
-
Page 16: Power Supply Troubleshooting
Power Supply Troubleshooting Ruijie EG3250 breakout gateway provides a PWR LED on the front panel for indicating whether the power system works normally. Refer to “Product Overview” for the normal state descriptions of LED indicators. If abnormity occurs, perform the following checks: ...
