- Page 1 HTT50A/G For all variants of the HTT50 Hardware Manual Revision 1.5 PCB Revision: 1.1 or Higher ...
-
Page 2: Table Of Contents
Contents Introduction .............................. 4 Features .............................. 4 Functional Diagram ........................... 4 Ordering ................................ 5 Ordering Part Numbering Scheme ...................... 5 Options .............................. 5 Hardware .............................. 6 Available Headers ............................. 6 Type A HDMI Port ............................. 7 Mini‐B USB Communication Connector .................... 7 Barrel Jack Power Adaptor ........................ 8 Alternate Micro Mate N’Lock Power Adaptor .................. 8 Getting Started .............................. 9 Windows .............................. 9 Raspberry Pi .............................. 9 TinkerBoard ............................... 9 BeagleBone ............................... 9 USB Drivers .............................. 10 Extended Display Information Data (EDID) .................... 11 Touchscreen .............................. 11 Troubleshooting ............................ 12 Power .............................. 12 Display ... - Page 3 Power .............................. 19 Environmental ............................ 19 Recommended Accessories ........................ 20 USB Cable ............................ 20 Power Adaptor ............................ 20 Support ............................... 20 Contact ................................ 20 MATRIX ORBITAL 2 Phone: 403.229.2737 Email: support@matrixorbital.ca ...
- Page 4 Revision History Revision Date Description Author 1.5 May 13, 2019 Added new Resources section Divino 1.4 July 11, 2018 Barrel Jack Header is Standard on All Models Divino 1.3 May 29, 2018 Corrected Header Population and Drawings Divino 1.2 May 10, 2018 Corrected Header and Mates Table Divino 1.1 February 2, 2018 Added ‐TPC variant drawing Divino 1.0 November 6, 2017 First Release Divino MATRIX ORBITAL 3 Phone: 403.229.2737 Email: support@matrixorbital.ca ...
-
Page 5: Introduction

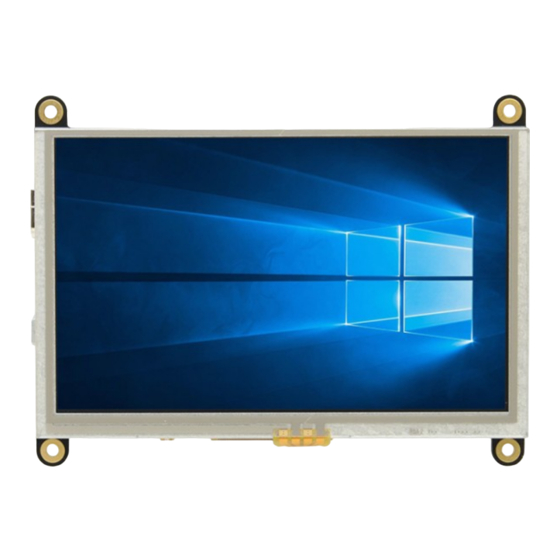

Introduction The HTT50 is a 5.0” TFT display with an HDMI interface. The 800x480 resolution offers crisp images, and video feedback, with 24‐bit Full colour capabilities. The HTT50 can be configured with a resistive, capacitive, or non‐touch screen. Designed with industrial applications in mind, the HTT is perfect for panel mounted applications and HMI interfaces. Features Compatible with Windows and Linux hosts, including: o Raspberry Pi o BeagleBone o TinkerBoard Plug and Play USB for touch screen, HMI mouse interface Upgradable touch driver firmware DVI/HDMI interface Automatic resolution detected provided by EDID Low profile mounting holes Industrial 5‐35V power input (‐VPT) option Available with: o No touch panel o Resistive touch panel o Capacitive touch panel Functional Diagram Figure 1: HTT Block Diagram ... -
Page 6: Ordering
Ordering The HTT50 is available with various voltage options and header orientations. Ordering Part Numbering Scheme Table 1: Part Numbering Scheme HTT 50 A ‐TPR ‐BLM ‐B0 ‐H5 ‐CH ‐V5 1 2 3 9 Options Table 2: Display Options # Designator Options 1 Product Type HTT: Graphic TFT Display 2 Display Size 50: 5.0” 3 Screen Type A: A Type G: G Type 4 Touch ‐TPN: No touch panel ‐TPR: Resistive touch panel ‐TPC: Capacitive touch panel ... -
Page 7: Hardware
Hardware Available Headers Figure 2: HTT50A Headers Figure 3: HTT50G Headers Table 3: HTT50 Headers and Mates # Header Standard Mate Population 1 HDMI Port, Horizontal, Type A Standard Type A Standard HDMI Cable ‐H5 & H7 2 HDMI Port, Vertical, Type A Standard Type A Standard HDMI Cable ‐H6 & ‐H8 3 Mini USB, Horizontal: Touch & Power Mini‐B USB Cable ‐H5 & H7 (TPC and TPR Only) 4 Mini USB, Vertical: Touch & Power Mini‐B USB Cable ‐H6 & ‐H8 (TPC and TPR Only) 5 Barrel Jack: 2.1mm Center Positive Power Adaptor ‐H5 & ‐H6 ... -
Page 8: Type A Hdmi Port
Type A HDMI Port The HTT uses a Type A HDMI 1.0 port to receive video data from its host/source and is only compatible with unencrypted video signals. HDCP video signals are not supported. When properly connected, the HTT will require 5V at 55mA (minimum) from the HDMI source in order to read the display’s EDID settings. Table 4: Type A HDMI Port Function Pin Function TMDS Data 2+ 11 TMDS Clock Shield TMDS Data 2 Shield 12 TMDS Clock‐ TMDS Data 2‐ 13 CEC (Not connected) TMDS Data 1+ 14 Reserved TMDS Data 1 Shield 15 TMDS Data 1‐ 16 Figure 4: Type A HDMI Port TMDS Data 0+ 17 DDC/CEC Ground TMDS Data 0 Shield 18 +5V Power TMDS Data 0‐ 19 Hot Plug Detect TMDS Clock+ ... -
Page 9: Barrel Jack Power Adaptor
Barrel Jack Power Adaptor A Barrel Jack power adaptor is available on the HTT50 as standard to provide power to the display. When choosing an adaptor, please ensure it uses a 2.1mm x 5.5mm center positive barrel jack that conforms to the voltage and current requirements of your display. Please consult the Power section for details. Table 6: Power Adaptor Pinout Pin Function Vcc Gnd Figure 6: Barrel Jack Power AdaptoR Alternate Micro Mate N’Lock Power Adaptor Some applications may prefer a lower profile 2‐pin power header option as opposed to the standard Barrel Jack. The HTT50 can be populated with a versatile Micro Mate N’Lock 2‐pin header as an alternative to the standard barrel jack. The Micro Mate N’Lock 2‐1445057‐2 header used can be mated to a Micro MATE‐N‐LOCK 1445022‐2 or similar. When choosing an adaptor, please ensure that it conforms to the voltage and current requirements of your display. Please consult the Power section for details. Table 7: Power Adaptor Pinout Pin Function Vcc Gnd Figure 7: Mate N’Lock Power Adaptor MATRIX ORBITAL 8 Phone: 403.229.2737 Email: support@matrixorbital.ca ... -
Page 10: Getting Started
Getting Started When connecting your HTT display, power must first be applied through the barrel jack or optional Micro Mate N’Lock header. Once powered, connect the HTT to your source HDMI cable. Windows When connected to Windows, the HTT’s resolution will be automatically detected and set through the on‐board EDID. The HTT display should immediately appear in display settings. No additional software setup will be required. Raspberry Pi Some setup will be required before the display can be used with a Raspberry Pi unit. The HDMI resolution will have to be configured through the config.txt file (located in /boot/config.txt). The following modifications can be made to the Raspberry Pi’s config.txt file, forcing the HTT’s resolution settings: #Set the Monitor mode to DMT. hdmi_group=2 #Use a custom resolution. hdmi_mode=87 #Use an 800 x 480 resolution @ 60Hz hdmi_cvt= 800 480 60 6 0 0 0 #Deliver max current through USB Max_usb_current=1 The configuration lines listed above will configure the Raspberry Pi to drive an 800 x 480 display at 60Hz. TinkerBoard The HTT will be compatible with TinkerOS‐Debian. Once connected, the Tinkerboard will autodetect the HTT’s display settings. No further software configuration is required. The HTT is not fully compatible with TinkerOS‐Android Marshmallow. BeagleBone The BeagleBone board will autodetect the HTT’s EDID display settings automatically. No further software configuration is required. MATRIX ORBITAL 9 Phone: 403.229.2737 Email: support@matrixorbital.ca ... -
Page 11: Usb Drivers
USB Drivers The HTT50’s touch panel can be configured as either an HID‐Compliant Mouse, or an HID‐Compliant Touch Screen. The touch panel will respond to finger gestures differently depending on which firmware is installed. Once the HTT is properly installed on Windows, 2 new devices will be present in Device manager. HID‐Compliant Mouse USB Composite Device Table 8: HTT Device VID/PID Table 9: HTT Device VID/PID 0x1B3D 0x1B3D VID VID PID 0x14C2 PID 0x14C9 Figure 8: HTT50 USB Driver Listing Figure 9: HTT50 USB Driver Listing MATRIX ORBITAL 10 Phone: 403.229.2737 Email: support@matrixorbital.ca ... -
Page 12: Extended Display Information Data (Edid)
Extended Display Information Data (EDID) The HTT’s on‐board EDID comes preconfigured, so users won’t have to worry about setting up their screen resolution or display timings. Once plugged in, the EDID settings will be read automatically, setting the HTT’s display resolution. EDID settings can be accessed through the HTT’s I2C headers. The default HTT50 EDID data can be found below. static byte[] EDID_HTT50A = { 0x00, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x00, 0x35, 0xE3, 0x01, 0x00, 0x01, 0x00, 0x00, 0x00, 0xFF, 0x1B, 0x01, 0x03, 0x80, 0x0B, 0x06, 0x00, 0x02, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0xE4, 0x0C, 0x20, 0x80, 0x30, 0xE0, 0x2D, 0x10, 0x28, 0x30, 0xD3, 0x00, 0x6C, 0x41, 0x00, 0x00, 0x00, 0x18, 0x00, 0x00, 0x00, 0x10, 0x00, 0x00, 0x00, 0x00,... -
Page 13: Troubleshooting
Troubleshooting Power To function correctly, the HTT50 must be supplied with the appropriate power. If the power LED near the top right corner of the board is not illuminated, power is not applied correctly. Try the tips below. HTT devices have specific power requirements. Ensure the correct voltage and sufficient current are available to your device by consulting the Power table. Check the power cable that you are using for continuity. If you don't have an ohm meter, try using a different power cable; if this does not help try a different power supply. Check the power connector in use on your display. If the connector has become loose or you are unable to resolve the issue, please use the Contact section to reach a friendly Matrix Orbital support representative. Display If your display is powered successfully and connected to an HDMI source, the video feed should appear on screen immediately. The video signal should be clean, and the picture should fit the viewing area of the display. If this is not the case, check out these tips. If you are connected to a single board computer, such as a Raspberry Pi, and your screen displays a white screen on start‐up, or slowly fade to white, please check the Config.txt file to ensure that the display is properly configured. If the display is flickering, or if the display’s backlight is not consistent, try supplying additional power through the display’s barrel jack. If your display shows picture but there are white lines along the edge(s) of the display, your display may be receiving the incorrect number of pixels. The HTT does not have a resolution scaler, and therefore the appropriate 800 x 480 resolution must be specified for all the pixels to be used. If there are large black bars on the edges of the display, or if the video image appears to be offset, please use the Contact section to reach a friendly Matrix Orbital support representative MATRIX ORBITAL 12 Phone: 403.229.2737 Email: support@matrixorbital.ca ... -
Page 14: Touch
Touch The HTT50 can be ordered with a touch panel. When the touch panel is properly configured the touch cursor will accurately follow your finger as it moves across the screen. If the cursor is not responding to your touches, or if the cursor is offset from your finger, try the following: If you are using a resistive touch display, try downloading the HTT Calibration Software, available on our website here: https://www.matrixorbital.com/software/htt‐calibration Once downloaded, run the calibration program and follow the instructions that appear on screen. If you are using a capacitive touch display, make sure the screen is clear of debris or droplets. If you are still unable to resolve the issue, please use the Contact section to reach a friendly Matrix Orbital support representative. MATRIX ORBITAL 13 Phone: 403.229.2737 Email: support@matrixorbital.ca ... -
Page 15: Resources
Resources A set of resources are available to help guide new users when they first start their development with the HTT50. These resources can be found on the HTT50 product page on matrixorbital.com. Multi-touch Firmware New firmware revisions are available for download on matrixorbital.com. Once installed, the HTT50’s touch panel will be recognized as an HID‐Compliant Touch screen, allowing the display to take advantage of any touch gestures built into the host’s touch driver. Gestures such as one finger scroll and one finger swipe are commonly available on most popular hosts. Multi‐touch gestures such as pinch to zoom are available for capacitive touch panels. HTT Utility Program The HTT Utility program is compatible with the resistive and capacitive HTT display variants and grants users full control of their displays. Through this program, users will be able to change HTT configuration settings such as the touch panel’s software orientation, touch screen calibration, touch sensitivity (capacitive touch panel only), backlight brightness and more. MATRIX ORBITAL 14 Phone: 403.229.2737 Email: support@matrixorbital.ca ... -
Page 16: Dimensional Drawings
Dimensional Drawings Figure 10: HTT50A‐TPN Dimensional Drawing MATRIX ORBITAL 15 Phone: 403.229.2737 Email: support@matrixorbital.ca ... - Page 17 Figure 11: HTT50A‐TPC Dimensional Drawing MATRIX ORBITAL 16 Phone: 403.229.2737 Email: support@matrixorbital.ca ...
- Page 18 Figure 12: HTT50A‐TPR Dimensional Drawing MATRIX ORBITAL 17 Phone: 403.229.2737 Email: support@matrixorbital.ca ...
- Page 19 Figure 13: HTT50G‐TPC Dimensional Drawing MATRIX ORBITAL 18 Phone: 403.229.2737 Email: support@matrixorbital.ca ...
-
Page 20: Characteristics
Characteristics Optical Table 10: HTT50 Optical Characteristics Module Size 121.20 x 92.25 x 17.09 mm 121.20 x 92.25 x 19.39 121.20 x 92.25 x 18.24 136.00 x 92.80 x 19.07 Viewing Area 110.70 x 67.40 mm 109.30 x 66.10 110.70 x 67.40 109.70 x 66.40 Active Area 108.00 x 64.80 mm Pixel Pattern 800 x 480 x 24bit RGB Pixel Pitch 0.135 x 0.135 mm Luminance cd/m Viewing Angle 70° Left, Right, Up 50° Down Contrast Ratio 500:1 Backlight Half‐Life 20,000 hours Touch Panel Table 11: Touch Panel Characteristics ... - Page 21 Recommended Accessories USB Cable Part Number: EXTMUSB3FT Description: 3ft (1m) Mini‐B USB Cable Figure 14: EXTMUSB3FT Power Adaptor Part Number: PWR‐ACDC‐5V2A Description: 9ft (2.7m) AC to DC power adapter with 2.1mm center positive barrel jack. Figure 15: PWR‐ACDC‐5V2A Input Voltage: 100‐240V AC Output Voltage: 5V DC @ 2A AC Plugs Included: North American (NEMA), Europlug (Type C), UK (Type G), Australia/China/New Zealand/Argentina (Type I) Support Phone: 403.229.2737 Email: support@matrixorbital.ca Manuals: http://www.matrixorbital.ca Forums: http://www.lcdforums.com/forums Contact Sales Support Online Phone: 403.229.2737 Phone: 403.229.2737 Purchasing: www.matrixorbital.com Email: sales@matrixorbital.ca Email: support@matrixorbital.ca Support: www.matrixorbital.ca ...
