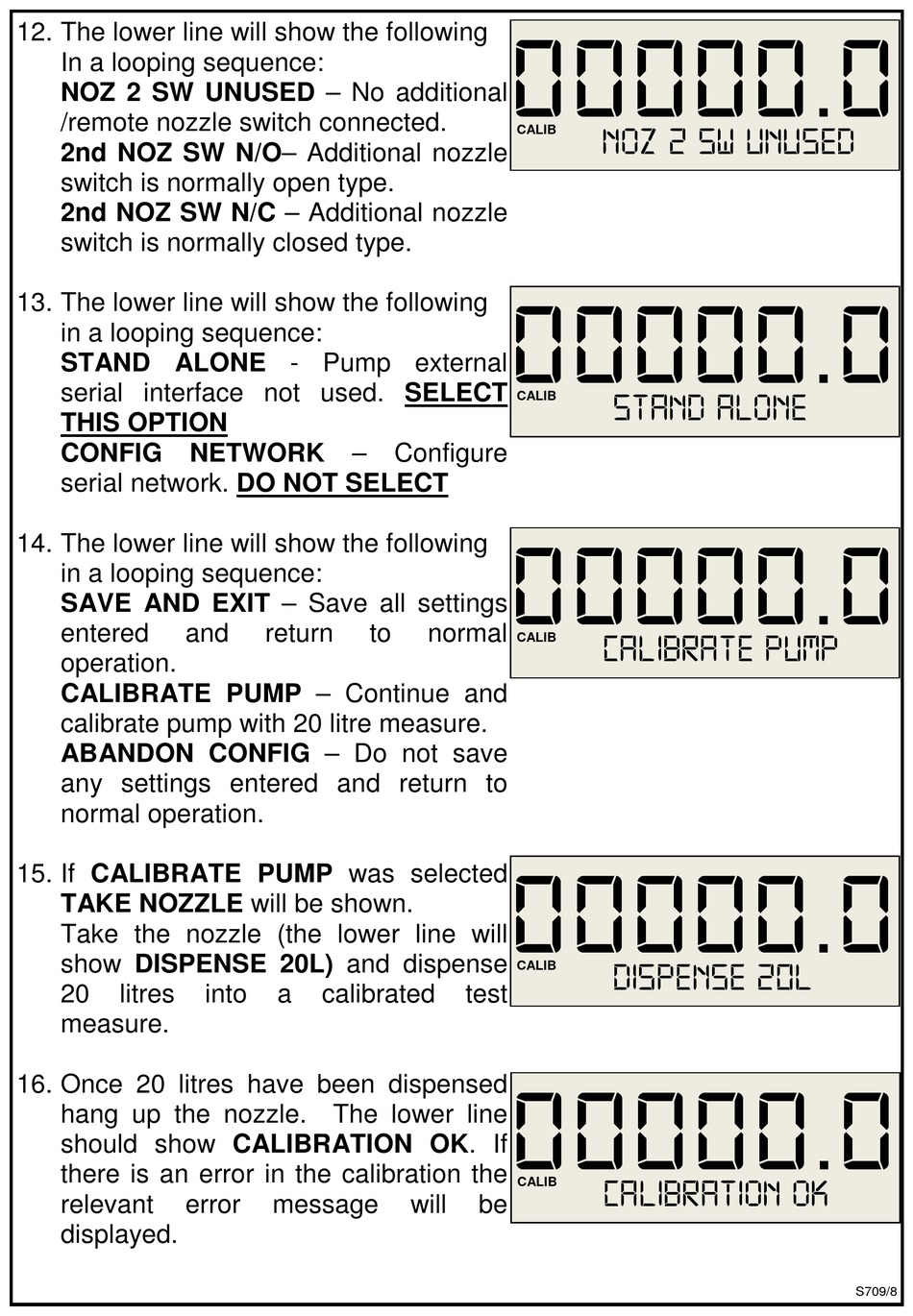

12. The lower line will show the following
In a looping sequence:
NOZ 2 SW UNUSED – No additional
/remote nozzle switch connected.
2nd NOZ SW N/O– Additional nozzle
switch is normally open type.
2nd NOZ SW N/C – Additional nozzle
switch is normally closed type.
13. The lower line will show the following
in a looping sequence:
STAND ALONE - Pump external
serial interface not used. SELECT
THIS OPTION
CONFIG NETWORK
serial network. DO NOT SELECT
14. The lower line will show the following
in a looping sequence:
SAVE AND EXIT – Save all settings
entered and
operation.
CALIBRATE PUMP – Continue and
calibrate pump with 20 litre measure.
ABANDON CONFIG – Do not save
any settings entered and return to
normal operation.
15. If CALIBRATE PUMP was selected
TAKE NOZZLE will be shown.
Take the nozzle (the lower line will
show DISPENSE 20L) and dispense
20 litres
measure.
16. Once 20 litres have been dispensed
hang up the nozzle. The lower line
should show CALIBRATION OK. If
there is an error in the calibration the
relevant error
displayed.
–
return to
into a calibrated
message
00000.0
CALIB
00000.0
CALIB
Configure
00000.0
normal
CALIB
00000.0
CALIB
test
00000.0
CALIB
will be
NOZ 2 SW UNUSED
STAND ALONE
CALIBRATE PUMP
DISPENSE 20L
CALIBRATION OK
