8. Thumbscrew
Loosen this thumbscrew to open the pedal and facilitate bat-
tery replacement.
* For instructions on replacing the battery, refer to "Changing
the Battery" ; p. 38.

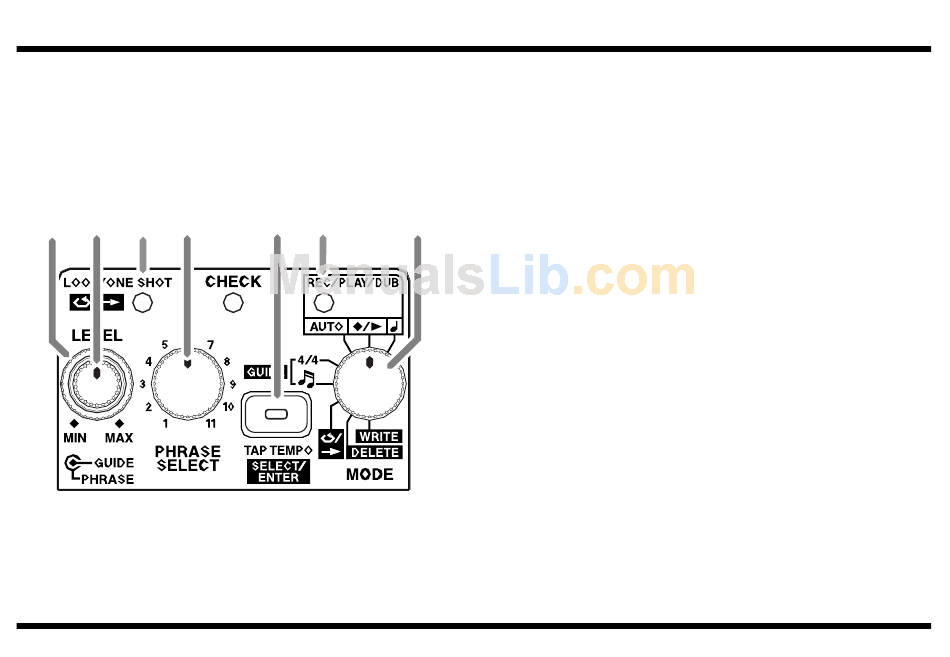

fig.02
9 10 11 12
9. PHRASE LEVEL Knob
This adjusts the volume level of the phrase being played
back.
* This knob does not adjust the input level of the INPUT and
AUX IN jacks or the volume of the guide sound.
13 14 15
10 . GUIDE LEVEL Knob
This adjusts the volume level of the guide sound.
11 . LOOP/ONE SHOT Indicator
This lights up when a phrase is saved to the selected phrase
track.
Green: loop phrase
Red: one-shot phrase
* A flashing light indicates that there is insufficient memory
for recording or overdubbing (Temporary Memory; p. 31).
* When the RC-2 lacks the memory required to save a phrase,
the indicator flashes rapidly.
* The indicator flashes rapidly while phrases are read from
memory. Take care to prevent the power from being cut or
turned off while the indicator is flashing rapidly.
* The indicator flashes rapidly when a phrase is deleted from
temporary memory (p. 31). (During this operation, the
indicator's color is yellow if there is no data stored in the
currently selected phrase track.)
12 . PHRASE SELECT KNOB
Use this to select the phrase track for saving or playback.
