- Page 1 TVP5146EVM Quick Start Guide User’s Guide 2003 Video and Imaging SLEU040...
- Page 2 Preface Read This First About This Manual This is a quick reference guide to get the TVP5146EVM up and running. FCC Warning This equipment is intended for use in a laboratory test environment only. It generates, uses, and can radiate radio frequency energy and has not been...
- Page 4 1 SCART, 1 SV These inputs were defined for convenience of testing all TVP5146 supported video types with the TVP5146EVM. The complete list of possible inputs for the TVP5146PFP is available in the data manual (SLES084). The user is able to...

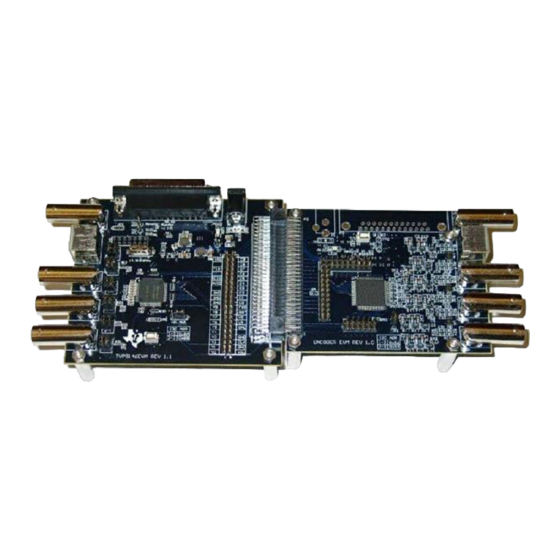

- Page 5 5) At the root directory of the installation CD is a zip file named Applica- tion_Reports.zip, which contains several application documents. 1.6 Hardware Setup 1) Connect the TVP5146EVM and the video encoder board together. 2) Connect all necessary video input and output cables to both the TVP5146EVM and the video encoder board.
- Page 6 The video encoder’s device type should be set to encoder mode with 0X54 as the base I C address. 7) Provide a video pattern to the TVP5146EVM video input(s). 8) Load the provided CMD file into WinVCC4 by clicking on Tools−>System Initialization−>Browse.
- Page 8 IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete.
