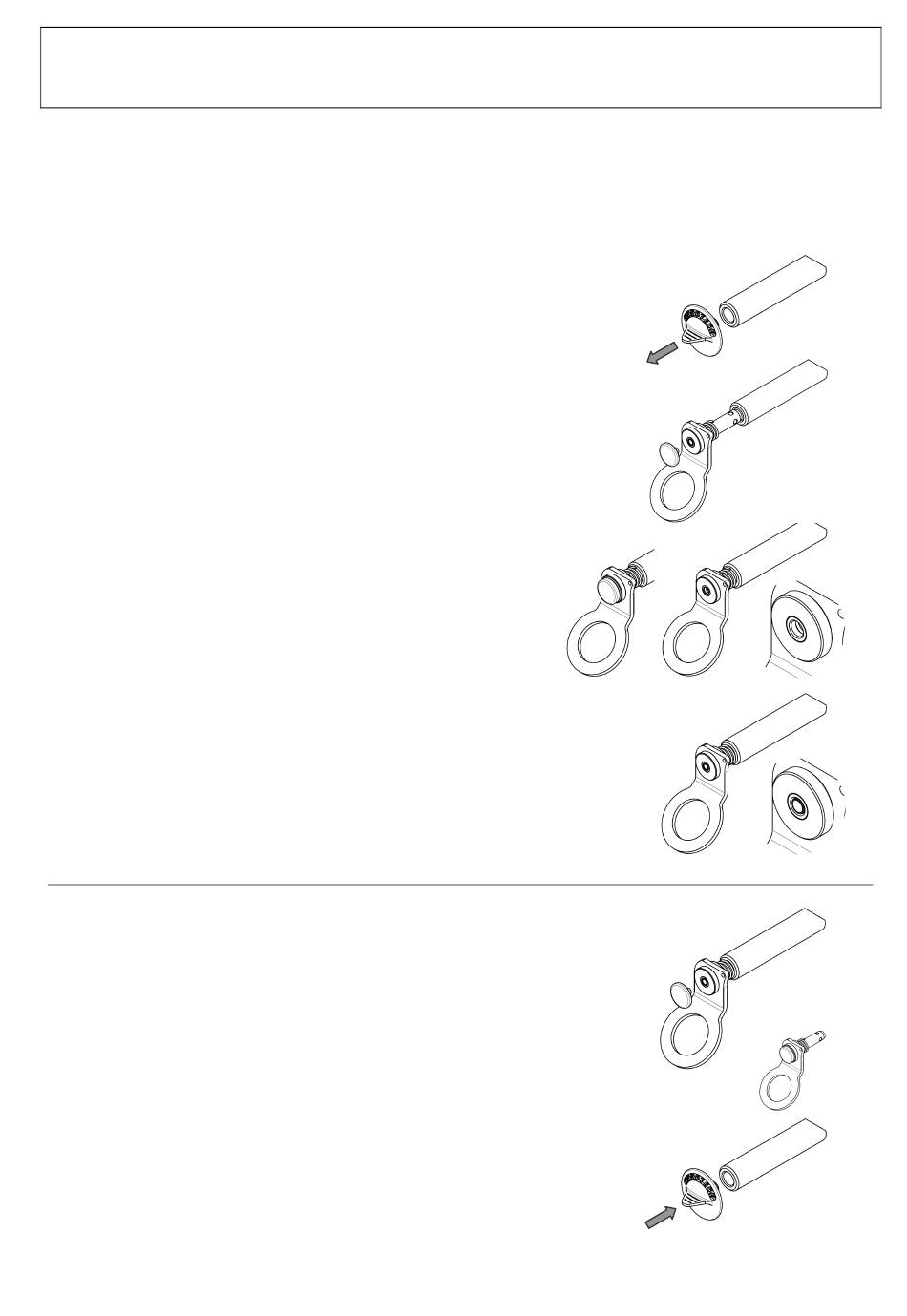

FASTENING INNOTECH LOCK-13
in the previously-installed INNOTECH LOCK-11 receptacle sleeve
Prior to use comply with the safety instructions!
•
Take the protective cap off of the receptacle sleeve.
•
Press the unlocking tab on the anchorage point into the
centre of the LOCK-13 unit and keep it depressed.
•
Slide the LOCK-13 into the receptacle
sleeve until it hits the spring,
and then release the unlock unlock tab.
•
Now press the anchorage point deeper into
the receptacle sleeve until an audible "click"
is produced.
The mark in the centre must now be visible (flush).
Check the anchorage device for firm seat.
•
To detach the anchorage device,
hold the anchorage point tightly
and simultaneously press the unlock tab
into the marked point in the centre.
The LOCK-13 will unlock and you can remove it.
•
If the LOCK-11 will not be used cover
it with the protective cap.
