LOCK-11 /-13
   
INSTRUCTIONS FOR
INSTALLATION AND USE
Edition 07/21/2008
DEUTSCH
ENGLISH
FRANÇAIS
ITALIANO
ESPAÑOL
PORTUGUES
NEDERLANDS
MAGYAR
SLOVENSKY
ČESKY
Türkçe
NORSK
SVENSKA
SUOMI
DANSK
POLSKI
INNOTECH INNOTECH LOCK

Advertisement

loading
Need help?

Need help?

Do you have a question about the LOCK-11 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Innotech LOCK-11

  • Page 1 LOCK-11 /-13     INNOTECH INSTRUCTIONS FOR INSTALLATION AND USE ENGLISH ACHTUNG: DEUTSCH Die Montage und die Verwendung der Sicherungseinrichtung ist erst zulässig, nachdem der Monteur und der Anwender die Original Aufbau– und Verwendungsanleitung in der jeweiligen Landessprache gelesen hat.
  • Page 2 INNOTECH INSTRUCTIONS FOR INSTALLATION AND USE TABLE OF CONTENTS SAFETY INSTRUCTIONS PAGES 3 - 4 2. GENERAL INFORMATION PAGE 3. INSTALLATION LOCK-11 ) PAGES 6 - 7 receptacle sleeve 4. APPLICATION LOCK-13 PAGE anchorage point 5. SERVICE FORMS PAGES 9 - 11...
  • Page 3 INSTALLATION AND USE SAFETY INSTRUCTIONS • INNOTECH LOCK should only be installed by specialised/competent experts familiar with the safety system and in compliance with the current state of the art. • You must be familiar with these instructions, as well as with the local safety regulations as a prerequisite for installing and using the system.
  • Page 4 The inspection by an expert must be documented in the provided test log. • The INNOTECH LOCK was developed for personal safety and may not be used for other purposes. Never attach undefined loads to the restraint system. •...

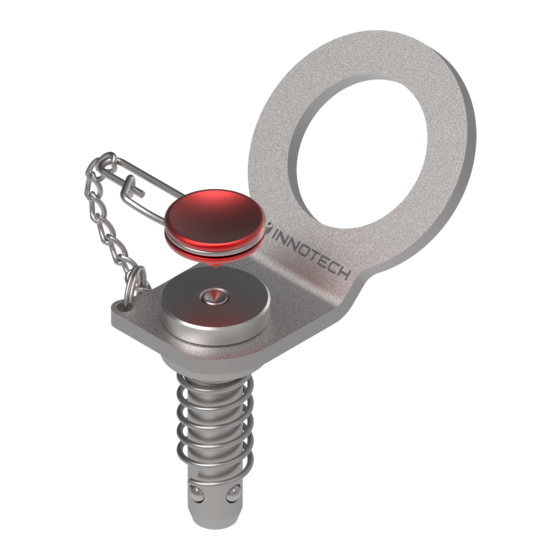

  • Page 5 EN 361 (safety harness) and EN 363 (fall arrest system). The INNOTECH LOCK-11 receptacle sleeve is permanently mounted to the structure and when not in use it is covered with a protective cap. If necessary the removable INNOTECH LOCK-13 anchorage point can be locked into the receptacle sleeve.
  • Page 6 Depth: min. 110 mm (see Fig. on the right) • Clean bore by blowing it out and brushing it. • Bond in INNOTECH LOCK-11 in accordance with the instructions for installation and use provided by the adhesive manufacturer. • Check for firm seat.
  • Page 7 FASTENING ON THE STEEL GIRDER • Minimum steel cross section 5 mm • Tighten counter nuts. • Check for firm seat. You must contact the manufacturer if there are deviating conditions. Page 7 of 11 Edition 07/21/2008 INNOTECH INNOTECH LOCK...
  • Page 8 The LOCK-13 will unlock and you can remove it. • If the LOCK-11 will not be used cover it with the protective cap. Page 8 of 11 Edition 07/21/2008...
  • Page 9: A C C E P T A N C E L O G

        INNOTECH SAFETY SOLUTIONS Arbeitsschutz GmbH A C C E P T A N C E L O G PROJECT: PRODUCT: MANUFACTURING NO.: INSTALLATION CLIENT: CONTRACTOR: COMPANY: SPECIALIST: COMPANY ADDRESS: • Client accepts the performances of the contractor.
  • Page 10     INNOTECH SAFETY SOLUTIONS Arbeitsschutz GmbH INSTRUCTIONS FOR THE EXISTING SAFETY SYSTEM The building owner must affix this notice in a conspicuous location near the access to the system: This system must be used in accordance with the state of the art and in accordance with the instructions for installation and use.
  • Page 11     INNOTECH SAFETY SOLUTIONS Arbeitsschutz GmbH I N S P E C T I O N L O G I PROJECT: PRODUCT: MANUFACTURING NO.: ANNUAL SYSTEM INSPECTION EXECUTED ON: DEFECTS DETECTED: INSPECTION POINTS: checked and in order!
