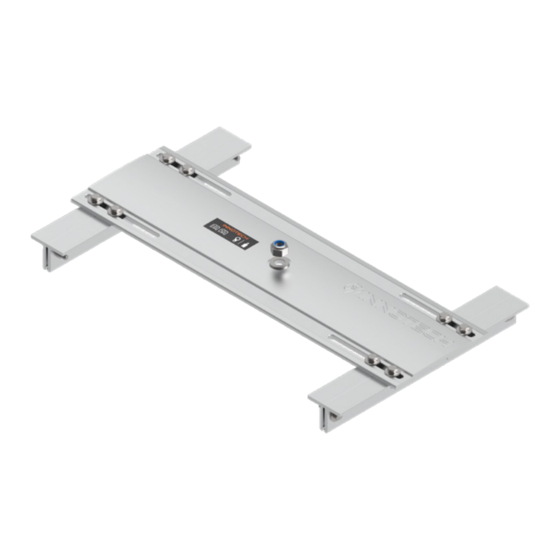

INNOTECH
®
SYST-01-410-610
S t a n d i n g
s e a m
DE – ACHTUNG: Die Verwendung des Innotech-Produktes ist erst zulässig nachdem
die Gebrauchsanleitung in der jeweiligen Landessprache gelesen wurde.
EN – ATTENTION: Use of the Innotech product is only permitted after the instruction
manual has been read in the respective national language.
IT – ATTENZIONE: L'utilizzo del prodotto Innotech è permesso solo previa lettura
del manuale di istruzioni nella lingua del paese corrispondente.
FR – ATTENTION : L'utilisation du produit Innotech n'est autorisée qu'après
la lecture du mode d'emploi correspondant dans la langue du pays.
NL – ATTENTIE: Het gebruik van dit Innotech product is pas toegestaan, nadat
de gebruikshandleiding in de taal van het betreffende land gelezen werd.
SE – O B S : Denna Innotech-produkt får inte användas, förrän bruksanvisningen
på respektive lands språk har lästs igenom.
DK – GIV AGT: Det er først tilladt at anvende Innotech-produktet, før end brugsvej-
ledningen på det pågældende lands sprog er læst.
ES – ATENCIÓN: El uso del producto Innotech sólo está permitido después de que
se hayan leído las instrucciones de uso en el idioma del respectivo país.
PT – ATENÇÃO: O uso do produto Innotech apenas é permitido depois de ter lido as
instruções de uso na respectiva língua nacional.
PL – UWAGA: korzystanie z produktu Innotech jest jedynie dozwolone po przeczy-
taniu podręcznika w języku narodowym.
RO – ATENŢIE: Utilizarea produsului Innotech este autorizată abia după ce au fost
citite instrucţiunile originale de utilizare în limba ţării respective.
SL – POZOR: Uporaba izdelka Innotech je dovoljena šele po tem, ko navodila
preberete v svojem jeziku.
CZ – POZOR: Práce s výrobkem Innotech je povolena až po prostudování návodu
k použití v příslušném jazyce daného státu.
SK – POZOR: Používanie výrobku Innotech je povolené až potom, keď ste si
prečítali návod na obsluhu v jazyku príslušnej krajiny.
HU – FIGYELEM: Az Innotech termékek használata csak az után engedélyezett,
miután saját nyelvén elolvasta a használati utasítást.
РУ – ВНИМАНИЕ: Применение изделий Innotech допускается только после
прочтения инструкции по эксплуатации на соответствующем языке.
V1

Advertisement

loading

Summary of Contents for Innotech SYST-01-410-610

  • Page 1 ES – ATENCIÓN: El uso del producto Innotech sólo está permitido después de que se hayan leído las instrucciones de uso en el idioma del respectivo país. PT – ATENÇÃO: O uso do produto Innotech apenas é permitido depois de ter lido as instruções de uso na respectiva língua nacional.
  • Page 2 You should plan, install and use the anchorage point in such a way that no one can fall over the edge if the personal protective equipment is used properly. (See planning documents at www.innotech.at) When accessing the roof securing system, you must document the positions of the anchorage devices by means of diagrams (e.g.
  • Page 3 For reasons of statics, you must maintain a margin of at least 1.50 m to the end of the roof deck. > 1.50 m > 1.50 m > 1.50 m > 1.50 m www.innotech.at Version 1.8...
  • Page 4 Safe application requires that you observe the corresponding specifications provided by the PPE manufacturers. Approved as an anchorage point on a flat or inclined roof for “INNOTECH SPAR-10”. Corresponding identification provided, also suitable for belaying: • Rope access systems (EN 363:2008)
  • Page 5 1.4301 AIO SYST-SZH, AIO SYST: Clamping strips: aluminium 6060; base plate: aluminium ALMg3; fastening bolts / nuts: stainless steel, quality A2; EAP, AIO DIMENSIONS EAP SYST AIO SYST-SZH AIO SYST 410-610 410-610 410-610 www.innotech.at Version 1.8...
  • Page 6 JJJJ-.. 01-10-01-410-610-Aufkleber-D DEVELOPMENT & SALES: INNOTECH Arbeitsschutz GmbH, Ehrendorf 4, 4694 Ohlsdorf / Austria. w w w . i n n o t e c h . a t THE NOTIFIED AUTHORITY PARTICIPATING IN THE TYPE TEST: DEKRA EXAM GesmbH, Dinnendahlstr. 9, 44809 Bochum, CE 0158 The type test was performed in accordance with EN 795:1996 www.innotech.at...
  • Page 7 JJJJ-.. 02-10-01-410-610-Aufkleber-A DEVELOPMENT & SALES: INNOTECH Arbeitsschutz GmbH, Ehrendorf 4, 4694 Ohlsdorf / Austria. w w w . i n n o t e c h . a t THE NOTIFIED AUTHORITY PARTICIPATING IN THE TYPE TEST: DEKRA EXAM GesmbH, Dinnendahlstr. 9, 44809 Bochum, CE 0158 The type test was performed in accordance with EN 795:1996 www.innotech.at...
  • Page 8 EAP SYST INSTALLATION Tools required for installation (EAP SYST, AIO SYST-SZH, AIO SYST):  1. ATTACHMENT EYE INSTALLATION: EAP SYST EAP SYST www.innotech.at Version 1.8...
  • Page 9 1. The AIO SYST-SZH is used as the anchorage point of an intermediate cable bracket (not included) as part of the INNOTECH horizontal lifeline system in accord- ance with EN 795:1996 Class C. The maximum spacing of the intermediate cable brackets is 7,5m.
  • Page 10 Only valid for trained, expert, specialised companies! The AIO SYST is used as anchorage point for END and corner points as part of the INNOTECH horizontal lifeline system in accordance with EN 795:1996 Class C. APPLICATION EXAMPLES: AIO SYST AIO SYST www.innotech.at...
  • Page 11: Installation

    AIO SYST INSTALLATION www.innotech.at Version 1.8...
  • Page 12 EAP SYST, AIO SYST-SZH, AIO SYST INSTALLATION 2. POSITIONING ON THE ROOF:  www.innotech.at Version 1.8...
  • Page 13 3. FASTENING THE CLAMPS ON THE STANDING SEAM ROOF: AIO SYST: 4 x 20 Nm AIO SYST: 4 x 20 Nm EAP SYST, AIO SYST-SZH: 2 x 20 Nm EAP SYST, AIO SYST-SZH: 2 x 20 Nm   www.innotech.at Version 1.8...
  • Page 14 EAP SYST, AIO SYST-SZH, AIO SYST INSTALLATION 4. SCREWING THE CLAMPS IN PLACE ON THE BASE PLATE: 4 x 20 Nm 4 x 20 Nm 4 x 20 Nm 5. FINISHED!  www.innotech.at Version 1.8...
  • Page 15 EAP SYST, AIO SYST-SZH, AIO SYST INSTALLATION NOTES OTHER NOTES: www.innotech.at Version 1.8...
  • Page 16 The expert fitter familiar with the safety system confirms that the installation work has been executed properly, in accordance with the state of the art, and in accordance with the manufacturer‘s instructions for installation and use. The safety specifications for reliability are confirmed by the installation company. COMMENTS: www.innotech.at Version 1.8...
  • Page 17 Substrate (roof manufacturer, profile, material, sheet metal thickness, etc.): OPTIONAL: when setting up a horizontal lifeline system in accordance with EN 795:1996 Class C Installation of the anchorage points by: Installation of cable system by: Client: Fitter: NAME NAME DATE, SIGNATURE DATE, SIGNATURE www.innotech.at Version 1.8...
  • Page 18 COPY TEMPLATE A4 www.innotech.at Version 1.8...
  • Page 19 COPY TEMPLATE A4 www.innotech.at Version 1.8...
  • Page 20 COPY TEMPLATE A4 www.innotech.at Version 1.8...
  • Page 21 COPY TEMPLATE A4 www.innotech.at Version 1.8...
  • Page 22 EAP SYST, AIO SYST-SZH, AIO SYST EC DECLARATION OF CONFORMITY The manufacturer or agent with registered offices in the European Community: INNOTECH Arbeitsschutz GmbH, Ehrendorf 4, 4694 Ohlsdorf / AUSTRIA hereby declares that the product described below named: SYST (Anchorage device)
  • Page 23 Version 1.8...
