APPLICATION
As anchorage point for 2 people (including 1 person for first-aid administration) with personal
protective equipment EN 361 (safety harness) and EN 363 (fall arrest system).
The INNOTECH LOCK-11 receptacle sleeve is permanently mounted to the structure and when
not in use it is covered with a protective cap. If necessary the removable INNOTECH LOCK-13
anchorage point can be locked into the receptacle sleeve.
STANDARDS
INNOTECH LOCK has been tested and certified in accordance with EN 795 class A.
The test was additionally executed both statically and dynamically on the original
substrate concrete and steel.
SIGNS AND MARKINGS
- Type designation:
- Number(s) of the applicable standard(s):
- Name or logo of the manufacturer/reseller:
- Manufacturer's serial number and year of manufacture:
- Signs stating that the instructions specified
in the manual must be followed:
MATERIAL
Receptacle sleeve:
INNOTECH LOCK-11 is made of stainless steel, quality 1.4301
Socket pin (anchorage point):
INNOTECH LOCK-13 is made of stainless steel, quality 1.4305 / aluminium

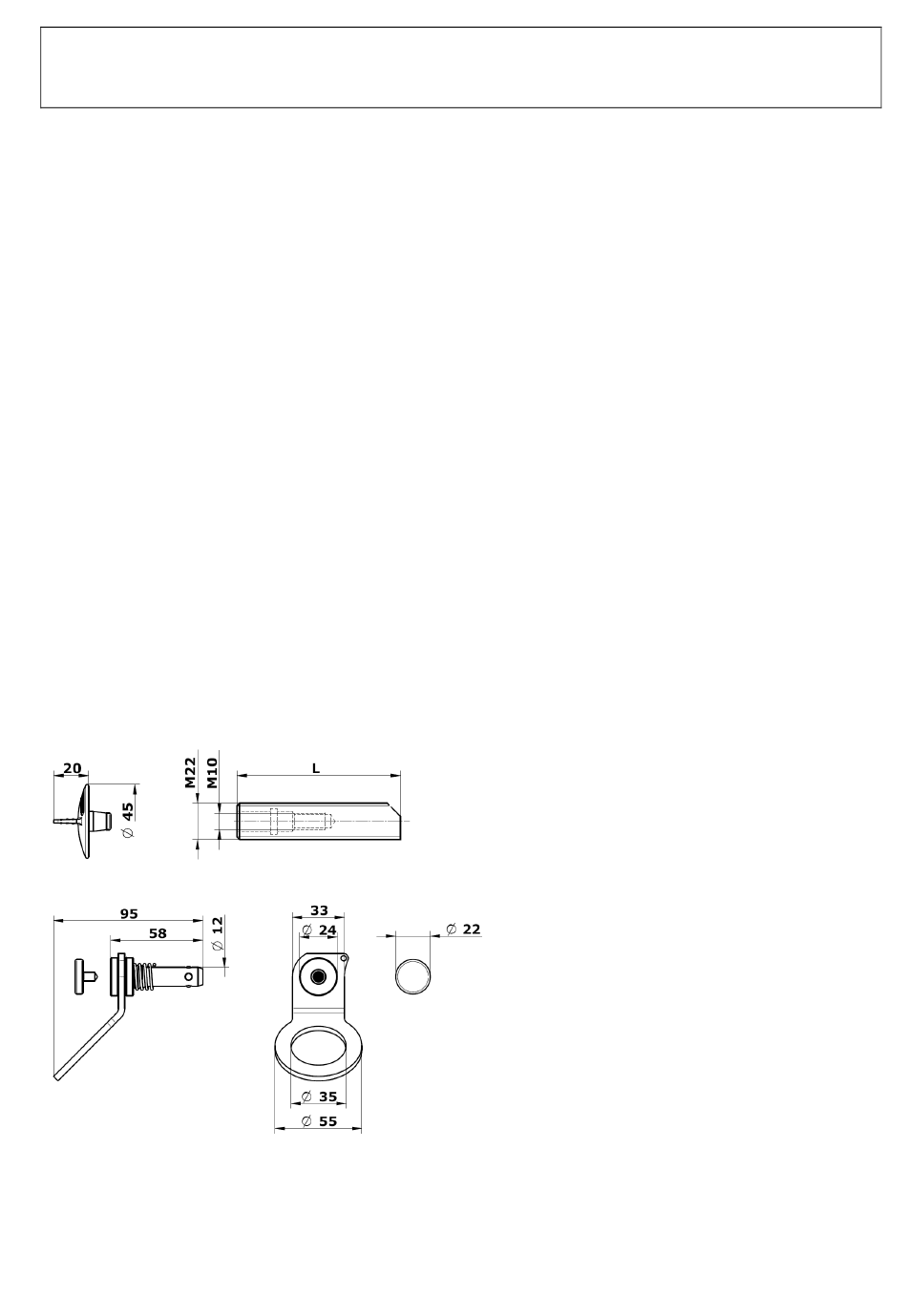

DIMENSIONS INNOTECH LOCK-11
Diameter:
Standard lengths:
DIMENSIONS INNOTECH LOCK-13
The notified authority participating in the type test:
TÜV- Austria Sparte Produktzertifizierung
DEVELOPMENT and SALES
INNOTECH Arbeitsschutz GmbH
w w w . i n n o t e c h . a t
Page 5 of 11
LOCK-11 /-13
   
M22
L= 100 mm, 150 mm, 200 mm, 250 mm, 300 mm, 400 mm
Special lengths on request!
Edition 07/21/2008
Krugerstrasse 16 1015 Vienna
A-4694 Ohlsdorf,
INNOTECH LOCK
EN 795A
