Operating instructions
Hinge safety switch
Operating instructions. . . . . . . . . . . .pages 1 to 10
EN
Original
Content
1
About this document
1.1 Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.2 Target group: authorised qualified personnel. . . . . . . . . . . . . . . . . .1
1.3 Explanation of the symbols used . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.4 Appropriate use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.5 General safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.6 Warning about misuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
1.7 Exclusion of liability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
2
2.1 Ordering code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
2.2 Special versions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
2.3 Destination and use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
2.4 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
2.5 Safety classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
3
3.1 General mounting instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
3.2 Adjustment and inspection of the switching angle . . . . . . . . . . . . . .4
3.3 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
4
4.1 General information for electrical connection. . . . . . . . . . . . . . . . . .6
4.2 Contact variants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
4.3 Switch travel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
5
5.1 Functional testing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
5.2 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
6
6.1 Disassembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
6.2 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
7
7.1 Wiring configuration and connector accessories . . . . . . . . . . . . . . .7
7.2 Door gap calculation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
7.3 Load specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
8
EU Declaration of conformity
1. About this document
1.1 Function
This operating instructions manual provides all the information you
need for the mounting, set-up and commissioning to ensure the safe
operation and disassembly of the safety switchgear. The operating
instructions must be available in a legible condition and a complete
version in the vicinity of the device.
1.2 Target group: authorised qualified personnel
All operations described in this operating instructions manual must
be carried out by trained specialist personnel, authorised by the plant
operator only.
Please make sure that you have read and understood these operating
instructions and that you know all applicable legislations regarding
occupational safety and accident prevention prior to installation and
putting the component into operation.
The machine builder must carefully select the harmonised standards
to be complied with as well as other technical specifications for the
selection, mounting and integration of the components.
1.3 Explanation of the symbols used
Information, hint, note:
This symbol is used for identifying useful additional information.
Caution: Failure to comply with this warning notice could
lead to failures or malfunctions.
Warning: Failure to comply with this warning notice could
lead to physical injury and/or damage to the machine.
1.4 Appropriate use
The products described in these operating instructions are developed to
execute safety-related functions as part of an entire plant or machine. It
is the responsibility of the manufacturer of a machine or plant to ensure
the correct functionality of the entire machine or plant.
The safety switchgear must be exclusively used in accordance with
the versions listed below or for the applications authorised by the
manufacturer. Detailed information regarding the range of applications
can be found in the chapter "Product description".
1.5 General safety instructions
The user must observe the safety instructions in this operating
instructions manual, the country-specific installation standards as well
as all prevailing safety regulations and accident prevention rules.
Further technical information can be found in the Schmersal
catalogues or in the online catalogue on the Internet:
www.schmersal.net.
The information contained in this operating instructions manual is
provided without liability and is subject to technical modifications.
There are no residual risks, provided that the safety instructions as well
as the instructions regarding mounting, commissioning, operation and
maintenance are observed.
EN
TESK
1
Advertisement
Table of Contents
Related Manuals for schmersal TESK Series
Summary of Contents for schmersal TESK Series
-
Page 1: Table Of Contents
4.2 Contact variants ........6 Further technical information can be found in the Schmersal 4.3 Switch travel. -
Page 2: Warning About Misuse

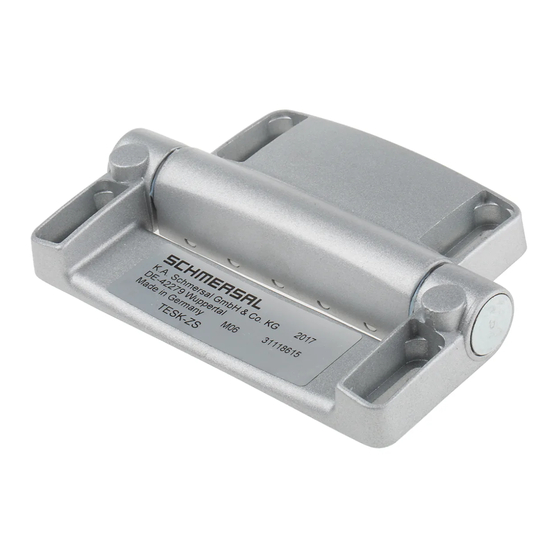

Operating instructions Hinge safety switch TESK 1.6 Warning about misuse 2.3 Destination and use The TESK hinge safety switch has been designed to prevent, in con- In case of improper use or manipulation of the safety switch- junction with the control part of a machine, movable safety guards from gear, personal hazards or damages to machinery or plant being opened before hazardous conditions have been eliminated. -
Page 3: Safety Classification
Operating instructions Hinge safety switch TESK 3. Mounting Utilisation category: AC-15, DC-13 Rated operating current/voltage I -with cable: 2 A / 230 VAC 3.1 General mounting instructions 1 A / 24 VDC -with connector plug M12: 1 A / 24 VDC During fitting of the actuator and the sensor, the requirements Rated insulation voltage U of ISO 14119, especially paragraph 7 must be observed! -
Page 4: Adjustment And Inspection Of The Switching Angle
Operating instructions Hinge safety switch TESK Special instructions for the on-site setting (version TESK...-U) The minimum bending radius must be observed for versions with a cable connection! We recommend a setting including the following steps: 1. Open guard system up to maximum permissible door gap (see table chapter 7.2 Determining door gap). -
Page 5: Dimensions
Operating instructions Hinge safety switch TESK 3.3 Dimensions TESK-…ST… All measurements in mm. TESK-S... TESK-ZS 15. 5 17. 5 TESK-…L… B = Minimum bending radius of the connection cable C = Cable 5-core (B = 29 mm) TESK-L... D = Cable 9-core (B = 33 mm) TESK-ZL 15. -
Page 6: Electrical Connection
Operating instructions Hinge safety switch TESK 4. Electrical connection 4.3 Switch travel 4.1 General information for electrical connection TESK-...22... TESK-...13... (10°) 180° (10°) 180° 3° 3° The electrical connection may only be carried out by 11-12 11-12 authorised personnel in a de-energised condition. For the 23-24 23-24 connection of different connector versions only connectors... -
Page 7: Appendix
Connector plug ST M12, 5-pole the connector conductor numbering commercially available connectors of the below-mentioned to EN 60947-5-2: Schmersal connectors 2007 DIN 47100 Connecting cables with female connector IP67, M12, 5-pole - 5 x 0.25 mm² Cable length Part number 5.0 m... -
Page 8: Door Gap Calculation
Operating instructions Hinge safety switch TESK 7.2 Door gap calculation The actual door gap "D1" is calculated using door gap "D" calculated by Calculation of the door gap depending on the opening angle, means of the table above minus the overlapping "B" of door and frame: door width and overlapping D1 = D –... -
Page 9: Load Specifications
Operating instructions Hinge safety switch TESK 7.3 Load specifications Determining the permissible forces as a function of door size and number of hinges. Doors with one hinge Force [N] B [mm] H [mm] up to 200 up to 300 not recommen- The hinge should be placed in the middle with doors that only have one hinge. - Page 10 Philip Schmersal Managing Director The currently valid declaration of conformity can be downloaded from the internet at www.schmersal.net. K. A. Schmersal GmbH & Co. KG Möddinghofe 30, D - 42279 Wuppertal Postfach 24 02 63, D - 42232 Wuppertal Phone:...
