2.6 Dimensions

J800 (FPGA JTAG), J801 (FX3 Connector) and J1101 (IO Connector) are 2.54 mm pin headers.

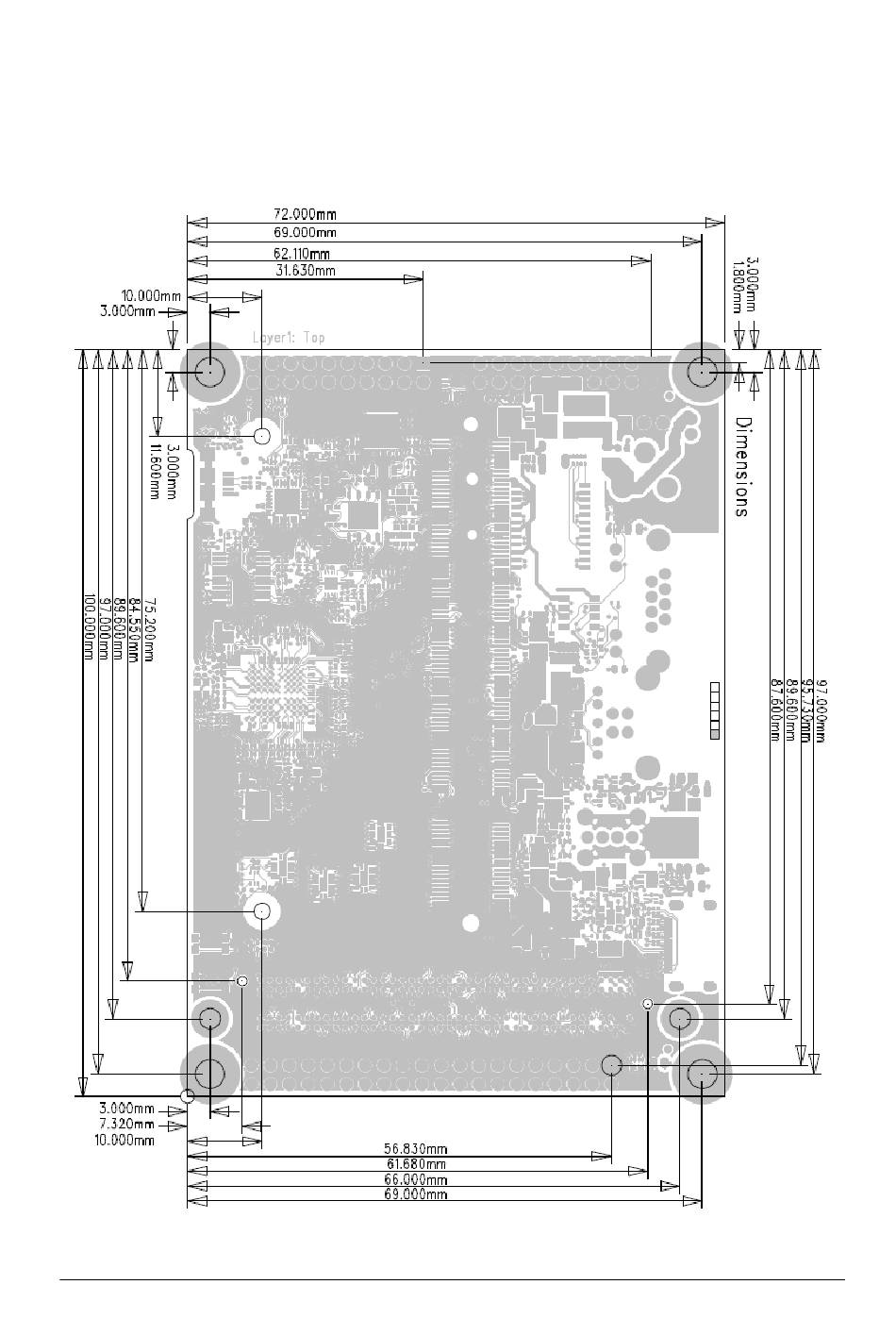

Figure 5: Dimensions

23/04/2019
11 / 43
Version 1.09
