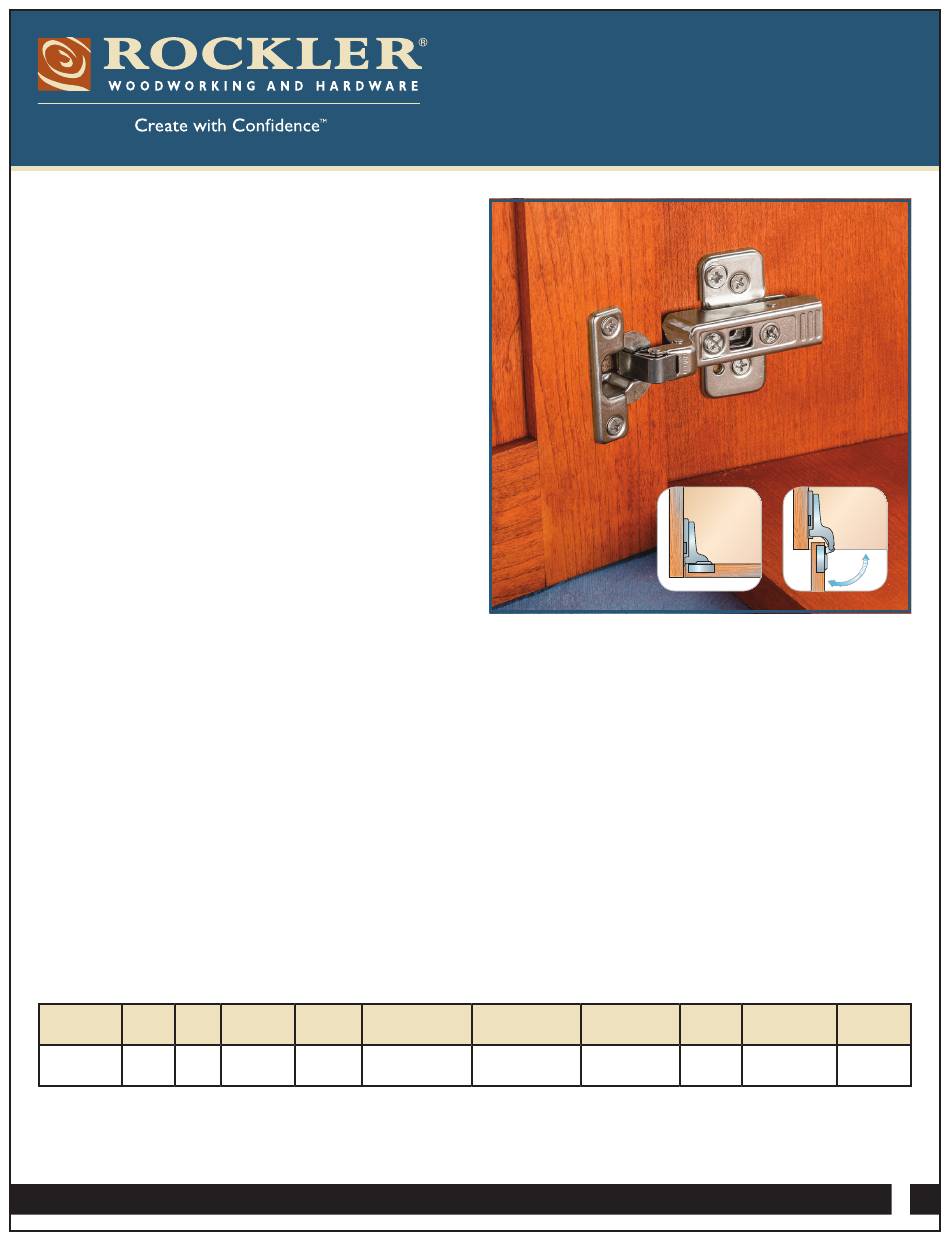

Rockler Blum 38411 Instructions

Vertical Positioning of Hinges
Although Euro-style concealed hinges allow for vertical
adjustment, the mounting plate must line up with the hinge arm if
the two are to snap together and provide the maximum possible
adjustment range. The easiest way to accomplish this is to mark
aligning horizontal centerlines on both the door and the cabinet.
You need to consider the amount of the door's overlay or inset
when calculating the centerline positions for the door.
1. For the top hinge, measure down from the top of the cabinet
opening to the desired mounting location (typically 2"-3") and
use a combination square to mark the horizontal centerline on
the inside of the cabinet. (For the bottom hinge, measure up
from the bottom of the cabinet opening.)
Note: Be sure your hinge positions will provide adequate
clearance for any pullouts.
2. To determine the centerline location on the door, start
with the distance you measured in Step 1 and subtract
the amount of the reveal at that edge.
3. Use the values calculated for the top and bottom hinge
locations in Step 2 and mark the horizontal centerlines on
the back of the door. Compare the distance between the lines
on the cabinet with the distance between the lines on the
door to verify.
Installing Hinges
1. Refer to the Door Diagram to mark drilling locations for the
hinge cup holes and mounting screw holes on the door.
2. Using a 26mm Forstner bit, drill a hole 12.5mm deep for
the hinge cup, taking care to keep the bit as square as
possible to the door.
Note: For accurate drilling of hinge cup holes, the JIG IT
Deluxe Concealed Hinge Drilling System (53420, sold
separately) can be used (with the variable tab slots), along
with a Rockler 26mm Long-Shank Forstner Bit (20563,
sold separately).
3. Drill pilot holes for the screws, taking care not to drill all
the way through the door.
4. Position the hinge cup in the hole and use the included
screws to secure in place.
5. Repeat Steps 2-4 at other hinge location(s).
Hinge Finish Tab
Blum
Nickel *
26mm
* Depends on overlay/reveal
Cup Cup Minimum Door
Diameter Depth Thickness
26mm 12.5mm 16mm (.63")

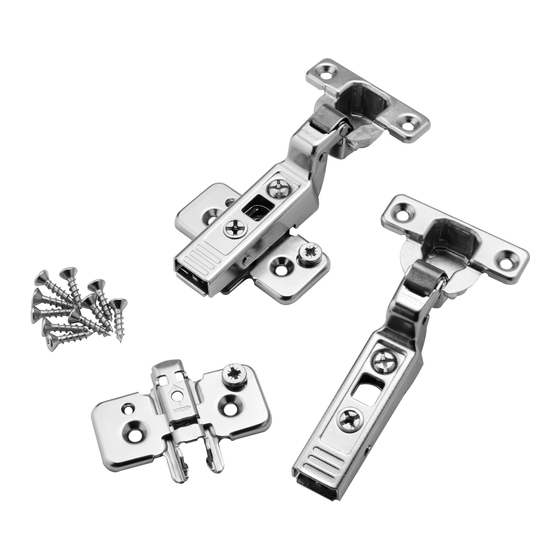

Blum 26mm Inset Frameless
Hinge Instructions
Installing Mounting Plates
1. Refer to the Cabinet Diagram to mark drilling locations for
the hinge plates.
2. Drill pilot holes for the mounting screws, taking care not
to drill all the way through.
3. Use the included screws to secure the mounting plates
onto the cabinet.
4. Mount the doors by clipping the hinge arms onto the
mounting plates.
Check Rockler.com for updates. If you have further questions, please
contact our Technical Support Department at 1-800-260-9663
or support@rockler.com
Maximum Door
Adjustments
Thickness
26mm (1") 2-way cam
38411
Snap
Inset Close
90°
Clip-on Minimum
Gap
Mounting Reveal
NA Yes 1.1mm
1
