Oricom ANU1200 User Manual

Contact Details for Oricom Support and
Warranty claims in Australia
Oricom International Pty Ltd
Unit 1, 4 Sovereign Place
South Windsor, NSW 2756 Australia
Email: support@oricom.com.au Phone:
1300 889 785 or (02) 4574 8888
(Monday to Friday 8am to 6pm AEST)
Web: www.oricom.com.au
Fax: (02) 4574 8898
Contact details for Oricom Support and
Warranty Claims in New Zealand
Email: support@oricom.co.nz
Phone: 0800 674 266
(Monday to Friday 10am to 8pm NZST)
Web: www.oricom.co.nz
ORICOM UHF CB ANU1200 ANTENNA USER GUIDE 20160309

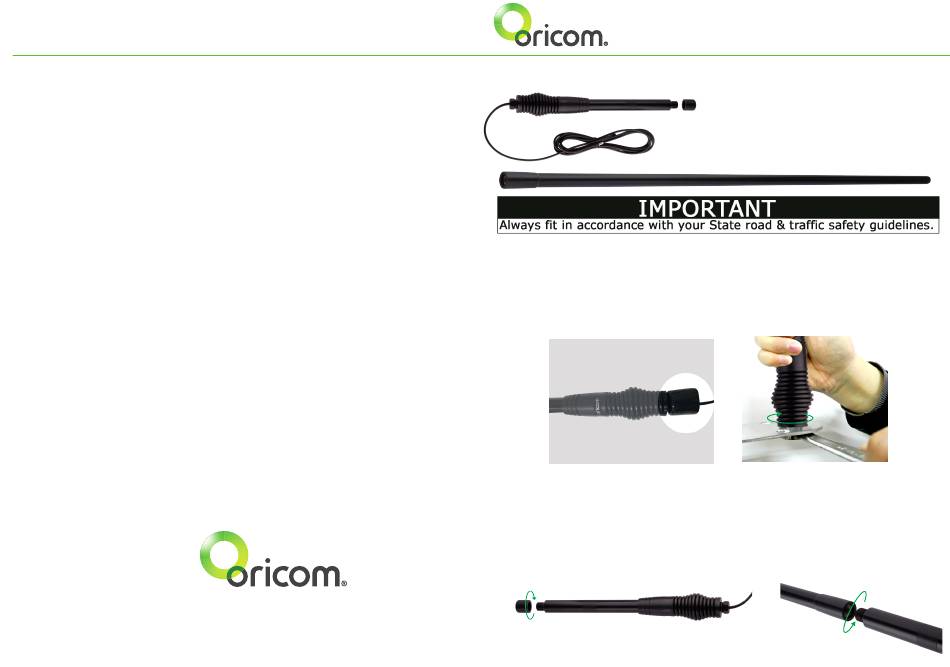

USER GUIDE - ORICOM ANU1200 ANTENNA
ANU1200 Pack Includes:

Installation

1)
Remove the shroud protecting the cable at the base of the antenna
2) Install the 0.43m 3dBi base and pole (Stubbie Antenna) onto the
bracket (not supplied). Tighten in a clockwise direction, using a hexagon
wrench or spanner. IMPORTANT: Do not exceed 50N
1
Remove this plastic shroud
To convert to a 1.4m 6dBi gain antenna
3) Remove the cap from the 3dBi Stubbie antenna by turing in an anti-
clockwise direction. *IMPORTANT: Place the cap in a safe place - always
operate the 3dBi Stubbie antena with the cap fitted.
Install the Fiberglass extension pole onto the base by turning in a clockwise
4)
direction and secure in place with the grub screw (using the hex key
provided). Hand tighten only MAX. 15N
3
*

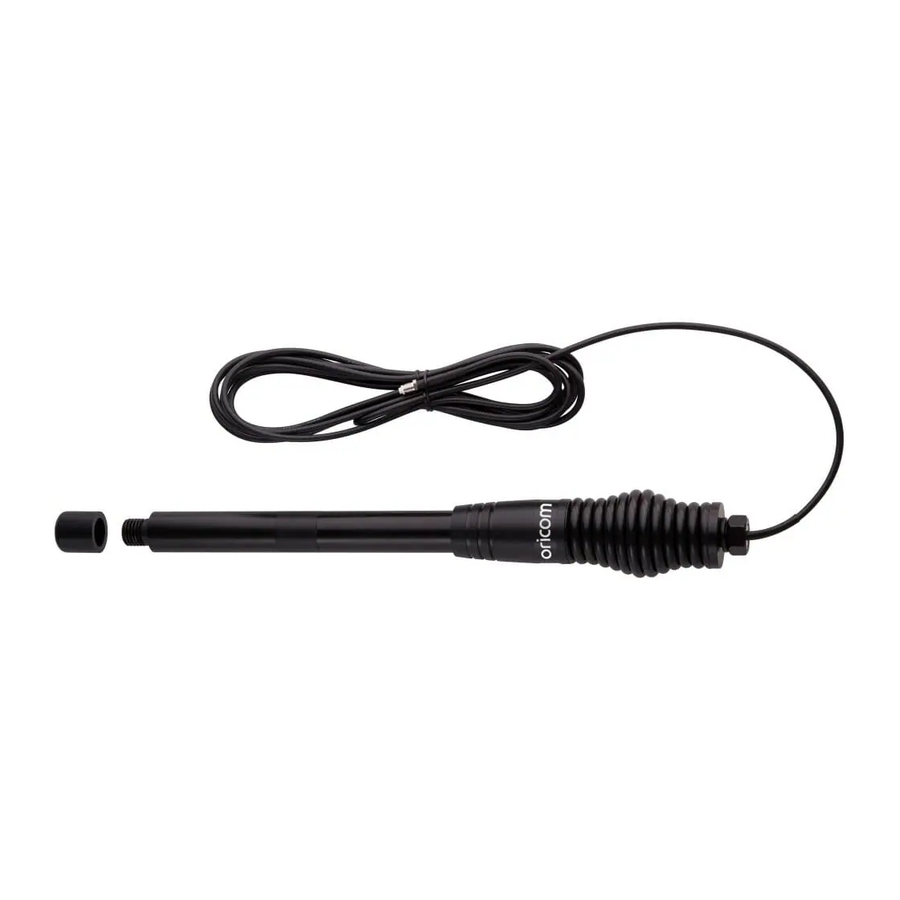

• UHF CB Antenna (3dBi) with 0.43m* heavy duty
fiberglass pole and custom spring base
• 1m Fiberglass extension pole to convert antenna
to a 1.4m 6.5dBi high gain antenna
• Includes grub screw and hex key to secure the
fiberglass pole.
2
MAX:50N
4
MAX:15N
Images are for illustration purposes only.
