Related Manuals for AKA SIGNUM MFD 7272M GT
Summary of Contents for AKA SIGNUM MFD 7272M GT

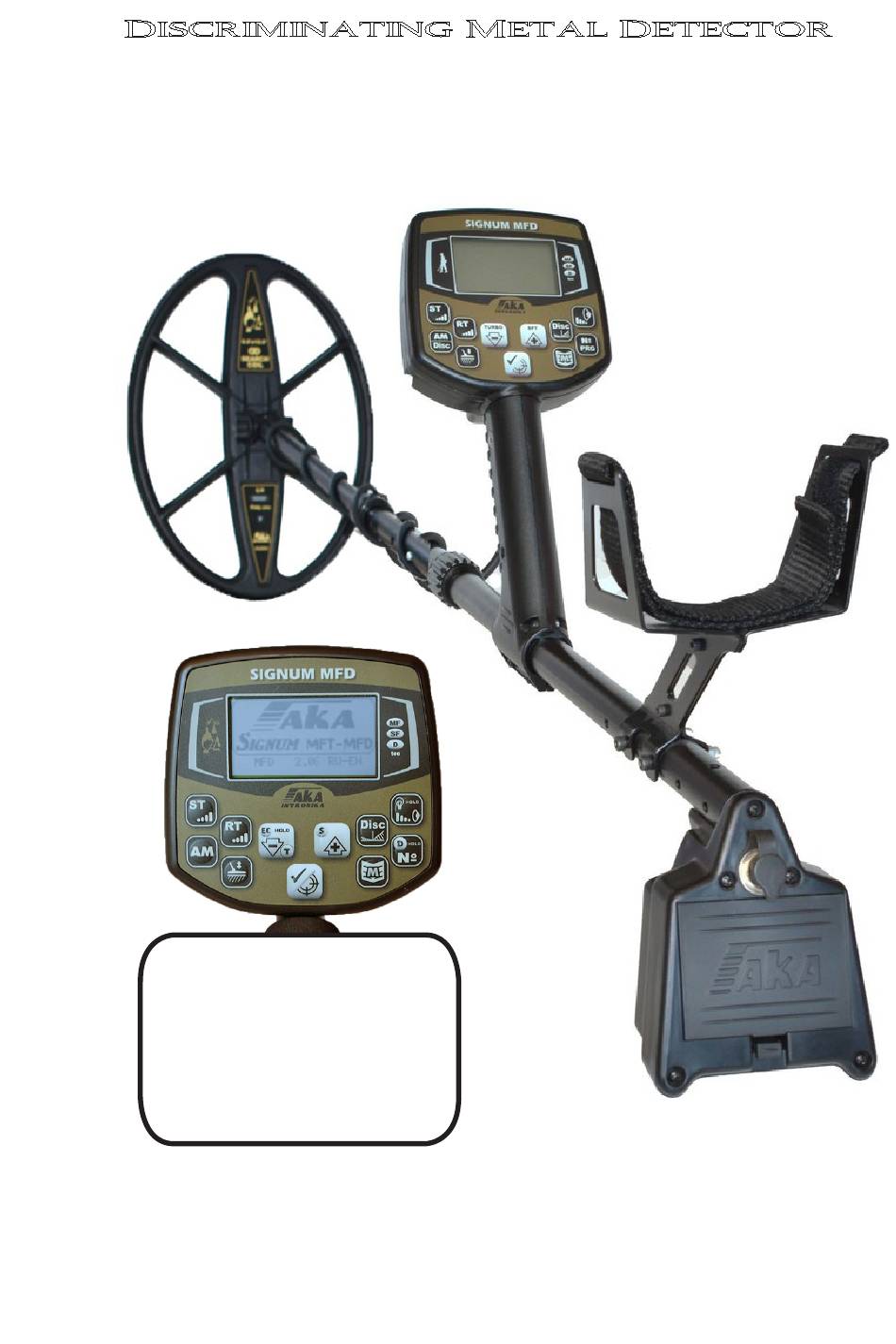

- Page 1 Discriminating Metal Detector SIGNUM MFD 7272M CLASSIK/GT/ICB Manual (En) Attention! Please read this manual thoroughly. Firmware version 2.06...
- Page 2 Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru...
-
Page 3: Table Of Contents
USING THE HODOGRAPH FOR IDENTIFICATION...51-52 REPLACING THE COIL...53-54 SEARCH AND IDENTIFICATION METHODS...54-58 SEARCHING FOR METAL OBJECTS WITH LARGE EDDY CUR- RENT LOOPS...58-60 EXAMPLES OF SOME COMMON TARGET VDI`s...60-62 WARRANTY...62-63 QA/QC certificate...64 Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru... -
Page 4: General Information & Differences
(dry sand, wood, etc.) and low conducting media (soil, brick walls, etc.). The manufacturer of metal detectors, AKA company and the center for repair and maintenance service of metal detectors are located only in Russia. -
Page 5: Application
Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru 3. Enhanced protection against dust and moisture from dropping it. 4. Lighter and more reliable iron bar. from Signum 7272M (ICB) ICB- Is simplified version of GT. In ICB only external regulators are absent. - Page 6 Each channel has its own independent sensitivity adjustment. “catch” the object and indicate to the operator that there is something. The Signum MFD 7272M GT is equipped with a programmable switch mode of operation of the sensor at high current (Turbo), which allows to...
-
Page 7: Package Contents
Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru improve the ratio of useful signal / noise and increase the search depth. Also in the device there is the possibility of compiling 4 options for cus- tom search programs. Also in the device there is the possibility of compiling 4 options for cus- tom search programs. -
Page 8: Getting Started
Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru Overall dimensions, mm: - up to 30-40 hours in economy mode • Telescopic rod - 1200 (max.); • Electronic unit - 120х70х115; • Search coils - Ø 260 / Ø 380 / 150*260 / 240*320 / Ø 150 Weight of the device(without batteries): - 1400 g. -
Page 9: Controls And Connections
Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru are not included and must be purchased separately. We recommend that you use NiMH batteries from SANYO, ANS- MANN 2500 capacity-VARTA or 2850 Ma/h. The use of standard alkaline bat- teries is possible but not cost effective as the rechargeable batteries pay off after 4-5 recharges. - Page 10 Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru On the front panel of the device there is a liquid crystal graphic indi- cator (with a resolution of 128x64 pixels) and 11 control buttons. The manufacturer reserves the right to change the design of the panel and control buttons without prior notification.
-
Page 11: External Regulator Insruction
Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru EXTERNAL REGULATOR INSTRUCTION Only for Signum GT All controllers are analog, that is, they work regardless of the parameters are set in the menu. 1) There is a current switch to the coil at the bottom of the control box, There are two positions. -
Page 12: Display Buttons
Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru DISPLAY BUTTONS Fig. 4 Sets the sensitivity of the ST (short tone) channel Sets the sensitivity of the threshold RT channel (Real Time) Sets the volume of the audio (short press) and On./Off. illu-... -
Page 13: Display Screen
Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru Move through the menu and change the settings, as well as turn on/off the S Algorithm Confirms the selected settings. Selects a menu item. In search mode switches between Static and dynamic (Pin- point) modes. -
Page 14: Language Selection
Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru VDI-number “Visual Discrimination Indication”. This is the index of electrical conductivity of the object or the angle between the vertical axis and the predominant direction of the hodograph (time curve). In this case, hodographs which are on the left side of the screen have a negative VDI, and the right - have a positive VDI number. - Page 15 Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru you to identify search objects at a greater depth. It has the value from 1 to 14. Remember that with an increase in the identification sensitivity of the device, not only the search depth increases, but the possibility of...
- Page 16 Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru the fact that in a clean place it can easily cope with this task, and even with a margin. At the same time, a small non-ferrous target (for exam- ple, a small medieval coin) lying at the same level or slightly higher than iron, the device at maximum sensitivity may simply not distinguish in the general signal received by the coil from these objects.
-
Page 17: Ground Balance
Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru GROUND BALANCE Balancing the device to the ground is the single most important part of the device settings for accurate search results. Improper ground balanc- ing can result in decreased responses to targets and may result in insta- bility as well as an increase in false ground signals. -
Page 18: Balancing Procedure
Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru VDI scale for a given target. IE a 1 degree+ ground balance will increase the VDI by +1. For example, if you are air testing a large copper coin that would normally give a VDI of +82 to +84 but is now air testing with a VDI of -86. - Page 19 Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru 2. Having found the metal-free area, raise the coil 30-40 cm above the ground press wait for 3 seconds, and move the coil to the ground smoothly but not too slow.
- Page 20 Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru spot of land. After balancing, in the lower left corner of the screen will display a numerical value of balance (phase), this is the amount by which the device will adjust the VDI, excluding the effect of the soil.
- Page 21 Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru When working on the ground with uneven salinity, such as arable land, it is not always possible to accurately ground balance the unit in automatic mode. This can be due to the uneven or lumpy nature of the soil.
- Page 22 Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru With the bag of soil in hand you can now and press the GB button and count 1,2,3. Then smooth and slow, (start ing from a distance of 30-40 cm) present the soil to coil. (As if doing auto balance on the ground in the normal mode, but now you are mov- ing the soil to the coil instead of vice versa).
- Page 23 After that, the balancing procedure will operate normally. Advice on ground balance witch AKA devices in various conditions from an experienced searcher: If the soil vector on the screen loops (in the absence of metal of course), then this is a strong signal from the soil + dampness with a conductive medium (electrolyte).
-
Page 24: Discrimination Mode And Setup
Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru vector on the horizon. For more comfort, you can slightly tilt the vector clockwise by a degree, two is a maximum (and do not forget, in such places, to turn on the FSF filter in the additional menu by 7-8, no more). - Page 25 Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru those objects that fall in the clear Hodograph area while targets that fall within the hatched area will not generate an audio response. Attention! When using the RT-ST sound indication type in discrimination...
-
Page 26: Search Mode "All Metal
Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru SEARCH MODE “All Metal” Using the search mode “all metal “as opposed to “discrimination” mode you can detect any metal objects whether they be ferrous or non-ferrous. Which mode is best to use is a personal preference. - Page 27 Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru constant adjusting and therefore, it is not intended for a lengthy search. To switch the appliance from the basic search mode to static mode (Pin- point) Click In the right-hand side of the Scr there will appear the letter “C”, and on the left the value of the gain for...
-
Page 28: Mode "Turbo
Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru This retraction of the coil in this direction must pass through the origi- nal coordinate. Reenable the static mode. Scan the object along the line as accurately as possible keeping a minimum distance between the ground and the sensor. -
Page 29: Mode"Economy
Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru 1. Disconnect the sensor from the device and turn it on without the sensor. The device will first display “Sensor is not adapted” and, after a pause, the operating screen will load. Turn off the Turbo, turn off the device, connect the sensor, and turn on the device 2. -
Page 30: Mode S Algorithm
Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru 10%. That is, if the device detects a coin at 30 cm depth in the “Econo- my” mode, then in the “Norm” current mode there is a chance to detect it from 33 cm. According to the place and search conditions, choose... -
Page 31: Multi-Frequency
Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru To switch to this mode, use the button the values of the parameters RT and ST sensitivity and volume should be displayed. To return to the main search mode press the button again... -
Page 32: Parameter Menu (*Search Options * Display Settings * Sound Set- Tings)
Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru ferrous and non-ferrous targets as well as the spoils of war. 7 kHz –Is the average universal frequency for a wide range of applica- tions. You can search for both medium and small coins as well as the spoils of war. - Page 33 Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru * SEARCH OPTIONS Conv. Search. [Normal. (Normal), MM (metal trash), AF1 (Filtering algo- rithm), AF2, AF3] These options are designed to optimize the operation of the device under normal conditions, under various degrees of trash within the search area, as well as under various amounts of electromag- netic interference.
- Page 34 Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru Rocks. Optionally the software can be switched off. The inclusion of DHR is reflected on the screen in the form of an inscription of “HR” in the upper right-hand corner under the low-battery indicator. Reaction to these in the RT channel remains.
- Page 35 Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru both instruments, the users can achieve a minimum influence on each other and improve the comfort of working together at close distances without significant loss of sensitivity and identification. For a more effective suppression of the mutual influence of two nearby...
- Page 36 Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru * DISPLAY SETTINGS Backlight. Allows you to change the brightness of the screen. The far left light indicator corresponds to the complete shutdown of the backlight. Remember that too much backlight level reduces the operating time of the battery life.
- Page 37 Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru identification SFT algorithm of the device is turned off, which serves to improve the identification of deep targets. The device operates in real time, almost completely simulating the operation of analog devices. It might appeal to those who like to output the signal from the target in real time without delays or unnecessary processing.
- Page 38 Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru RT-ST this setting is characterized by the fact that when the ST tone is generated the RT tone drops out. ST-P {Short Tone Polyphonic}. Ability to give both a low tone and high tones at the same time.
-
Page 39: Additional Menu (Add. Menu)
Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru Volume LT [1..9]. Parameter adjusts the volume of targets within the set- ting of the LT border (iron). Sometimes it is useful to reduce the volume or even mute the sound from iron in order to make the search more comfortable. - Page 40 Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru You can change the parameter selected in the submenu using the buttons o exit the sub menu and from the menu the search mode press a button * MENU OPTIONS 1. Tones Settings RT (Border 2, Border 3, Border 4, Freq. RT);...
- Page 41 Volume RT. Adjusts the sound volume of the RT through the detection channel. There are 9 gradations, where 3 is standard volume of RT for AKA devices without processing. From this value, the volume of the RT can be either reduced or increased. It is configured separately for each program.
- Page 42 Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru This parameter affects the operation of the device only if MM search mode is enabled in the program involved. GS FILTER [OFF., 1..15]. Switching to the “MM” operating mode, the device begins to process signals according to an accelerated, but sig- nificantly complicated algorithm.
-
Page 43: Setting)
Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru ground signals on the ST channel, without affecting the signal on the RT channel in VDI sectors less than +87. When you set the GS filter to Off in DP mode, unlike other search modes, the filter is turned off completely through both sounding chan- nels. -
Page 44: User Programs
Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru Accordingly, when searching for smaller objects, the value of this filter should be reduced. To search for items larger than a tin can, its value can be increased Filter A [0..4] (works only in the DP mode) reduces the recovery speed of the device after registering the target, which requires some reduction in the wiring speed. - Page 45 Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru high detection depth. Program 2 is designed to search in littered areas. It has a good response speed, but slightly inferior in sensitivity. Also, in the case of very strong littering by large metal objects, it may be necessary to reduce the gain of the device, which will increase the search efficiency.
-
Page 46: Deep Program (Dp)
Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru The factory setting values for all 4 programs are shown in Table 1: Remember that the default settings are not an absolute, but offered only as a starting point to assist your search. Experiment and we hope that in the near future you will make your own comfortable and effective pro- gram. -
Page 47: Deep Program Settings (* Change Sound Signals Dp * Change Filter Pa- Rameters Dp * Recommendations For Target Signals)
Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru about 4 seconds per wiring in one direction. Speed can be reduced or increased depending on the situation. Sensor wiring is carried out at a height of 20cm to 1m depending on the “A” filter settings and the density / magnitude of the surface metal debris under which targets are searched. - Page 48 Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru Ind. Sound type. * CHANGE FILTER PARAMETERS DP To change parameters of the filters you can in Add. menu. The entrance is extended by long pressing the button Navigating through items by the buttons Choose the section “Setup.
- Page 49 Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru dense collection of small (for example, a treasure of coins). “Filter A” has 5 adjustment values from 00 to 04. This filter controls the speed of recovery of the ability of the device after registering a signal from a target to register a signal of the next target.
- Page 50 Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru helmet. Due to a sharp decrease in the influence of soil on the signal, the hodograph looping on large iron targets, such as pieces of roofing, agri- cultural implements, crumpled buckets, partially broken cast irons, etc., has much greater visibility, which provides an additional identification information for an experienced operator.
-
Page 51: Using The Hodograph For Identification
Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru signal, even if changing VDI in the direction of iron due to the possible presence of surface debris. If, nevertheless, excavation of the signal has begun, raise the sensor of the device above the pit and smoothly, but quickly lower it into the pit and immediately lift it back. - Page 52 Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru by amplitude and phase. If you hold any metal object to the coil it is evident that the magnitude of this vector will vary. The end of the vector will describe, on a coordinate plane, some shapes (lines, loops, etc.).
-
Page 53: Replacing The Coil
Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru REPLACING THE COIL Attention! Before you replace the coil, find a clean section of ground, be- cause after a coil replacement a ground balance is required. Or, if a clean place cannot be found, have a piece of ferrite, or use a piece of red brick. -
Page 54: Search And Identification Methods
Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru Attention! All of the above procedures are necessary when making changes to the software version (flashing). Frequency switching of 3 frequency sensors. In order to switch the operating frequency of a 3-frequency sensor 1. - Page 55 Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru case, the effect of soil will be minimal. When the search coil interacts with a metal object there may be a single tone burst or possibly several tone bursts in rapid succes- sion.
- Page 56 Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru reaction on hot rocks is to use the DHR algorithm (Disc. of hot rocks). The risk from using discrimination settings to eliminate an audio re- sponse to hot rocks is this. Due to effect of the ground valuable targets, whose vector angle is close to that of hot rocks, can being missed.
- Page 57 Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru To solve the problem with identifying steel caps/stoppers, you can use the Salgorithm, which greatly simplifies the process of identification of small (up to 40-50 mm) flat iron objects. If you have received a questionable audio response of an object, check using the Salgorithm to see if it is a cap.
-
Page 58: Searching For Metal Objects With Large Eddy Current Loops
Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru Fig. 21 Fig. 22 Fig. 23 Fig. 24 The example in Fig. 25 shows a hodograph for two nearby objects. Di- mensions of the Hodograph loops will depend on the ratio of the size of these objects and the distance between them. - Page 59 Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru of targets certain difficulties arise. This is due to the very narrow difference between the vector angle of these targets and those of the ground signal. This useful component of the vector is the projection of AB to the ver- tical Y axis.
-
Page 60: Examples Of Some Common Target Vdi`s
Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru counterclockwise direction (specific value selected experimentally in Depending on the type of soil). To do this, perform the automatic ground balance procedure. Then press the button to enter into manual ground balance... - Page 61 Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru Scale Of VDI Items From -90 to -86 Hot rocks, improperly configured ground. From -86 to -70 small nails and other small iron trash. From -70 to -50 medium wrought nails, small arrowheads.
-
Page 62: Warranty
Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru Attention! When using a search coil with a low frequency excitation current VDI readings will have lower values. Conversely, for higher frequency the VDI readings will be higher. WARRANTY INFORMATION Manufacturer guarantees operational capability of the metal detector provided that the consumer follows operation conditions. - Page 63 Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru WARRANTY FOR SEARCH COILS Attention! Be careful! When using two-frequency and three-frequency coils, when switching the frequency, do not forget to tighten the protective cap! Any mechanical damage to the frequency switch is not a warranty case.
-
Page 64: Qa/Qc Certificate
Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru QA/QC certificate Metal Detector «CLASSIK/GT/ICB», № __________________ Date of manufacture «____»________________20____y. Manufacturer’s Stamp QA/QC Passed ____________________ Signature. Sale Date Sale Date «______»________________20____y. - Page 65 Departement of international trade: https://aka-md.com | +74957991510 | akadetector@yandex.ru...
