2.4

Orientation designations and bearing cap variants

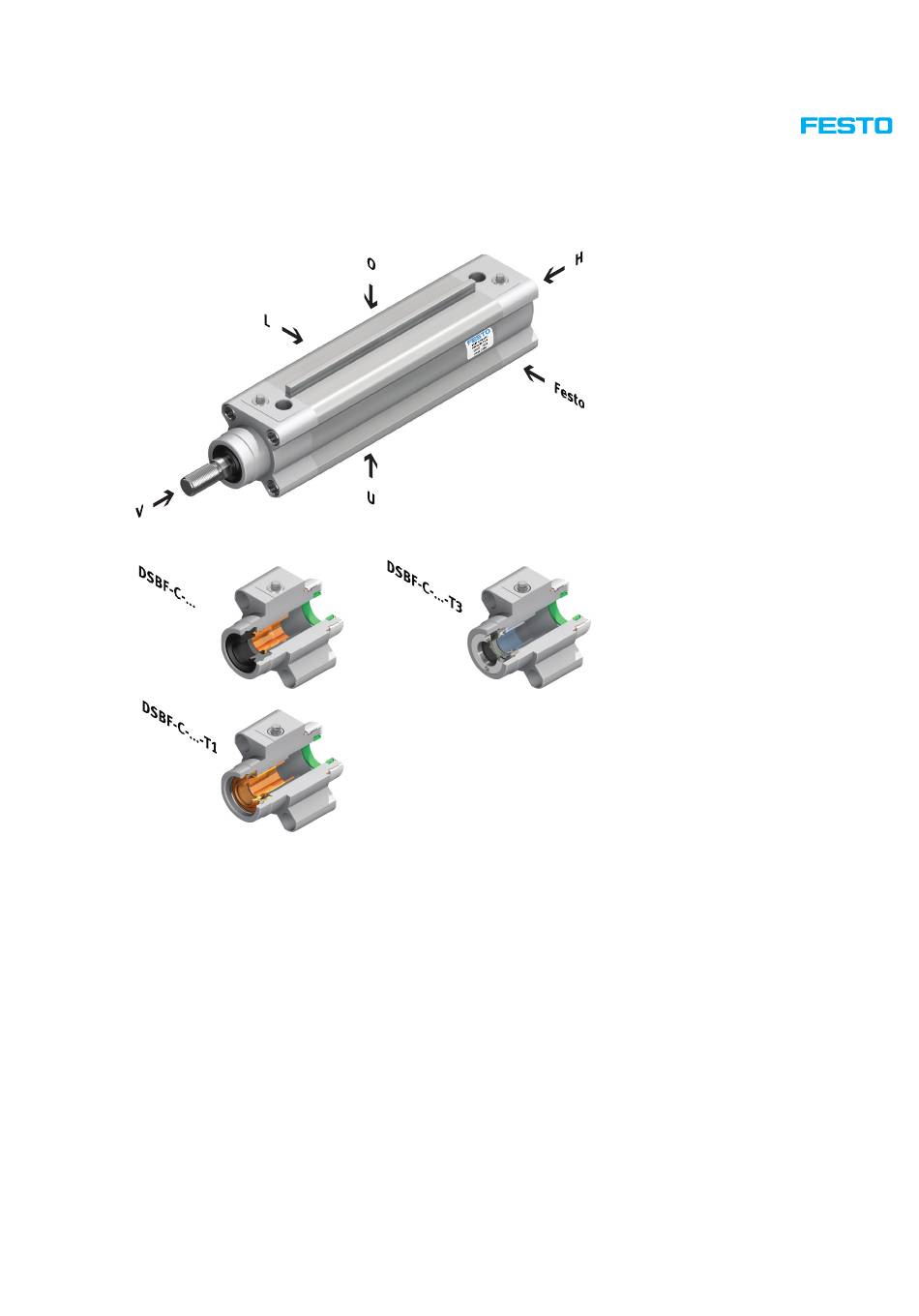

This diagram provides an overview of the orientation designations of the cylinder with piston rod as well as the different
variants of the bearing cap and seals for repair-relevant features.
8 / 28
Orientation:
Festo = product identifi cation (rating
plate) as point of reference
O = top
U = underneath
R = right
L = left
V = front
H = rear
Key features:
T1 = Heat-resistant seals
T3 = Low temperature
