Rockler Salice GRP21290 Manual

Vertical Positioning of Hinges

Although Euro-style concealed hinges allow for vertical
adjustment, the mounting plate must line up with the hinge arm if
the two are to snap together and provide the maximum possible
adjustment range. The easiest way to accomplish this is to mark
aligning horizontal centerlines on both the doors and the cabinet
face frame. You need to consider the amount of the doors' overlay
or inset when calculating the centerline positions for the doors.
1. For the top hinge, measure down from the top of the cabinet
opening to the desired mounting location (typically 2"-3") and
use a combination square to mark the horizontal centerline on
the inside edge of the face frame. (For the bottom hinge,
measure up from the bottom of the cabinet opening.)
Note: Be sure your hinge positions will provide adequate
clearance for any pullouts.
2. To determine the centerline location on the door, start with
the distance you measured in Step 1 and add the amount
the door will overlap at that edge.
Hinge Finish Tab
Salice Pie
Nickel 4mm
Corner Kit
Cup Cup Minimum Door
Diameter Depth Thickness
35mm 11mm 15mm (.59")

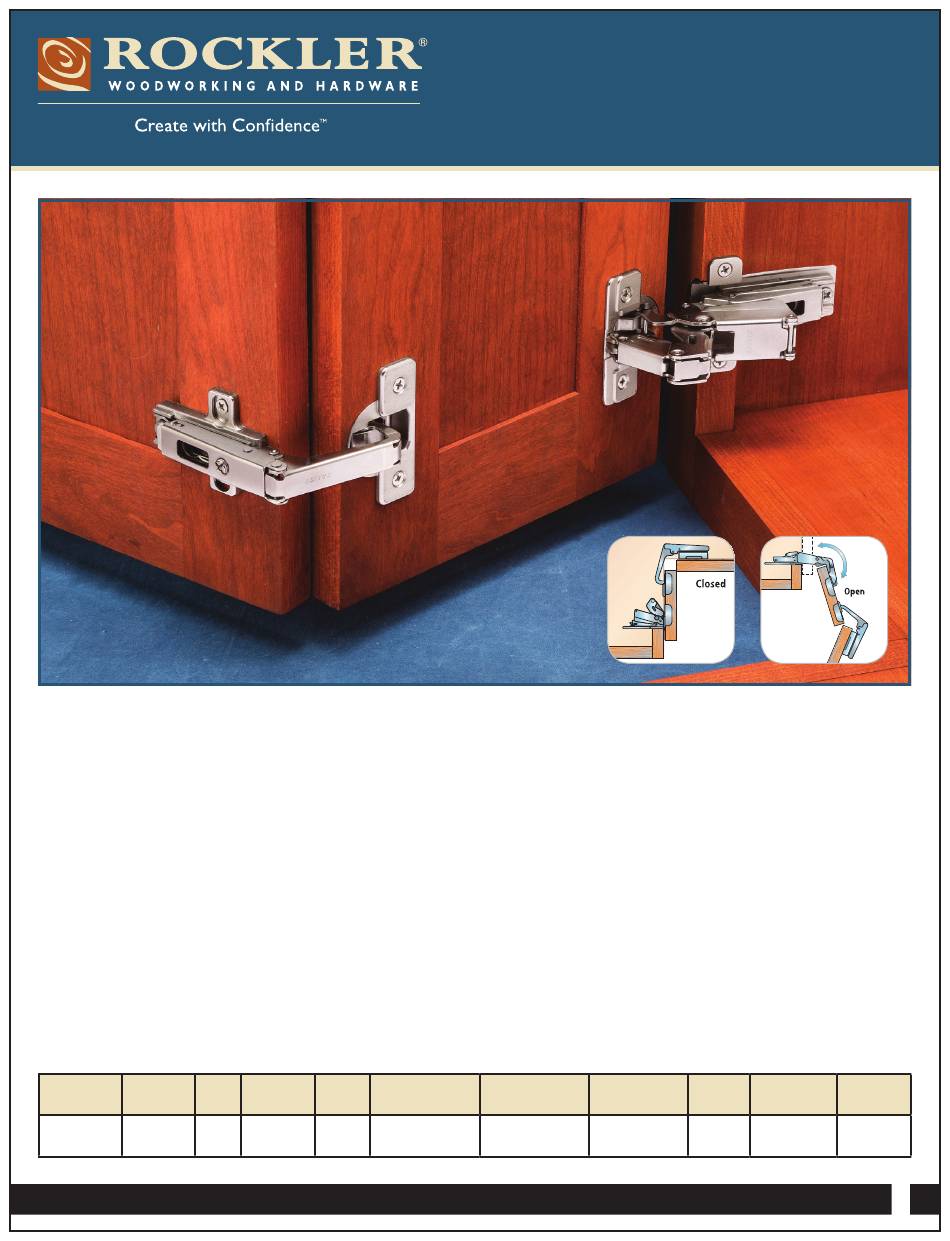

Salice 165° 1
Face Frame Pie Corner
Hinge Kit Instructions
3. Use the values calculated for the top and bottom hinge
locations in Step 2 and mark the horizontal centerlines on
the back of the door. Compare the distance between the lines
on the cabinet with the distance between the lines on the
door to verify.
Note: Building a bi-fold door system requires installing two pairs
of hinges — 165˚ frameless cabinet hinges (the larger pair) and
bi-fold door hinges. The 165˚ hinges attach to the side of the
cabinet and to Door 1. The bi-fold hinges connect to Door 1
and Door 2.
This system also requires using two sacrificial pieces of scrap
wood to drill the unique "half-moon" pocket for the recessed
mounting plates in the face frame.
Maximum Door
Adjustments
Thickness
19mm (.75") 3-way cam
⁄ " Overlay
1
4
23140
Clip-on Minimum
Gap
Mounting Reveal
.7mm Yes 1.5mm
1
