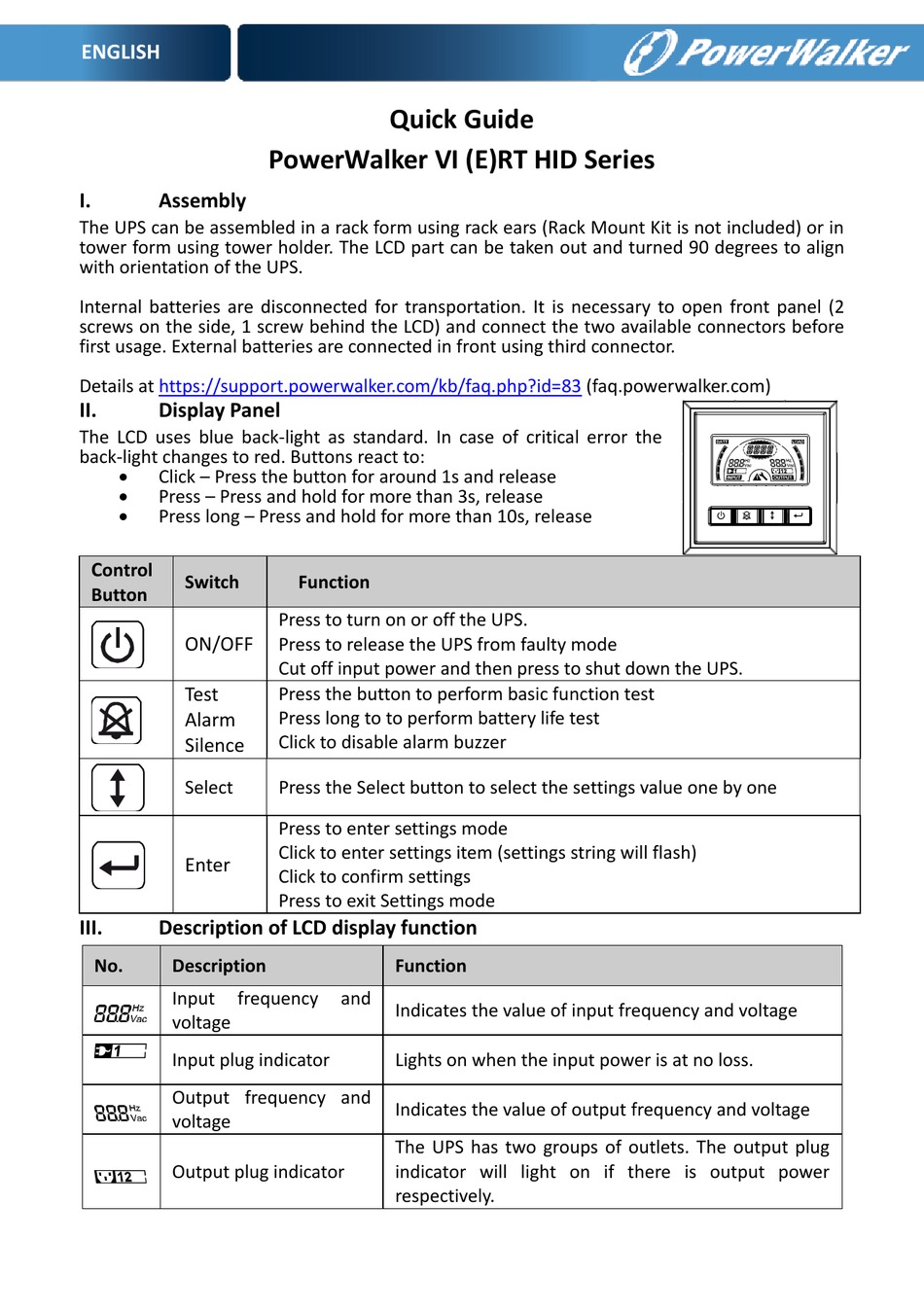

PowerWalker VI ERT HID Series Quick Manual

ENGLISH
I. Assembly
The UPS can be assembled in a rack form using rack ears (Rack Mount Kit is not included) or in
tower form using tower holder. The LCD part can be taken out and turned 90 degrees to align
with orientation of the UPS.
Internal batteries are disconnected for transportation. It is necessary to open front panel (2
screws on the side, 1 screw behind the LCD) and connect the two available connectors before
first usage. External batteries are connected in front using third connector.
Details at https://support.powerwalker.com/kb/faq.php?id=83
II. Display Panel
The LCD uses blue back-light as standard. In case of critical error the
back-light changes to red. Buttons react to:

Click – Press the button for around 1s and release

Press – Press and hold for more than 3s, release

Press long – Press and hold for more than 10s, release
C
ontrol
Switch
Button
ON/OFF
Test
Alarm
Silence
Select
Enter
III. Description of LCD display function
No. Description
Input frequency
voltage
Input plug indicator
Output frequency and
voltage
Output plug indicator
Quick Guide
PowerWalker VI (E)RT HID Series
Function
Press to turn on or off the UPS.
Press to release the UPS from faulty mode
Cut off input power and then press to shut down the UPS.
Press the button to perform basic function test
Press long to to perform battery life test
Click to disable alarm buzzer
Press the Select button to select the settings value one by one
Press to enter settings mode
Click to enter settings item (settings string will flash)
Click to confirm settings
Press to exit Settings mode
Function
and
Indicates the value of input frequency and voltage
Lights on when the input power is at no loss.
Indicates the value of output frequency and voltage
The UPS has two groups of outlets. The output plug
indicator will light on if there is output power
respectively.
(faq.powerwalker.com)
