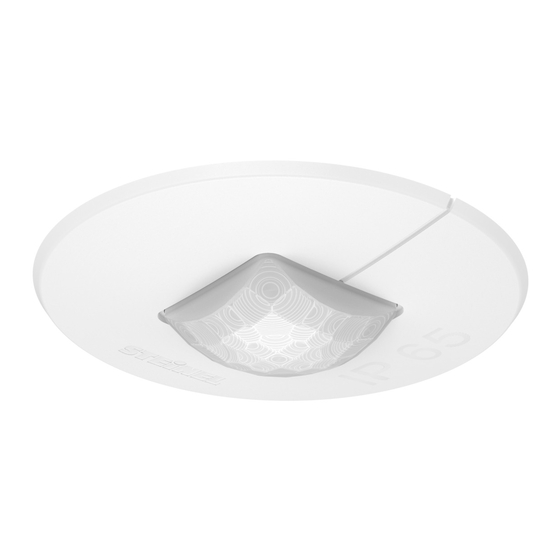

STEINEL Control Pro IR Quattro MICRO DCS Manual

Hide thumbs

Advertisement

Quick Links

Information
IR Quattro MICRO DCS
IR Quattro Slim XS DCS
IR Quattro DCS
IR Quattro HD DCS
US Quattro DCS
US Oneway DCS
DT Quattro DCS
US Hallway DCS
- 1 -

Advertisement

loading
Need help?

Need help?

Do you have a question about the Control Pro IR Quattro MICRO DCS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for STEINEL Control Pro IR Quattro MICRO DCS

Summary of Contents for STEINEL Control Pro IR Quattro MICRO DCS

  • Page 1 Information IR Quattro MICRO DCS IR Quattro Slim XS DCS IR Quattro DCS IR Quattro HD DCS US Quattro DCS US Oneway DCS DT Quattro DCS US Hallway DCS - 1 -...

  • Page 2: Table Of Contents

    IR Quattro MICRO DCS .................3 IR Quattro SLIM XS DCS ..............15 IR Quattro DCS..................31 IR Quattro HD DCS ................31 US Quattro DCS ..................49 US Oneway DCS ...................49 DT Quattro DCS ..................49 US Hallway DCS ..................49...

  • Page 3: Ir Quattro Micro Dcs

    Information IR Quattro MICRO DCS...
  • Page 4 - 4 -...
  • Page 5 2.79 in (71 mm) ø 1.69 in (43 mm) - 5 -...
  • Page 6 Polarity insensitive Dataline Dataline - 6 -...
  • Page 7 ~19.6 ft (6 m) - 7 -...
  • Page 8 9 . 6 3 . 1 Ø 1.38 in (35 mm) - 8 -...
  • Page 9 - 9 -...
  • Page 10 communicate motion and light level to the DCS. Proper use 1. Installer – Presence detector for indoor ceiling and sofit mounting. This high-quality product has been – Built-in depth at least 4.72 in manufactured, tested and packaged (120 mm). with the assurance of your complete satisfaction.
  • Page 11 App of or workmanship for a period of the DCS. five years. STEINEL will replace or repair the item provided that it has not been altered or subjected to 6. Function / Setting abuse, accident, improper installation or improper use.
  • Page 12 0.2 - 92 fc Mounting height 6.5 - 16.4 ft (2 - 5 m) IP rating Environment IP65 rated (Front side) Temperature range -13°F to +131°F (-25°C to +55°C) UL 2043 Plenum rated Made in Romania www.steinel.net - 12 -...
  • Page 13 11. Troubleshooting Malfunction Cause Remedy Sensor not detecting ■ Sensor is not wired ■ In the DCS App check motion properly to the Da- if the bus connection is ta Line working properly over the LED blinking func- tion available on the sensor settings page Sensor is wired up ■...

  • Page 15: Ir Quattro Slim Xs Dcs

    Information IR Quattro SLIM XS DCS - 15 -...
  • Page 16 - 16 -...
  • Page 17 1 . 7 ( 4 5 2 . 0 ( 5 1 ( 8 0 3 . 1 - 17 -...
  • Page 18 DA+ DA- Polarity insensitive Dataline Dataline - 18 -...
  • Page 19 < 19.6 ft (6 m) - 19 -...
  • Page 20 3 . 1 t i a d i a Ø 2.67 in (68 mm) - 20 -...
  • Page 21 DA+ DA- - 21 -...
  • Page 22 - 22 -...
  • Page 23 - 23 -...
  • Page 24 100% - 24 -...
  • Page 25 The two wire polarity insensitive Data Line Input communicate motion and light level to the DCS. 1. Installer Proper use This high-quality product has been – Presence detector for indoor manufactured, tested and packaged ceiling mounting. with the assurance of your complete satisfaction.
  • Page 26 5. Mounting 7. Function / Setting • Check all components for damage. The motion detection values and light • Do not use the product if it is levels measured by the sensor can damaged. be requested from the DCS controller •...
  • Page 27 10.  Warranty STEINEL America warrants its products against defects in material or workmanship for a period of five years. STEINEL will replace or repair the item provided that it has not been altered or subjected to abuse, accident, improper installation or impropesr use.
  • Page 28 19.6 x 19.6 ft (6 x 6 m) installation height) Angle of coverage 360° Light measurement 1-92 fc (10-1000 lux) Mounting height 8.2-13.1 ft (2.5-4 m) IP rating Environment IP20 rated Temperature range 32°F to +104°F (0°C to +40°C) UL 2043 Plenum rated Made in Romania www.steinel.net - 28 -...
  • Page 29 12. Troubleshooting Malfunction Cause Remedy Sensor not detecting ■ Sensor is not wired ■ In the DCS App check motion properly to the Data if the bus connection is Line of the Controller working properly over the LED blinking func- tion available on the sensor settings page Sensor is wired up...
  • Page 30 - 30 -...

  • Page 31: Ir Quattro Dcs

    IR Quattro DCS IR Quattro HD DCS Information IR Quattro DCS IR Quattro HD DCS - 31 -...
  • Page 32 - 32 -...
  • Page 33 IR Quattro DCS 4.72 in (120 mm) IR Quattro HD DCS 4.72 in (120 mm) - 33 -...
  • Page 34 IR Quattro DCS 13.1 ft (4 m) 16.4 ft (5 m) 22.9 ft (7 m) IR Quattro HD DCS 26.2 ft (8 m) 26.2 ft (8 m) 65.6 ft (20 m) - 34 -...
  • Page 35 IR Quattro DCS One Gridline = 0.5 m / 1.5 ft 1 = tangential 2 = radial 3 = presence One Gridline = 0.5 m / 1.5 ft 1 = tangential 2 = radial 3 = presence 2, 3 Coverage diagram at 9ft mounting hight 2, 3...
  • Page 36 Polarity insensitive Dataline Dataline Ø min. 2.67 in (68 mm) Ø max. 3.00 in (76 mm) - 36 -...
  • Page 37 - 37 -...
  • Page 38 Load module Sensor module - 38 -...
  • Page 39 Load module Sensor module - 39 -...
  • Page 40 IR Quattro IR Quattro HD Presence Radial Tangential Presence Radial Tangential 2.50 m 2.6 m x 2.6 m 2.6 m x 2.6 m 2.8 m x 2.8 m 3.6 m x 3.6 m 3.6 m x 3.6 m 4 m x 4 m 8.5 ft x 8.5 ft 8.5 ft x 8.5 ft 9 ft x 9 ft...
  • Page 41 3.50 m 2.8 m x 2.8 m 4.7 m x 4.7 m 4.7 m x 4.7 m 4.8 m x 4.8 m 5 m x 5 m 6 m x 6 m 9 ft x 9 ft 15 ft x 15 ft 15 ft x 15 ft 15.5 ft x 15.5 ft 16 ft x 16 ft...
  • Page 42 6.00 m — — — — 7 m x 7 m 9 m x 9 m 23 ft x 23 ft 29.5 ft x 29.5 ft 20 ft — — — — 7.1 m x 7.1 m 12 m x 12 m 23 ft x 23 ft 39 ft x 39 ft —...
  • Page 43 Product dimensions for IR Quattro DCS (Fig. 3.1) Product dimensions for IR Quattro 1. Installer HD DCS (Fig. 3.2) This high-quality product has been Detection zone (Fig. 3.3/3.4/3.5/3.6) manufactured, tested and packaged with the assurance of your complete Coverage Diagramm at 9 ft mounting satisfaction.
  • Page 44 Mounting procedure 2 Note on parallel connection: • Connect to the bus powered Several sensors can be connected data line of the room controller. on the same bus. Check technical (Fig. 4.1/5.3) specifications of the DCS for • Mount the power module to maximum number of bus participants.
  • Page 45 The unique mechanically scalable or workmanship for a period of detection pattern brings a new five years. STEINEL will replace or dimension to the design of precise repair the item provided that it has coverage zones. The square...
  • Page 46 1 - 92 fc (10 - 1000 lx) Mounting height IR Quattro DCS 2.5-8 m/8-26 ft IR Quattro HD DCS 2.5-10 m/8-32 ft IP rating IP 20-For indoor use only Temperature range 32°F to +104°F (0°C to +40°C) UL 2043 Plenum rated Made in Romania www.steinel.net - 46 -...
  • Page 47 11. Troubleshooting Malfunction Cause Remedy Sensor not detecting ■ Sensor is not wired ■ In the DCS App check motion properly to the Data Line if the bus connection is of the Controller working properly over the LED blinking func- tion available on the sensor settings page Sensor is wired up...
  • Page 48 - 48 -...

  • Page 49: Quattro Dcs

    US Quattro DCS US Oneway DCS DT Quattro DCS US Hallway DCS Information US Quattro DCS US Oneway DCS DT Quattro DCS US Hallway DCS - 49 -...
  • Page 50 - 50 -...
  • Page 51 US Quattro DCS/DT Quattro DCS 4.72 in (120 mm) US Oneway DCS/US Hallway DCS 4.72 in (120 mm) - 51 -...
  • Page 52 US Quattro DCS/DT Quattro DCS m ft PIR RADIAL & PRESENCE DETECTION 19.7 PIR TANGENTIAL DETECTION US TANGENTIAL & PRESENCE DETECTION US RADIAL MAJOR MOTION DETECTION Coverage diagram at 9ft mounting hight One grid line = 1m / 3.3 ft 19.7 US Oneway DCS/US Hallway DCS 45.5 42.5 Us hallway...
  • Page 53 Polarity insensitive Dataline Dataline US Oneway DCS/US Hallway DCS - 53 -...
  • Page 54 Ø min. 2.67 in (68 mm) Ø max. 3.00 in (76 mm) - 54 -...
  • Page 55 - 55 -...
  • Page 56 Load module Sensor module - 56 -...
  • Page 57 Load module Sensor module - 57 -...
  • Page 58 Proper use: – Presence detector for indoor mounting for connecting to the 1. Installer bus powered data line of the room controller. This high-quality product has been manufactured, tested and packaged Product dimensions for with the assurance of your complete US Quattro DCS/DT Quattro DCS satisfaction.
  • Page 59 The lead between the DCS and the • Make settings. sensor must be no longer than: ➔ "6. Function / Setting" • After installing the sensor starts – 984 ft (300 m) for 1,5 mm² to flash once a second for aprox. 14 AWG 2 minutes.
  • Page 60 LED will blik indicating sensor adressing. five years. STEINEL will replace or repair the item provided that it has not been altered or subjected to abuse, accident, improper installation 7.
  • Page 61 10. Technical specifications Dimensions (L × W × D) US Quattro DCS/DT Quattro DCS 4.72 x 4.72 x 2.68 in (120 x 120 x 68 mm) US Oneway DCS/US Hallway DCS 4.72 x 4.72 x 2.87 in (120 x 120 x 73 mm) Power supply US Quattro DCS 24 mA 12 users, 12-22.5 VDC, (class 2) US Oneway DCS 20 mA 10 users 12-22.5 VDC, (class 2) 24 mA 12 users DT Quattro DCS 12-22.5 VDC, (class 2) US Hallway DCS...
  • Page 62 26 x 26 ft/8.0 x 8.0 m Light measurement 1 - 92 fc (10 - 1000 lux) Mounting height 2.5-3.5 m/8.-12 ft IP rating IP 20-For indoor use only Temperature range 32°F to +104°F (0°C to +40°C) UL 2043 Plenum rated Made in Romania www.steinel.net - 62 -...
  • Page 63 11. Troubleshooting Malfunction Cause Remedy Sensor not detecting ■ Sensor is not wired ■ In the DCS App check motion properly to the Data Line if the bus connection is of the Controller working properly over the LED blinking func- tion available on the sensor settings page Sensor is wired up...
