Installing the control panel
See Figure 4 below for overall details of a TS1016 Challenger panel installed in a
TS0307 Universal Enclosure.

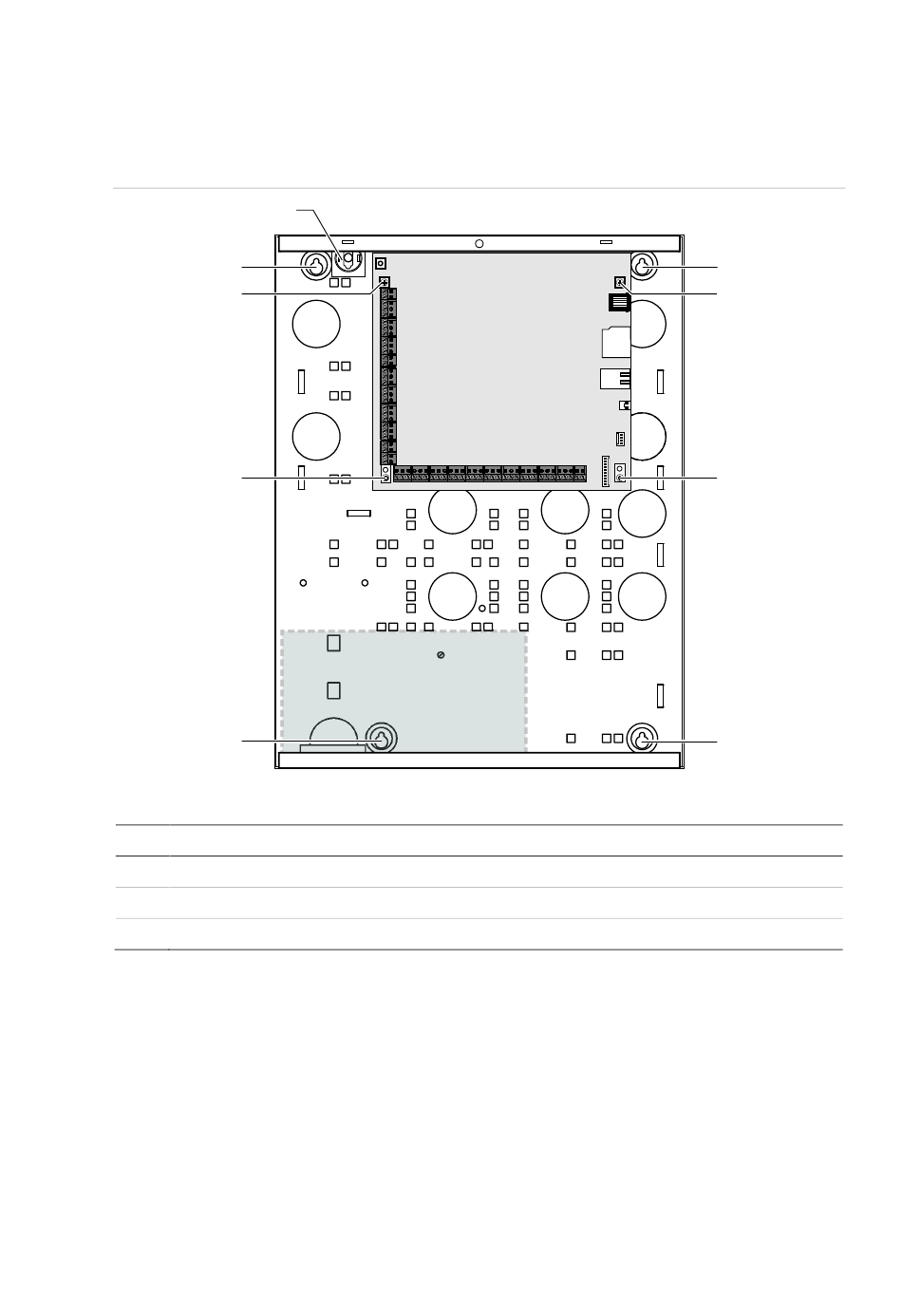

Figure 4: Challenger panel board mounted in enclosure
(3)
(1)
(2)
(2)
(1)
Figure 4 legend
Item
Description
1.
Enclosure mounting points
2.
Board mounting points
3.
Location of tamper switch
Installation guidelines
Challenger panels are designed, assembled and tested to meet the requirements
related to safety, emission and immunity with respect to environmental electrical
and electromagnetic interference, as of current relevant standards.
In addition to the general installation guidelines, installers must adhere to any
country dependent requirements of local applicable standards. Only a qualified
electrician or other suitably trained and qualified person should attempt to wire
this system to mains power (if applicable) or to the public telephone network.
Challenger10 Installation and Quick Programming Manual
TS1016
board
Space for 12 V 7 Ah battery
(not included)
(1)
(2)
(2)
(1)
9
