Connections And Controls - Bose L1 Model II Owner's Manual

Svenska Nederlands
I
NTRODUCTION

Connections and controls

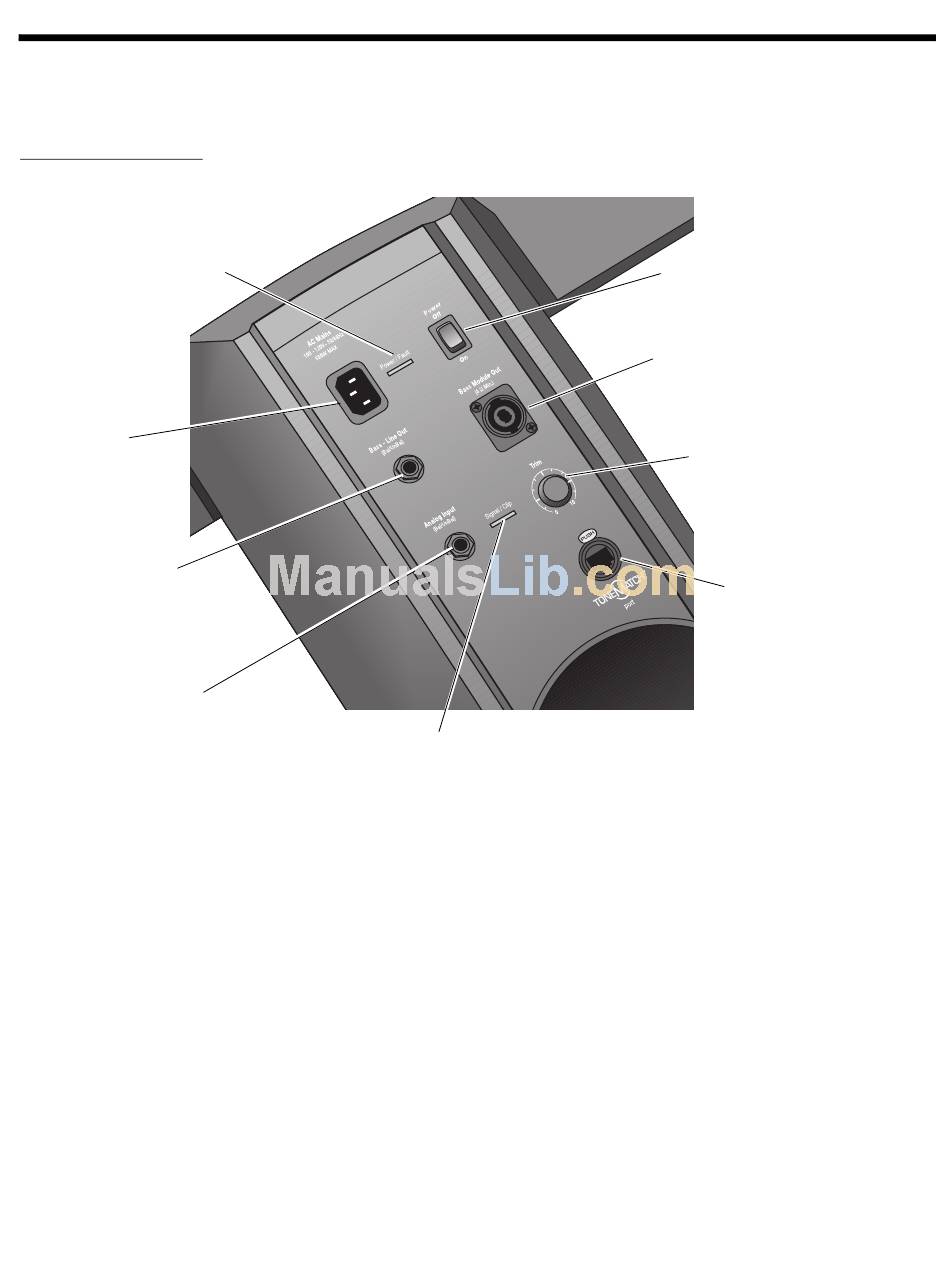

Figure 2
Power stand top panel
Power/Fault LED
Indicates power status.
Blue = system on
Red = system fault
AC Mains
AC power input
connector.
Bass - Line Out
Post-DSP bass signal output.
Accepts a ¼" TRS phone cable.
Used to drive a PackLite
amplifier.
Analog Input
A line-level analog input. Accepts
a ¼" TRS phone cable. Used for
an instrument or other audio
source.
6
Italiano Français Svenska
The top panel of the power stand provides system connectors and controls (Figure 2).
®
power
Signal/Clip LED
Indicates status of the analog input signal.
Green = normal input
Yellow = input approaching clipping
Red = input clipping
Venice_Intro.fm
Nederlands Español Français Deutsch Italiano
Power switch
Switches the system
on and off.
Bass Module Out
Bass output signal for driving one
or two B1 bass modules. Accepts
a 4-wire bass module cable.
1/07
Deutsch Español Dansk English English Dansk
Trim
Adjusts the level of the
analog input signal.
ToneMatch TM port
Digital audio and power con-
nection for the optional T1
ToneMatch audio engine.
Accepts the included
ToneMatch cable.
