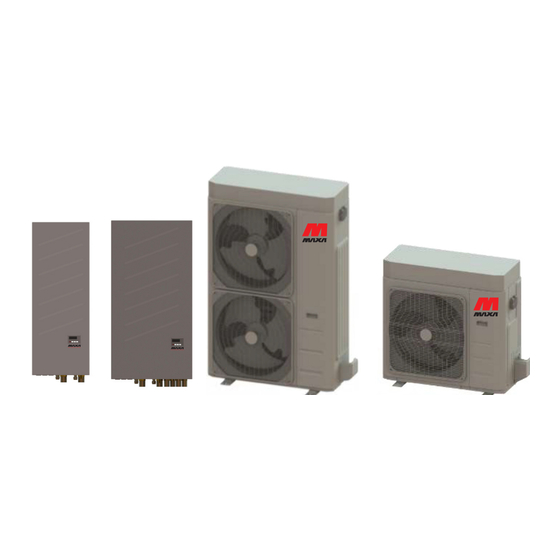

  • Page 1 Indoor units Indoor units Outdoor units model MP model MPR i-SHWAK V4 INVERTER AIR/WATER CHILLERS AND HEAT PUMPS WITH WALL-MOUNTED INDOOR UNIT AND REMOTE CONDENSING OUTDOOR UNIT...
  • Page 2 10-17 AL.B P.F. Updating the technical data and adding the new model “i-SHWAK V4 16” 02-2017 AL.B. A.B. Date Author Supervisor Notes Serie / Series / Serie / Serie / Série Catalogo / Catalogue / Katalog / Catalogue INVERTER AIR/WATER CHILLERS AND HEAT PUMPS MUI01110H7920-01 WITH WALL-MOUNTED INDOOR UNIT AND REMOTE CONDENSING OUTDOOR UNIT Possible wasted electrical or electronic devices/products should not be located together with normal domestic waste, but disposed according to the...
  • Page 3 CE CONFORMITY DECLARATION DICHIARAZIONE DI CONFORMITÀ CE THE COMPANY ADVANTIX S.P.A – VIA SAN GIUSEPPE LAVORATORE, 24 – LOC. LA MACIA Z.A.I. – 37040 – ARCOLE - VERONA - ITALY LA SOCIETÀ ADVANTIX S.P.A – VIA SAN GIUSEPPE LAVORATORE, 24 – LOC. LA MACIA Z.A.I. – 37040 – ARCOLE - VERONA - ITALY DECLARES DICHIARA that the unit:...

  • Page 4: Table Of Contents

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit INDEX PURPOSES AND CONTENTS OF THE MANUAL ......................... 5 CONSERVATION OF THE MANUAL ............................5 GRAPHIC SYMBOLS ................................... 5 SAFETY LAWS ..................................5 PERMITTED USES ..................................
  • Page 5 i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit 8.7.2.1 Terminal block connections ................................26 8.7.3 Wiring between indoor and outdoor units ........................27 8.7.4 Removal of the outdoor unit’s top cover for getting access to the terminal block and electric box ........ 27 8.7.5 Safety thermostats ................................

  • Page 6: Purposes And Contents Of The Manual

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit The manual of i-SHWAK V4 units collects all the necessary information for the better use of the equipment under safety conditions for the operator thus meeting the requirements listed in the 2006/42/CE Equipment Directive and following amendments. 1 PURPOSES AND CONTENTS OF THE MANUAL This manual provides basic information as for the selection, installation, operation and maintenance of i-SHWAK V4 units.

  • Page 7: General Safety Guidelines

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit 4 GENERAL SAFETY GUIDELINES Before beginning to operate on i-SHWAK V4 units, every user has to be perfectly knowledgeable about the functions of the equipment and its controls and he must read before and understood the information listed in this manual.

  • Page 8: Personal Protection Equipment

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit 4.2 PERSONAL PROTECTION EQUIPMENT When operating and maintaining the “i-SHWAK V4” units, it is required to use the following personal protective equipment. Protective clothing: Maintenance men and operators have to wear protective clothing that complies with the basic safety requirements currently in force.

  • Page 9: Refrigerant Safety Data Sheet

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit 4.4 REFRIGERANT SAFETY DATA SHEET Name: R410A (50% Difluoromethane (R32); 50% Pentafluoroethane (R125). RISKS IN DICATIONS Major risks: Asphyxia Specific risks: The rapid evaporation can cause freezing. FIRST AID General information: Never give anything by mouth to an unconscious person.

  • Page 10: General Characteristics

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit 5 GENERAL CHARACTERISTICS MODELLI DISPONIBILI Model MP1, Single-phase wall mounted version model MPR1, Single-phase wall mounted version with rapid producer of DHW model MP3, three-phase wall mounted version model MPR3, three-phase wall mounted version with rapid producer of DHW WALL MOUNTED VERSION MODEL MP As standard:...

  • Page 11: Technical Characteristics

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit 6 TECHNICAL CHARACTERISTICS The reversible heat pumps “i-SHWAK V4” series are designed for applications in residential and commercial areas, these units are extremely versatile and can operate in heat pump mode with the ability of producing hot water at a temperature of 63°C using the electric heaters for environmental heating and sanitary applications.

  • Page 12: Control System

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit 6.8 CONTROL SYSTEM The i-SHWAK V4 units are all equipped with a microprocessor adopting an overheating control logic program through the electronic thermostatic valve managed by the pressure transducers signals and temperature sensor. The microprocessor can manage also the following functions: water temperature regulation, antifreeze protection, compressor’s time setting, compressor automatic starting sequence, alarm reset, alarm management and operating LED.

  • Page 13: Description Of The Indoor Unit Code

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit 7 DESCRIPTION OF THE INDOOR UNIT CODE The i-SHWAK V4 system is composed of moto-condensing outdoor unit and of an indoor unit. The code of the unit consists of: no.
  • Page 14 i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit FIELD/VARIANTS TABLE Fieldo Variant Description 16 ÷21 Nominal heating capacity of the unit. Single-phase power supply. Three-phase power supply. Unit not equipped with the 3 way kit. Unit equipped with the 3 way kit (known as VDIS1), for the commutation between plant/DHW technical side.

  • Page 15: Optional Accessories

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit Name of accessories: Filed Variant Description Name Internal DHW diverter valve kit VDIS1 Additional module of plant management Herein below is represented the correspondence between the variants of RE and the name of its electric heaters, depending on the electric power supply of the unit.

  • Page 16: Lifting And Handling

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit 8.2 LIFTING AND HANDLING The handling must be performed by qualified personnel, properly equipped with appropriate equipment to the weight and the encumbrance of the unit, in compliance with safety regulations of accident preventing. 8.2.1 Indoor unit The apparatus is supplied on wooden pallets protected by carton packing box.

  • Page 17: Location And Minimum Technical Clearances

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit 8.3 LOCATION AND MINIMUM TECHNICAL CLEARANCES 8.3.1 Indoor unit The installation must allow authorized personnel to operate in the event of maintenance, in an easy manner respecting both the safety distances between the units and other apparatus that the technical spaces (expressed in mm) indicated in the table: MOD.

  • Page 18: Hydraulic Connections

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit Suspended positioning In the case of suspended installation, adequate brackets must be used to support the weight of the unit and also depending also on the type of the wall to which should be fixed.

  • Page 19: Connections Positions

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit 8.4.2 Connections positions 8.4.2.1 Indoor unit model MP To the plant (1”M) To the DHW puffer ACS (1”M, in the case of VDIS1 KIT) Technic water return (1”M) Gas pipe (see Paragraph 14.3) Liquid pipe (see Paragraph 14.3)

  • Page 20: Drainage System Connection

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit Units 14, 14T, 16 and 16 A. Power supply signal cables (remove the rear side cover to get access to the terminal block) B.

  • Page 21: Unloading Of The Plant Circuit

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit If VDIS1 accessory is present, during the loading/topping up operation, the black lever of the 3-way valve (located at the top of the valve) must be positioned halfway and kept in that position by making a pressure toward the valve interior.

  • Page 22: Schematic Diagram Of The Plant With Dhw Recirculation

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit 8.5.2 Schematic diagram of the plant with DHW recirculation Please note that the management of the DHW recirculation is available only if the additional plant management module (optional GI2 optional) is present.

  • Page 23: Refrigerant Diagram For I-Shwak V4 06 E 08 Models

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit check if the work is being done well by evaluating the rise time by mean of pressure gauge that integrated in the vacuum pump.

  • Page 24: Schema Frigorifero I-Shwak V4 14 E 16

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit 8.6.1 Schema frigorifero i-SHWAK V4 14 e 16 COMPRESSOR COMPRESSOR LIQUID SEPARATOR OIL SEPARATOR COMPRESSOR INLET TEMPERATURE COMPRESSOR OUTLET TEMPERATURE HIGH PRESSURE TRANSDUCER HIGH PRESSURE FLOW SWITCH LOW PRESSURE TRANSDUCER VALVE FO INVERTING CYCLE...

  • Page 25: Terminal Block Connections

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit Follow along the suggested path cable reported in the image. • Use a shielded communication cable to reduce/prevent interferences Power supply cables Power cables exits (if presents) Exit of the communication cable between indoor and outdoor units (see Paragraph 8.7.3.) As for the connection I the communication cable with outdoor unit, it’s...
  • Page 26 i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit Terminal block Terminals Description L1-1 Phase conductor (230Vac) L1-2 Phase conductor (230Vac) L1-3 Phase conductor for auxiliary systems (230Vac) Neutral conductor Neutral conductor for double setpoint valve N-R1 Neutral conductor for electric heater Grounding conductor...

  • Page 27: Outdoor Unit

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit Terminal block Auxiliary Board – AB – Indoor unit Jumper Terminal Description N.U. N.U. N.U. N.U. DHW terminals PWM 1 / 0-10V 1 Analog output for DHW circulator signal PWM 2 / 0-10V 2 Analog output for plant circulator signal...

  • Page 28: Wiring Between Indoor And Outdoor Units

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit For connecting the terminals I-, I+ and GNDR, t’s recommend to use a shielded twisted-pair multipolar cable 5x0.75mm 8.7.3 Wiring between indoor and outdoor units The indoor unit must be connected to the outdoor unit respecting the below table.

  • Page 29: Indications For The User

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit Check if the anti-vibration couplings exist on hydraulic pipes. Check if the shut-off valves of the hydraulic circuits are opened. Check that the hydraulic circuit has been loaded into required pressure and vented from air. Check that all the hydraulic connections are carried out correctly and that all information on the labels is respected.

  • Page 30: Maintenance And Periodic Checks

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit 12 MAINTENANCE AND PERIODIC CHECKS WARNING: All the operations described in this chapter HAVE TO BE CARRIED OUT BY TRAINED STAFF ONLY. Before any operation or before acceding to the inner components of the unit, be sure that the power supply is not connected.

  • Page 31: Technical Data

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit An incorrect decommissioning of the appliance may create serious environmental damage and endanger people’s safety. Therefore, it’s recommended that the unit shall be disposed only by authorized persons and technical training who has followed training courses that is recognized by the competent authorities.

  • Page 32: Outdoor Units

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit 14.2 OUTDOOR UNITS Model i-SHWAK V4 TECHNICAL DATA Unit Power supply 230V/1/50Hz 230V/1/50Hz Electrical data Max. Input power Max. starting current 12,9 13,7 16,6 Type Twin Rotary DC Inverter...

  • Page 33: Indoor Units

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit 14.3 INDOOR UNITS Model TECHNICAL FEATURES Unit MP / MPR Indoor unit coupled with moto-condensing unit size: Water flow (3) 1,16 1,39 1,72 2,08 Available head pressure (3) 62,7...

  • Page 34: Electric Data

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit 15 ELECTRIC DATA Power supply of circulator and Power supply of the unit V/~/Hz 230/1/50*-400/3/50** diverting valve (optional kit VDIS1) V/~/Hz 230/1/50 Indoor unit Outdoor unit control board circuit V/~/Hz 12/1/50...
  • Page 35 i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit Here also the range of the available head pressures that the unit can provide during the circulator modulation period.

  • Page 36: Three-Way Valve Pressure Drop Curve (Vdis1 Optional Kit)

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit 17 THREE-WAY VALVE PRESSURE DROP CURVE (VDIS1 optional kit) The characteristic curve corresponding to the Head pressure versus Water flow rate of the three-way diverter valve (only if the optional VDIS1 kit is present), whose values should be deducted to the curves of static pressure indicated in the Chapter 16 in the circuit pipe sizing to the nominal operating points.

  • Page 37: Dhw Instantaneous Preparer

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit 18 DHW INSTANTANEOUS PREPARER The instantaneous DHW preparer is available in the models models MPR. Here below are indicated the operating regions of the instantaneous DHW preparer versus the temperature of the primary circuit (DHW temperature of technic side) and the water flow rate of the secondary circuit (DHW withdrawal rate), for different values of the set temperature of domestic hot water (T"_Set_DHW).
  • Page 38 i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit T”_Set_DHW=45°C T”_Set_DHW=50°C...

  • Page 39: Operation Limits

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit 19 OPERATION LIMITS 19.1 Evaporator water flow rate The nominal water flow rate is referred to a temperature differential of ∆T=5°C between inlet and outlet of the evaporator. The allowed maximum flow rate is corresponding to ∆T=3°C;...

  • Page 40: Correction Factors For Operation With Glycol

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit Herein below are reported the graphics operating limits during the air conditioning and domestic hot water production modes. CHILLER/HEAT PUMP MODE DOMESTIC HOT WATER MODE 20 CORRECTION FACTORS FOR OPERATION WITH GLYCOL The following correction factors are to be used only if the indoor unit is installed in any internal area of the building subject to low temperatures and with the judgment of adding a certain quantity of glycol for protecting the hydraulic circuit.

  • Page 41: Dimensions

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit 21 DIMENSIONS 21.1 INDOOR UNITS 21.1.1 Indoor unit model MP DIMENSIONS (mm) MODELS 21.1.1 Indoor unit model MPR DIMENSIONS (mm) MODELS DIMENSIONS (mm) MODELS...

  • Page 42: Outdoor Units

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit 21.2 OUTDOOR UNITS 21.2.1 MOD. i-SHWAK V4 06 / 08 21.2.2 MOD. i-SHWAK V4 10 / 12 21.2.3 MOD. i-SHWAK V4 14 / 14T / 16 / 16T...

  • Page 43: Access Procedure To Internal Parts

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit 22 ACCESS PROCEDURE TO INTERNAL PARTS 22.1 INDOOR UNIT 1) Remove the four screws on the top and bottom of the unit. 2) Remove the front panel. 22.2 OUTDOOR UNIT 22.2.1 Mod.

  • Page 44: Mod. I-Shwak V4 10 / 12

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit 22.2.2 Mod. i-SHWAK V4 10 / 12 1) Remove the cover twisting off the screws (number 1; 2; 3; 4; 5; 6; 7; 8). 2) Twist off the screws (number 9;...

  • Page 45: Mp Model Indoor Unit

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit 23.1 INDOOR UNIT MP MODEL Expansion vessel Automatic air vent valve Plate heat exchanger Safety flow switch Y filter 3 bar relief valve Circulator Plant/technical side DHW diverting valve (optional kit...

  • Page 46: Repair And Maintenance Procedures

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit 24 REPAIR AND MAINTENANCE PROCEDURES Note: All the pictures in this manual are for explanation purpose only. They may be slightly different from the unit you purchased. The actual shape shall prevail.

  • Page 47: Wiring Diagrams

    i-SHWAK V4 Inverter air/water chillers and heat pumps with wall-mounted indoor unit and remote condensing outdoor unit 25 WIRING DIAGRAMS 25.1 INDOOR UNIT ELECTRIC BOX LAYOUT 1) User’s terminal block 2) * Fuses for electric heaters protection_[F3] 3) Support board_[AB1] 4) User’s interface_[CB1] 5) Electric transformer 240V-12V-30VA_[TF1] 6) Power supply terminal block_[M1]...
  • Page 48 37040 Arcole Verona - Italy Tel. +39 - 045.76.36.585 r.a. Fax +39 - 045.76.36.551 r.a. www.maxa.it e-mail: info@advantixspa.it The data indicated in this manual is purely indicative. The ma- nufacturer reserves the right to modify the data whenever it is...
