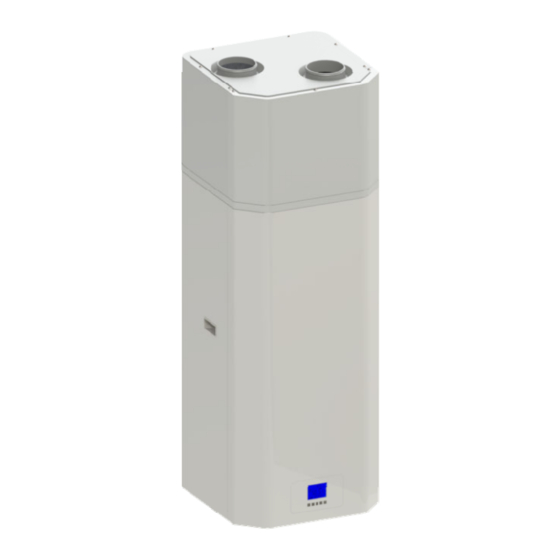

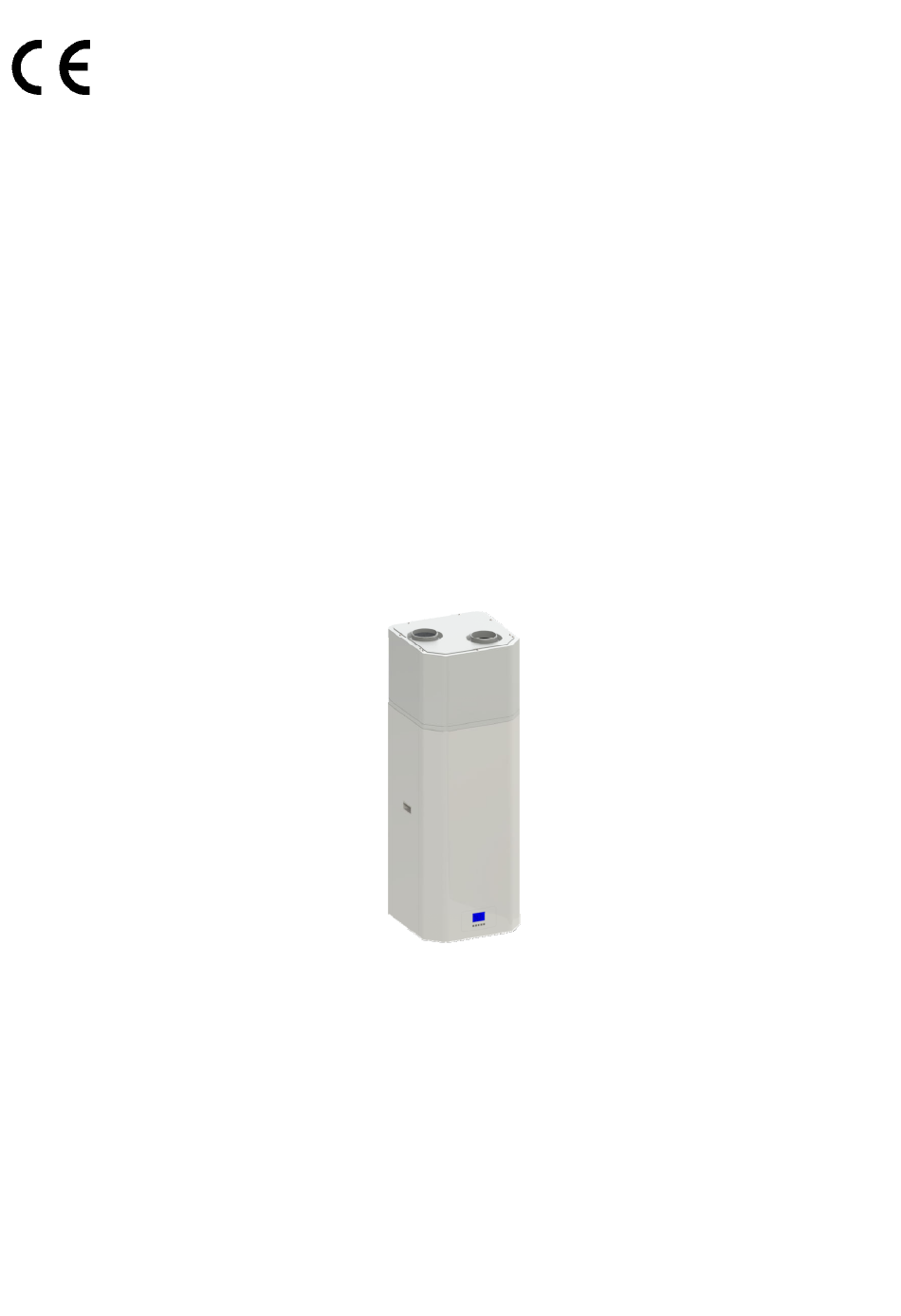

WALL‐MOUNTED DOMESTIC HOT WATER HEAT PUMP
WITH STORAGE TANK
USER'S‐INSTALLER'S MANUAL
Model
CALIDO 110
This manual has been created for informative purpose. The company declines any responsibility for the results of any projecting or any installation based on the explanations and/or on the technical specifications
provided in this manual. It is besides forbidden the reproduction under any form of the texts and of the figures contained in this manual.
"This manual is a translation from the official italian language version. For reasons of environmental respect the Company will not provide the hard copy in the original language which could be directly requested or
downloaded from the Company website at any time. In case of any dispute, the original language manual will be the trusted one".
Advertisement
Table of Contents
Related Manuals for MAXA CALIDO 110
Summary of Contents for MAXA CALIDO 110
- Page 1 WALL‐MOUNTED DOMESTIC HOT WATER HEAT PUMP WITH STORAGE TANK USER’S‐INSTALLER’S MANUAL Model CALIDO 110 This manual has been created for informative purpose. The company declines any responsibility for the results of any projecting or any installation based on the explanations and/or on the technical specifications provided in this manual. It is besides forbidden the reproduction under any form of the texts and of the figures contained in this manual. "This manual is a translation from the official italian language version. For reasons of environmental respect the Company will not provide the hard copy in the original language which could be directly requested or downloaded from the Company website at any time. In case of any dispute, the original language manual will be the trusted one".
- Page 2 CALIDO Sanitary water heat pump 02 10‐2020 A.R. A.R. Update of technical data and product fiche 01 01‐2020 A.R. A.R. Phone number added on the declaration of conformity 00 04‐2019 AL.B A.R. First release Rev Date Edited by Approved by Notes Catalogo / Catalogue / Katalog / Catalogue Serie / Series / Serie / Serie / Série MUI01110L8420‐02 SANITARY WATER HEAT PUMP Possible wasted electrical or electronic devices/products should not be located together with normal domestic waste, but disposed according to the current WEEE law in compliance with the European Directive 2012/19/UE. Please inform yourself at your local Administration or at your reseller in case the product will be replaced with a similar one.
- Page 3 CALIDO Sanitary water heat pump ADVANTIX SPA ‐ Via San Giuseppe Lavoratore, 24 ‐ Loc. La Macia ‐ 37040 ‐ Arcole ‐ Verona ‐ Italy ‐ e‐mail: info@advantixspa.it – Tel. +39 0457636585 DICHIARAZIONE DI CONFORMITÀ DECLARATION OF CONFORMITY UEBEREINSTIMMUNGSERKLAERUNG DECLARATION DE CONFORMITE DECLARACIÒN DE HOMOLOGACIÒN DICHIARIAMO SOTTO LA NOSTRA SOLA RESPONSABILITÀ CHE LA MACCHINA WE DECLARE UNDER OUR SOLE RESPONSABILITY THAT THE MACHINE WIR ERKLÄREN AUF UNSERE ALLEINIGE VERANTWORTUNG, DAß DIE MASCHINE NOUS DECLARONS SOUS NOTRE SEULE RESPONSABILITE QUE LA MACHINE EL FABRICANTE DECLARA BAJO SU EXCLUSIVA RESPONSABILIDAD QUE LA MÁQUINA DESCRIZIONE Pompa di calore per ACS con serbatoio integrato DESCRIPTION Heating pump for hot sanitary water production with integrated tank ...
-
Page 4: Table Of Contents
CALIDO Sanitary water heat pump INDEX PURPOSES AND CONTENTS OF THE MANUAL ........................ 6 CONSERVATION MANUAL ............................ 6 GRAPHIC SYMBOLS USED MANUAL .......................... 6 SAFETY LAWS .................................. 6 PERMITTED USE ................................. 6 GENERAL SAFETY GUIDELINES ............................ 7 ... - Page 5 CALIDO Sanitary water heat pump 11.4.5 Fan Mode .................................. 25 11.4.6 Operation icons ................................ 25 11.5 AUXILIARY CONTROL LOGICS ............................... 25 11.5.1 Thermal protections .............................. 25 11.5.2 Disinfection weekly cycle (Anti‐legionella) ........................ 25 11.5.3 ON/OFF contact ................................ 26 11.5.4 Contact for photovoltaic plant integration........................ 27 11.5.5 Defrosting cycle ................................ 27 ...
-
Page 6: Purposes And Contents Of The Manual
CALIDO Sanitary water heat pump This manual collects all relevant information for the use of the apparatus in best way and under operators’ safety conditions. 1 PURPOSES AND CONTENTS OF THE MANUAL This manual provides the required information as for the installation, operation and maintenance of CALIDO units. It is addressed to the machine’s operators enabling them to use the equipment efficiently, even if without having any previous specific knowledge of the apparatus. This manual describes the characteristics of the equipment when it is being put on the market; therefore, it may not capture later technological improvements introduced by the company as part of its constant endeavour to enhance the performance, ergonomics, safety and functionality of its products. ... -
Page 7: General Safety Guidelines
CALIDO Sanitary water heat pump 4 GENERAL SAFETY GUIDELINES Before beginning to operate on the “CALIDO” units, every user has to be perfectly knowledgeable about the functions of the equipment and its controls and should read and understood the information listed in this manual. It’s strictly forbidden to remove and/or tamper with any safety device. Do not remove the grills on the fan outlet and top cover. It’ forbidden the use by children and unassisted disabled persons. Do not touch the appliance when barefoot or with wet or damp parts of the body. Do not pull, detach or twist the electrical cables coming from the unit, even if it is disconnected from the mains supply. Do not stand with your feet on the device, sit down and/or lean on any type of object. Do not spray or pour water directly on the device. Not dispose of, abandon or leave within reach of children packaging materials (cardboard, staples, plastic bags, etc.). because it can be a potential source of danger. Any routine or not‐routine maintenance operation shall be carried out when the equipment has been shut down, disconnected from electric power sources. The plastic cover can be removed only by qualified operators. Do ... -
Page 8: Refrigerant Safety Data Sheet
CALIDO Sanitary water heat pump 4.4 REFRIGERANT SAFETY DATA SHEET Extract from the safety data sheet in accordance with Regulation (EC) No. 1907/2006 (REACH) with the modification of Regulation (EU) 2015/830. Denomination: R134a (100% ,1,1,2‐Tetrafluoroethane). Reference of SDS Not subject to registration obligations as downstream users of substances/preparations already registered IDENTIFICATION OF THE SUBSTANCE/MIXTURE AND OF THE COMPANY/ENTERPRISE 1.1. Product identifier Chemical name: 133 CAS number: 811‐97‐2 CE number: 212‐377‐0 Index number: ‐‐‐ Registration number: 01‐2119459374‐33 Chemical formula: C2H2F4 1.2. Relevant identified uses of the substance or mixture and uses advised against Identified uses: Refrigerant HAZARDS IDENTIFICATION 2.1. Classification of substance or mixture Regulation (EC) No 1272/2008 calssification Physical hazards Gases under pressure: Liquefied gas H280 Indications of danger May explode if heated Health hazards Asphyxia ... - Page 9 CALIDO Sanitary water heat pump Environmental precautions: Volatile Cleaning methods: Volatile HANDLING AND STORAGE 7.1. Safe‐handling precautions The product must be handled in accordance with good industrial hygiene and safety practices. Only experienced and properly instructed persons can manipulate gases under pressure. Do not smoke while handling the product. Safe use of the product: Use only specific equipment that are suitable for the product and for the operating pressure and temperature. In case of doubt, please contact the supplier. Do not breathe the gas. Don’t release the product in the atmosphere. You must ensure sufficient air exchange and/or suction. Do not use direct flame or electric heating to increase internal pressure. Do not remove or render illegible the affixed supplier identification labels. Do not undergo any pressure test with the air /HFC‐134a mixtures. Gas‐air can form a combustible mixture at pressures higher than the atmospheric one when the volume ratio exceeds 60%. Storage: Keep the unit away from incompatible products such as: explosive, flammable materials, Organic peroxide EXPOSURE CONTROL / INDIVIDUAL PROTECTION 8.1. Control parameters DNEL: Derived level without effect (workers) Effects of long‐term ‐ systemic effects, 14000 mg/m³ inhalation PNEC = Predicted No Effect Concentration Water (soft water) 0,1 mg/l Wate (Sea water) 0,01 mg/l Aquatic, intermittent releases 1 mg/l Sediment, soft water 0,75 mg/kg dry weight ...
- Page 10 CALIDO Sanitary water heat pump ECOLOGICAL INFORMATION Not easily biodegradable. Not considered susceptible to bioaccumulation due to a low log Kow (log Kow <4). Because of its high volatility, the product is unlikely to cause soil and groundwater pollution. Not classified as PBT or vPvB. 12.6. Other adverse effects Effects on the ozone layer Any Global Warming Potential 1430 GWP (CO =1): If discharged in large quantities it can contribute to the greenhouse effect Effects on global warming It contains fluorinated greenhouse gases regulated by the Kyoto protocol DISPOSAL CONSIDERATIONS 13.1. Waste treatment methods Refer to the supplier gas recovery program. Avoid direct discharge into the atmosphere. Do not discharge where the accumulation can be dangerous. Make sure that the emission limits set by local regulations or indicated in the authorizations are not exceeded. For further information regarding the suitable disposal methods, consult the EIGA Code of Practice Doc 30 "Disposal of gases", available at http://www.eiga.org List of hazardous waste 14 06 01 *: chlorofluorocarbons, HCFC, HFC ...
-
Page 11: General Characteristics
CALIDO Sanitary water heat pump 5 GENERAL CHARACTERISTICS The hot water heat pump is one of the most economical systems to heat the water for family domestic uses or for small business activities. Using free renewable energy from the air, the unit is highly efficient with low running costs. Its efficiency can be up to 3~4 times more than conventional gas boilers or electrical heaters. 5.1 FLEXIBILITY AND BENEFITS OF CALIDO INSTALLATION Waste heat recovery: the unit can be installed near the kitchen, in the boiler‐room or the garage, basically in every room which has a large number of waste‐heat so that it has the higher energy efficiency even with very low outside temperatures during the winter. Hot water and dehumidification: the unit can be placed in the laundry room or clothing room. When it produces hot water it lowers the temperature and dehumidifies the room as well. Storage room cooling: the unit can be placed in the storage room as the low temperature helps to keep the food fresh. Hot water and fresh air ventilation: the unit can be placed in the garage, gym, basement etc. When it produces hot water, it makes cold the room and then provides fresh air. ... -
Page 12: Items Inside The Packing-Box
CALIDO Sanitary water heat pump ON‐OFF contact for starting the unit from an external switch. Weekly disinfection cycle. Possibility of on/off contact management in order to turn on/off the unit when is required; it could be used for exemple when you have the production of a photovoltaic system maximizing the self‐consumption and energy efficiency. 7 ITEMS INSIDE THE PACKING‐BOX Before starting the installation, please make sure that all parts are found inside the box. PACKING‐BOX Item Image Quantity Domestic hot water heat 1 pump ... -
Page 13: Overview Of The Unit
CALIDO Sanitary water heat pump 8 OVERVIEW OF THE UNIT 8.1 HYDRAULIC CONNECTIONS Indication of connections FRONT VIEW Cold water inlet Cold water inlet ‐> G ½” M Hot water outlet ‐> G ½” M Power supply cable Hot water outlet Condensate drainage ‐> Ø 18mm pass-through hole BOTTOM VIEW Condensate drainage 8.2 DIMENSIONS Air outlet Air inlet The lower part of the unit is white (RAL9003), and the upper part is light‐gray with "orange peel" effect (RAL7035). The same color and the same finishing is replicated in the lower part of the closure. ... -
Page 14: Access To The Front Part
CALIDO Sanitary water heat pump 8.3 ACCESS TO THE FRONT PART To access the refrigerant circuit and the electrical panel components of the unit, you will need to open the front panel by removing the screws located on the side and then extracting it as indicated in the below picture. 8.4 ACCESS TO THE BOTTOM PART You need to access to the bottom part of the unit for any eventual control/replacement of the manuat reset safety thermostat, electric heater, magnesium anode and for the wiring of the remote switch ON‐OFF contact. Twist off the 6 screws that hold the bottom central plate and 1. -
Page 15: Regulation Thermostat Of The Electric Heater
CALIDO Sanitary water heat pump 8.6 REGULATION THERMOSTAT OF THE ELECTRIC HEATER The auxiliary electric heater is equipped with a thermostat for regulation; to access this component, you should remove the bottom cover. The factory setting is made at its maximum value 85°C; any modification of such value is not recommended as it could produce malfunctions on the legionella cycle control (For such purpose it is required to read carefully the paragraph 11.5.2). 8.7 SCHEMATIC OVERVIEW OF THE WATER AND GAS CIRCUIT Low pressure switch 4 way valve Temp. sensor High pressure switch Temp. -
Page 16: Warnings
CALIDO Sanitary water heat pump 9.2.1 Warnings The unit must be securely fixed to avoid noise and shaking: when insufficiently installed, the unit could fall causing injury. The bearing surface should be flat to bear the weight of the unit and suitable for installing the unit without increasing noise or vibrations. When installing the unit in a small room, please take measures (like sufficient ventilation) to prevent the asphyxia caused by the leakage of refrigerant. Be sure to use the provided or specified parts for the installation work: the use of defective parts could cause an injury due to possible fire, electric shocks, the unit falling etc. Do not tear off the labels on the unit: the labels are for the purpose of warning or reminding, keeping them can ensure your safe operations. Indoor installation is compulsory: it is not allowed to install the unit at outdoor or rain achieving place and generally accessible from any source of water. ... -
Page 17: Wall Mounting
CALIDO Sanitary water heat pump Due to the high center of gravity, low overturning moment, the unit must be secured against tipping over. The cover of the unit cannot withstand stress, so it cannot be used for transport. WARNING: 9.4 WALL MOUNTING Appropriate plugs and support brackets are supplied together with the unit for installation. 1. Proceed to drill holes into the wall of installation. Make sure that the selected wall is adequate to support the unit and there are no water pipes, gas pipes and electricity cables. 2. Insert the supplied rawlplugs in the holes and fix the support bracket through the screws and washers. 3. Secure the mounting bracket of the unit. Make sure that is centered on the wall. 4. -
Page 18: Required Service Space
CALIDO Sanitary water heat pump 9.5 REQUIRED SERVICE SPACE Below are reported the required minimum space for service and maintenance tasks on the units. Moreover, re‐circulation of discharge air has to be avoided; failure to observe this point will result in poor performance or activation of safety controls. For these reasons it is necessary to observe the following clearances. If air inlet and/or outlet pipes are connected, portion airflow and capacity in heat pump unit will lose. If the unit connects with air ducts it should be: DN 120 mm for pipes or 120 mm internal diameter flexible hose. The total length of the ducts should not be longer than 8m and the maximum static pressure should not exceed 60 Pa. If the air ducts are bended, the pressure loss will be maximal. So if there are 2 bending pipes, the total length of the ducts should not be longer than 4m. Please note that the performance of the unit are reduced in the case the air inlet is connected to a duct which takes air from outside, because of the low winter temperatures and high summer temperatures. The optimal working ambient temperature is 20°C. Please note that the unit is designed in order that the parts that may require maintenance are accessible from the front part. In any case it is advisable to keep free the encountered spaces on both left and right side in order to facilitate the removal of the unit and maintenance. ... -
Page 19: Installation Overview
CALIDO Sanitary water heat pump 9.6 INSTALLATION OVERVIEW Air outlet Air inlet Filter Automatic loading group Unloading Anti-scald valve Expanssion vessel Mixing valve Shut-off valve Hydraulic safety group Hot water outlet Water supply Chilled water inlet Condensate draining Sanitary uses An hydraulic safety group complying with EN 1487 standards must be installed in the water inlet. If not, it could cause damage to the unit, or even hurt people. The safety group must be provided with stop valve, manual drain ... -
Page 20: Hydraulic Connections
CALIDO Sanitary water heat pump 9.7 HYDRAULIC CONNECTIONS The hydraulic connections have to be done in accordance with national and local regulations. Pipes can be made up of multilayer pipe, polyethylene or stainless steel and must withstand at least 100°C and 10 bar. Pipes have to be designed depending on the desired water flow and on the hydraulic pressure drops of the system. All pipes have to be insulated with closed‐cell material of adequate thickness. Units should be connected to piping by means of flexible joints. Piping should include: Y‐shaped metallic filter (to be mounted on the inlet pipe) with a mesh not larger than 1mm. Automatic charging group (3 bar advised) when water supply pressure is higher than 5,5 bar. Hydraulic safety group (8 bar). Manual gate valves to separate the unit from the hydraulic circuit. Manual gate valve on the inlet pipe to discharge the unit if necessary. Thermometers for wells to monitor the system’s temperature. Expansion tanks, safety valves and air vents where indicated in the following installation diagrams. Perform the connections making sure that weight of the pipes do not overload the unit. Check the water hardness, which should not be below 12°f. With particularly hard water, it’s recommended the use of a water softener so that the residual hardness is no more than 20°f and no less than 15°f. WARNING: When it’s possible, connect the pipes to the hydraulic connections always using the system key against key. WARNING: Unit water inlet pipe have to be in correspondence with the blue connection, otherwise the unit malfunction could occur. ... -
Page 21: Unload Of Water From The Tank
CALIDO Sanitary water heat pump 9.7.3 Unload of water from the tank If the unit needs cleaning, handling etc, the tank should be unloaded. It is possible to do this through the water supply inlet connection or through a manual shut‐off as recommended at the beginning of the section (the installation of the manual shut‐off valve is the user’s/installer’s responsibility). 1) Close the cold water inlet. 2) Open the hot water outlet and open the manual valve of drainpipe. 3) Start the water unloading. 4) After unloading the water, close the manual valve. 9.8 ELECTRICAL CONNECTIONS Check ... -
Page 22: Appliance Operation
CALIDO Sanitary water heat pump Use the wire controller to start the unit. Listen to the unit carefully when turning ‘ON’ the power of the unit. Turn the power ‘OFF’ when you hear an abnormal sound. Measure the water temperature, to check the undulation of the water temperature. Once the operation parameters have been set (only by by qualified person, you cannot do it by yourself), the user cannot change the parameters optionally. Please contact a qualified service person for setting parameters if it is necessary. WARNING: Never switch off the unit (for a temporary stop) by switching off the main switch: this component should be used to disconnect the unit from the power supply only for long stoppages or maintenance/repairing operations. WARNING: Do not modify the internal wiring of the unit otherwise the warranty will terminate immediately. 11 APPLIANCE OPERATION 11.1 USER INTERFACE ON/OFF button (unit) ... - Page 23 CALIDO Sanitary water heat pump 3. and buttons - These are multi‐function buttons. They are used for setting of temperature, parameters, and for clock and timer adjustments. - During the running status of the unit, use and buttons for direct adjustment of the setting temperature. - Use these buttons when the unit is in the status of clock setting , to adjust the hour(s) and minute(s) of the clock time. - Use these buttons when the unit is in the status of timer setting, to adjust the hour(s) and minute(s) of the timer ‘ON’/’OFF’ program. 4. Clock button Clock setting: - Press this button to enter in the clock setting interface: hour indicator “88:88” flashes; ...
-
Page 24: Lcd Icons
CALIDO Sanitary water heat pump 6. Error codes During standby or running status, if there is a malfunction, the unit will stop automatically and show the error code in the middle of the controller display. 11.3 LCD icons 1. Available hot water The icon indicates that the domestic hot water temperature reaches the set point. The hot water is available for use. Heat pump is standby. It is possible that the temperature shown on the display is 1°C lower than the set temperature since the displayed temperature is that of the bottom part of the tank. However the achievement of the setting value is ensured. 2. Fan function The icon indicates that the fan function is enabled. 3. Electrical heating The icon indicates that the electrical heating function is enabled. The electrical heater will work according to the control program. The icon flashes during a disinfection cycle. ... -
Page 25: Auto Mode
CALIDO Sanitary water heat pump 11.4.1 Auto mode First priority is given to the operation through the heat pump system and then the electric heater acts only if necessary or in case of malfunction when the unit reachs the maximum or minimum allowable operating limit pressure. You can select a temperature in the range of 38°C ÷ 60°C, by default the temperature is set at 50°C. 11.4.2 Green mode In this mode, the operation is only carried out by the heat pump, while the electric heater acts in case of malfunction when the unit reachs the maximum or minimum allowable operating limit pressure. 11.4.3 Boost mode This mode involves the management of the joint operation of both heat pump and electric heater systems. You can select a temperature in the range of 38°C ÷ 70°C, by default the temperature is set at 50°C. 11.4.4 E‐heater mode In this mode, the operazioni is only carried out by the electric heater. You can select a temperature in the range of 38°C ÷ 70°C, by default the temperature is set at 50°C. 11.4.5 Fan Mode ... -
Page 26: On/Off Contact
CALIDO Sanitary water heat pump If the unit is in standby mode (and also if ON/OFF contact is opened), the disinfection occurs with the same control logic in case of the unit is in operation. If the unit is disconnected from the power supply, the disinfection cycle will not occure. If the unit is left without power supply for longtime, DO NOT use the water contained inside. It is recommended to emplty the tank and the water contained inside the pipes of the DHW system. It is also recommended that you let the water flowing for enough time across the pipes not only for renewing all the water but also for washing the pipes themselves. This required "washing" time is inversely proportional to the temperature of the water flowing in the pipes. After cleaning and renewing all the water contained inside the unit and in the pipes of the system, you should proceed with a disinfection. The disinfection cycle happens only in water tank. Therefore, it’s recommended to perform a recirculation of the water system especially for disinfecting all the contained water. If cannot be possible, according to the preceding warning, it is recommended to let the water system to flow for a enough for cleaning the pipes and renewing the water. If the parameter 5 is set to be 0, the disinfection function is disabled. Such operation is strictly unrecommended; the manufacturer declines any responsibility for the data caused by a lack or incorrect unit disinfection. If you desire to disable the disinfection cycle, you should ask the maintainer about the consequences that may arise ... -
Page 27: Contact For Photovoltaic Plant Integration
CALIDO Sanitary water heat pump 11.5.4 Contact for photovoltaic plant integration The ON/OFF contact can be configured so that a photovoltaic plant, in max production periods, can be used to obtain the max value of hot water by the unit (set the parameter 17 to be 1). When the contact is closed (activation by FV plant), the tank setting temperature TS1 is increased to the max possible value, according to the settings of the parameter P.20. P.20 = 0 (default), the temperature value introduced manually is compared with the maximum admissible temperature value given by the climatic curve, and then the unit will operate according to the highest one of the comparison between both values. P.20 = 1, the setting temperature will be equal to (65°C). 11.5.5 Defrosting cycle Especially when the unit works when the outside temperature is very low, frost may appear on the evaporator. In this case the defrost process is activated and the relative LED icon flashes. 11.5.6 Anti‐freeze protection If the unit is switched off but still under voltage, and the tank temperature drops below 5°C; the electric heater is forced to work until reaching the same temperature at 10°C. In this case the error code "P06" will appear on the display of the unit. ... -
Page 28: Parameters' Control And Setting
CALIDO Sanitary water heat pump 11.6 PARAMETERS’ CONTROL AND SETTING The parameters can be displayed on the screen. Certain user/installer parameters can be changed directly, while the others can be displayed but only authorized technicians can access with password to to modify them. Below is given the list of the parameters. Once the parameters have been set by the installer, it is not recommended for the user to modify them. Please contact a qualified person for modifying the setting values of the parameters. Parameter nr. Description Range Default Notes In case of lower tank temp. sensor failure, the A ... -
Page 29: Malfunctioning Of The Unit And Error Codes
CALIDO Sanitary water heat pump 11.7 MALFUNCTIONING OF THE UNIT AND ERROR CODES When an error occurs or the protection mode is set automatically, the circuit board and the wired controller will both display the error message. Protection/ Error code LED indicator Possible reasons Corrective actions Malfunction Standby Dark Normal running Bright ☆● Lower tank water 1) The sensor open circuit 1) Check the sensor connection P01 temp. sensor failure (1flash 1 dark) 2) The sensor short circuit 2) Replace the sensor ☆☆● Upper tank water 1) The sensor open circuit 1) Check the sensor connection P02 temp. sensor failure 2) The sensor short circuit 2) Replace the sensor (2 flashes 1 dark) ... -
Page 30: Maintenance And Periodical Controls
CALIDO Sanitary water heat pump 12 MAINTENANCE AND PERIODICAL CONTROLS WARNING: All the operations described in this chapter HAVE TO BE CARRIED OUT BY TRAINED STAFF ONLY. Before any operation or before entering the inner components of the unit, be sure that the power supply is disconnected. The compressor’s head and discharge piping are usually at high temperature levels. Be very careful ... -
Page 31: Troubleshooting
CALIDO Sanitary water heat pump 13 TROUBLESHOOTING This section provides useful information for diagnosing and correcting certain troubles which may occur. Before starting the troubleshooting procedure, carry out a thorough visual inspection of the unit and look for obvious defects such as loose connections or defective wiring. ... -
Page 32: Technical Characteristics
CALIDO Sanitary water heat pump 15 TECHNICAL CHARACTERISTICS CALIDO 110 TECHNICAL DATA Power supply V/Ph/Hz 220‐240/1/50 Water tank real capacity L 110 Heating capacity W 850* (+1500**) Rated power input W 236* (+1500**) Nominal current A 1.14* (+6.5**) SCOP (ERP) *** W/W 3.01 Max power input W 400 (+1500**) Max current A 1.81 (+6.5**) Heating time with cold tank *** h:min 6:53 Potenza assorbita in stand by (***) W 13.4 Max. outlet water temperature °C ... -
Page 33: Working Limits Of Heat Pump
CALIDO Sanitary water heat pump 16 WORKING LIMITS OF HEAT PUMP It’s recommended to operate unit inside the working limits that are reported here below, in order to avoid any possible intervention of the safety and protection devices. In any case, as regards high temperatures for water, if the setting temperature is outside the operating region, the unit will automatically adapt its set of the water temperature respecting the limits shown in the below diagram. ... -
Page 34: Wiring Diagram
CALIDO Sanitary water heat pump 17 WIRING DIAGRAM Please refer to the wiring diagram sticked on the electric box. ... -
Page 35: Fiche According To Regulation (Eu) No 812/2013
CALIDO Sanitary water heat pump 18 FICHE ACCORDING TO REGULATION (EU) No 812/2013 Modelli / Models CALIDO 110 Profilo di carico dichiarato / Declared load profile M Classe di efficienza energetica di riscaldamento dell’acqua A + Water heating energy efficiency class Aria interna +20°C / Indoor air +20°C 157% Condizioni climatiche più calde (+14°C) Efficienza energetica di 138% Warmer climate condition riscaldamento dell’acqua Condizioni climatiche medie (+7°C) Water heating energy 125% Average climate conditions efficiency Condizioni climatiche più fredde (+2°C) 113% Colder climate conditions Aria interna +20°C / Indoor air +20°C 328 kWh Condizioni climatiche più calde (+14°C) Consumo annuo di energia in 369 kWh Warmer climate condition termini di energia finale Condizioni climatiche medie (+7°C) Annual energy consumption 410 kWh Average climate conditions in terms of final energy Condizioni climatiche più fredde (+2°C) 451 kWh ... - Page 36 ...
