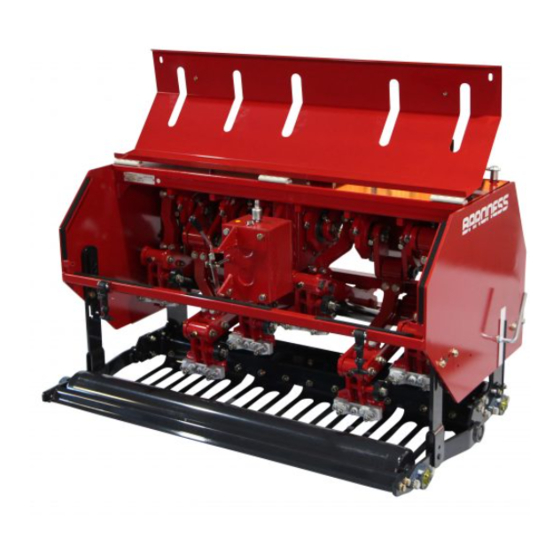

Tractor Mounted Aerator
Service Manual
Serial No.
TDA1200：20004-・TDA1600：20004-
　
　
Ver.1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TDA1200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Baroness TDA1200

Summary of Contents for Baroness TDA1200

  • Page 1 Tractor Mounted Aerator Service Manual Serial No. TDA1200：20004-・TDA1600：20004- 　 　 Ver.1.1...
  • Page 2 The information described in this manual is subject to change for improvement without prior notice. When replacing parts, be sure to use genuine Baroness parts or parts designated by Kyoeisha. Note that the Baroness product warranty may not apply to defects caused by the use of parts from other companies.

  • Page 3: Table Of Contents

    TDA1200・TDA1600 Contents Safety .............. Page 1-1 Safe Operating Practices .......Page 1-2 Safety Signs and Instruction Signs ....Page 1-5 Disposal ............Page 2-1 Waste Disposal ..........Page 2-2 Maintenance standards and maintenance ...Page 3-1 Unit conversion ..........Page 3-2 Tightening torques ......... Page 3-4 Lifting .............
  • Page 4 TDA1200・TDA1600 Contents...

  • Page 5: Safety

    TDA1200・TDA1600 Safety Safe Operating Practices ...... Page 1-2 Training ..........Page 1-2 Preparation ..........Page 1-2 Driving ............Page 1-3 Maintenance and storage ...... Page 1-4 Safety Signs and Instruction Signs ..Page 1-5 About Safety Signs and Instruction Signs ............Page 1-5...

  • Page 6: Safe Operating Practices

    TDA1200・TDA1600 Safety Failure to adequately follow these safety Lack of awareness of the effect of precautions may cause an accident resulting in ground conditions, especially slopes injury or death. Incorrect hitching and load distribution Never allow children or people unfamiliar...

  • Page 7: Driving

    TDA1200・TDA1600 Safety Replace all fuel tanks and container caps Never operate the machine with guards, securely. shields damaged, or without safety protective devices in place. Check that operator's presence controls, Be sure not to remove the interlock system. safety switches and shields are attached and Make necessary adjustments before using functioning properly.

  • Page 8: Maintenance And Storage

    TDA1200・TDA1600 Safety When using attachments, never direct the If the engine is provided with a shut-off discharge at bystanders valve, shut off valve while storing or or allow anyone near the machine while it is transporting. operating. Do not store any fuel near fire.

  • Page 9: Safety Signs And Instruction Signs

    If they are damaged, become dirty, or peel off, replace them with new ones. Part numbers for decals that need to be replaced are listed in the parts catalog. Order them from a Baroness dealer or Kyoeisha. Safety Signs and Instruction Signs Page 1-5...

  • Page 10: Safety Signs And Instruction Signs

    TDA1200・TDA1600 Safety Page 1-6 Safety Signs and Instruction Signs...

  • Page 11: Disposal

    TDA1200・TDA1600 Disposal Waste Disposal ........Page 2-2 About the Waste disposal ...... Page 2-2 Page 2-1...

  • Page 12: Waste Disposal

    TDA1200・TDA1600 Disposal Waste Disposal About the Waste disposal Make sure that waste generated when servicing or repairing the machine is disposed of in accordance with local regulations. (e.g. waste oil, antifreeze batteries, rubber products, and wires etc.) Page 2-2 Waste Disposal...

  • Page 13: Maintenance Standards And Maintenance

    TDA1200・TDA1600 Maintenance standards and maintenance Unit conversion ........Page 3-2 Inch–millimeter conversion table ... Page 3-2 US unit–SI unit conversion table ....Page 3-3 Tightening torques ........ Page 3-4 Standard tightening torques ....Page 3-4 Principal tightening torques ....Page 3-5 Lifting ............Page 3-7 Lifting point ..........

  • Page 14: Unit Conversion

    TDA1200・TDA1600 Maintenance standards and maintenance Unit conversion Inch–millimeter conversion table 1 mm = 0.03937 in 1 in = 25.4 mm Fractions Decimals Fractions Decimals 1/64 0.015625 0.397 33/64 0.515625 13.097 　 　 　 　 1/32 0.03125 0.794 17/32 0.53125 13.494 　...

  • Page 15: Us Unit-Si Unit Conversion Table

    TDA1200・TDA1600 Maintenance standards and maintenance US unit–SI unit conversion table To Convert Into Multiply By Miles Kilometers 1.609 Yards Meters 0.9144 Feet Meters 0.3048 Linear Measurement Feet Centimeters 30.48 Inches Meters 0.0254 Inches Centimeters 2.54 Inches Millimeters 25.4 mile Square Miles Square Kilometers 2.59...

  • Page 16: Tightening Torques

    TDA1200・TDA1600 Maintenance standards and maintenance Tightening torques Standard tightening torques Bolts and Nuts Important A number of bolts are used in each part of this machine. Be sure to re-tighten the bolts and nuts, because they may be loosened at the earlier stage of the use.

  • Page 17: Principal Tightening Torques

    TDA1200・TDA1600 Maintenance standards and maintenance Heat-treated bolt Strength classification 8.8 Strength classification 10.9 Nominal diameter 10.9 tib3yb-002 tib3yb-003 kgf-cm lb-in kgf-cm lb-in 5 - 7 50.99 - 71.38 44.26 - 61.96 7 - 10 71.38 - 101.97 61.96 - 88.51 8 - 11 81.58 - 112.17...
  • Page 18 TDA1200・TDA1600 Maintenance standards and maintenance Tightening torque Thread Location Code number Part name locking kgf-cm lb-in adhesive 920.71 - K0013120702 Bolt, heat-treated M12-70 104 - 134 1060.8 - 1366.8 ○ 1186.31 2655.91 - TDA12000362Z8 Nut M20-A 300 - 350 3060 - 3570 ―...

  • Page 19: Lifting

    TDA1200・TDA1600 Maintenance standards and maintenance Lifting Front frame Rear frame Lifting point Lifting point Sling Warning Jack-stand points When repairing the front roller or any parts Rear frame pipe related to the roller, place the machine on a solid flat floor such as concrete and remove...

  • Page 20: Greasing

    TDA1200・TDA1600 Maintenance standards and maintenance Greasing No. of Location Greasing 　 About Greasing Points Rear roller Since there may be adhesion or damage due Front roller to lack of grease on moving parts, they must be greased. Clutch Add urea-based No. 2 grease in accordance Journal cross with the Maintenance Schedule.
  • Page 21 TDA1200・TDA1600 Maintenance standards and maintenance Clutch Slide (inner/outer tubes) Use lithium grease (urea type) with Pull out the slide and apply grease. molybdenum. 8bq62b-216 Greasing points_004 Journal cross Use lithium grease (urea type) with molybdenum. One location in each journal cross.
  • Page 22 TDA1200・TDA1600 Maintenance standards and maintenance Page 3-10 Greasing...

  • Page 23: Operating Machine And Mower Units

    TDA1200・TDA1600 Operating Machine and Mower Units Maintenance ........... Page 4-2 About Maintenance ........Page 4-2 Specifications ........Page 4-2 Crank timing diagram ......Page 4-2 Grease ........... Page 4-3 Oil ............Page 4-3 Special Tool ..........Page 4-4 List of Special Tools .......Page 4-4 Removal and installation of each section ............

  • Page 24: Maintenance

    Operating Machine and Mower Units Maintenance About Maintenance This chapter describes primary checking and maintenance operations for TDA1200/1600. For information on daily checks, maintenance and handling of the machine, please refer to the separate TDA1200/1600 Owner's Operating Manual and Parts Catalog.

  • Page 25: Grease

    TDA1200・TDA1600 Operating Machine and Mower Units TDA1600 View from the back Timing Left View from the left side 35gcfm-002 Crank timing diagram_002 Grease Use the following type of grease on the operating machine and mower units. Grease Excelite EP No. 2 (urea type) Use the following type of grease on the drive shaft.

  • Page 26: Special Tool

    TDA1200・TDA1600 Operating Machine and Mower Units Special Tool List of Special Tools 6209 Bearing driver Used when installing bearings with K4802000912 outer Φ85 and inner Φ45 q9c6v6-009 6204 Bearing driver Used when installing bearings with K4802000762 outer Φ47 and inner Φ20...
  • Page 27 TDA1200・TDA1600 Operating Machine and Mower Units 6205 Bearing driver Used to knock-in and install the K4802000822 bearing of outer φ52 and inner φ25 q9c6v6-009 6206 Bearing driver Used when installing bearings with K4802000832 outer φ62 and inner φ30 q9c6v6-009 Special Tool...

  • Page 28: Removal And Installation Of Each Section

    TDA1200・TDA1600 Operating Machine and Mower Units Install the socket on the spinner handle, Removal and installation of each and remove the two bolts and the section φ12.φ18 tine mounting board. φ12.φ18 tine mounting board Removal of φ12.φ18 tine mounting board...

  • Page 29: Lower Housing Assy

    Warning Refer to "Tightening torques" (Page 3-4) . When removing or installing any crank parts, Note that the Baroness product warranty may be sure to secure the crank. not apply to any defects caused by incorrect If the crank is not secured, the crank may or overtorque tightening, etc.
  • Page 30 TDA1200・TDA1600 Operating Machine and Mower Units Remove the lower housing Assy set at the Caution lowest point in the following procedure: Nuts shall be tighten until locking is released. Loosen the nuts of the bolts which are connecting the crank housing with the lower housing Assy.

  • Page 31: Spring Box

    Installation of lower housing Assy housing Assy slowly. Caution Refer to "Tightening torques" (Page 3-4) . Note that the Baroness product warranty may not apply to any defects caused by incorrect or overtorque tightening, etc. For installation, reverse the removing procedure.

  • Page 32: Crank Assy

    Caution Removal of spring box_002 Spring box Refer to "Tightening torques" (Page 3-4) . Note that the Baroness product warranty may Remove the bolts and spring washers not apply to any defects caused by incorrect from the tine holder. or overtorque tightening, etc.
  • Page 33 TDA1200・TDA1600 Operating Machine and Mower Units Loosen all drive shaft nuts. Removal of crank Assy Warning When removing or installing any crank parts, be sure to secure the crank. If the crank is not secured, the crank may become unbalanced and rotate suddenly.
  • Page 34 Caution mounting board. Refer to "Tightening torques" (Page 3-4) . Note: Note that the Baroness product warranty may There are four and six fixing points in not apply to any defects caused by incorrect TDA1200 and TDA1600, respectively. or overtorque tightening, etc.
  • Page 35 TDA1200・TDA1600 Operating Machine and Mower Units Install the sling on the left crank Assy in the Install housing mounting bracket A with position shown in the figure, and lift the bolts, spring washers, and washers at two sling with using a hoist, etc.
  • Page 36 TDA1200・TDA1600 Operating Machine and Mower Units Insert the upper housing between crank Tighten all of the other slotted nuts which bracket A and gear box-side crank bracket, have been tightened temporarily on the and insert the crank shaft. specified torque. (See "Crank Assy layout"...

  • Page 37: Gearbox

    TDA1200・TDA1600 Operating Machine and Mower Units Gearbox Gearbox Upper arm Gear box layout Slotted nut and cotter pin Caution When removing and installing the crank nuts, be sure to secure the crank. Secure the crank bracket by using a wood block, etc.
  • Page 38 TDA1200・TDA1600 Operating Machine and Mower Units Pull out the left and right crank shafts from Remove the crank brackets from the drive the crank brackets. shaft by using a pulley puller. Remove the one in the opposite side as well in the same procedure.
  • Page 39 Refer to "Tightening torques" (Page 3-4) . Remove the bolt, spring washer and Note that the Baroness product warranty may washer, and then remove the housing not apply to any defects caused by incorrect mounting board.
  • Page 40 TDA1200・TDA1600 Operating Machine and Mower Units Lift the gear box with the slings. Bolt and U nut Washer Collar Tighten the housing mounting board with bolts, spring washers, and washers on the specific torque. c8hvyh-001 Installation of gear box_001 Gearbox...

  • Page 41: Front Roller Assy

    TDA1200・TDA1600 Operating Machine and Mower Units Tighten the left and right crank bracket with Front Roller Assy bolts, nuts, and spring washers. Removal of front roller Assy Install the upper housing Assy between the crank brackets and drive in the crank shaft.

  • Page 42: Rear Roller Assy

    Follow the same steps to remove those on the other side. Caution Refer to "Tightening torques" (Page 3-4) . Note that the Baroness product warranty may not apply to any defects caused by incorrect or overtorque tightening, etc. For installation, reverse the removing procedure.
  • Page 43 TDA1200・TDA1600 Operating Machine and Mower Units Loosen the hollow set securing the roller Pulley puller shaft of the flange unit. Flange unit Follow the same steps to loosen the one on the opposite side. Remove snap pin A and the flat-head pin securing the rear roller bracket (R).

  • Page 44: Front Roller Bracket

    Remove the bolt, washer, and U nut and Refer to "Tightening torques" (Page 3-4) . then remove the bracket mounting board. Note that the Baroness product warranty may Follow the same steps to remove those on not apply to any defects caused by incorrect the other side.
  • Page 45 TDA1200・TDA1600 Operating Machine and Mower Units Place the jack stands in the box mounting Rear frame pipe bracket. Jack stands Install the sling to the front frame and lift it with a hoist, etc. until the front roller lifts off the ground.

  • Page 46: Inspection And Repair Of Each Section

    Bolt and spring washer Refer to "Tightening torques" (Page 3-4) . Tine holder Note that the Baroness product warranty may Loosen the roller stopper and hold the front not apply to any defects caused by incorrect roller bracket by hand.
  • Page 47 TDA1200・TDA1600 Operating Machine and Mower Units Remove U nuts B and washers from 3 Inspection of lower housing Assy palces on the arm axis, and then remove the lower arm. TDA1200 ￭ Wear of bearings due to frequent usage and invasion of water may damage bearings, etc., preventing smooth rotation of the tine...
  • Page 48 Collar "Tightening torques" (Page 3-4) See the list. Remove the bearing, bearing collar, lower Note that the Baroness product warranty may arm and lock plate from the arm axis. not apply to any defects caused by incorrect or overtorque tightening, etc.
  • Page 49 TDA1200・TDA1600 Operating Machine and Mower Units Insert the colors into the lower housing A, Lock plate lower housing B and tine holder. Lower arm Arm axis Bearing collar Top view of bearing collar Drive bearings into the arm axis on 3 places by using a driver tool.
  • Page 50 TDA1200・TDA1600 Operating Machine and Mower Units Important Disc spring U nut Install the bearing collars with taking care of their correct directions. Important Insert the bearing colors into the lower There are 3 types of upper arms and they housing A, lower housing B and tine have their own places of installation and holder.
  • Page 51 TDA1200・TDA1600 Operating Machine and Mower Units Loosen the U nut B on the arm axis at 2 Strike the arm axis by using a wood places. hummer to remove it, and then remove the lower housing B, collar, bearing, and bearing collar.
  • Page 52 TDA1200・TDA1600 Operating Machine and Mower Units Remove the U nut and washer, and push Remove the bolt from the time holder A. the bolt down to the face of tine holder Assy. iiprkx-008 TDA1600_008 iiprkx-006 Arm axis TDA1600_006 Collar U nut, washer...
  • Page 53 Lower housing A Bearing Caution "Tightening torques" (Page 3-4) See the list. Note that the Baroness product warranty may not apply to any defects caused by incorrect or overtorque tightening, etc. Important iiprkx-013 Be sure to replace the bearings, disc springs TDA1600_013 and U nuts with new ones.
  • Page 54 TDA1200・TDA1600 Operating Machine and Mower Units Drive a bearing into the lower housing B Collar by using a driver tool. Bearing Drive the lower housing A by using a driver tool, and then insert its collar. iiprkx-015 TDA1600_015 Bearing iiprkx-018...
  • Page 55 TDA1200・TDA1600 Operating Machine and Mower Units Install the lower arm. Collar Bolt Tine holder Tine holder A Install the tine holder B onto the arm axis and the bolt, and then drive the tine holder B horizontally by using a driver tool.

  • Page 56: Spring Box

    Confirm that the compression spring is not ･ broken nor shrunk. Note: Between the spring box Assys of TDA1200 and TDA1600, the spring box, compression box, and spring shaft varies, but the assembling and inspection methods are the pue9kj-003 same.
  • Page 57 TDA1200・TDA1600 Operating Machine and Mower Units Loosen the nut and spring washer of the Remove the spiral pin from the spring hollow set securing the fastening bracket to stopper. the spring box, and remove the hollow set. pue9kj-008 pue9kj-005 Inspection of spring box_008...
  • Page 58 Remove the urethane sheet from the spring Caution box. "Tightening torques" (Page 3-4) See the list. Note that the Baroness product warranty may not apply to any defects caused by incorrect or overtorque tightening, etc. Important Be sure to replace the bearings, spiral pins, O-rings, and urethane sheets with new ones.
  • Page 59 TDA1200・TDA1600 Operating Machine and Mower Units Adjust the hole for the pin of the spring Insert the spring shaft Assy into the spring stopper to the hole of the spring shaft and box. drive the spiral pin into the hole.

  • Page 60: Crank Assy

    TDA1200・TDA1600 Operating Machine and Mower Units Drive the bearing by using a driver and Crank Assy install the stop rings to both sides of it. Inspection of crank Assy Push the urethane collar into the bearing. Wear of bearings due to frequent usage and invasion of water may damage bearings etc.
  • Page 61 TDA1200・TDA1600 Operating Machine and Mower Units Loosen the nut and remove the bolt. Open the angle between the crank bracket Follow the same steps to remove the bolt and crank bracket A by using the crank from the other side.
  • Page 62 TDA1200・TDA1600 Operating Machine and Mower Units Knock the crank shaft by using a wooden Upper housing hammer to pull it out up to the crank Bearing and collar bracket face. Important Be sure to replace the bearings, disc springs and cotter pins with new ones.
  • Page 63 TDA1200・TDA1600 Operating Machine and Mower Units Drive in the upper housing by using a Install the crank bracket into the crank driver. shaft. ogzg3t-012 ogzg3t-015 Inspection of crank Assy_012 Inspection of crank Assy_015 Upper housing Crank bracket Insert the collar.

  • Page 64: Crank Housing

    TDA1200・TDA1600 Operating Machine and Mower Units Drive it in by using a wooden hammer to Disc spring prevent any damage on the thread. Slotted nut Bolt, nut, and spring washer Install two bolts, nuts, and spring washers, tighten them until the bolts hit the keys, and lock them with nuts.
  • Page 65 TDA1200・TDA1600 Operating Machine and Mower Units Remove the stop ring from the crank Remove the drive shaft by striking it with a housing. wooden hummer to prevent any damage on the shaft. t9b58o-001 t9b58o-003 Inspection of crank housing_001 Inspection of crank housing_003...

  • Page 66: Gearbox

    TDA1200・TDA1600 Operating Machine and Mower Units Remove 14 plug and 14 seal washer from Gearbox gear box and drain oil. Gear box layout 5s6or7-030 Inspection of gear box_001 dykztf-001 Gearbox Gear box layout_001 14 plug, 14 seal washer Slotted nut 20 and cotter pin for drive...
  • Page 67 TDA1200・TDA1600 Operating Machine and Mower Units Change lever Shift fork Compression spring A Bolt, washers, U nut Washers Bolt, washers, U nut Remove knock bolts and bolts. Next remove change guide. 5s6or7-035 Inspection of gear box_006 Gearbox cover Shifter fork...
  • Page 68 TDA1200・TDA1600 Operating Machine and Mower Units Remove oil seal from opposite side of 　 gearbox. Use a bearing puller to remove bearing from drive shaft B. Remove washers. Next remove 2-shaft 14-tooth gear. Remove bearing from drive shaft A with bearing puller.
  • Page 69 TDA1200・TDA1600 Operating Machine and Mower Units From opposite side tap out drive shaft A 　 and bearing with a plastic hammer. Remove bearing from gearbox using drive shaft A. Tap on drive shaft in the direction of the white arrow.
  • Page 70 TDA1200・TDA1600 Operating Machine and Mower Units Remove the stop ring securing drive shaft B Nut (TDA1200 use M20, TDA1600 use and bearings from inside of crank gearbox M24) Washer (TDA1200 use M20, TDA1600 use M24) Drive shaft C Crankshaft housing...
  • Page 71 TDA1200・TDA1600 Operating Machine and Mower Units Use the screwdriver to push in the direction Crank gearbox B of arrow on the end of drive shaft B. Push Drive shaft B drive shaft B until there is no contact between shaft and 30-tooth bevel gear 　...
  • Page 72 Inspection of gear box_031 30-toth bevel gear Pipe's point of contact Pipe [thickness 7 mm <] Drive shaft C Washer (TDA1200 use M20, TDA1600 use M24) Nut (TDA1200 use M20, TDA1600 use M24) Page 4-50 Inspection and repair of each section...
  • Page 73 TDA1200・TDA1600 Operating Machine and Mower Units In the hole on the gearbox cover where the Important shifter fork goes through, please replace When assembling, remove the old packing the O-ring with a new one. and wipe out all of the old liquid gasket and then attach a new packing.
  • Page 74 Please note depth allowance of vice or ･ Washer (TDA1200 use M20, TDA1600 base when hammering shaft into bearing. use M24) Nut (TDA1200 use M20, TDA1600 use Please tap drive shaft B into bearing with a plastic hammer. M24) Vice Place drive shaft C Assy into vice and tap bearing into place with a driving tool.
  • Page 75 TDA1200・TDA1600 Operating Machine and Mower Units Slide collar onto drive shaft B. Important When hammering be mindful not to ･ damage bevel gear part of drive shaft B. ･ Please note depth allowance of vice or base when hammering shaft into bearing.
  • Page 76 TDA1200・TDA1600 Operating Machine and Mower Units Carefully insert drive shaft C Assy into the 　 oil seal of crank gearbox A. Be careful not Apply the gear oil to the lip of the oil seal. to tear or damage the oil seal. With a wood...
  • Page 77 TDA1200・TDA1600 Operating Machine and Mower Units Important Important Check for clearance and alignment with drive Flat side of stop ring should be facing away shaft C. If necessary lightly hammer drive from bearing. shaft C to make clearance for and align with Install stop ring.
  • Page 78 TDA1200・TDA1600 Operating Machine and Mower Units 　 　 Apply liquid gasket to both sides of Place bearing into crank gearbox A. Use packing B. Position and attach to crank driving tool to set into position. gearbox A. Install stop ring. Make sure stop ring is...
  • Page 79 TDA1200・TDA1600 Operating Machine and Mower Units Install stop ring. Make sure stop ring is Important positioned correctly and fully sitting in When installing drive shaft A do not scratch groove. Flat side of stop ring should be facing away from bearing.
  • Page 80 TDA1200・TDA1600 Operating Machine and Mower Units 　 2-shaft 14-tooth gear Place 1-shaft 20-tooth, 22-tooth gear on Drive shaft B work bench with the 22-tooth gear facing 　 Position shifter fork between the 20-tooth Install 2 washers onto drive shaft B.
  • Page 81 TDA1200・TDA1600 Operating Machine and Mower Units 　 　 Match the spring holder on the gearbox Adjust the tension on the compression cover to the first groove on the shifter spring and steel ball by tightening or fork. loosening the bolt. Suggested distance between bolt head and nut (A) 6 - 8 mm.

  • Page 82: Rear Roller Bracket Assy

    TDA1200・TDA1600 Operating Machine and Mower Units 　 Rear roller bracket Assy Attach the change lever to the shifter Inspection of rear roller bracket Assy fork. Use parts in this order; bolt, washer, compression spring A, washer, change Wear of bearings due to frequent usage and lever, shifter fork, washer, U nut.
  • Page 83 TDA1200・TDA1600 Operating Machine and Mower Units Remove the stop ring securing the rear Remove the bearing by using a driver. roller bracket. 4es8d4-005 4es8d4-002 Inspection of rear roller bracket Assy_005 Inspection of rear roller bracket Assy_002 Driver Rear roller bracket...
  • Page 84 TDA1200・TDA1600 Operating Machine and Mower Units Important Be sure to use a driver when driving in a bearing. Be sure to replace the bearing with new one. Drive in the bearing by using a driver and install the stop ring.

  • Page 85: Reference

    TDA1200・TDA1600 Reference Specifications ........Page 5-2 Maintenance Schedule ......Page 5-3 List of Consumables ......Page 5-4 Page 5-1...

  • Page 86: Specifications

    TDA1200・TDA1600 Reference Specifications *The specifications of the tractor are different Model TDA1200 TDA1600 Total length 97 cm (38.19 in) 97 cm (38.19 in) Dimensions Total width 142 cm (55.91 in) 179 cm (70.47 in) Total height 85 cm (33.46 in) 85 cm (33.46 in)

  • Page 87: Maintenance Schedule

    TDA1200・TDA1600 Reference Maintenance Schedule TDA1200/1600 Follow the maintenance schedule below. Caution Use tools appropriate for each maintenance operation. ○···Inspect, adjust, supply, clean ●···Replace (first time) △···Replace Maintenance Item Tightening the parts ○ 　 　 　 　 　 　 　 　...

  • Page 88: List Of Consumables

    TDA1200・TDA1600 Reference List of Consumables The consumables are described below. Caution Use tools appropriate for each replacement operation. TDA1200 Code Part name Qty. Remarks Spring box Assy TDA12000373Z0 Spring box Assy 　 φ12φ18 tine mounting Standard tine mounting board TDA12000325A2 　...
  • Page 89 Head Office 1-26, Miyuki-cho, Toyokawa, Tel : (0533) 84 - 1390 Fax : (0533) 89 - 3623 Aichi-Pref. 442-8530 Japan. TDA1200-SM--GBZ/17B-00-S.K...
