Baroness TDA1200 Owner's Operating Manual

Tractor mounted aerator
Hide thumbs Also See for TDA1200:
Table of Contents

Advertisement

Quick Links

Download this manual

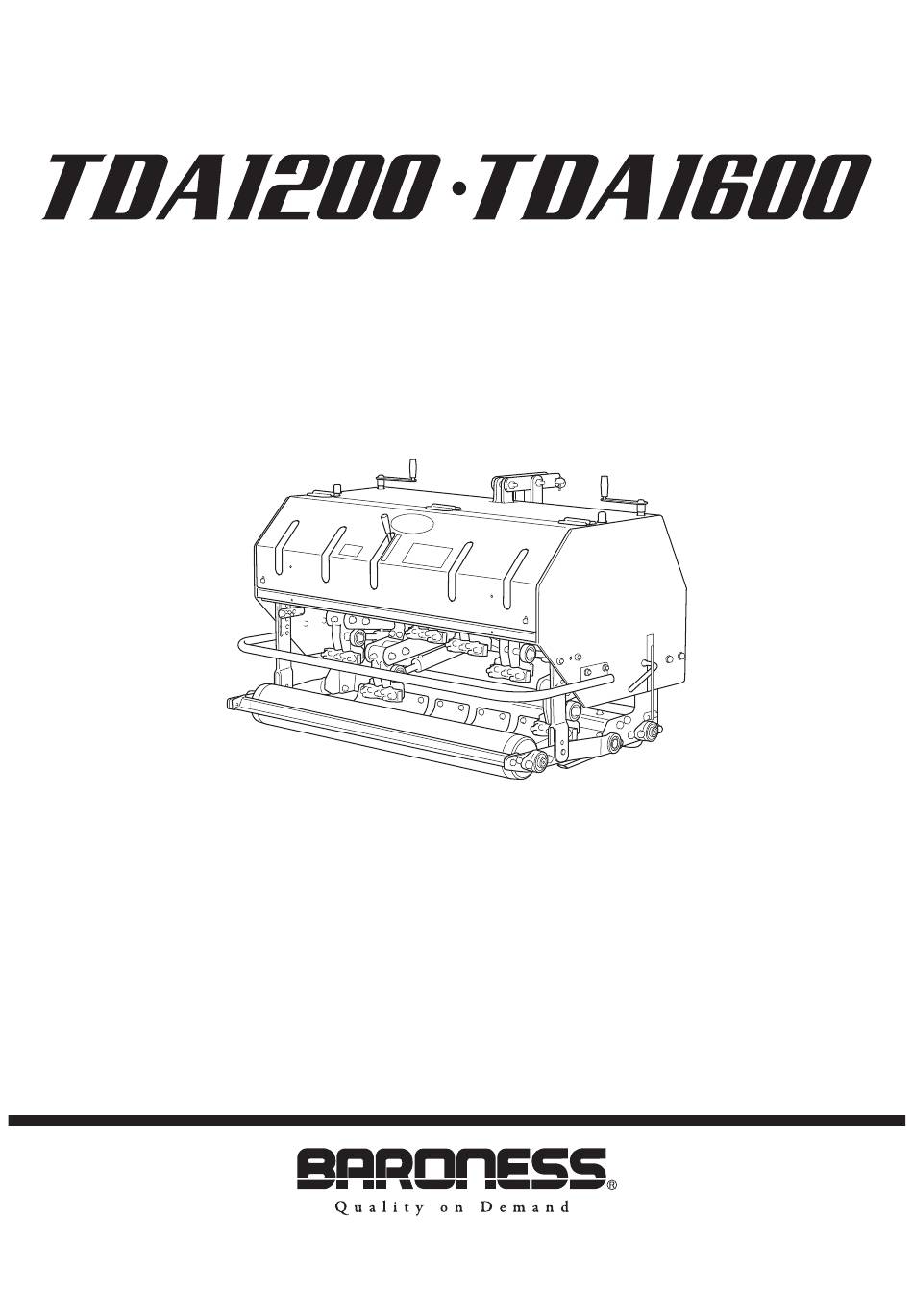

Tractor Mounted Aerator
Owner's Operating Manual
Serial No.
TDA1200: 21038-・TDA1600: 21026-
"Required reading"
Read this manual before using the machine.
Original Instructions Ver.3.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TDA1200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Baroness TDA1200

Summary of Contents for Baroness TDA1200

  • Page 1 Tractor Mounted Aerator Owner's Operating Manual Serial No. TDA1200: 21038-・TDA1600: 21026- "Required reading" Read this manual before using the machine. Original Instructions Ver.3.0...
  • Page 2 TDA1200・TDA1600 Greeting Thank you for purchasing the Baroness product. TDA1600: https://doc.baroness- This manual describes the proper handling, international.com/manuals/TDA1600 adjustment, and inspection of your product. We hope you will use the product safely, and take advantage of its best performance. QR Code A QR code label is affixed on the machine.
  • Page 3 The operator is responsible for operating the product properly and safely. Maintenance service for this machine should be performed by a mechanic with expertise. If you have any questions concerning maintenance or genuine parts, please contact a Baroness dealer or Kyoeisha.
  • Page 4 When replacing parts, be sure to use genuine Baroness parts or parts designated by Kyoeisha. Note that the Baroness product warranty may not apply to defects caused by the use of parts from other companies. Prior to use, carefully read the following manuals to thoroughly understand the contents for safe and correct operation.

  • Page 5: Table Of Contents

    TDA1200・TDA1600 Contents Safety .............. Page 1-1 Safe Operating Practices .......Page 1-2 Disposal ............Page 2-1 Recycle and Waste Disposal ......Page 2-2 Product Overview .......... Page 3-1 Specifications ..........Page 3-2 Names of Each Section ....... Page 3-10 Regulation Decals ........Page 3-11 Safety Signs and Instruction Signs ....
  • Page 6 TDA1200・TDA1600 Contents...

  • Page 7: Safety

    TDA1200・TDA1600 Safety Safe Operating Practices ...... Page 1-2 Training ..........Page 1-2 Preparation ..........Page 1-2 Operation ..........Page 1-2 Maintenance .......... Page 1-3 Towing ........... Page 1-3 Page 1-1...

  • Page 8: Safe Operating Practices

    TDA1200・TDA1600 Safety Failure to adequately follow these safety Preparation precautions may cause an accident resulting in injury or death. Evaluate the terrain to determine what accessories and attachments are needed to Danger Danger properly and safely perform the job. This product is designed to ensure safe...
  • Page 9 TDA1200・TDA1600 Safety Before checking, cleaning or working on Towing the machine. Follow the manufacturer's recommendation After striking a foreign object or if an for weight limits for towed equipment and abnormal vibration occurs. towing on slopes. Inspect the machine for damage and make repairs before restarting and operating the equipment.
  • Page 10 TDA1200・TDA1600 Safety Page 1-4 Safe Operating Practices...

  • Page 11: Disposal

    TDA1200・TDA1600 Disposal Recycle and Waste Disposal ....Page 2-2 About Recycle ........Page 2-2 About Waste Disposal ......Page 2-2 Page 2-1...

  • Page 12: Recycle And Waste Disposal

    TDA1200・TDA1600 Disposal Recycle and Waste Disposal About Recycle Recycling battery etc. is recommended for environmental conservation and economical use of resources. It may be required by local laws. About Waste Disposal Make sure that waste generated when servicing or repairing the machine is disposed of in accordance with local regulations.

  • Page 13: Product Overview

    Specifications ........Page 3-2 Specifications List ........Page 3-2 Types of Tines ........Page 3-4 Relationship between Operation Speed and Pitch (TDA1200) ....Page 3-7 Relationship between Operation Speed and Pitch (TDA1600) ....Page 3-8 Names of Each Section ....... Page 3-10 Regulation Decals ........Page 3-11...

  • Page 14: Specifications

    TDA1200・TDA1600 Product Overview Specifications Specifications List TDA1200 Model TDA1200 Name Tractor Mounted Aerator Total length 97 cm 38.19 in Dimensions Total width 142 cm 55.91 in Total height 85 cm 33.46 in Weight Including lifting strut (mount) 525 kg 1157.41 lb Gear oil capacity 1.0 U.S.gals...
  • Page 15 TDA1200・TDA1600 Product Overview TDA1600 Model TDA1600 Name Tractor Mounted Aerator Total length 97 cm 38.19 in Dimensions Total width 179 cm 70.47 in Total height 85 cm 33.46 in Weight Including lifting strut (mount) 580 kg 1278.66 lb Gear oil capacity 1.0 U.S.gals...

  • Page 16: Types Of Tines

    (0.47 in) (8.46 in) 10 mm 12 mm 265 mm φ17 V tine265 (0.39 in) (0.47 in) (10.43 in) In the column “Quantity used”, the upper figure indicates the quantity for TDA1200 and the lower for TDA1600. Page 3-4 Specifications...
  • Page 17 TDA1200・TDA1600 Product Overview φ10 V tine100 φ17 V tine215 33082C41 C233C211 Types of Tines_001 Types of Tines_005 φ12 V tine120 φ17 V tine265 3D97B197 F584D2AD Types of Tines_002 Types of Tines_006 φ13 V tine225 6647BC06 Types of Tines_003 φ16 V tine125...
  • Page 18 120 mm Specialize φ12.5 spike tine (0.49 in) (0.63 in) (4.72 in) In the column “Quantity used”, the upper figure indicates the quantity for TDA1200 and the lower for TDA1600. φ8 spike tine ncnr3j-007 Types of Tines_007 φ10 solid tine...

  • Page 19: Relationship Between Operation Speed And Pitch (Tda1200)

    TDA1200・TDA1600 Product Overview Relationship between Operation Speed and Pitch (TDA1200) Important The engine rotation speed during tractor operation is 1,600 - 2,000 rpm. PTO rotation speed is maximum 400 rpm. Exceeding the PTO rotation speed 400 rpm may cause the damage to the machine.

  • Page 20: Relationship Between Operation Speed And Pitch (Tda1600)

    TDA1200・TDA1600 Product Overview Relationship between Operation Speed and Pitch (TDA1600) Important The engine rotation speed during tractor operation is 1,600 - 2,000 rpm. PTO rotation speed is maximum 400 rpm. Exceeding the PTO rotation speed 400 rpm may cause the damage to the machine.
  • Page 21 TDA1200・TDA1600 Product Overview Tractor TDA1600 Auxiliary Main Speed PTO rotation Crank rotation Pitch speed change speed change 163 mm Slow speed (6.42 in) 1st speed 130 mm High speed (5.12 in) 114 mm Slow speed 1.78 km/h (4.49 in) 2nd speed (1.11 mph)

  • Page 22: Names Of Each Section

    TDA1200・TDA1600 Product Overview Names of Each Section E5CF51B2 Names of Each Section_002 8A21FDF9 Gear box Names of Each Section_001 Tine mount holder Frame Tine mount Rear cover Tine Front cover Lawn pressing plate Up-down handle Change lever Roller holding fixture...

  • Page 23: Regulation Decals

    TDA1200・TDA1600 Product Overview Description of Regulation Decals Regulation Decals Serial Number Plate Positions of Regulation Decals The serial number plate indicates the model and serial number of the machine. Type_F: 4ogipb-008 Serial Number Plate_001 Type_R: 5DE858F5 Positions of Regulation Decals_001...

  • Page 24: Safety Signs And Instruction Signs

    If they are damaged, become dirty, or peel off, replace them with new ones. Part numbers for decals that need to be replaced are listed in the parts catalog. Order them from a Baroness dealer or Kyoeisha. 450597AD Positions of Safety Decals and Instruction...

  • Page 25: Description Of Safety Decals And Instruction Decals

    TDA1200・TDA1600 Product Overview 　 Description of Safety Decals and Instruction Decals Warning Remove the ignition key for maintenance. Prohibition of Riding Decal K4205002300 　 Decal, Prohibition of riding Warning Caution Read the Owner's Operating Manual. Do not ride on the machine.

  • Page 26: Operation Decals

    TDA1200・TDA1600 Product Overview Description of Operation Decals PTO Max 1000 rpm Decal K4209001560 Depth Adjusting Handle Decal DECAL, PTO MAX 1000 RPM K4203001400 It indicates PTO maximum rotation speed. DECAL, DEPTH ADJUSTING HANDLE Maximum rotation speed is 1000 rpm. It indicates the tine depth.
  • Page 27 TDA1200・TDA1600 Product Overview Scale Decal 150A K4209001140 LABEL, SCALE 150A It indicates the scale of the tine depth. One scale corresponds to 10 mm (0.39 in). E35DC6E7 Scale Decal 150A_001 Operation Decals Page 3-15...
  • Page 28 TDA1200・TDA1600 Product Overview Page 3-16 Operation Decals...

  • Page 29: Description Of Functions

    TDA1200・TDA1600 Description of Functions Change Lever ......... Page 4-2 Up-Down Handle ........Page 4-2 Rear Roller ..........Page 4-3 Page 4-1...

  • Page 30: Change Lever

    TDA1200・TDA1600 Description of Functions Change Lever Up-Down Handle The up-down handle adjusts the tine depth. Warning Turn the handle to the appropriate direction. Be sure to stop the PTO rotation to shift the Turn the handle clockwise to increase the change lever.

  • Page 31: Rear Roller

    TDA1200・TDA1600 Description of Functions Rear Roller When using the rear roller When operating the coring with spike tines, the machine presses the lawn surface by using the rear roller. Remove the snap pin, and remove the flat head pin securing the rear roller from the hole B.
  • Page 32 TDA1200・TDA1600 Description of Functions Page 4-4 Rear Roller...

  • Page 33: Handling Instructions

    TDA1200・TDA1600 Handling Instructions Preparation for Installation ....Page 5-2 Tractor Standards ........Page 5-2 Preparation on The Tractor ....Page 5-2 Installation ..........Page 5-2 Precautions about Installation ....Page 5-2 Installation of Attachment ...... Page 5-2 Installation of Universal Joint ....Page 5-3 Method of Cutting Universal Joint ..Page 5-5...

  • Page 34: Preparation For Installation

    TDA1200・TDA1600 Handling Instructions If the moving distance when raising and Preparation for Installation lowering the attachment is insufficient, adjust it by changing the mounting holes on the lift Tractor Standards rod. This attachment employs "standard three-point Use the upper hole to increase the moving ･...

  • Page 35: Installation Of Universal Joint

    TDA1200・TDA1600 Handling Instructions Lower the three-point link parts of the tractor Adjust the top link (upper link) so that the to their lowest positions. attachment swings only 10 - 20 mm (0.39 - 0.79in) on the right and left sides evenly.
  • Page 36 TDA1200・TDA1600 Handling Instructions Hang the chain attached to the universal joint onto the top link (upper link). Important Be sure to install the universal joint clutch part to the attachment side. Install the universal joint onto the attachment. With pulling the clutch part set cover, push...

  • Page 37: Method Of Cutting Universal Joint

    TDA1200・TDA1600 Handling Instructions Mark the shaft at the same length from its tip Caution as the removed guard tube. Rotating the PTO shaft will rotate the knife shaft Assy. Rotate the PTO shaft while the attachment is lowered (rear tire contacting the ground), and check that the universal joint and attachment make no abnormal sound.

  • Page 38: Inspection And Cleaning

    TDA1200・TDA1600 Handling Instructions Inspection and Cleaning Inspection of Spring Box Confirm that there is no crack nor tear in Inspect and clean the machine with the goals of the bearing housing of the spring box. the followings. Confirm that there is no crack nor tear in Accident prevention ･...

  • Page 39: Gear Oil

    TDA1200・TDA1600 Handling Instructions Gear Oil Oil filler cap Oil gauge Inspection of Gear Oil On a level surface, check the oil level is at On a level surface, check that the oil level the middle of the oil gauge. If necessary, reaches the middle of the oil gauge.

  • Page 40: Adjustment Before Work

    TDA1200・TDA1600 Handling Instructions Bolts and Nuts Warning For adjusting the attachment or replacing Inspection of Bolts and Nuts parts with the attachment installed on the tractor, be sure to apply the parking brake of Important the tractor, set the PTO speed change lever to The bolts and nuts may be loosened at the the “Neutral”...

  • Page 41: Move

    TDA1200・TDA1600 Handling Instructions Note: Warning Making the up-down handle one turn increases/decreases the tine depth about 4 If the front of the tractor feels as if it lifts off the mm (0.16 in). ground on slopes, steering ability may Adjust the depth referring the depth gauge become affected or the machine may roll over.

  • Page 42: Operations

    TDA1200・TDA1600 Handling Instructions Operations Warning When the tractor equipped with the Precautions for Operation attachment, the total length of tractor increases. Warning Be careful of the people and objects around Do not operate the machine in places in the machine when turning the machine.
  • Page 43 TDA1200・TDA1600 Handling Instructions Important Important Do not move forward without rotating the PTO Carefully select the coring depth according to shaft when lowering the attachment, otherwise the condition of the green. the lawn and attachment will be damaged If the coring surface is too hard, it will apply heavily.

  • Page 44: Transporting

    Before transportation, fix the attachment on board. The speed of the engine rotation while operating the tractor is as stated below. TDA1200: 1,600 – 2,000 rpm ･ TDA1600: 1,800 – 2,300 rpm ･ The speed of the PTO rotation should be as stated below.

  • Page 45: Maintenance

    TDA1200・TDA1600 Maintenance Precautions for Maintenance ....Page 6-2 Greasing ..........Page 6-2 About Greasing ........Page 6-2 Greasing points ........Page 6-2 Adjustment and Replacement ....Page 6-4 Precautions for Adjustment and Replacement ..........Page 6-4 Change of Tines ........Page 6-4 Change of Gear Oil ........Page 6-5 Storage ...........

  • Page 46: Precautions For Maintenance

    First, learn well the operations you plan to perform. Important Use tools appropriate for each operation. Important Use Baroness genuine parts for replacement and accessories. Our product warranty may be void if you use non-genuine parts for replacement or accessories.
  • Page 47 TDA1200・TDA1600 Maintenance Rear roller Journal cross on universal joint There is one point each on the right and left Use lithium grease (urea type) with side of the rear roller. molybdenum. There is one point each on the journal cross.

  • Page 48: Adjustment And Replacement

    TDA1200・TDA1600 Maintenance Slide on universal joint Change of Tines Pull out the shaft and apply grease inside and outside of the shaft. Caution Wear gloves when touching tines to avoid cutting your hands. Important Replace all tines at the same time.

  • Page 49: Change Of Gear Oil

    TDA1200・TDA1600 Maintenance While holding the tine in place with your Install the drain plug. hand, firmly tighten the hex socket head bolts B. Check that the tine does not fall out. FD120FF5 Change of Gear Oil_001 Drain plug 4gr1or-002 Follow the steps below to supply new oil.

  • Page 50: Storage

    TDA1200・TDA1600 Maintenance Storage Long-Term Storage Follow the instructions below for long-term storage of the machine. Maintenance Remove any dirt, grass, debris, or oil ･ stains completely. Supply oil and apply grease to appropriate ･ parts. Storage Cover the machine and store it in a dry ･...

  • Page 51: Appended Table

    TDA1200・TDA1600 Appended Table Tightening Torques ....... Page 7-2 Standard Tightening Torques ....Page 7-2 Principal Tightening Torques ....Page 7-4 Maintenance Schedule ......Page 7-8 Crank Timing Diagram ......Page 7-9 Crank Timing Diagram ......Page 7-10 Page 7-1...

  • Page 52: Tightening Torques

    TDA1200・TDA1600 Appended Table Tightening Torques Important Refer to the Tightening Torque table. Note that the Baroness product warranty may not apply to defects caused by incorrect or overtorque tightening, etc. Standard Tightening Torques Bolts and Nuts Important A number of bolts are used in each part of this machine.
  • Page 53 TDA1200・TDA1600 Appended Table General bolt Strength classification 4.8 Nominal diameter tib3yb-001 kgf-cm lb-in 3 - 5 30.59 - 50.99 26.55 - 44.26 7 - 9 71.38 - 91.77 61.96 - 79.66 14 - 19 142.76 - 193.74 123.91 - 168.17 29 - 38 295.71 - 387.49...

  • Page 54: Principal Tightening Torques

    TDA1200・TDA1600 Appended Table Principal Tightening Torques Tightening Torque by Model (TDA1200) TDA1200 Tighten the following bolts and nuts at the torque specified in the table. For thread locking adhesive, apply a middle strength thread locker (ThreeBond 1322 or equivalent anaerobic sealant).
  • Page 55 TDA1200・TDA1600 Appended Table Tightening torque Thread Location Code Part name locking kgf-cm lb-in adhesive BOLT, HT K0010100602 58 - 76 591.43 - 774.97 513.36 - 672.68 - M10-60 BOLT, 13T Crank K001A100251 W/HEX HOLE 29 - 38 295.71 - 387.49 256.68 - 336.34 -...
  • Page 56 TDA1200・TDA1600 Appended Table Tightening Torque by Model (TDA1600) TDA1600 Tighten the following bolts and nuts at the torque specified in the table. For thread locking adhesive, apply a middle strength thread locker (ThreeBond 1322 or equivalent anaerobic sealant). Tightening torque...
  • Page 57 TDA1200・TDA1600 Appended Table Tightening torque Thread Location Code Part name locking kgf-cm lb-in adhesive BOLT, HT 104 - 1,060.49 - 920.50 - Crank K0010120502 M12-50 1,366.40 1,186.03 BOLT, HT K0013101302 29 - 38 295.71 - 387.49 256.68 - 336.34 -...

  • Page 58: Maintenance Schedule

    TDA1200・TDA1600 Appended Table Maintenance Schedule ●・・・Inspect, adjust, supply, clean (first time) ○・・・Inspect, adjust, supply, clean ▲・・・Replace (first time) △・・・Replace Maintenance Item Remarks Check tine ○ 　 　 　 　 　 　 Check lawn pressing plate ○ 　 　 　 　...

  • Page 59: Crank Timing Diagram

    TDA1200・TDA1600 Appended Table Crank Timing Diagram TDA1200 Respective crank metal fittings are attached in a 60-degree turned state to ensure right timing. View from the back Timing Left View from the left side 35gcfm-001 Crank Timing Diagram_001 Crank Timing Diagram...
  • Page 60 TDA1200・TDA1600 Appended Table Crank Timing Diagram TDA1600 Respective crank metal fittings are attached in a 45-degree turned state to ensure right timing. View from the back Timing Left View from the left side 35gcfm-002 Crank Timing Diagram_001 Page 7-10 Crank Timing Diagram...
  • Page 61 1-26, Miyuki-cho, Toyokawa-city, Tel : +81 - 533 - 84 - 1390 Head Office Aichi-pref, 442-8530 JAPAN Fax : +81 - 533 - 84 - 1220 TDA1200-UM--GBZ/23L-00-S.K...
