Baroness SP05 Assembly And Installation Manual
Hide thumbs
Also See for SP05:
- Service manual (142 pages) ,
- Owner's operating manual (40 pages) ,
- Assembly and installation manual (12 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Baroness SP05
Summary of Contents for Baroness SP05

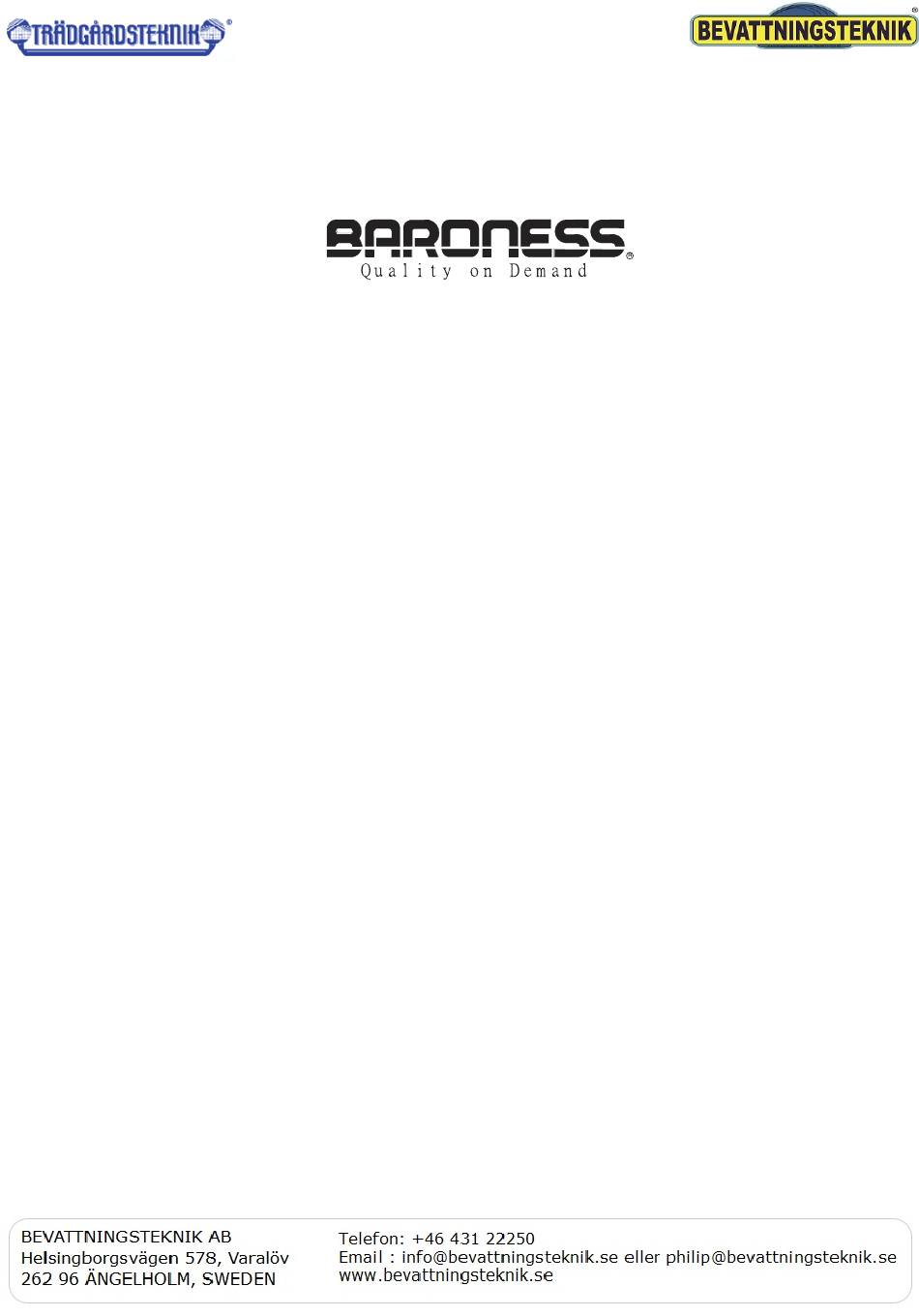

- Page 1 Bunker rake SP05 [Front Blade] Assembly and Installation manual Serial No.#10001~...
- Page 2 Caution The information described in this manual is subject to change without prior notice for improvement. When replacing parts, be sure to use genuine Baroness parts or parts designated by Trädgårdsteknik AB. Note that the Baroness product warranty may not apply to defects caused by the use of parts from other companies.
- Page 3 If necessary, use appropriate chain blocks, hoists, or a jack. If the machine is lifted up, ensure that it is supported by jack stands or appropriate blocks. When replacing parts or installing accessory parts, use genuine BARONESS parts. Never start the engine in a closed room. Doing so could cause carbon monoxide poisoning.
- Page 4 Installing Optional Equipment for the SP05 Front Blade Intended use: The front blade section is used to restore the sand that has been lost due to heavy rain, etc. This can be finely and easily adjusted by hand.Operating width: 80 cm (31 in.) Check that all parts are included.
- Page 5 Nominal diameter torque kgf-cm lb-in 71.38~91.77 61.96~79.66 7–9 142.76~193.74 123.91~168.17 14–19 295.71~387.49 256.68~336.34 29–38 Caution When tightening bolts, refer to the above table. We will not be held responsible for any damage resulting from improper or excessive tightening, etc. SP05----AM01USZ...
- Page 6 SP05 Installing the Front Blade Section Steps Illustrations Descriptions Apply grease to part B and parts C of the left and right frames and install the front blade arms (1) in the correct direction (grease nipple A). After installing the front blade arm (1), secure it with the washer (2), S washer (3), and bolt (4).
- Page 7 SP05 Installing the Front Blade Section Steps Illustrations Descriptions Apply grease to part G of the front blade (6) and install the front blade ass’y to the front blade arms (1). Install the delta pin (7) to part H on both sides.
- Page 8 SP05 Installing the Front Blade Section Steps Illustrations Descriptions The connecting shaft (11) is set as shown in the illustration when the machine is shipped. Be careful to install the connecting shaft (11) in the correct direction. One points towards J (the front blade arm (1)) and the other end points towards K (the upper part of the front blade lever (5)).
- Page 9 SP05 Installing the Front Blade Section Steps Illustrations Descriptions Remove the S washer (3) and nut (12), loosen the nut (L), and rotate the L-ball (M) and screw shaft (N) to the left and right to adjust the length of the connecting shaft (11).
