Summary of Contents for Baroness LS62

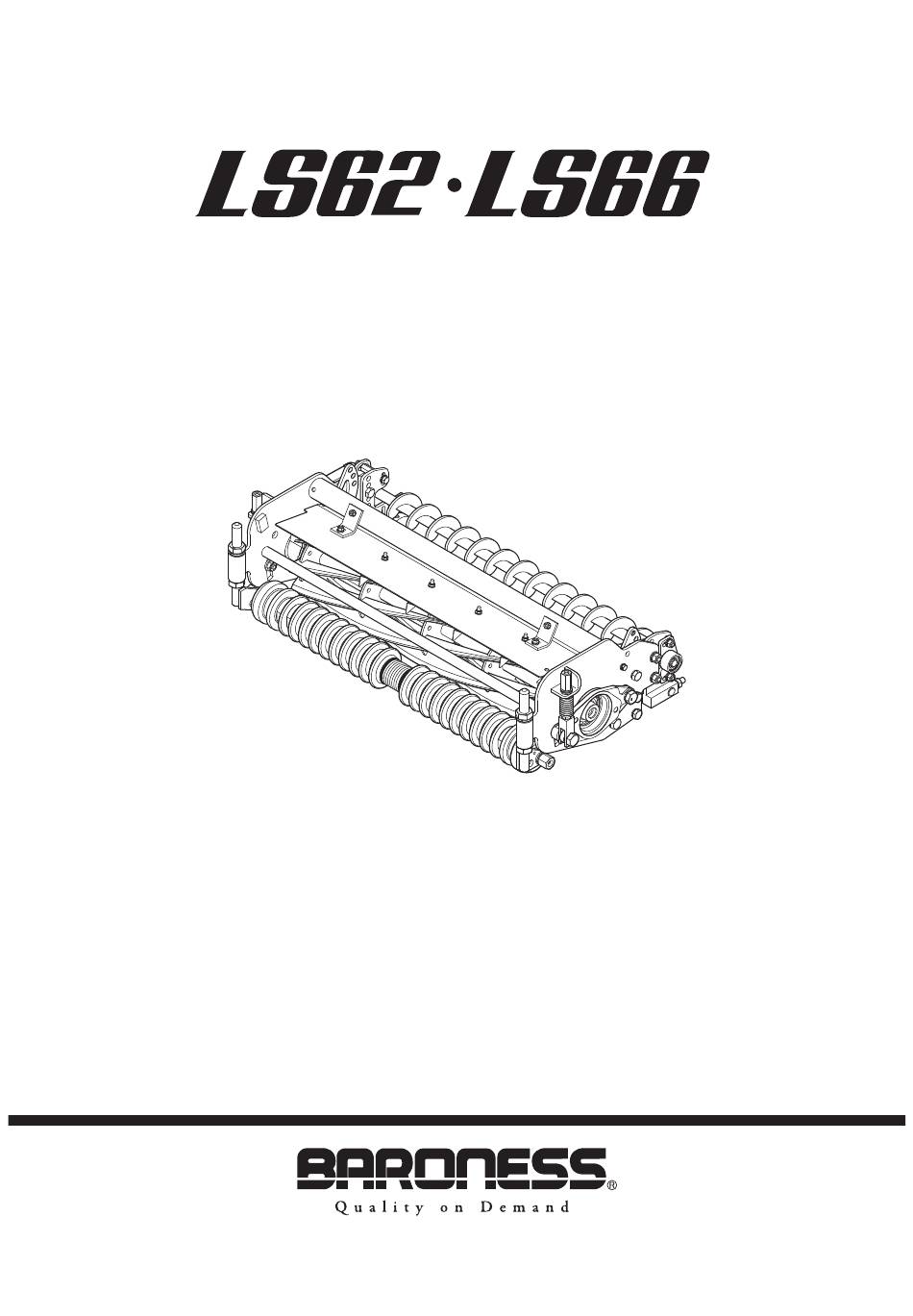

- Page 1 Standard Mower Unit Owner's Operating Manual Serial No. LS62：10221-・LS66：10757- "Required reading" Read this manual before using the machine. Original Instructions Ver.1.4...
- Page 2 LS62・LS66 Greeting Thank you for purchasing the Baroness product. This manual describes the proper handling, adjustment, and inspection of your product. We hope you will use the product safely, and take advantage of its best performance. For details on the handling, adjustment and inspection of the main vehicle, refer to the Owner's Operating Manual for the main vehicle.
- Page 3 The operator is responsible for operating the product properly and safely. Maintenance service for this machine should be performed by a mechanic with expertise. If you have any questions concerning maintenance or genuine parts, please contact a Baroness dealer or Kyoeisha.
- Page 4 When replacing parts, be sure to use genuine Baroness parts or parts designated by Kyoeisha. Note that the Baroness product warranty may not apply to defects caused by the use of parts from other companies. Prior to use, carefully read the following manuals to thoroughly understand the contents for safe and correct operation.
-
Page 5: Table Of Contents
LS62・LS66 Contents Safety .............. Page 1-1 Safe Operating Practices .......Page 1-2 Disposal ............Page 2-1 Recycle and Waste Disposal ......Page 2-2 Product Overview .......... Page 3-1 Specifications ..........Page 3-2 Names of Each Section ......... Page 3-3 Regulation Decals ..........Page 3-3 Safety Signs and Instruction Signs .... - Page 6 LS62・LS66 Contents...
-
Page 7: Safety
LS62・LS66 Safety Safe Operating Practices ...... Page 1-2 Page 1-1... -
Page 8: Safe Operating Practices
Observe the following safety instructions to ensure safe operation. Safe Operating Practices Read Safe Operating Practices described in the Owner's Operating Manual of Baroness main vehicle equipped with this mower unit thoroughly. Page 1-2 Safe Operating Practices... -
Page 9: Disposal
LS62・LS66 Disposal Recycle and Waste Disposal ....Page 2-2 About Recycle ........Page 2-2 About Waste Disposal ......Page 2-2 Page 2-1... -
Page 10: Recycle And Waste Disposal
LS62・LS66 Disposal Recycle and Waste Disposal About Recycle Recycling battery etc. is recommended for environmental conservation and economical use of resources. It may be required by local laws. About Waste Disposal Make sure that waste generated when servicing or repairing the machine is disposed of in accordance with local regulations. -
Page 11: Product Overview
LS62・LS66 Product Overview Specifications ........Page 3-2 Specifications List ........Page 3-2 Features of the STD Mower Unit ... Page 3-3 Names of Each Section ......Page 3-3 Regulation Decals ........Page 3-3 Positions of Regulation Decals ....Page 3-3 Description of Regulation Decals ..Page 3-3 Safety Signs and Instruction Signs .. -
Page 12: Specifications
LS62・LS66 Product Overview Specifications Specifications List LS62 Model LS62 Type Base unit (incl. one weight) With CR brush Total length 16.54 in 420 mm 16.54 in 420 mm Dimensions Total width 29.72 in 755 mm 30.55 in 776 mm Total height 9.17 in... -
Page 13: Names Of Each Section
LS62・LS66 Product Overview Features of the STD Mower Unit Reel cover Reel cutter Equipped with a 6.4-inch (163 mm) - Bed knife diameter reel cutter (cutting cylinder). Front roller Blade engagement can be adjusted by Rear roller changing the reel cutter (cutting cylinder) -
Page 14: Safety Signs And Instruction Signs
If they are damaged, become dirty, or injured. peel off, replace them with new ones. Part numbers for decals that need to be replaced are listed in the parts catalog. Order them from a Baroness dealer or Kyoeisha. Positions of Safety Decals and Instruction Decals STOP... -
Page 15: Handling Instructions
LS62・LS66 Handling Instructions Handling Precautions ......Page 4-2 Inspections ..........Page 4-2 Reel Cutter (Cutting Cylinder) and Bed Knife (Bottom Blade) ...... Page 4-2 Cover ............. Page 4-2 Belt ............Page 4-2 Roller ............. Page 4-3 CR brush ..........Page 4-3 Scraper ..........Page 4-3 Tightening Torques ....... -
Page 16: Handling Precautions
LS62・LS66 Handling Instructions Make sure that the welding between the Handling Precautions reel cutter (cutting cylinder) and the disc has not come off. Important Cover This manual contains descriptions for handling Inspection of Covers the mower unit. For details on handling the main vehicle, refer... -
Page 17: Roller
LS62・LS66 Handling Instructions Roller Scraper Inspection of Rollers Inspection of Scraper Bearing wear due to frequent use or bearing Inspection of Front Scraper ￭ damage caused by water infiltration may Note: prevent the roller from rotating smoothly. Depending on the specifications, this Inspect the roller and, if necessary, replace function may not be available. -
Page 18: Tightening Torques
LS62・LS66 Handling Instructions Tightening Torques Important Refer to the Tightening Torque table. Note that the Baroness product warranty may not apply to defects caused by incorrect or overtorque tightening, etc. Standard Tightening Torques Bolts and Nuts Important A number of bolts are used in each part of this machine. - Page 19 LS62・LS66 Handling Instructions General bolt Strength classification 4.8 Nominal diameter tib3yb-001 kgf-cm lb-in 3 - 5 30.59 - 50.99 26.55 - 44.26 7 - 9 71.38 - 91.77 61.96 - 79.66 14 - 19 142.76 - 193.74 123.91 - 168.17 29 - 38 295.71 - 387.49...
-
Page 20: Principal Tightening Torques
LS62・LS66 Handling Instructions Principal Tightening Torques Tightening Torque by Model LS66/LS62 Tighten the following bolts and nuts at the torque specified in the table. For thread locking adhesive, apply a middle strength thread locker (ThreeBond 1322 or equivalent anaerobic sealant). -
Page 21: Adjustment Before Work
LS62・LS66 Handling Instructions With the cutter adjustment nut, adjust the Adjustment before Work engagement between the reel cutter (cutting cylinder) and the bed knife (bottom blade) so Adjustment of Blade Engagement that newspaper (two to three sheets) will be cut by the edge of both blades when the... -
Page 22: Adjustment Of Cutting Height
LS62・LS66 Handling Instructions Set the slide caliper to the required cutting Adjustment of Cutting Height height, adjust the neck position of the small screw for cutting height setup of the cutting Cutting Height Adjustment height gauge and securely lock with a fly nut. -
Page 23: Adjustment Of Cutter Adjustment Spring
LS62・LS66 Handling Instructions To increase cutting height: ･ Adjustment of Cutter Adjustment Spring Loosen cutting height adjustment nut If the diameter of the reel cutter (cutting A, tighten cutting height adjustment nut cylinder) becomes smaller, adjust the cutter B, and then lower the front roller. -
Page 24: Adjustment Of Reel Cover (Variable Type)
LS62・LS66 Handling Instructions Reel cover Reel cover Knob Cover adjustment plate Cover adjustment plate Fully open Fully closed Fully open Fully closed Adjustment of Reel Cover (Variable Easy Latch Type) Adjustment of CR Brush Note: Note: Depending on the specifications, this function Depending on the specifications, this function may not be available. -
Page 25: Adjustment Of Scraper
LS62・LS66 Handling Instructions Adjustment of Scraper Scraper Front roller Adjustment of Front Scraper 2.0 - 3.0 mm (0.079 - 0.118 in) Note: Adjustment of Rear Scraper (Wire Type) Depending on the specifications, this function may not be available. Note: Depending on the specifications, this function Important may not be available. -
Page 26: Storage
LS62・LS66 Handling Instructions Storage Before Long-Term Storage Cleaning Remove dirt, grass clippings, oil stains etc. ･ completely. Oil filling Grease and lubricate the appropriate ･ points. Storage location ･ Cover the machine and store it in a dry place where it will not be exposed to rain. -
Page 27: Maintenance
LS62・LS66 Maintenance Maintenance Precautions ..... Page 5-2 Maintenance Schedule ......Page 5-2 Adjusted Values ........Page 5-3 Greasing ..........Page 5-4 About Greasing ........Page 5-4 Greasing Points ........Page 5-4 Maintenance Work ......... Page 5-5 Cleaning of Mower Unit ......Page 5-5 Back Lapping ......... -
Page 28: Maintenance Precautions
Use tools appropriate for each maintenance operation. Important For the safe and best performance of your machine, use Baroness genuine parts for replacement and accessories. Please note that our product warranty may be void if you use non-genuine parts for replacement or accessories. -
Page 29: Adjusted Values
LS62・LS66 Maintenance Maintenance Item Remarks Check scraper condition ○ Check belt condition ○ Check damaged parts ○ Check tightening bolts and nuts ○... -
Page 30: Greasing
LS62・LS66 Maintenance Greasing No. of Location greasing About Greasing points Front roller shaft Since there may be adhesion or damage due Housing to lack of grease on moving parts, they must be greased. Rear roller shaft Add urea-based No. 2 grease in accordance Front roller shaft with the Maintenance Schedule. -
Page 31: Maintenance Work
LS62・LS66 Maintenance Reel housing side Right end of rear roller Important Always use a hand operated grease gun and only add a maximum of 2 pumps of grease every 50 hours. Using a power assisted grease gun should be avoided. - Page 32 Caution Do not perform back lapping work with any other persons. Prepare newspaper cut into strip, abrasive with back lapping powder mixed with oil or gel compound (Baroness genuine abrasive), and a brush. zhz6po-013 Back Lapping_002 Reel rotation/stop switching lever...
-
Page 33: Sharpening Of Reel Cutter (Cutting Cylinder)
For sharpening the reel cutter (cutting using the chalk markings as a guide. (Never cylinder), contact your dealer or Baroness apply it to areas that have poor sharpness.) unless you have a grinding machine. -
Page 34: Replacement Of Reel Cutter (Cutting Cylinder)
LS62・LS66 Maintenance ok5ueg-007 Sharpening of Reel Cutter (Cutting Cylinder)_002 Reel cutter (cutting cylinder) blade Sharpening width for outer diameter of reel cutter (cutting cylinder) When the edges become blunt or the ok5ueg-006 blade edge cannot be formed with back Sharpening of Reel Cutter (Cutting Cylinder)_001... -
Page 35: Replacement Of Bed Knife (Bottom Blade)
LS62・LS66 Maintenance Replacement of Bed Knife (Bottom Blade) Usage limit Dimension B Dimension B Caution (Distance (Distance Dimension A Dimension A from blade from blade Both the reel cutter (cutting cylinder) and the (Outer (Outer edge to edge to bed knife (bottom blade) are edged tools. -
Page 36: Adjustment Of Belt Tension
LS62・LS66 Maintenance Adjustment of Belt Tension Tension pulley adjustment bolt Belt Warning The belt tension is appropriate when the Be sure to stop the engine before adjusting belt slacks by approximately 5.0 to 6.0 mm the belts. (0.197 to 0.236 in) when you apply a force of 10.0 N (1.0 kgf) with your finger to the... - Page 37 1-26, Miyuki-cho, Toyokawa-city, Tel : +81 - 533 - 84 - 1390 Head Office Aichi-pref, 442-8530 JAPAN Fax : +81 - 533 - 84 - 1220 LS66----UM--GBZ/21M-00-S.K...
