Summary of Contents for Baroness LS60

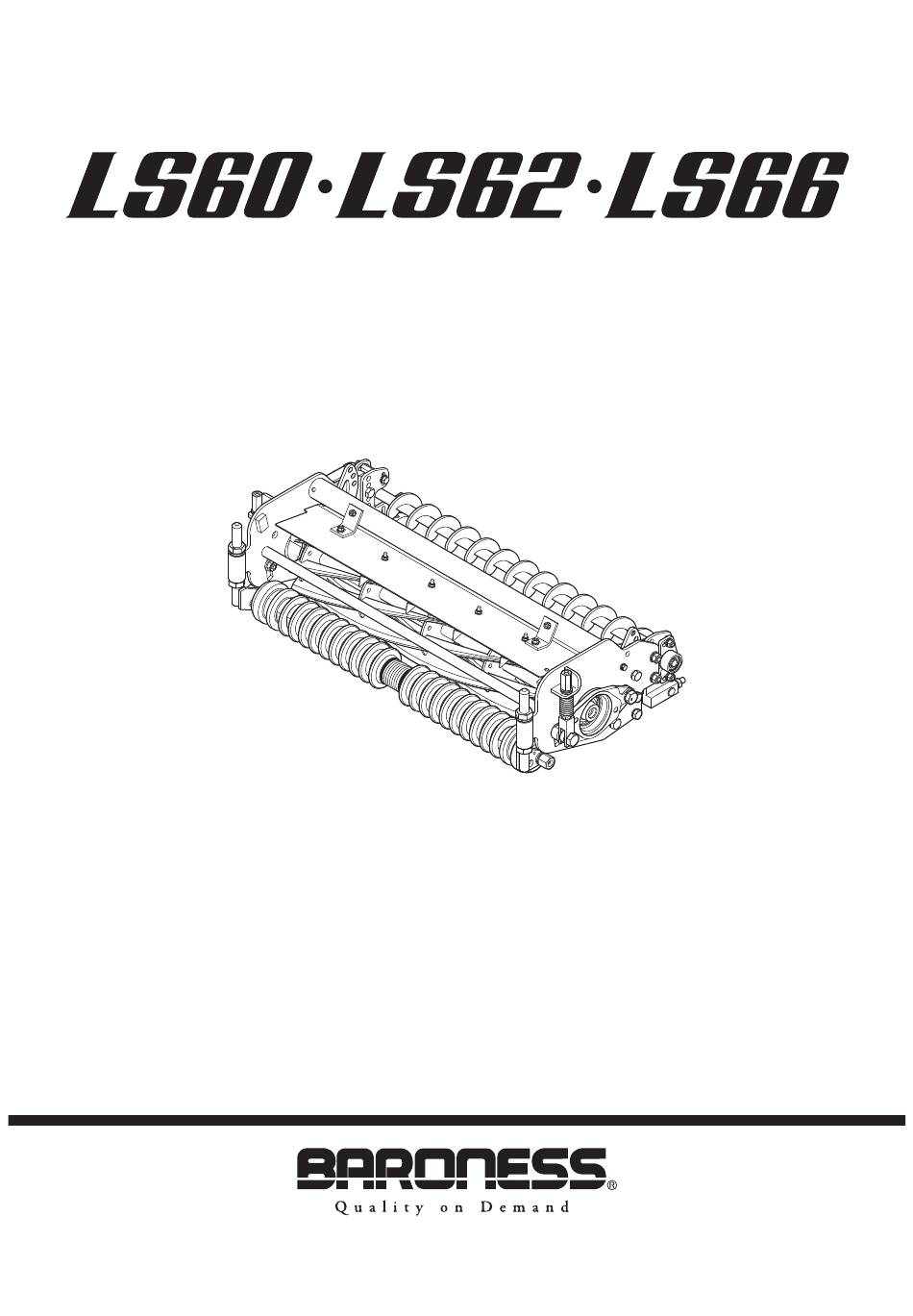

- Page 1 Standard Mower Unit Owner's Operating Manual Serial No. LS60: 10001-・LS62: 10231-・LS66: 11252- "Required reading" Read this manual before using the machine. Original Instructions Ver.2.0...
- Page 2 LS60・LS62・LS66 Greeting Thank you for purchasing the Baroness product. LS62: https://doc.baroness-international.com/ This manual describes the proper handling, manuals/LS62 adjustment, and inspection of your product. We hope you will use the product safely, and take advantage of its best performance. For details on the handling, adjustment and inspection of the main vehicle, refer to the Owner's Operating Manual for the main vehicle.
- Page 3 The operator is responsible for operating the product properly and safely. Maintenance service for this machine should be performed by a mechanic with expertise. If you have any questions concerning maintenance or genuine parts, please contact a Baroness dealer or Kyoeisha.
- Page 4 When replacing parts, be sure to use genuine Baroness parts or parts designated by Kyoeisha. Note that the Baroness product warranty may not apply to defects caused by the use of parts from other companies. Prior to use, carefully read the following manuals to thoroughly understand the contents for safe and correct operation.
-
Page 5: Table Of Contents
LS60・LS62・LS66 Contents Safety .............. Page 1-1 Safe Operating Practices .......Page 1-2 Disposal ............Page 2-1 Recycle and Waste Disposal ......Page 2-2 Product Overview .......... Page 3-1 Specifications ..........Page 3-2 Names of Each Section ......... Page 3-4 Regulation Decals ..........Page 3-4 Safety Signs and Instruction Signs .... - Page 6 LS60・LS62・LS66 Contents...
-
Page 7: Safety
LS60・LS62・LS66 Safety Safe Operating Practices ...... Page 1-2 Page 1-1... -
Page 8: Safe Operating Practices
Observe the following safety instructions to ensure safe operation. Safe Operating Practices Read Safe Operating Practices described in the Owner's Operating Manual of Baroness main vehicle equipped with this mower unit thoroughly. Page 1-2 Safe Operating Practices... -
Page 9: Disposal
LS60・LS62・LS66 Disposal Recycle and Waste Disposal ....Page 2-2 About Recycle ........Page 2-2 About Waste Disposal ......Page 2-2 Page 2-1... -
Page 10: Recycle And Waste Disposal
LS60・LS62・LS66 Disposal Recycle and Waste Disposal About Recycle Recycling battery etc. is recommended for environmental conservation and economical use of resources. It may be required by local laws. About Waste Disposal Make sure that waste generated when servicing or repairing the machine is disposed of in accordance with local regulations. -
Page 11: Product Overview
LS60・LS62・LS66 Product Overview Specifications ........Page 3-2 Specifications List ........Page 3-2 Features of the STD Mower Unit ... Page 3-3 Names of Each Section ......Page 3-4 Regulation Decals ........Page 3-4 Positions of Regulation Decals ....Page 3-4 Description of Regulation Decals ..Page 3-4 Safety Signs and Instruction Signs .. -
Page 12: Specifications
LS60・LS62・LS66 Product Overview Specifications Specifications List LS60 Model LS60 Name Standard Mower Unit Type Base unit (incl. one weight) With CR brush Total length 420 mm 16.54 in ← ← Dimensions Total width 965 mm 37.99 in 987 mm 38.89 in... -
Page 13: Features Of The Std Mower Unit
LS60・LS62・LS66 Product Overview LS66 Model LS66 Name Standard Mower Unit Type Base unit (incl. one weight) With CR brush Total length 420 mm 16.54 in ← ← Dimensions Total width 857 mm 33.74 in 879 mm 34.61 in Total height 233 mm 9.17 in... -
Page 14: Names Of Each Section
LS60・LS62・LS66 Product Overview Names of Each Section Regulation Decals Positions of Regulation Decals quwxcl-138 Positions of Regulation Decals_001 Serial number plate Description of Regulation Decals Serial Number Plate The serial number plate indicates the model and serial number of the machine. -
Page 15: Safety Signs And Instruction Signs
If they are damaged, become dirty, or injured. peel off, replace them with new ones. Part numbers for decals that need to be replaced are listed in the parts catalog. Order them from a Baroness dealer or Kyoeisha. Positions of Safety Decals and Instruction Decals STOP... - Page 16 LS60・LS62・LS66 Product Overview Page 3-6 Safety Signs and Instruction Signs...
-
Page 17: Handling Instructions
LS60・LS62・LS66 Handling Instructions Handling Precautions ......Page 4-2 Inspection and Cleaning ....... Page 4-2 Reel Cutter (Cutting Cylinder) and Bed Knife (Bottom Blade) ...... Page 4-2 Cover ............. Page 4-2 Belt ............Page 4-2 Roller ............. Page 4-3 Wheel .............Page 4-3 CR brush ..........Page 4-3 Scraper .......... -
Page 18: Handling Precautions
LS60・LS62・LS66 Handling Instructions Cover Handling Precautions Inspection of Covers Important Warning This manual contains descriptions for handling the mower unit. If you have removed the covers during For details on handling the main vehicle, refer inspection, be sure to securely install them in to this manual and the Owner's Operating their original positions. -
Page 19: Roller
LS60・LS62・LS66 Handling Instructions Roller Scraper Inspection of Rollers Inspection of Scraper Make sure that there is no abrasion nor Inspection of Front Scraper ￭ adhesion of the roller. Note: Make sure that there is no wear of the roller Depending on the specifications, this shaft. -
Page 20: Mower Unit
LS60・LS62・LS66 Handling Instructions Mower Unit Cleaning of Mower Unit Important While cleaning, do not allow water on the sealed parts of the reel shaft. (Avoid high- pressure water cleaning.) Otherwise, it may cause damage to the machine. Be sure to clean the mower unit after use. -
Page 21: Maintenance
LS60・LS62・LS66 Maintenance Precautions for Maintenance ....Page 5-2 Greasing ..........Page 5-2 About Greasing ........Page 5-2 Greasing Points ........Page 5-2 Adjustment and Replacement ....Page 5-4 Adjustment of Blade Engagement ..Page 5-4 Adjustment of Cutting Height ....Page 5-5 Adjustment of Cutter Adjustment Spring ............ -
Page 22: Precautions For Maintenance
First, learn well the operations you plan to perform. Important Use tools appropriate for each operation. Important Use Baroness genuine parts for replacement and accessories. Our product warranty may be void if you use non-genuine parts for replacement or accessories. - Page 23 LS60・LS62・LS66 Maintenance Front roller shaft Reel housing side There is one point each on the left and right Important of the front roller shaft. Left end of front roller Always use a hand operated grease gun and only add a maximum of 2 pumps of grease every 50 hours.
-
Page 24: Adjustment And Replacement
LS60・LS62・LS66 Maintenance Right end of rear roller Important If the CR brush is installed, loosen the left and right bolts and nuts used to install the CR brush before adjusting the blade engagement. After adjusting the blade engagement, adjust the CR brush, and then firmly tighten the loosened bolts and nuts. -
Page 25: Adjustment Of Cutting Height
LS60・LS62・LS66 Maintenance If the reel cutter (cutting cylinder) is too ･ tight to turn: Tighten (rotate clockwise) the cutter adjustment nut to reduce the contact pressure between the reel cutter (cutting cylinder) and the bed knife (bottom blade). If the blades still cannot cut well: ･... - Page 26 LS60・LS62・LS66 Maintenance Adjust the front roller up and down by the Reel cutter (cutting cylinder) roller adjuster to determine the position of Front roller the front roller, in order not to have a gap Cutting height gauge with the neck position of the small screw for...
- Page 27 LS60・LS62・LS66 Maintenance Set the slide caliper to the required cutting Use the cutting height gauge to height, adjust the neck position of the small determine the position, then tighten screw for cutting height setup of the cutting cutting height adjustment nut A height gauge and securely lock with a fly securely.
-
Page 28: Adjustment Of Cutter Adjustment Spring
LS60・LS62・LS66 Maintenance Adjustment of Cutter Adjustment Spring Reel cover Knob If the diameter of the reel cutter (cutting Cover adjustment plate cylinder) becomes smaller, adjust the cutter Fully open adjustment spring. Fully closed Adjust the blade engagement. Loosen the pipe with cutter adjusting screw,... -
Page 29: Adjustment Of Cr Brush
LS60・LS62・LS66 Maintenance Adjustment of Scraper Reel cover Adjustment of Front Scraper Cover adjustment plate Note: Depending on the specifications, this function Fully open may not be available. Fully closed Important Adjustment of CR Brush Do not place the scraper in contact with the Note: front roller too tightly. -
Page 30: Adjustment Of Belt Tension
LS60・LS62・LS66 Maintenance Scraper Warning Front roller If you have removed covers, etc., be sure to 2.0 - 3.0 mm (0.079 - 0.118 in) securely install them in their original positions. If covers, etc., remain removed, the operator Adjustment of Rear Scraper (Wire Type) -
Page 31: Back Lapping
Caution Do not perform back lapping work with any other persons. Prepare newspaper cut into strip, abrasive with back lapping powder mixed with oil or gel compound (Baroness genuine abrasive), and a brush. zhz6po-013 Back Lapping_002 Reel rotation/stop switching lever... -
Page 32: Sharpening Of Reel Cutter (Cutting Cylinder)
Adjust the rotation speed of the reel cutter For sharpening the reel cutter (cutting with the reel rotation/stop switching lever. cylinder), contact your dealer or Baroness Apply abrasive to a brush, and apply evenly unless you have a grinding machine. - Page 33 LS60・LS62・LS66 Maintenance Sharpening is necessary when the reel Usage limit cutter (cutting cylinder) reaches a condition Dimension B Dimension B described below. (Distance (Distance Dimension A Dimension A When the sharpening width (length of from blade from blade contacting surface of bed knife (bottom...
-
Page 34: Replacement Of Reel Cutter (Cutting Cylinder)
LS60・LS62・LS66 Maintenance Note: Replacement of Reel Cutter (Cutting The outer diameter of the reel cutter (cutting Cylinder) cylinder) shaft is 25.4 mm (1.00 in). Caution Both the reel cutter (cutting cylinder) and the bed knife (bottom blade) are edged tools. -
Page 35: Storage
LS60・LS62・LS66 Maintenance Storage location Replacement of Bed Knife (Bottom Blade) Cover the machine and store it in a dry ･ place where it will not be exposed to rain. Caution Both the reel cutter (cutting cylinder) and the bed knife (bottom blade) are edged tools. - Page 36 LS60・LS62・LS66 Maintenance Page 5-16 Storage...
-
Page 37: Appended Table
LS60・LS62・LS66 Appended Table Tightening Torques ....... Page 6-2 Standard Tightening Torques ....Page 6-2 Principal Tightening Torques ....Page 6-4 Daily Check List ........Page 6-5 Maintenance Schedule ......Page 6-6 List of Adjusted Values ......Page 6-6 Page 6-1... -
Page 38: Tightening Torques
LS60・LS62・LS66 Appended Table Tightening Torques Important Refer to the Tightening Torque table. Note that the Baroness product warranty may not apply to defects caused by incorrect or overtorque tightening, etc. Standard Tightening Torques Bolts and Nuts Important A number of bolts are used in each part of this machine. - Page 39 LS60・LS62・LS66 Appended Table General bolt Strength classification 4.8 Nominal diameter tib3yb-001 kgf-cm lb-in 3 - 5 30.59 - 50.99 26.55 - 44.26 7 - 9 71.38 - 91.77 61.96 - 79.66 14 - 19 142.76 - 193.74 123.91 - 168.17 29 - 38 295.71 - 387.49...
-
Page 40: Principal Tightening Torques
LS60・LS62・LS66 Appended Table Principal Tightening Torques Tightening Torque by Model LS60/LS66/LS62 Tighten the following bolts and nuts at the torque specified in the table. For thread locking adhesive, apply a middle strength thread locker (ThreeBond 1322 or equivalent anaerobic sealant). -
Page 41: Daily Check List
LS60・LS62・LS66 Appended Table Daily Check List ●・・・Inspect, adjust, supply, clean (first time) ○・・・Inspect, adjust, supply, clean ▲・・・Replace (first time) △・・・Replace Maintenance Item Remarks Check blade (Reel cutter and Bed knife) ○ Check roller ○ ... -
Page 42: Maintenance Schedule
LS60・LS62・LS66 Appended Table Maintenance Schedule ●・・・Inspect, adjust, supply, clean (first time) ○・・・Inspect, adjust, supply, clean ▲・・・Replace (first time) △・・・Replace Maintenance Item Remarks Check engage blades ○ Check mowing height ○ ... - Page 43 1-26, Miyuki-cho, Toyokawa-city, Tel : +81 - 533 - 84 - 1390 Head Office Aichi-pref, 442-8530 JAPAN Fax : +81 - 533 - 84 - 1220 LS66----UM--GBZ/23L-00-S.K...
