Bandit SA-25 Operating & Parts Manual

Stump grinder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

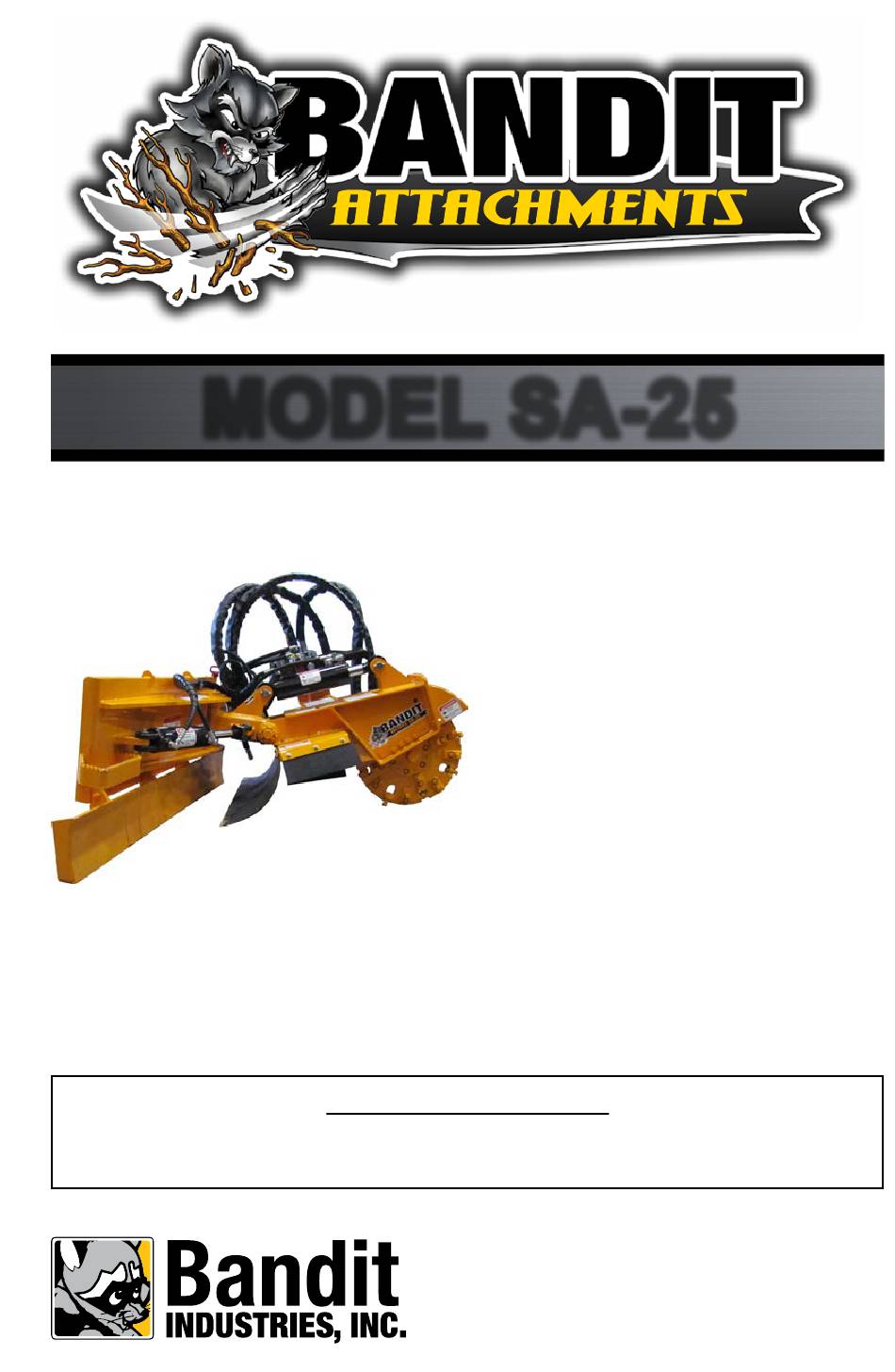

OPERATING & PARTS MANUAL
MODEL SA-25
SA-25
Model No: __________________________
Serial No: __________________________
DEALER:
Name: _____________________________
Address: ___________________________
City/State: __________________________
Phone No: __________________________
Delivery Date: _______________________
Copyright 3/17
ATTENTION:
Depending on what replacement parts you are ordering, we will need the following information:
ATTACHMENT COMPONENTS
Serial Number
Model Number of Attachment
MANUFACTURED BY BANDIT INDUSTRIES, INC
PHONE:
989
561-2270
(
)
PHONE:
800
952-0178 IN USA
(
)
FAX:
989
561-2273 ~ SALES DEPT.
(
)
FAX:
989
561-2962 ~ PARTS/SERVICE
(
)
WEBSITE:
www.banditchippers.com
6750 Millbrook Rd. • Remus, MI 49340 • 1-989-561-2270

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SA-25 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bandit SA-25

Summary of Contents for Bandit SA-25

  • Page 1 Copyright 3/17 ATTENTION: Depending on what replacement parts you are ordering, we will need the following information: ATTACHMENT COMPONENTS Serial Number Model Number of Attachment MANUFACTURED BY BANDIT INDUSTRIES, INC PHONE: 561-2270 PHONE: 952-0178 IN USA FAX: 561-2273 ~ SALES DEPT.
  • Page 2 CALIFORNIA PROPOSITION 65 WARNING ADVERTENCIA Breathing diesel engine Respirar gases de escape de exhaust exposes you to motores diesel expone chemicals known to the quÍmicos conocidos por el estado State of California to cause de California como causales de cancer and birth defects or cáncer y defectos congénitos u other reproductive harm.
  • Page 3 11. _____ The customer has received instruction and fully understands that warranty will not apply if the machine is operated with replacement parts or equipment not manufactured or recommended by Bandit Industries, Inc. 12. _____ The customer has received, been advised, and understands the manuals, and the Safety/Service video supplied with the grinder.
  • Page 4 Copyright 2/17 FORM #Q-112 DATE PURCHASE: ______________________ TO BE RETURNED AFTER THIRTY (30) DAYS OF OPERATION MODEL: ________________________________ SERIAL NUMBER: _______________________ Please return to: Customer Data Department 6750 Millbrook Road DEALER NAME: ________________________ Remus, MI 49340 _______________________________________ Phone: (800) 952-0178 in USA Phone: (989) 561-2270 Fax: (989) 561-2273...

  • Page 5: Table Of Contents

    MODEL SA-25 TABLE OF CONTENTS TABLE OF CONTENTS PAGE INTRODUCTION & WARRANTY ............. 2 SERIAL NUMBER LOCATIONS .............. 6 SAFETY PROCEDURES ................7 EQUIPMENT SPECIFICATIONS .............. 10 DECALS ....................11 MACHINE OPERATION ................14 MAINTENANCE ..................18 HYDRAULICS ................... 25 REPLACEMENT PARTS ................

  • Page 6: Introduction & Warranty

    NOTICE The producer of this Bandit product reserves the right to make any modifications or revisions to the design or specifications of its machine without advance notice. The producer also reserves the right to change machine and part prices as needed without advance notice.

  • Page 8: Serial Number Locations

    MODEL SA-25 SERIAL NUMBER LOCATIONS TYPICAL SERIAL NUMBER AND/OR WORK ORDER NUMBER LOCATIONS 1. S/N on side of frame 2. W/O # on top of frame Bandit Copyright 3/17...

  • Page 9: Safety Procedures

    You may obtain additional copies of this Torn or loose clothing is more likely to get caught manual from your Bandit Dealer. in moving machinery parts. Keep such items as long Before operating machine, you must have all hair, shirt sleeves, and shirt tails properly contained.
  • Page 10 Most of the nuts used on the Bandit Grinder are DANGER self locking. After a nut or bolt has been removed...
  • Page 11 MODEL SA-25 SAFETY PROCEDURES SAFETY PROCEDURES DANGER WARNING Any increase from the specified maximum Never grind materials that might contain wires, machine operating angles may cause loss of stones, nails, or other metal objects which may lubrication function and damage the engine.

  • Page 12: Equipment Specifications

    MODEL SA-25 EQUIPMENT SPECIFICATIONS EQUIPMENT SPECIFICATIONS Approximate Dimensions & Weights (Dimensions & weights will vary depending on optional equipment) Model SA-25 Height: 30 3/4” (0.8 m) Length: 59” (1.5 m) Width: 61” (1.5 m) Weight: 1380 lbs. (630kg) Cutter Wheel Height: 27 3/4”...

  • Page 13: Decals

    DECALS DECALS Decals located on your Bandit equipment contain useful information to assist you in operating your equipment safely. Some of the decals on your machine and their location are shown in this section. It is very important that all decals remain in place and in good condition on your machine. Please follow the care and instructions given below: You should use soap and water to keep your decals clean.
  • Page 14 MODEL SA-25 DECALS DECAL LOCATIONS Modifications and/or additions of decals to this list will happen. Consult chipper dealer or manufacturer for most current decal package. 1,15 1,4,5,6 1,2,3,7,8,11, 12,13,14,16 5,6,10 Bandit Copyright 3/17...
  • Page 15 SPW-28 ...Fire Hazard... SPW‑35 ...Lock the Couplers... 900‑8912‑32 Bandit Model SA‑25 Logo & Safety Decal Kit Some decals are for optional equipment. Decal locations may vary, these are general NOTICE locations. If any decals become damaged, replace immediately. Bandit Copyright 3/17...
  • Page 16 MODEL SA-25 MACHINE OPERATION MACHINE ORIENTATION REFERENCE R I G Bandit Copyright 3/17...
  • Page 17 The stump grinder does not come with quick coupler attachments, and the operator should install quick coupler fittings appropriate for the skid steer. The quick coupler fittings can be purchased from Bandit Industries, Inc. if the required sizes are available. Refer to the skid steer manufacturer’s manual for the proper procedures for attaching and detaching hydraulic hoses.

  • Page 18: Machine Operation

    MODEL SA-25 MACHINE OPERATION MACHINE OPERATION DANGER DO NOT START TO GRIND A STUMP UNLESS YOU ARE COMPLETELY SURE THERE ARE NOT ANY UTILITY LINES IN THE AREA ABOVE OR BELOW THE GROUND LEVEL WHERE YOU ARE GRINDING. ALWAYS CONTACT THE UTILITY LOCATING SERVICE IN YOUR AREA OR LOCAL UTILITY COMPANIES TO MARK UNDERGROUND UTILITY LINES.
  • Page 19 MODEL SA-25 MACHINE OPERATION CUTTING AREA DANGER For optimum performance, the stump should be cut with the portion of the cutter wheel shown below. NEVER UNDERCUT THE STUMP. Undercutting the stump may cause severe kickback, vibration and component damage. NEVER CUT THE STUMP FROM THE TOP. The cutter wheel will throw debris up and toward the operator, instead of down and under the machine.
  • Page 20 MODEL SA-25 MAINTENANCE MACHINE ORIENTATION REFERENCE R I G Bandit Copyright 3/17...

  • Page 21: Maintenance

    MODEL SA-25 MAINTENANCE MAINTENANCE The Bandit is a very simple machine to maintain. If you will follow a regular scheduled preventative maintenance program, you should have years of trouble free operation. DANGER Before attempting any type of maintenance, allow cutter head to come to a complete stop, turn off engine, remove the ignition key from the skid steer, make sure the ignition key is in your possession, disconnect the bat- tery to the skid steer, and install the cutter head lock pin.
  • Page 22 (i.e. cutter wheel guard, etc.). PAINT CARE To help keep up the appearance of your Bandit equipment and reduce the possibility of surface rust follow these steps: 1. The machine should be washed on a regular basis with a non-abrasive mild detergent and then rinsed thoroughly.
  • Page 23 MODEL SA-25 MAINTENANCE DAILY START UP & MAINTENANCE CHECK LIST Each day before starting your machine these checks must be made: OK Repaired 1. Check the safety decals, replace if damaged. ­2.­ Check,­maintain,­and­service­all­safety­equipment­for­proper­operation. 3. Check entire machine for loose nuts, bolts, and components.
  • Page 24 MODEL SA-25 MAINTENANCE LUBRICATION CHART CHECK DESCRIPTION WEEK MONTH PROCEDURE Swing Pivot Bushings 1 - 2 shots of grease. Wipe off excess. Cylinder Lug Bushings 1 - 2 shots of grease. Wipe off excess. Steel Friction Areas: pivoting, Lubricate (i.e. cutter wheel guard)
  • Page 25 MODEL SA-25 MAINTENANCE CUTTER WHEEL MOTOR COUPLER NOTICE IF THE CUTTER WHEEL MOTOR COUPLER NEEDS REMOVED OR REPLACED FOR ANY REASON CALL YOUR NEAREST DEALER OR BANDIT INDUSTRIES, INC. FOR INSTRUCTIONS. Stub Shaft Stub Shaft Brace Cutter Wheel Hub Coupler Removal Hole...
  • Page 26 MODEL SA-25 MAINTENANCE NEW RIVER “REVOLUTION” CUTTER WHEEL DO NOT OPERATE MACHINE WITHOUT A FULL SET OF TEETH. OPERATING MACHINE WITHOUT A FULL SET OF TEETH CAN CAUSE EXCESSIVE VIBRATION AND PREMATURE BEARING FAILURE. Use only original equipment manufacturer’s teeth. The use of any other aftermarket teeth may cause damage or premature failure to the drive train.

  • Page 27: Hydraulics

    30 ‑ 50 High Flow (LPM) (113 ‑ 189 High Flow) Contact the nearest dealer Recommended Pressure PSI 3000 - 4100 or Bandit Industries, Inc. (Bar) (207 - 282) for procedures to adjust the hydraulic pressures. Recommended Cutter Wheel Varies...
  • Page 28 MODEL SA-25 HYDRAULICS ADJUSTABLE Tilt Up Speed Adjustment Tilt Down Speed Adjustment Swing Right Speed Adjustment Swing Left Speed Adjustment DO NOT ADJUST! FACTORY PRESET Main Relief Pressure Factory Preset DO NOT ADJUST! Flow Adjustment to Both Cylinders Factory Preset...

  • Page 29: Replacement Parts

    Some of the components shown in this section are for optional equipment and may not apply to every machine. NOTICE Bandit Industries Inc. reserves the right to make changes in models, size, design, installations and applications on any part without notification. MACHINE ORIENTATION REFERENCE...
  • Page 30 MODEL SA-25 STUMP GRINDER COMPONENTS CUTTER HEAD TEETH NOTICE Parts may not be exactly as shown. Bandit Copyright 3/17...

  • Page 31: Stump Grinder Components

    MODEL SA-25 STUMP GRINDER COMPONENTS LOCATION PART NUMBER DESCRIPTION 401-3002-43 Chip Pan Side Rubber 401-3002-44 Chip Pan Side Rubber Strap 401-3001-68 Rear Rubber Guard 401‑3001‑69 Chip Pan Side Rubber Strap 401‑2000‑43 Chip Pan 992‑2001‑09 Cutter Wheel Motor Guard 900‑3963‑70 Cutter Wheel Motor 900‑1919‑91...

  • Page 32: Service Record

    MODEL SA-25 SERVICE RECORD SERVICE RECORD DATE DESCRIPTION AMOUNT Bandit Copyright 3/17...
