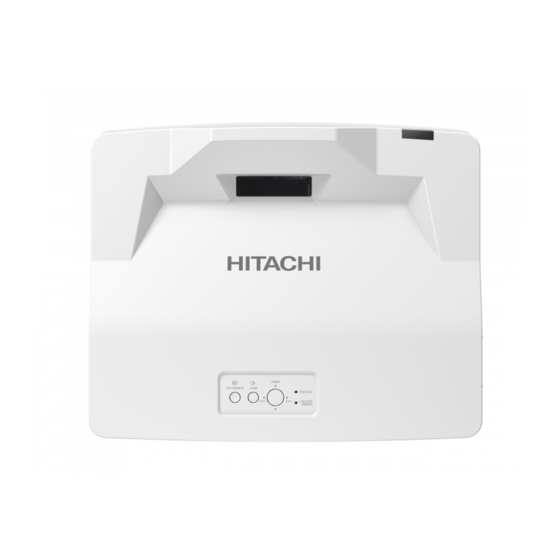

LCD Projector
MP-TW4001/MP-TW3001
User's Manual (detailed)
Operating Guide
Thank you for purchasing this projector.
WARNING
WARNING
CAUTION
NOTICE
NOTE
Safety Guide
1
QM00051-2
