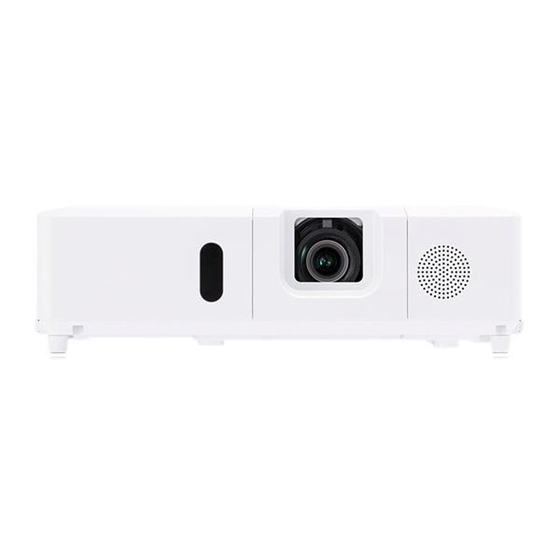

Maxell MP-WU5503 User Manual
  1. Manuals
  2. Brands
  3. Maxell Manuals
  4. Projector
  5. MP-WU5503
  6. User manual

Maxell MP-WU5503 User Manual

Hide thumbs Also See for MP-WU5503:
Table of Contents

Advertisement

Quick Links

LCD Projector
MP-WU5603/MP-WU5503
MP-WX5603/MP-WX5503
User's Manual (concise)
Thank you for purchasing this product.
This is the basic manual on the product. Visit our website to get the detailed
manuals (Safety Guide, Operating Guide, Network Guide) and the latest
information on the product.
Check them before using the product, for safe use and utilization of the product.
For our website, see the attached sheet.
Before using this product be sure to read all manuals for this product. After
reading them, store them in a safe place for future reference.
Heed all the warnings and cautions in the manuals or on the product.
Follow all the instructions in the manuals or on the product.
NOTE • In this manual, unless any comments are accompanied, "the manuals" means
all the documents provided with this product, and "the product" means this projector and
all the accessories came with the projector.
Contents
First of all ...........................................2
Laser warning ..................................5
with recycling systems ...................6
Contents of package..........................7
Arrangement ......................................9
Turning on the power .......................13
WARNING
Displaying the picture ......................15
Turning off the power .......................16
Cleaning and replacing
the internal clock battery ...............19
for the product software ................22
1
.....................................17
..................................20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP-WU5503 and is the answer not in the manual?

Questions and answers

Related Manuals for Maxell MP-WU5503

Summary of Contents for Maxell MP-WU5503

  • Page 1: Table Of Contents

    LCD Projector MP-WU5603/MP-WU5503 MP-WX5603/MP-WX5503 User's Manual (concise) Thank you for purchasing this product. This is the basic manual on the product. Visit our website to get the detailed manuals (Safety Guide, Operating Guide, Network Guide) and the latest information on the product.

  • Page 2: First Of All

    First of all Graphical symbols explanation The following entries and graphical symbols are used for the manuals and the product as follows, for safety purpose. Know their meanings beforehand and heed them. WARNING This entry warns of a risk of serious personal injury or even death. CAUTION This entry warns of a risk of personal injury or physical damage.
  • Page 3 Important safety instructions (continued) WARNING Do not modify the projector or accessories. Do not let any things or any liquids enter to the inside of the product. Do not get the product wet. are used. Oil may harm the product, resulting in malfunction, or falling from the mounted position.

  • Page 4: Electro-Magnetic Interference

    Electro-magnetic interference This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. This product may cause interference if used in residential areas. Such use must be avoided unless the user takes special measures to reduce electromagnetic emissions to prevent interference to the reception of radio and television broadcasts.

  • Page 5: Laser Warning

    Laser evaluation standard IEC60825-1: 2007, IEC60825-1: 2014, EN60825-1: 2014 Max. Output: 115W (MP-WU5603/MP-WX5603) 95W (MP-WU5503/MP-WX5503) Wave Length: 449 - 461nm LASER ENERGY – EXPOSURE NEAR APERTURE MAY CAUSE BURNS • 1:2014 and JIS C 6802:2014, and as a class 3R laser product that complies with IEC60825-1:2007.

  • Page 6: Disposal Of Old Equipment And Batteries Only For European Union And Countries With Recycling Systems

    Disposal of old equipment and batteries only for European Union and countries with recycling systems The above mark is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose the equipment including any spent or discarded batteries as unsorted municipal waste, but use the return and collection systems available.

  • Page 7: Contents Of Package

    Contents of package Your projector should come with the items shown below. Check that all the items are included. Contact your dealer immediately if any items are missing. Remote control with two AA batteries (2) Power cord (x2) MYBUTTON INPUT ASPECT PbyP AUTO...

  • Page 8: Preparing For The Remote Control

    Preparing for the remote control Insert the batteries into the remote control before using it. Use the appropriate AA carbon-zinc or alkaline batteries (non-rechargeable) in accordance with laws and regulations. If the remote control starts to malfunction, try to replace the batteries. If you will not use the remote control for long period, remove the batteries from the remote control and store them in a safe place.

  • Page 9: Arrangement

    Arrangement Refer to the table T-1 to T-2 in Supplement (at the end of this manual) to determine the screen size and projection distance. The values shown in the table are calculated for a full size screen. Tilt 360° (combination of horizontal and vertical) Horizontal 360°...

  • Page 10: Connecting With Your Devices

    Arrangement (continued) CAUTION Place the projector - Keep a space of 50 cm or more between a side of the projector and other objects such as walls. - Do not stop up, block nor cover the projector’s vent holes. so can cause the cooling fans inside the projector to malfunction.
  • Page 11 Connecting with your devices (continued) WARNING damage the projector and devices. projector’s manufacturer. It may be regulated under some standards. - Neither disassemble nor modify the projector and the accessories. - Do not use the damaged accessory. Be careful not to damage the accessories.

  • Page 12: Connecting To A Power Supply

    Connecting to a power supply Put the connector of the power cord into the POWER/STATUS1 indicator AC (AC inlet) of the product. Firmly plug the power cord’s plug into the outlet. In a couple of seconds after the power supply connection, the POWER/STATUS1 indicator lights up in steady orange.

  • Page 13: Turning On The Power

    Turning on the power POWER/STATUS1 indicator STANDBY/ON button correctly connected to the projector and the outlet. Make sure that the POWER/STATUS1 indicator is steady orange. Then remove the lens cover. Press the STANDBY/ON button on the projector or the remote control. The projection light source will light up, and the POWER/STATUS1 indicator will begin blinking in green.

  • Page 14: Adjusting The Projector's Elevator

    Adjusting the projector's elevator Lengthening or shortening the each elevator foot shifts the projection position and the projection angle. Turn the elevator foot to adjust its length. When the place to put the projector is slightly Front foot uneven to the left or right, use the rear elevator feet to place the projector horizontally.

  • Page 15: Displaying The Picture

    Displaying the picture STOPPER (MP-WU5603/MP-WU5503 only) Activate your signal source. Turn the FOCUS ring signal source on, and make it send the signal to the projector. ZOOM ring Use the VOLUME + / VOLUME - INPUT button buttons to adjust the volume. To turn off the sound, press the MUTE button on the remote control.

  • Page 16: Turning Off The Power

    Turning off the power Press the STANDBY/ON button on the projector POWER/STATUS1 indicator or the remote control. STANDBY/ON button The message “Power off?” appears on the screen for about 5 seconds. Press the STANDBY/ON button again while the message appears. The light source will go off, and the POWER/ STATUS1 indicator will begin blinking in orange.
  • Page 17 Turn the projector off, and unplug the power cord. Allow the projector to Filter cover Press up slightly the bottom side knobs to unlock the while holding it so it will not be sucked in. Filter cover knobs it with the new one. the following type number from your dealer when purchasing a new one.
  • Page 18 WARNING projector. d by dust and so malfunction to the projector. NOTE • Reset th • The projector may display the message such as the “CHECK THE AIR FLOW” or turn off the projector, to prevent the internal heat level rising.

  • Page 19: Inserting Or Replacing The Internal Clock Battery

    Battery Cover Use the following type of battery. MAXELL, Part No. CR2032 or CR2032H Turn the projector off, and unplug the power cord. Turn the battery cover fully counterclockwise using a coin or the like, and pick the cover up to remove it.
  • Page 20 Light source Laser diode Speaker 16 W mono MP-WU5603: 4.3A (AC 100V-120V), 2.1A (AC 220V-240V) MP-WU5503: 3.8A (AC 100V-120V), 1.9A (AC 220V-240V) Power supply/ Rated current MP-WX5603: 4.1A (AC 100V-120V), 2.1A (AC 220V-240V) MP-WX5503: 3.6A (AC 100V-120V), 1.8A (AC 220V-240V)
  • Page 21 Item COMPUTER IN 1 ......D-sub 15 pin mini jack x1 HDMI 1 ........... HDMI connector x1 HDMI 2 ........... HDMI connector x1 HDBaseT ............RJ45 jack x1 COMPUTER IN 2/MONITOR OUT D-sub 15 pin mini jack x1 VIDEO ............... RCA jack x1 AUDIO IN1 .......

  • Page 22: End User License Agreement For The Product Software

    End user license agreement for the product software Software in the product consists of the plural number of independent software modules and there exist our copyright and/or third party copyrights for each of such software modules. The product also uses software modules that we have developed and/or produced.

  • Page 23: Troubleshooting - Warranty And After-Service

    Troubleshooting - Warranty and after-service If an abnormal operation (such as smoke, strange odor or excessive sound) should occur, stop using the projector immediately. the Operating Guide and Network Guide, and follow the suggested checks. If this does not resolve the problem, consult your dealer or service company. They tell you what warranty condition is applied.
