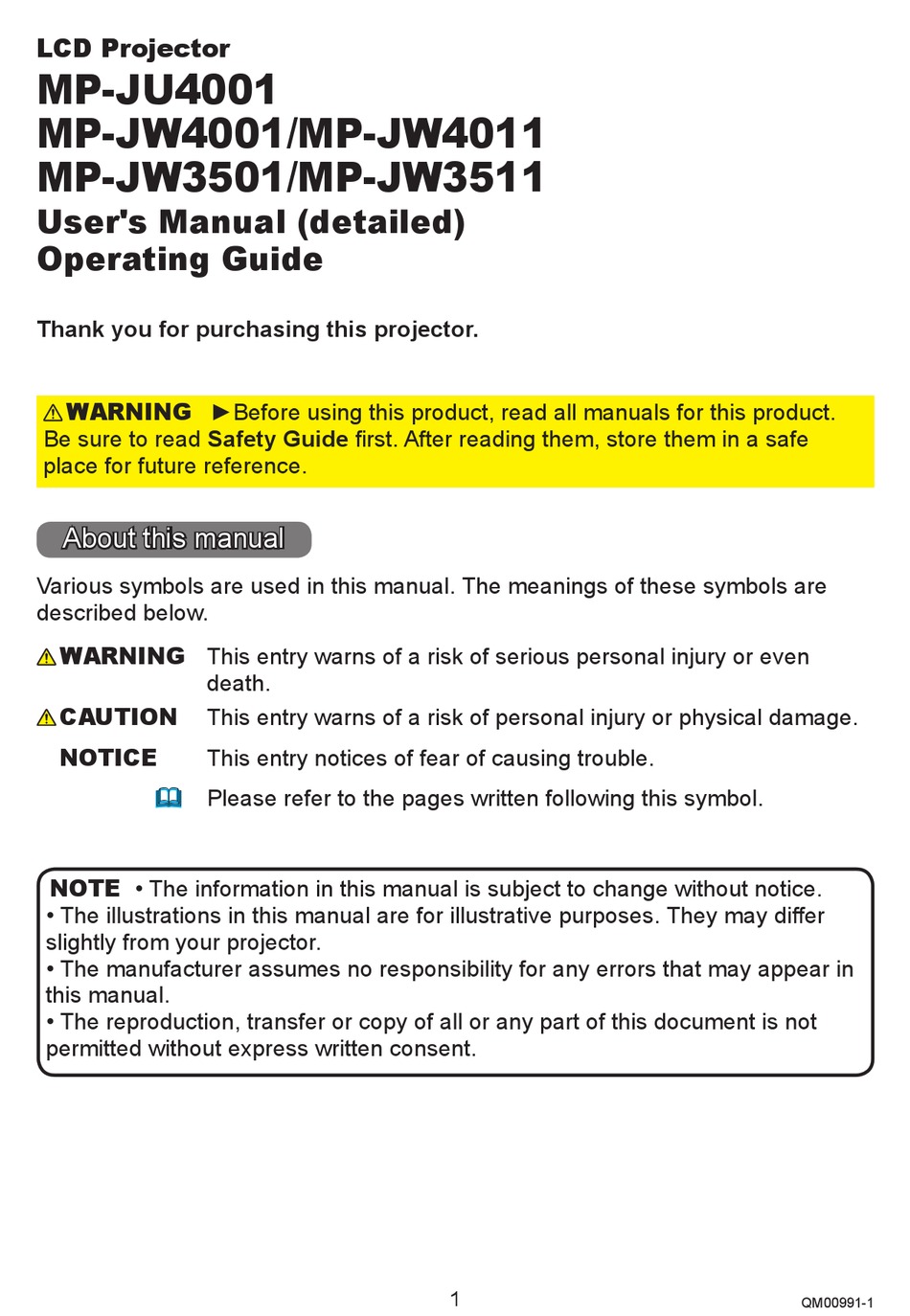

LCD Projector
MP-JU4001
MP-JW4001/MP-JW4011
MP-JW3501/MP-JW3511
User's Manual (detailed)
Operating Guide
Thank you for purchasing this projector.
WARNING
Be sure to read Safety Guide first. After reading them, store them in a safe
place for future reference.
About this manual
Various symbols are used in this manual. The meanings of these symbols are
described below.
WARNING
This entry warns of a risk of serious personal injury or even
death.
CAUTION
This entry warns of a risk of personal injury or physical damage.
NOTICE
This entry notices of fear of causing trouble.
Please refer to the pages written following this symbol.
NOTE
• The information in this manual is subject to change without notice.
• The illustrations in this manual are for illustrative purposes. They may differ
slightly from your projector.
• The manufacturer assumes no responsibility for any errors that may appear in
this manual.
• The reproduction, transfer or copy of all or any part of this document is not
permitted without express written consent.
►Before using this product, read all manuals for this product.
1
QM00991-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP-JU4001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Maxell MP-JU4001

Summary of Contents for Maxell MP-JU4001

  • Page 1 LCD Projector MP-JU4001 MP-JW4001/MP-JW4011 MP-JW3501/MP-JW3511 User's Manual (detailed) Operating Guide Thank you for purchasing this projector. WARNING ►Before using this product, read all manuals for this product. Be sure to read Safety Guide first. After reading them, store them in a safe place for future reference.

  • Page 2: Table Of Contents

    Contents   Introduction . . . . . . . . . . . . . . . 3 NETWORK menu . . . . . . . . . . . 92 Features .

  • Page 3: Introduction

    ü Has an HDCR and an ACCENTUALIZER features which are original image stabilizer for a clearer image. (MP-JU4001 only) ü Can provide DC5V/2A power supply from USB connector to use a media player or a streaming device without external power supply, which enables the projector to be used in more various opportunities.

  • Page 4: Warnings, Cautions, And Notices

    Introduction Warnings, Cautions, and Notices WARNING ►Never use the projector if a problem should occur. • Otherwise it can cause fire or electric shock. • If any of the following abnormalities occur, urgently stop using the product and unplug it from the power outlet: - The product is giving off smoke or strange smell, or making a strange sound.
  • Page 5 Introduction Warnings, Cautions, and Notices (continued) WARNING ►Do not get the product wet. • It could result in a fire, an electric shock, and/or malfunction to the projector. • Do not place the projector near water, such as in a bathroom, kitchen, or poolside.
  • Page 6 Introduction Warnings, Cautions, and Notices (continued) WARNING ►Never disassemble and modify. • The product contains high voltage components and/or laser light-emitting part beyond the scope of Class 1 (IEC60825-1). Modification and/or disassembly of the product could result in fire, electrical shock, or injury to eyes or skin. •...
  • Page 7 Introduction Warnings, Cautions, and Notices (continued) WARNING ►Use the accessory cable or a designated type cable for the connection. • If you use a power cord or a signal cable that are not comply with the specification, it causes fire, electric shock, malfunction, or radio wave interference.
  • Page 8 Introduction Warnings, Cautions, and Notices (continued) WARNING ►Do not damage the power cord, cables, and connectors. • If you keep using a damaged the power cord or cables, it can cause a fire or electrical shock. • If it is damaged, consult your dealer to get a new one. ►Do not touch the power cord with a wet hand.
  • Page 9 Introduction Warnings, Cautions, and Notices (continued) CAUTION ► Do not place the projector in a place where it can be hot nor block the projector's ventilation openings. • The projector may shut down automatically, or may malfunction due to high internal temperature if it is placed in a place where it can be hot or ventilation does not operate normally.
  • Page 10 Introduction Warnings, Cautions, and Notices (continued) CAUTION ►Avoid Magnetism. • Magnetic objects may cause interruption of the projector's internal mechanical performance which may interfere with cooling fans speed or stopping, and may cause the projector to completely shut down. • The projector may shutdown automatically or may malfunction if its internal temperature is too high.
  • Page 11 Introduction Warnings, Cautions, and Notices (continued) CAUTION ►Ask your dealer to clean the inside of the projector about every year. • Accumulations of dust inside the projector result in fire or malfunction. • To ensure the safe use of your projector, ask your dealer to clean and inspect it about once a year.
  • Page 12 Introduction Warnings, Cautions, and Notices (continued) NOTICE ►Take care not to fatigue your eyes. • Watching the display continuously for a long time makes your eyes tired. • Rest the eyes periodically. ►Take care of the lens. • It may cause breakage, malfunction, or image failure. •...
  • Page 13 Introduction Warnings, Cautions, and Notices (continued) NOTICE ►Caring for the cabinet and remote control • Incorrect care could cause not only an injury but adverse influence such as discoloration, peeling paint, etc. Take right care of the projector according to the following.
  • Page 14 Introduction Warnings, Cautions, and Notices (continued) NOTE ►Characteristics of the projector • Positional deviation or distortion of a projected image, or shift of the focus may occur due to ambient conditions, and so on. They tend to occur until the operation becomes stable, especially within about 30 minutes after the light source is turned on.
  • Page 15 Introduction Warnings, Cautions, and Notices (continued) NOTE ►Be careful of condensation. • It is not a malfunction even if a projected image becomes blurred or cannot be seen due to condensation of internal lens or mirror when the projector is moved out of a room with a low temperature to a room with a high temperature.As the projector adapts to the ambient temperature, condensation is gone and the projected image goes back to normal.

  • Page 16: Part Names

    Introduction Part names (9) (10) Projector (1) Speaker (36, 69) (2) Filter cover (108) The air filter and intake vent are inside. (3) Elevator feet (x2) (39) (12) (4) Remote sensor (32) (5) Lens (110) (6) Lens cover (13) (7) Intake vents (8) Control panel (17) (9) FOCUS ring (40) (10) ZOOM ring (40)
  • Page 17 Introduction Part names (continued) Control panel (1) STANDBY/ON button (34) (2) INPUT button (37) (3) MENU button (47) (4) STATUS2 indicator (114) (5) POWER/STATUS1 indicator (114) Ports(23 ~ 28) (1) LAN port (7) AUDIO IN2 (R,L) ports (2) USB TYPE A port (8) AUDIO OUT port (3) USB TYPE B port (9) COMPUTER IN1 port...

  • Page 18: Remote Control

    Introduction Part names (continued) Remote control (1) INPUT button ( 78, 79 (2) MY BUTTON-1 button ( 78, 79 (3) MY BUTTON-2 button ( MYBUTTON INPUT (4) STANDBY/ON button ( ASPECT PbyP AUTO FREEZE (10) (11) (5) ASPECT button ( (12) MAGNIFY FOCUS...

  • Page 19: Setting Up

    Setting up Setting up Install the projector according to the environment and manner the projector will be used in. This projector will perform in a free tilt angle, as shown in the figures below. For the case of installation in a special state such as ceiling mount, the specified mounting accessories and service may be required.
  • Page 20 Setting up Arrangement (continued) WARNING ►Install the projector where you can access the power outlet easily. If an abnormality should occur, unplug the projector urgently. Otherwise it could cause a fire or electric shock. ►Do not subject the projector to unstable conditions. If the projector falls or topples over, it could result in injury or damage to the projector and the surrounding things.
  • Page 21 Setting up Arrangement (continued) WARNING ►Do not place the projector in a place where it may get wet. Getting the projector wet or inserting liquid into the projector could cause a fire and an electric shock, and damage the projector. •...
  • Page 22 Setting up Arrangement (continued) NOTICE • Do not place the projector in a smoking area, kitchen, passageway or by the window. • Position the projector to prevent light from directly hitting the projector's remote sensor. • Positional deviation or distortion of a projected image, or shift of the focus may occur due to ambient conditions, and so on.

  • Page 23: Connecting With Your Devices

    Setting up Connecting with your devices Before connecting the projector to a device, consult the manual of the device to confirm that the device is suitable for connecting with this projector and prepare the required accessories, such as a cable in accord with the signal of the device. Consult your dealer when the required accessory did not come with the product or the accessory is damaged.
  • Page 24 Setting up Connecting with your devices (continued) NOTE • Do not turn on or off the projector while connected to a device in operation, unless that is directed in the manual of the device. Otherwise it may cause malfunction in the device or projector. •...
  • Page 25 Setting up Connecting with your devices (continued) Computer AUDIO DISPLAY USB TYPE A HDMI RS-232C NOTE • Before connecting the projector to a computer, consult the computer’s manual and check the compatibility of the signal level, the synchronization methods and the display resolution output to the projector. - Depending on the input signal, an adapter may be required or the projector may not display the images correctly.
  • Page 26 Setting up Connecting with your devices (continued) USB wireless Access Computer External device adapter point (optional) RS-232C RS-232C USB storage device CAUTION ►Before connecting the projector to a network system, be sure to obtain the consent of the administrator of the network. ►Do not connect the LAN port to any network that might have the excessive voltage.
  • Page 27 Setting up Connecting with your devices (continued) VCR/DVD/Blu-ray Disc player AUDIO COMPONENT HDMI Cr/Pr Cb/Pb Y VIDEO NOTE • The HDMI port of this model is compatible with HDCP (High- bandwidth Digital Content Protection) and therefore capable of displaying a video signal from HDCP compatible DVD players or the like.
  • Page 28 Setting up Connecting with your devices (continued) Speakers Monitor (with an amplifier) RGB IN QM00991-1...

  • Page 29: Connecting To A Power Supply

    Setting up Connecting to a power supply POWER/STATUS1 Put the connector of the power cord into the indicator AC (AC inlet) of the projector. Firmly plug the power cord’s plug into the outlet. In a couple of seconds after the power supply connection, the POWER/STATUS1 indicator will light up in steady orange.

  • Page 30: Using The Security Bar And Slot

    Setting up Using the security bar and slot A commercially available anti-theft wire can be attached to the security bar on the projector. Refer to the fi gure to choose an 12mm anti-theft wire. Also, this product has the security slot for the Kensington lock.

  • Page 31: Remote Control

    Remote control Remote control Installing the batteries Please insert the batteries into the remote control before using it. If the remote control starts to malfunction, try to replace the batteries. If you will not use the remote control for long period, remove the batteries from the remote control and store them in a safe place.

  • Page 32: About The Remote Control Signal

    Remote control About the remote control signal The remote control works with the projector’s remote sensor. This projector has a remote sensor on the front. The sensor senses the signal within the following range when the sensor is active: 60 degrees (30 degrees to the left and right of the sensor) within about 3 meters.

  • Page 33: Using As A Simple Pc Mouse & Keyboard

    Remote control Using as a simple PC mouse & keyboard The accessory remote control works as a simple mouse and keyboard of the computer, when the projector’s USB TYPE B port and the computer’s type A USB port are connected. USB TYPE B port (1) PAGE UP key: Press the PAGE UP button.

  • Page 34: Power On/Off

    Power on/off Power on/off Turning on the power POWER/STATUS1 indicator Make sure that the power cord is firmly STANDBY/ON button and correctly connected to the projector and the outlet. Make sure that the POWER/STATUS1 indicator is lighted in steady orange (114).

  • Page 35: Turning Off The Power

    Power on/off Turning off the power Press the STANDBY/ON button on the projector or the remote control. The message “Power off?” will appear on the screen for about 5 seconds. Press the STANDBY/ON button again while the message appears. The light source will go off, and the POWER/STATUS1 indicator will begin blinking in orange.

  • Page 36: Operating

    Operating Operating MYBUTTON INPUT Adjusting the volume ASPECT PbyP AUTO FREEZE Use the VOLUME + / - buttons to adjust the volume. MAGNIFY FOCUS ZOOM VOLUME VOLUME + / - MYBUTTON INPUT ASPECT PbyP AUTO FREEZE A dialog will appear on the screen to aid you in MAGNIFY FOCUS ZOOM...

  • Page 37: Selecting An Input Signal

    Operating Selecting an input signal Press the INPUT button on the projector INPUT button or the remote control. Select a desirable input referring to the displayed input list. MYBUTTON INPUT ASPECT PbyP AUTO FREEZE MAGNIFY FOCUS ZOOM VOLUME PAGE GEOMETRY PICTURE MUTE MYBUTTON...

  • Page 38: Limiting Osd Display

    PAGE GEOMETRY PICTURE MUTE Operating INTERACTIVE NETWORK BLANK DOWN Limiting OSD display MENU To change this function, follow the steps below. ENTER 1. Press the OSD MSG button on the remote control INPUT MYBUTTON ASPECT PbyP AUTO FREEZE MAGNIFY FOCUS ZOOM VOLUME for 3 seconds.

  • Page 39: Adjusting The Projector's Elevator

    Operating Adjusting the projector’s elevator Lengthening or shortening each elevator foot shifts the projection position and the projection angle. Front foot Turn the elevator foot to adjust its length. max. WARNING ►Do not lengthen the elevator foot exceeding 22 mm. The foot lengthened exceeding the limit may come off and drop the projector down, and result in an injury or damaging the projector.

  • Page 40: Adjusting The Zoom And Focus

    Operating Adjusting the zoom and focus Use the ZOOM ring to adjust the screen FOCUS ring size. Use the FOCUS ring to focus the picture. ZOOM ring QM00991-1...

  • Page 41: Using The Automatic Adjustment Feature

    Operating Using the automatic adjustment feature MYBUTTON INPUT Press AUTO button on the remote control. ASPECT PbyP AUTO FREEZE Pressing this button performs the following. AUTO button INPUT MYBUTTON ASPECT PbyP AUTO FREEZE MAGNIFY FOCUS ZOOM VOLUME  For a computer signal MAGNIFY FOCUS ZOOM...

  • Page 42: Correcting The Distortion

    MYBUTTON INPUT Operating Correcting the distortion ASPECT PbyP AUTO FREEZE To correct the distortion of projected screen, you can select one of two options, MAGNIFY FOCUS ZOOM VOLUME KEYSTONE and PERFECT FIT. First press the GEOMETRY button to display the GEOMETRY CORRECTION menu, and point at one of the items with the ▲/▼...
  • Page 43 Operating Correcting the distortion (continued) Select AUTO with the ▲/▼ buttons and press the ► or ENTER button. Select EXECUTE with the ▲/▼ buttons and press the ► button for automatic keystone distortion correction. Projector automatically corrects vertical keystone distortion due to the (forward/backward) setup angle by itself.This function will be executed only once when selected in the menu.
  • Page 44 Operating Correcting the distortion (continued) Select SETUP with the ▲/▼ buttons and press the ► or ENTER button. Select one of the corners or sides to be adjusted with the ▲/▼/◄/► buttons and press the ENTER or button. Adjust the selected part as below. ●...

  • Page 45: Using The Magnify Feature

    NETWORK BLANK The display magnification of the projector switches in order MENU with every press of the MAGNIFY ON button. MP-JU4001 ENTER 1.5 times  2 times  3 times  4 times  1 time OSD MSG RESET MP-JW4001/MP-JW4011/MP-JW3501/MP-JW3511 ●...

  • Page 46: Temporarily Freezing The Screen

    Operating Temporarily freezing the screen MYBUTTON INPUT Press the FREEZE button on the remote control. The “FREEZE” indication will appear on the screen FREEZE ASPECT PbyP AUTO FREEZE MYBUTTON INPUT ASPECT PbyP AUTO FREEZE button (however, the indication will not appear when MAGNIFY FOCUS ZOOM...

  • Page 47: Using The Menu Function

    Operating Using the menu function This projector has the following menus: MYBUTTON INPUT PICTURE, IMAGE, INPUT, SETUP, AUDIO, SCREEN, OPTION, NETWORK, SECURITY and EASY MENU. EASY MENU consists of functions often used, and ASPECT PbyP AUTO FREEZE the other menus are classified into each purpose and brought together as the MAGNIFY FOCUS ZOOM...

  • Page 48: Indication In Osd(On Screen Display)

    Operating Using the menu function (continued) To close the MENU, press the MENU button again or select EXIT and press the ◄ cursor button or ENTER button. Even if you do not do anything, the dialog will automatically disappear after about 30 seconds. NOTE •...

  • Page 49: Containing Items Of Each Menu

    NETWORK INFORMATION, WIRELESS NETWORK, NETWORK (92) NETWORK SETUP, MY IMAGE, EXTERNAL CONTROL, OTHER OPERATION ENTER PASSWORD, SECURITY PASSWORD CHANGE, MyScreen PASSWORD, PIN LOCK, TRANSITION DETECTOR, SECURITY (93) MY TEXT PASSWORD, MY TEXT DISPLAY, MY TEXT WRITING, CLONING LOCK (Except for MP-JU4001) QM00991-1...

  • Page 50: Easy Menu

    EASY MENU EASY MENU From the EASY MENU, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons. Then perform it according to the following table. Item Description Using the ◄/► buttons switches the mode for aspect ratio. ASPECT See the ASPECT item in IMAGE menu (55).
  • Page 51 EASY MENU Item Description Pressing the ► button displays the dialog for light output. See the LIGHT OUTPUT item of the LIGHT & FILTER item in SETUP menu (64). LIGHT OUTPUT • When the ambient temperature is around 35 to 40°C, the brightness of light source is reduced automatically.

  • Page 52: Picture Menu

    PICTURE menu PICTURE menu From the PICTURE menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table. Item Description Using the ◄/►...
  • Page 53 PICTURE menu Item Description Selecting this item displays the PICTURE QUALITY menu. Select an item using the ▲/▼ buttons, and press the ► button or the ENTER button on the remote control to execute the item. PICTURE MODE After selecting USER-1 / USER-2 / USER-3, the following features are adjustable.
  • Page 54 PICTURE menu Item Description ACCENTUALIZER (MP-JU4001 only) ACCENTUALIZER is a function to improve the legibility. Using the ◄/► buttons adjusts the sharpness. Weak ó Strong PICTURE QUALITY • There may be some noise and/or the screen may flicker for a (continued) moment when an adjustment is made.

  • Page 55: Image Menu

    IMAGE menu IMAGE menu From the IMAGE menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.
  • Page 56 IMAGE menu Item Description Using the ◄/► buttons adjusts the vertical position. Down ó Up • Over-adjusting the vertical position may cause noise to appear on the screen. If this occurs, please reset the vertical position to the default setting. Pressing the RESET button when the V POSITION V POSITION is selected will reset the V POSITION to the default setting.
  • Page 57 IMAGE menu Item Description Using the ◄/► buttons adjusts the horizontal size. Small ó Large • This item can be selected only for a computer signal. This function is unavailable for a signal from the LAN, USB TYPE A, HDMI 1 or HDMI 2 port. H SIZE •...

  • Page 58: Input Menu

    INPUT menu INPUT menu From the INPUT menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.
  • Page 59 INPUT menu Item Description The video format for VIDEO port can be set. Using the ◄/► buttons switches the mode for video format. AUTO ó NTSC ó PAL ó SECAM VIDEO FORMAT N-PAL ó M-PAL ó NTSC4.43 • This item is performed only for a video signal from the VIDEO port. •...
  • Page 60 INPUT menu Item Description The computer input signal type for COMPUTER IN1 and IN2 ports can be set. (1) Use the ▲/▼ buttons to select the COMPUTER IN port to be set. (2) Use the ◄/► buttons to select the computer input signal type. (COMPUTER IN1) AUTO ó...
  • Page 61 INPUT menu Item Description The resolution for the COMPUTER IN1 and COMPUTER IN2 input signals can be set on this projector. (1) In the INPUT menu, select the RESOLUTION using the ▲/▼ buttons and press the ► button. The RESOLUTION menu will be displayed.

  • Page 62: Setup Menu

    SETUP menu SETUP menu From the SETUP menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.
  • Page 63 SETUP menu Item Description KEYSTONE Selecting this item displays the KEYSTONE dialog. For details, see KEYSTONE in Correcting the distortion( • The adjustable range of this function will vary among inputs. For some inputs, this function may not work well. •...
  • Page 64 SETUP menu Item Description Using the ▲/▼ buttons switches the LIGHT OUTPUT. NORMAL ó LONG LIFE 1 ó LONG LIFE 2 ó WHISPER • When the ambient temperature is around 35 to 40°C, the brightness of light source is reduced automatically. •...
  • Page 65 SETUP menu Item Description Pressing the ►button displays the dialog for changing the INSTALLATION setting. INSTALLATION Use the ▲/▼ buttons to select the desired setting on the INSTALLATION dialog. This function is unavailable when TRANSITION DETECTOR ( is ON. (continued on next page) QM00991-1...
  • Page 66 SETUP menu Item Description Using ▲/▼ buttons switches the standby mode setting. QUICK START: For quick start-up (Standby power increases). When the projector is set to QUICK START and in standby mode, POWER/STATUS1 indicator blinks in Green 2 times for about 3 seconds. QUICK START is disabled in 30 minutes and the mode switches to NORMAL standby.
  • Page 67 SETUP menu Wake-On LAN (WOL) function If you select NETWORK (WOL) in SETUP menu > STANDBY MODE, you can use the Wake-On LAN(WOL) function of wired network while saving power consumption in standby state. Operation Various communication functions can be used after the projector goes into NORMAL standby mode by receiving WOL Magic packet in standby state.
  • Page 68 SETUP menu Item Description Using the ▲/▼ buttons turns on/off the message function. For more information, see “Limiting OSD display” (38). NORMAL ó SILENT ó INHIBIT ■NORMAL : OSD message is displayed normally. ■SILENT : The following message functions do not work. “AUTO IN PROGRESS”...

  • Page 69: Audio Menu

    AUDIO menu AUDIO menu From the AUDIO menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or the ENTER button to execute the item. Then perform it according to the following table.

  • Page 70: Screen Menu

    SCREEN menu SCREEN menu From the SCREEN menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.
  • Page 71 SCREEN menu Item Description Using the ▲/▼ buttons switches the mode for the start-up screen. The start-up screen is a screen displayed when no signal or an unsuitable signal is detected. MyScreen ó ORIGINAL ó OFF MyScreen : Screen can be registered by the MyScreen item (71). START UP ORIGINAL : Screen preset as the standard screen.
  • Page 72 SCREEN menu Item Description Using the ▲/▼ buttons turns on/off the MyScreen lock function. ON ó OFF When the ON is selected, the item MyScreen is locked. Use this MyScreen Lock function for protecting the current MyScreen. • This function cannot be selected when the ON is selected to the MyScreen PASSWORD item in SECURITY menu (94).
  • Page 73 SCREEN menu Item Description (6) The current name will be displayed on the first line. Use the ▲/▼/◄/► buttons and the ENTER or button to select and enter characters. To erase 1 character at one time, press the RESET button or press the ◄ and button at the same time.
  • Page 74 SCREEN menu Item Description The C.C. is the function that displays a transcript or dialog of the audio portion of a video, files or other presentation or other relevant sounds. It is required to have NTSC format video or 480i@60 format component video source supporting C.C.

  • Page 75: Option Menu

    OPTION menu OPTION menu From the OPTION menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.
  • Page 76 OPTION menu Item Description Using the ▲/▼ buttons turns on/off the DIRECT POWER ON function. ON ó OFF When set to the ON, the light source in projector will be automatically turned on without the usual procedure (34), only when the projector is supplied with the power after the power was cut while the light source was on.
  • Page 77 OPTION menu Item Description Using the ▲/▼ buttons adjusts the time to count down to automatically turn the projector off. Long (max. 99 minutes) ó Short (min. 0 minute = DISABLE) When the time is set to 0, the projector is not turned off automatically. AUTO POWER When the time is set to 1 to 99, and when the passed time with no-signal or an unsuitable signal reaches at the set time, the light...
  • Page 78 OPTION menu Item Description This item is to assign one of the following functions to MY BUTTON 1/2 on the remote control (18). (1) Use the ▲/▼ buttons on the MY BUTTON menu to select a MY BUTTON - (1/2). (2) Then using the ◄/►...
  • Page 79 • RESOLUTION: Turns on/off the RESOLUTION dialog (61). (continued) • LIGHT OUTPUT: Changes the LIGHT OUTPUT (64). • HDCR: Turns on/off the HDCR dialog (54). (MP-JU4001 only) • ACCENTUALIZER: Turns on/off the ACCENTUALIZER dialog (54). (MP-JU4001 only) • MY BUTTON: Turns on/off the MY BUTTON dialog (78).
  • Page 80 OPTION menu Item Description ■ How to activate( DATE AND TIME SPECIFIC DATE Place a check mark in the box. Date and first setup info could be seen Check mark with the check mark. in the box 1/2 page (Set the DATE(Year/Month/Date) and Time(24-hour scale).) SCHEDULE Date and first setup (continued)
  • Page 81 OPTION menu Item Description ■ PROGRAM EDIT The TIME and EVENT for Program 1 to 16 can be edited. • RETURN Select this to go back to the top menu of the SCHEDULE. • SELECT Select from PROGRAM-01 to 16 to edit. Up to 20 events can be set SCHEDULE in each program.
  • Page 82 OPTION menu Item Description ■ How to edit the selected PROGRAM 1. Select from 1 to 20 events. Use the ▲/▼ cursor buttons to select. Press the ► cursor button to set the TIME and EVENT. 2. Use the ◄/► cursor buttons to select.
  • Page 83 OPTION menu Item Description Selecting this item displays the SERVICE menu. Select an item using the ▲/▼ buttons, and press the ► button or the ENTER button on the remote control to execute the item. ALTITUDE Using the ▲/▼ buttons switches the rotation speed of the cooling fans.
  • Page 84 OPTION menu Item Description KEY LOCK (1) Use the ▲/▼ buttons to choose the operations control. CONTROL PANEL ó REMOTE CONTROL (2) Use the ◄/► buttons to select ALL, ON or OFF. ALL ó ON ó OFF If you select ALL, all key functions are disabled. Selecting ON in Step 2 locks the buttons except STANDBY/ON on the operations control selected in Step 1.
  • Page 85 OPTION menu Item Description 2. Disabling the PIN code lock function If you unlock this item by locked keys, enter registered PIN code while OSD is not displayed. The STATUS2 indicator blinks while entering the PIN code. If you unlock this item by unlocked keys, follow the steps below. Unlocked keys: If REMOTE CONTROL is set to ALL, they are control panel.
  • Page 86 OPTION menu Item Description REMOTE FREQ. (1) Use the ▲/▼ button to change the projector's remote sensor frequency setting (32). 1:NORMAL ó 2:HIGH (2) Use the ◄/► button to change the projector's remote sensor on or off. ON ó OFF If the remote control does not function correctly, disable either of them.
  • Page 87 OPTION menu Item Description COMMUNICATION TYPE Select the communication type for transmission via the CONTROL port. NETWORK BRIDGE: Select this type, if it is required to control an external device as a network terminal, via this projector from the computer. The CONTROL port does not accept RS-232C commands (Network Bridge Function in the Network Guide)
  • Page 88 OPTION menu Item Description RESPONSE LIMIT TIME Select the time period to wait for receiving response data from other device communicating by the NETWORK BRIDGE and the HALF-DUPLEX through the CONTROL port. OFF ó 1s ó 2s ó 3s OFF: Select this mode if it is not required to check the responses from the device that the projector sends data to.
  • Page 89 OPTION menu Item Description The following items are exempted. SETUP: LIGHT SOURCE TIME, FILTER TIME OPTION: SCHEDULE_DATE AND TIME, SERVICE(GHOST) NETWORK: PROJECTOR NAME WIRELESS SETUP (SIMPLE ACCESS POINT), WIRELESS SETUP (INFRASTRUCTURE) AND WIRED SETUP (IP ADDRESS, SUBNET MASK) MY IMAGE, OTHER OPERATION SECURITY: MY TEXT DISPLAY •...
  • Page 90 OPTION menu Item Description • Please operate one of the following after loading. - Press the button and ◄ button of the control panel at the same time. - Wait at least five minutes after loading. - Restart the projector after re-plugging the AC cable. Load MyScreen data •...
  • Page 91 OPTION menu Item Description Loading function (continued) • Note that the saved setting of INSTALLATION, KEYSTONE and PERFECT FIT cannot be loaded when TRANSITION DETECTOR is ON. CLONING * • Please note that the saved data of START UP (continued) and MyScreen Lock under SCREEN menu cannot be loaded if MyScreen PASSWORD under SECURITY menu is ON.

  • Page 92: Network Menu

    NETWORK menu NETWORK menu See the Network Guide for details of NETWORK operation. Remember that incorrect network settings on this projector may cause trouble on the network. Be sure to consult with your network administrator before connecting to an existing access point on your network. QM00991-1...

  • Page 93: Security Menu

    1. Press the ► button. The ENTER PASSWORD box will be displayed. 2. Use the ▲/▼/◄/► buttons to enter the registered password. The factory default password is as follows. MP-JU4001 : 3723 MP-JW3501/MP-JW3511/MP-JW4001/MP-JW4011 : 5710 (below) This password can be changed .
  • Page 94 SECURITY menu Item Description The MyScreen PASSWORD function can be used to prohibit access to the MyScreen function and prevent the currently registered MyScreen image from being overwritten. 1 Turning on the MyScreen PASSWORD 1-1 Use the ▲/▼ buttons on the SECURITY menu to select MyScreen PASSWORD and press the ►...
  • Page 95 SECURITY menu Item Description PIN LOCK is a function which prevents the projector from being used unless a registered Code is input. 1 Turning on the PIN LOCK 1-1 Use the ▲/▼ buttons on the SECURITY menu to select PIN LOCK and press the ► button or the ENTER button to display the PIN LOCK on/off menu.
  • Page 96 SECURITY menu Item Description If this function is set to ON and the vertical angle of the projector is different from the previous recorded setting, the TRANSITION DETECTOR ON alarm will be displayed and the input signal will not be displayed. •...
  • Page 97 SECURITY menu Item Description The MY TEXT PASSWORD function can prevent the MY TEXT from being overwritten. When the password is set for the MY TEXT; • The MY TEXT DISPLAY menu will be unavailable, which can prohibit changing the DISPLAY setting. •...
  • Page 98 SECURITY menu Item Description (1) Use the ▲/▼ buttons on the SECURITY menu to select the MY TEXT DISPLAY and press the ► or ENTER button to display the MY TEXT DISPLAY on/off menu. (2) Use the ▲/▼ buttons on the MY TEXT DISPLAY on/off menu to select on or off.

  • Page 99: Presentation Tools

    Presentation tools Presentation tools The projector has the following convenient tools that enable on-screen presentations easily and quickly: - PC-LESS Presentation (below) - Drawing function Drawing function enables you to draw on the projector’s screen with USB mouse or tablets connected to the USB TYPE A ports. For details, refer to the manual for peripheral equipment.
  • Page 100 Presentation tools PC-LESS Presentation (continued) [Supported fi le format and its extension] • JPEG (.jpeg, .jpg) • Bitmap (.bmp) * 16bit mode and compressed bitmap is not supported. • PNG (.png) * Interlace PNG is not supported. • GIF (.gif) NOTE •...
  • Page 101 Presentation tools PC-LESS Presentation (continued) Operating by buttons or keys You can control the images on the Thumbnail screen with the remote control, control panel or Web Remote Control. The following functions can be supported while the Thumbnail is displayed. Button operation Functions Web Remote...
  • Page 102 Presentation tools PC-LESS Presentation (continued) Operating by the menu on the Thumbnail screen You can also control the images by using the menu on the Thumbnail screen. Item Functions Moves to an upper folder. SORT Allows you to sort files and folders as follows. Press the ►...
  • Page 103 Presentation tools PC-LESS Presentation (continued) NOTE • These operations are not accessible while the projector OSD is displayed. • The Thumbnail mode can display up to 20 files in one page. • It is not possible to change the input port by using the button when the Thumbnail screen, Slideshow, or Full Screen is displayed.
  • Page 104 Presentation tools PC-LESS Presentation (continued) Full Screen Mode The Full Screen mode shows a full display image. To display in Full Screen mode, select an image in the Thumbnail screen. Then press the ENTER button on the remote control, the button on the control panel or click [ENTER] on the Web Remote Control.
  • Page 105 Presentation tools PC-LESS Presentation (continued) Slideshow mode The Slideshow mode displays images in full screen and switches the images at intervals set in INTERVAL on the Thumbnail screen menu ( You can start this function from the Slideshow menu. To display the Slideshow menu, select the SLIDESHOW button in the Thumbnail mode and press the ENTER button on the remote control, button on the control panel, or click...
  • Page 106 Presentation tools PC-LESS Presentation (continued) You can play the Slideshow at your desired configuration. Configure the Slideshow items in the Thumbnail. 1) RETURN : Returns to the thumbnail mode. 2) PLAY : Plays the Slideshow. 3) START : Sets the beginning number of the Slideshow.
  • Page 107 Presentation tools PC-LESS Presentation (continued) Playlist The Playlist is a DOS format text file, which decides the order of displayed still image files in the Thumbnail or Slideshow. The playlist file name is “playlist.txt” and it can be edited on a computer. It is created in the folder that contains the selected image files when the PC-LESS Presentation is started or the Slideshow is configured.

  • Page 108: Maintenance

    Maintenance Maintenance Cleaning and replacing the air filter Check and clean the air filter periodically. When the indicators or a message prompts you to clean the air filter, comply with it as soon as possible. The filter unit is attached to inner side of the filter cover. If a filter of the filter unit is damaged or heavily soiled, replace the whole unit with a new one.
  • Page 109 Maintenance Cleaning and replacing the air filter (continued) Turn the projector on and reset the filter time using the FILTER TIME item in the EASY MENU. (1) Press the MENU button to display a menu. (2) Point at the FILTER TIME using the ▲/▼ buttons, then press the ► button. A dialog will appear.

  • Page 110: Other Care

    Maintenance Other care Inside of the projector To ensure the safe use of your projector, please have it cleaned and inspected by your dealer about once a year. Caring for the lens If the lens is flawed, soiled or fogged, it could cause deterioration of display quality.
  • Page 111 Maintenance Caring for the cabinet and remote control Incorrect care could have adverse influence such as discoloration, peeling paint, etc. Turn the projector off, and unplug the power cord. Allow the projector to cool sufficiently. After making sure that the projector is cool adequately, wipe lightly with gauze or a soft cloth.

  • Page 112: Troubleshooting

    Troubleshooting Troubleshooting If an abnormal operation should occur, stop using the projector immediately. WARNING ►Never use the projector if abnormal operations such as smoke, Troubleshooting strange odor, excessive sound, damaged casing or elements or cables, penetration of liquids or foreign matter, etc. should occur. In such cases, immediately disconnect the power plug from the power outlet.
  • Page 113 Troubleshooting Related messages (continued) Message Description The horizontal or vertical frequency of the input signal is not within the specified range. Please confirm the specs for your projector or the signal source specs. An improper signal is input. Please confirm the specs for your projector or the signal source specs.

  • Page 114: Regarding The Indicator Lamps

    Troubleshooting Troubleshooting Regarding the indicator lamps When operation of the POWER/STATUS1 and STATUS2 indicators differs from usual, check and cope with it according to the following table. If the same indication is displayed after the remedy or if other indication not described in the table below is displayed, contact your dealer or service company.
  • Page 115 Troubleshooting Regarding the indicator lamps (continued) POWER/STATUS1 STATUS2 Description indicator indicator The cooling fan is not operating. Please turn the power off, and allow the projector to Blinking Blinking cool down at least 20 minutes. After the projector has sufficiently cooled down, please make confirmation 7 times 1 ~ 5 times that no foreign matter has become caught in the fan,...
  • Page 116 Troubleshooting Regarding the indicator lamps (continued) POWER/STATUS1 STATUS2 Description indicator indicator There is a possibility that the interior portion has become overcooled. Blinking Blinking Please use the unit within the usage temperature parameters (0°C to 40°C). 9 times 1 ~ 3 times After the treatment, turn the power on.
  • Page 117 Troubleshooting Regarding the indicator lamps (continued) POWER/STATUS1 STATUS2 Description indicator indicator The interior portion has become heated. Turn the power off, and allow the projector to cool down at least 20 minutes. After the projector has sufficiently cooled down, confirm the following items, and then turn the power on again.

  • Page 118: Resetting All Settings

    Troubleshooting Resetting all settings When it is hard to correct some wrong settings, the FACTORY RESET function of SERVICE item in OPTION menu (91) can reset all settings (except settings such as STANDBY MODE, AUTO BLANK, LANGUAGE, LIGHT SOURCE TIME, FILTER TIME, FILTER MESSAGE, SECURITY, SCHEDULE, COMMUNICATION and NETWORK) to the factory default.
  • Page 119 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page The signal cables are not correctly connected. 23 ~ 28 Connect the audio cables correctly. The MUTE function is working. Restore the sound pressing the VOLUME +/- button on the remote control.
  • Page 120 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page The signal cables are not correctly connected. 23 ~ 28 Connect the connection cables correctly. The brightness is adjusted to an extremely low level. Adjust BRIGHTNESS to a higher level using the menu function.
  • Page 121 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page The FREEZE function is working. Video screen display freezes. Press the FREEZE button to restore the screen to normal. Color settings are not correctly adjusted.
  • Page 122 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page The OVER SCAN ratio is too big. Some kind Adjust OVER SCAN in the IMAGE menu smaller. of image Excessive VIDEO NR.
  • Page 123 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page function is working. SAVING/NETWORK (WOL) Select NORMAL or QUICK START for STANDBY MODE item in the SETUP menu. The internal clock has been reset.
  • Page 124 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page USB memory is out of memory. Unable to save • Please delete unnecessary files to free up memory. the CLONING At least 1MB of memory is needed.

  • Page 125: Specifications

    Specifications Specifications Please see the Specifications in the User’s Manual (concise) which is a book. End User License Agreement for the Product Software • Software in the projector consists of the plural number of independent software modules and there exist our copyright and/or third party copyrights for each of such software modules.

This manual is also suitable for:

Mp-jw4001Mp-jw4011Mp-jw3501Mp-jw3511

Table of Contents
